Adaptive cruise control symbols

[Rt1AWD]

I've searched but could not find the explanation what those cruise control symbols mean. So I'm starting the topic

View attachment 63414

I don't kno what does this mean

I dont know this one either

this means crossed the right lane. what else

This is bc on

This is bc on but need to keep your hands on steering wheal

This I really don't know



[Rt1AWD]

Where can I find some instruction that explains all those symbols



[TruWrecks]

I've searched but could not find the explanation what those cruise control symbols mean. So I'm starting the topic

View attachment 63414

I don't kno what does this mean

I dont know this one either

this means crossed the right lane. what else

This is bc on

This is bc on but need to keep your hands on steering wheal

This I really don't know

#1: Lane Centering Off.
#2: Lane Centering Ready
#3: Front Sensor for Adaptive Cruise detecting vehicle ahead, plus over the line on the right.
#4: Lane Centering Active - NOT BlueCruise! Co-Pilot 360
#5: Lane Centering with Steering Assist Active - NOT BlueCruise!
Co-Pilot 360
#5
#6: Front RADAR Blocked/not ready.

These are the best I can find and describe for each of the above images.



[macchiaz-o]

I don't kno what does this mean

This means cruise control and lane keeping are enabled, but at this time, the vehicle is not tracking lane markers with high confidence. As a result, the vehicle is not assisting with keeping you within the lane.

You will see a gray Lane Keeping System (LKS) indicator to the left of the odometer.

I dont know this one either

Now CC is enabled, lane keeping is also enabled, and the vehicle is assisting you with staying within your lane.

The LKS icon is green.

this means crossed the right lane. what else

The vehicle determined that you've crossed over your lane marker on your right side. The LKS icon is red.

This is bc on but need to keep your hands on steering wheal

This is like your green example above. In fact, your LKS icon is still green at this time. There are two additional driver assistance features enabled now:

Left/right lines are now semicircles: Lane centering assist (rather than simply staying within the lane, the vehicle is assisting with centering itself in the lane).

Semicircle ahead of your vehicle: The vehicle reduces its speed to stay a fixed distance behind the vehicle ahead of you. Once traffic clears, your set speed is resumed.

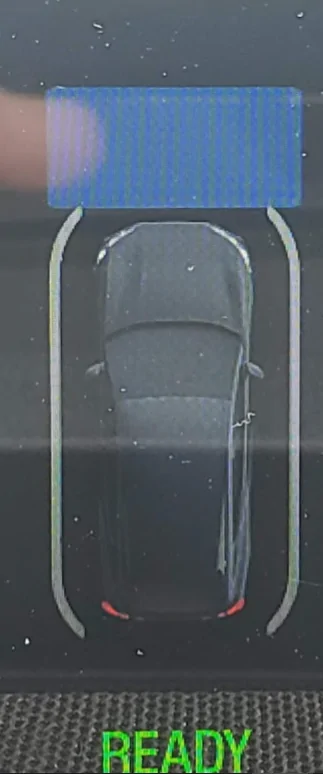

This I really don't know

This is like your first example... Cruise control is on. Lane keeping is on but not currently functional (the vehicle isn't confident about lane markings at this time). The LKS icon is gray.

You also have follow distance indicator turned on. This is showing you a blue box since you have ample distance to the vehicles ahead of you. It shrinks and turns more alarming colors as you move closer to the vehicle ahead of you.

This is bc on

BlueCruise hands free mode is active. You can remove your hands from the wheel if you assess that conditions are safe enough to do so. You must remain attentive to your surroundings and be ready to resume control.

This is the ONLY time you will see the LKS indicator be blue.



[SpaceEVDriver]

I tell everyone these are like Star Trek shields.

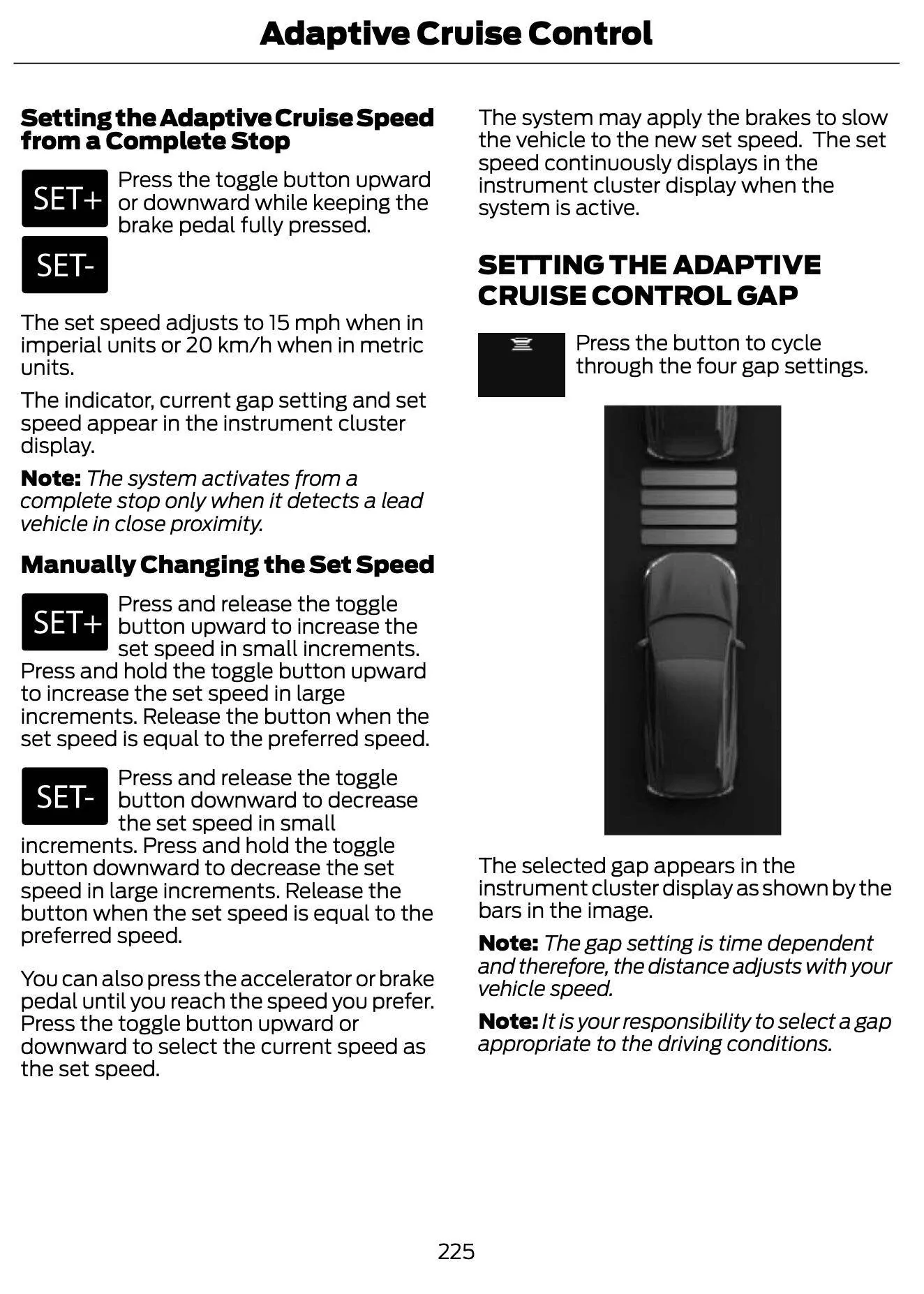

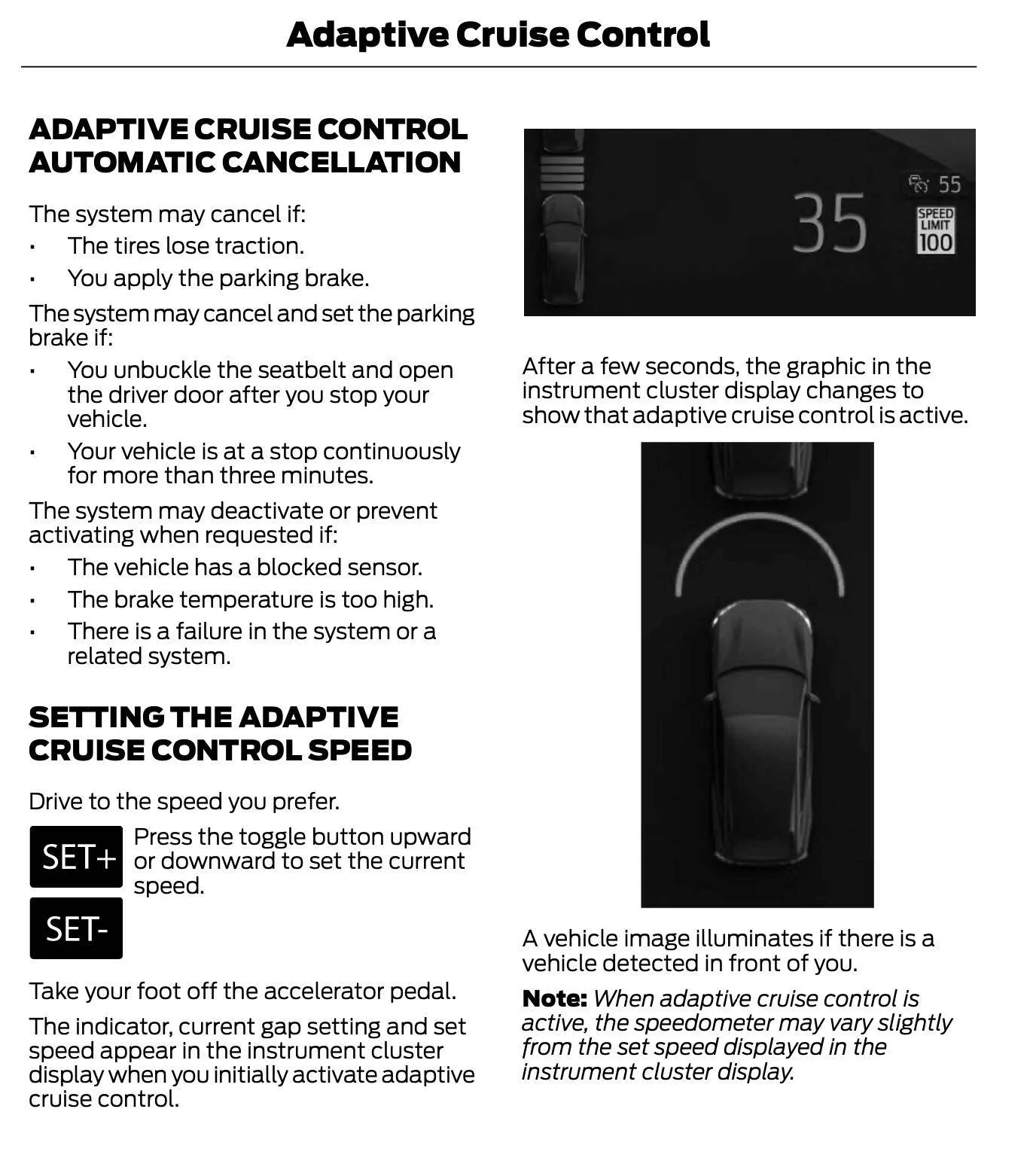

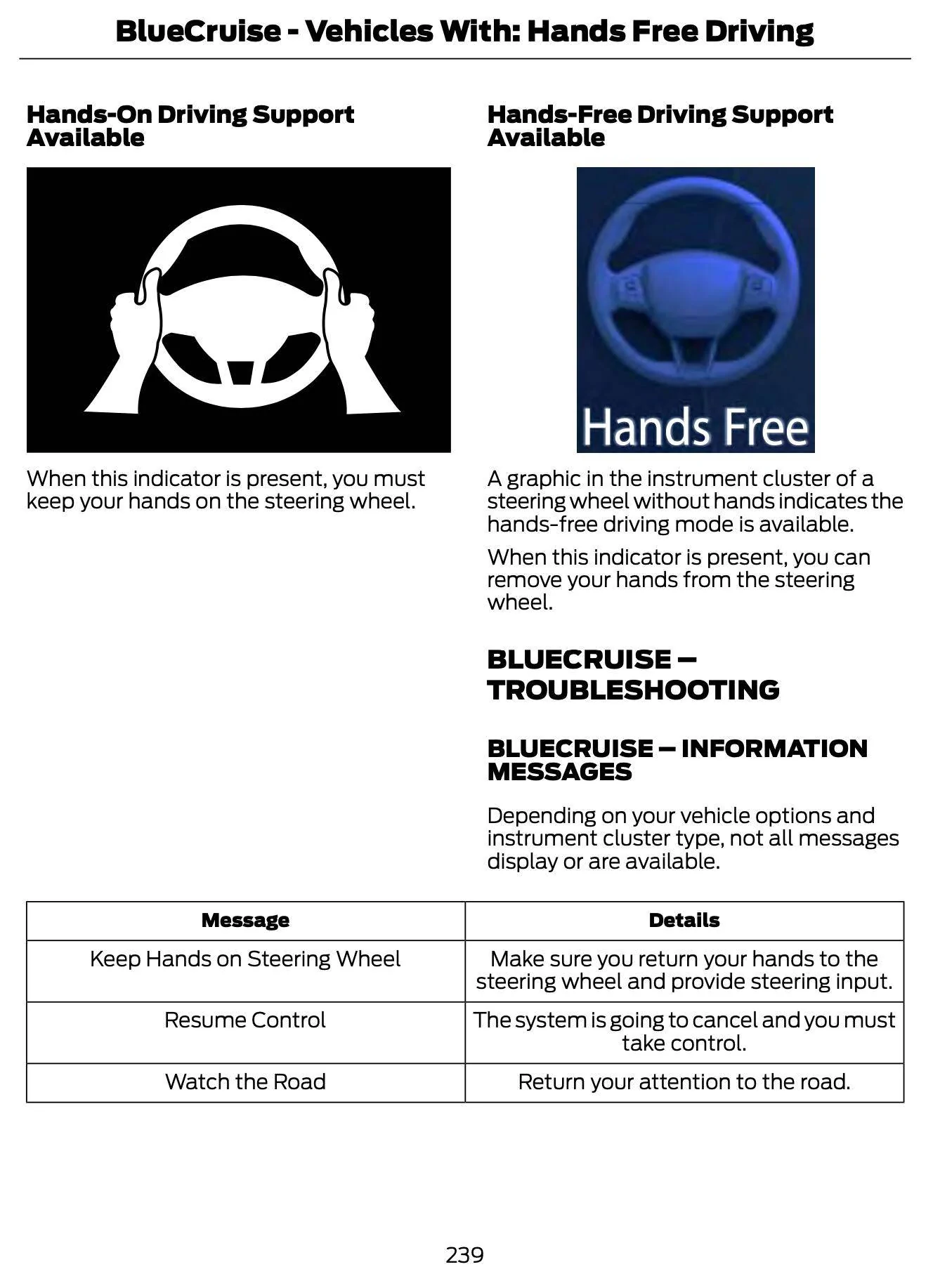

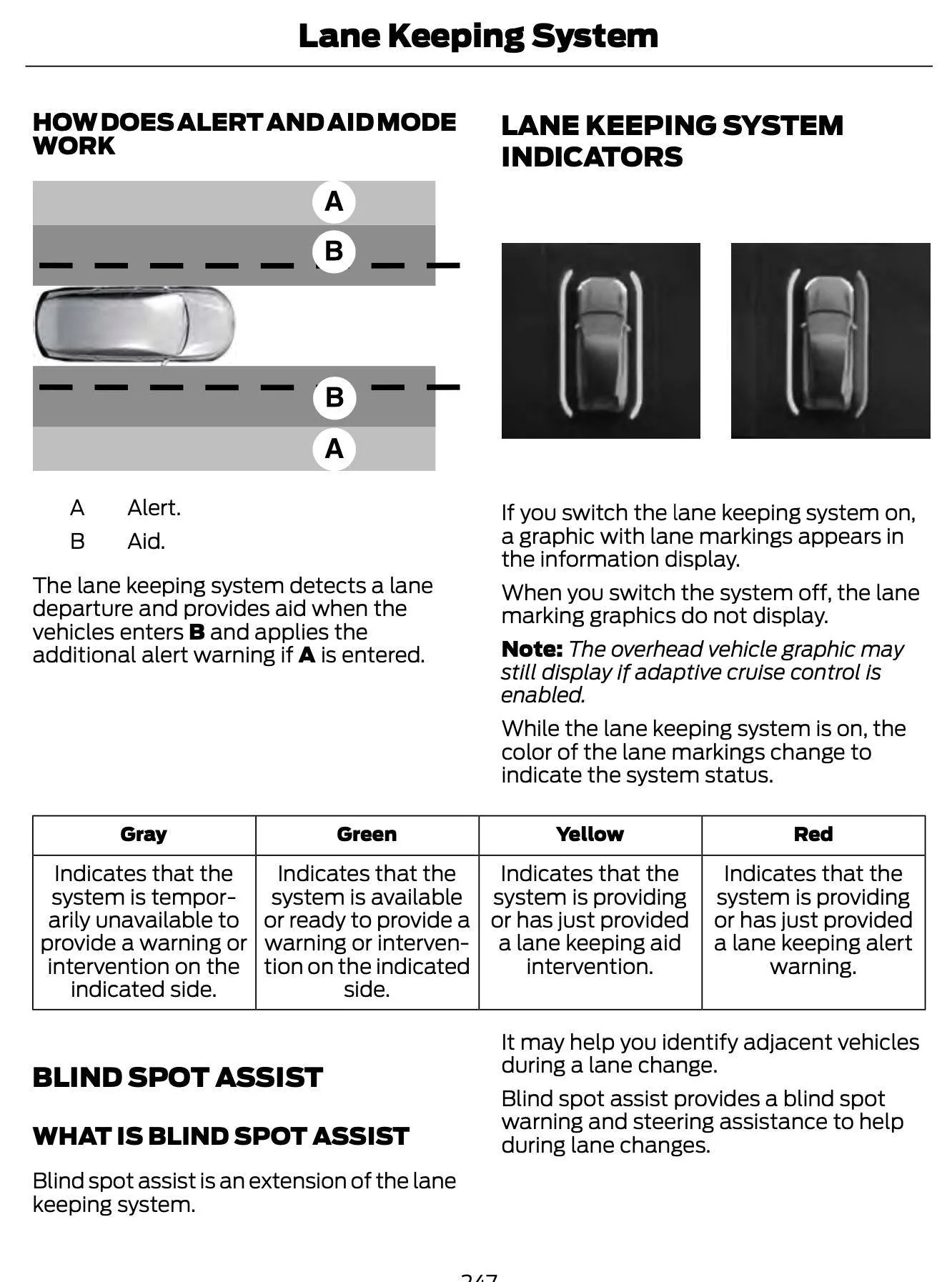

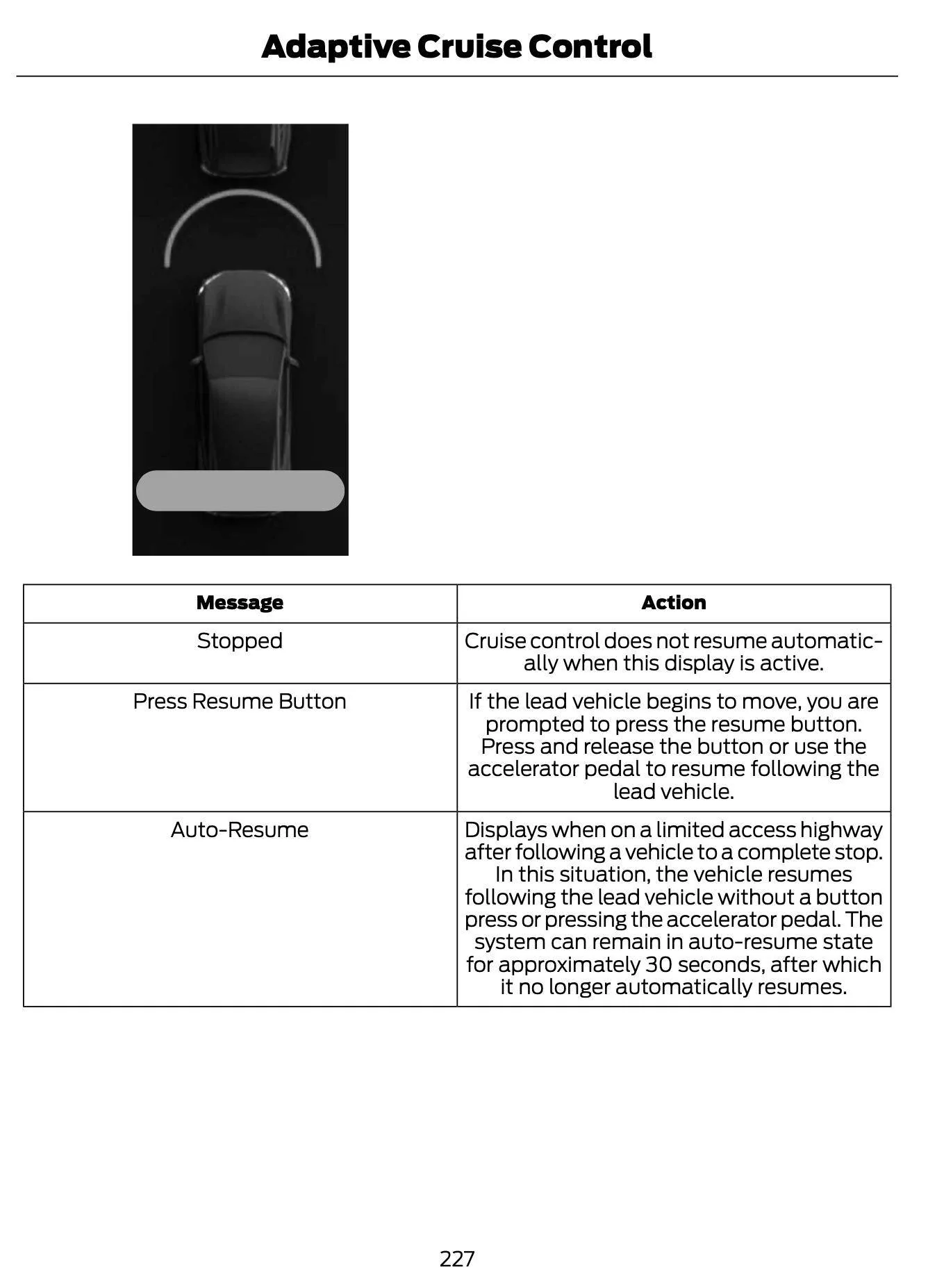

Some of the (poor-quality) graphics are in the owner's manual (at least the 2022 version).
