B&O sound system design

macchiaz-o

Well-Known Member
Joined
Nov 25, 2019
Messages
1,248
Reaction score
1,958
Location
Valley of the Sun
Vehicles
Fiesta » '21 InfB/SG
Country flag
https://media.ford.com/content/ford...inning-audio-design-brings-home-comfort-.html

MUSTANG MACH-E’S AWARD-WINNING AUDIO DESIGN BRINGS HOME COMFORT, STYLE AND PREMIUM SOUND IN TO THE CABIN
15-Jul-2020 | Cologne, Germany




A growing desire for a premium audio experience in vehicles1 and the emerging trend for creating a more domestic feeling environment in electrified vehicles has been integral to the award-winning design2 of all-new, all-electric Mustang Mach-E’s B&O Sound System.

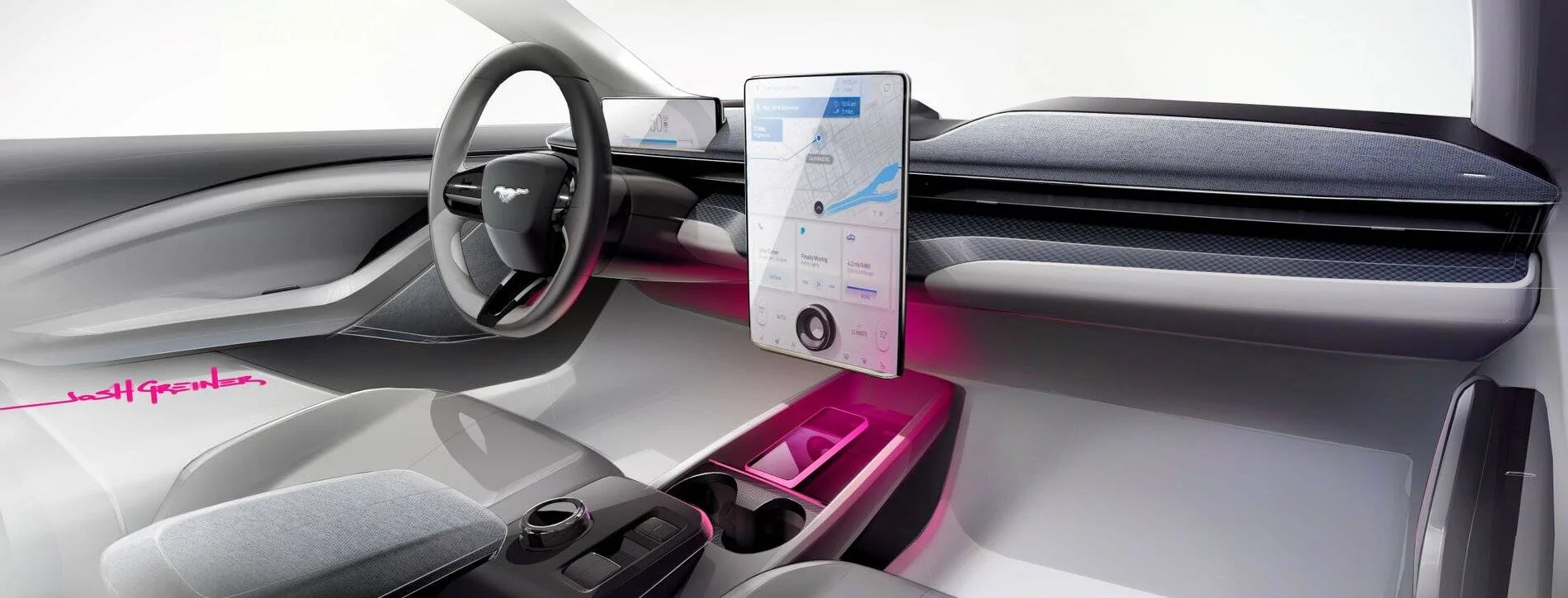

Ford’s human-centric design philosophy and the fact drivers spend an average of four years of their life behind the wheel3 also contribute to the unique design, which sees one third of its dashboard dominated by the audio. It’s the first Ford vehicle to give its audio system such prominence.

The specially developed Heathered Grey textile that conceals the dashboard-mounted tweeters replicates the look and feel of the fabric-based speaker covers of B&O’s iconic home speakers, yet is robust enough for use in a vehicle.

This not only gives all occupants of the Mustang Mach-E, including passengers both front and rear, a great audio experience and makes a significant style statement, it also helps to create an element of calmness. For drivers it makes being behind the steering wheel an even more compelling place to be.

Audio system
An Externally Coupled Subwoofer (ECS) also uses the cabin’s unique shape to produce powerful bass performance, despite being around half the weight of a traditional subwoofer and taking up around 80 per cent less space. The weight-saving is just one of the measures Ford has taken to help Mustang Mach-E achieve a targeted WLTP driving range of up to 600 km (more than 370 miles) in rear-wheel drive configuration.4

Drawing inspiration from the B&O sound experience in the Mustang, HARMAN acoustic engineers re-examined the acoustic characteristic of the Mustang system to craft a similar aural experience. Electric vehicles are inherently quieter thanks to a lack of noise from a traditional internal combustion engine, however this does reveal new sources of noise that are usually muffled. This was something the engineers overcame while leveraging the opportunities of a quiet EV cabin – preserving rich bass performance and maintaining the clarity and detail true to the artist’s intent.

Spoken voice
The tuning also makes the most of the spoken voice, which helps audio books to be more immersive, gives phone calls extra clarity and, with the growing trend of drive-in cinemas, can even convey the rich range of sounds in movies with high quality. Mach-E’s infotainment system even has integrated apps for podcasts – unlike some rivals – and is able to play them with optimum performance through the audio.

Additional technology
The Mach-E is geared-up for the future with over-the-air updates that allows the vehicle to stay at the forefront of technology without the owner having to leave home. Nearly all Mach-E computer modules can be updated wirelessly, meaning Ford can deliver performance enhancements and entirely new features that might not exist when customers first take delivery of their vehicles.

The all-electric Mustang Mach-E spearheads a rapidly expanding Ford electrified vehicle range and is one of 18 new electrified vehicles the company is introducing to Europe before the end of 2021.

Quotes
“Human-centric design is about focusing on all the senses. Sound is an integral part of peoples’ lives and has become an integral part of our design too, whether it’s for practical business communication or the goosebumps stimulated by musical experiences.” Amko Leenarts, design director, Ford of Europe

“Listening to music can positively impact mood. A premium sound system can not only increase the enjoyment of the vehicle, but studies show it can even help drivers to focus, particularly on long monotonous roads5.” Brandon Wheeler, Harman Sr. Manager of Acoustics for Ford/ Lincoln

Links
1https://news.ihsmarkit.com/prviewer...-new-vehicle-purchase-decisions-ihs-markit-su
2iF DESIGN AWARD 2020 in the product discipline
3 https://www.webuyanycar.com/about-us/press-centre/drive-of-a-lifetime/
4The declared fuel/energy consumptions, CO2-emissions and electric range are determined according to the technical requirements and specifications of the European Regulations (EC) 715/2007 and (EU) 2017/1151 as last amended. Light Duty Vehicle type-approved using the World Harmonised Light Vehicle Test Procedure (WLTP) will have fuel/energy consumption and CO2-emission information for New European Drive Cycle (NEDC) and WLTP. WLTP will fully replace the NEDC latest by the end of the year 2020. The applied standard test procedures enable comparison between different vehicle types and different manufacturers. During NEDC phase-out, WLTP fuel consumption and CO2 emissions are being correlated back to NEDC. There will be some variance to the previous fuel economy and emissions as some elements of the tests have altered, so the same car might have different fuel consumption and CO2 emissions.
5 https://www.sciencedaily.com/releases/2013/06/130606101550.htm


Attachments

OP
macchiaz-o

macchiaz-o

Well-Known Member
Joined
Nov 25, 2019
Messages
1,248
Reaction score
1,958
Location
Valley of the Sun
Vehicles
Fiesta » '21 InfB/SG
Country flag
  • Thread starter
  • Thread Starter
  • #3
I'm curious to learn more about the "integrated app for podcasts," though most likely I'll continue to use my favorite, Podcast Addict.


cjljr41

Well-Known Member
First Name
Chuck
Joined
Jan 5, 2020
Messages
65
Reaction score
41
Location
Windsor, CT
First Name
Chuck
Vehicles
2017 Escape Titanium, 2018 Legacy Premium, 2018 GSX-R1000R
Country flag

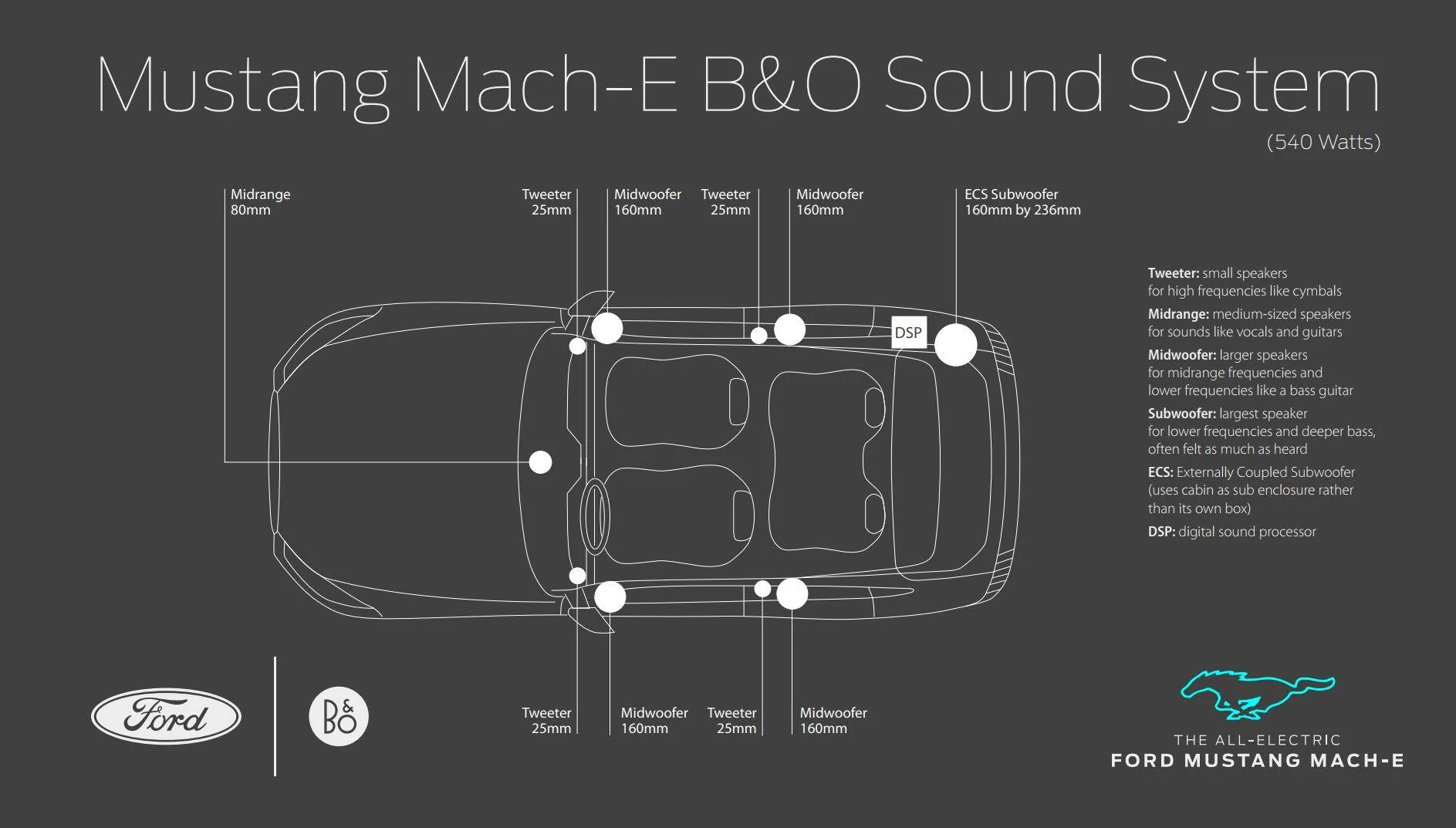

Since the sub doesn't have it's own enclosure, I'm glad that there are four mid-woofers. I was expecting the "sound bar" to contain more speakers.


cjljr41

Well-Known Member
First Name
Chuck
Joined
Jan 5, 2020
Messages
65
Reaction score
41
Location
Windsor, CT
First Name
Chuck
Vehicles
2017 Escape Titanium, 2018 Legacy Premium, 2018 GSX-R1000R
Country flag
Also, 6" x 9" for a subwoofer seems a bit underwhelming.


abr

Well-Known Member
Joined
Apr 4, 2020
Messages
118
Reaction score
135
Location
thousand oaks, ca
Vehicles
2010 Fusion Hybrid, 2019 Fusion PHEV
Country flag
370 miles ...I wonder how likely?
370 WLTP. Ford expects 300 EPA. Ford hasn't come out with final numbers yet. Also, since they have "walled off" more battery capacity than other manufacturers are doing, I would expect over time they will open up more capacity and the EPA range will grow.


highland58

Well-Known Member
First Name
Dave
Joined
Jan 6, 2020
Messages
149
Reaction score
123
Location
Seattle area
First Name
Dave
Vehicles
2018 Honda Clarity PHEV and 2016 Nissan LEAF, MME First Edition on order
Occupation
IT
Country flag
So with all that grill on the dash, only 3 small speakers and a lot of empty space? Does it clip on with magnets like my Klipsch speaker grills 😉


krafty81

Well-Known Member
First Name
Terry
Joined
Jun 23, 2020
Messages
62
Reaction score
49
Location
San Diego
First Name
Terry
Vehicles
2014 Kia Sorento, 2013 Ford Escape
Country flag
Love the shout out to Drive - Ins!


jeffdawgfan

Well-Known Member
First Name
Jeff
Joined
Dec 17, 2019
Messages
58
Reaction score
58
Location
Georgia, USA
First Name
Jeff
Vehicles
2019 Nissan Leaf Plus, 2018 GMC Canyon
Occupation
Retired Navy / Veterans Administration
Country flag
One midrange on the dash.....hmmm. The first thing I have done in my last few vehicles is disconnect that middle midrange as it ruins the stereo effect. I have also not been very impressed with factory installed tweeters lately either. Manufacturers brag about how many speakers their system has...but how good are they. I am betting every one of these speakers is a standard paper car audio speaker. They are just begging to be replaced with quality speakers. Can't wait to hear it and see how it can be improved.


Daniel M

Active Member
First Name
Daniel
Joined
Apr 1, 2020
Messages
29
Reaction score
21
Location
Southern CA
First Name
Daniel
Vehicles
Explorer, Model 3
Country flag
One midrange on the dash.....hmmm. The first thing I have done in my last few vehicles is disconnect that middle midrange as it ruins the stereo effect. I have also not been very impressed with factory installed tweeters lately either. Manufacturers brag about how many speakers their system has...but how good are they. I am betting every one of these speakers is a standard paper car audio speaker. They are just begging to be replaced with quality speakers. Can't wait to hear it and see how it can be improved.
You would hope with the B&O branding that they would up the quality of the speaker build and not go with standard and basic speaker quality.🤞


krafty81

Well-Known Member
First Name
Terry
Joined
Jun 23, 2020
Messages
62
Reaction score
49
Location
San Diego
First Name
Terry
Vehicles
2014 Kia Sorento, 2013 Ford Escape
Country flag
You would hope with the B&O branding that they would up the quality of the speaker build and not go with standard and basic speaker quality.🤞
They pay for the name and little else sometimes. I too am very interested to hear the "soundbar"


RidetheLightning

Well-Known Member
First Name
Ian
Joined
Feb 21, 2020
Messages
60
Reaction score
63
Location
Hollywood, CA
First Name
Ian
Vehicles
1968 Mustang, 2007 Mustang GT
Country flag
So what does the non-B&O cars get? Like the select? Just door speakers and a regular dash?
