MrRongoose

Active Member
Joined
Apr 28, 2021
Messages
35
Reaction score
42
Location
NJ, USA
Vehicles
2021 Mustang Mach E Premium AWD SR Red/Blk Onyx
Country flag
@AjzRide Thanks for this. It does work this time around. I actually like that it stops full opening, I keep it closed up to the charger to give a further buffer. I was using the velcro on the mobile plug temporarily to hold it slightly closed when charging. I was considering trying out the Jawstech to see how it compares but might wait to see if @AEtherScythe adds a further revision. I was looking at adding a bump in the middle that meets the stopper in the car or making that area thicker. Would be far enough forward that you can still install but gives more room to stop not just in the rear behind the door part.

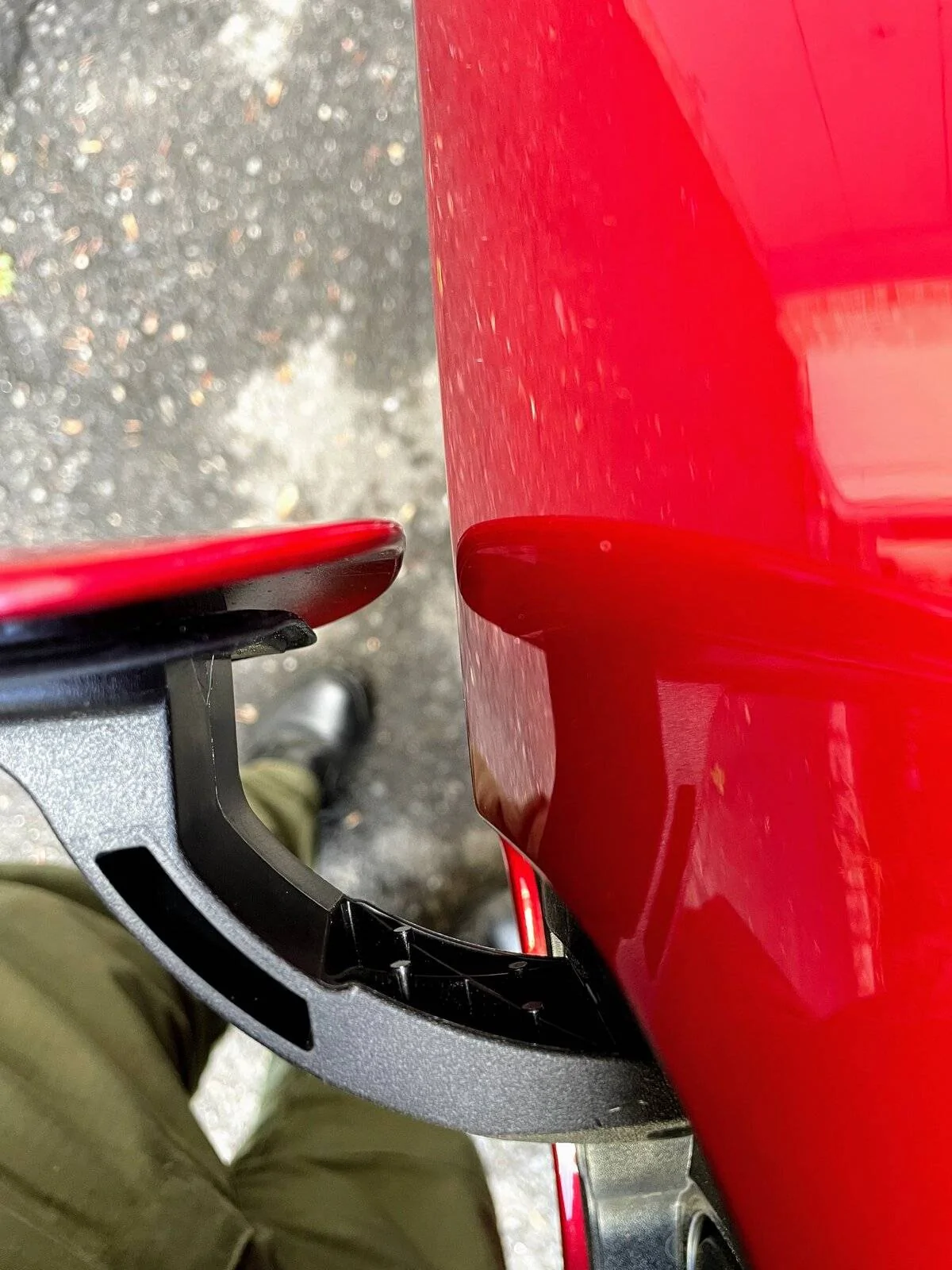

Before:

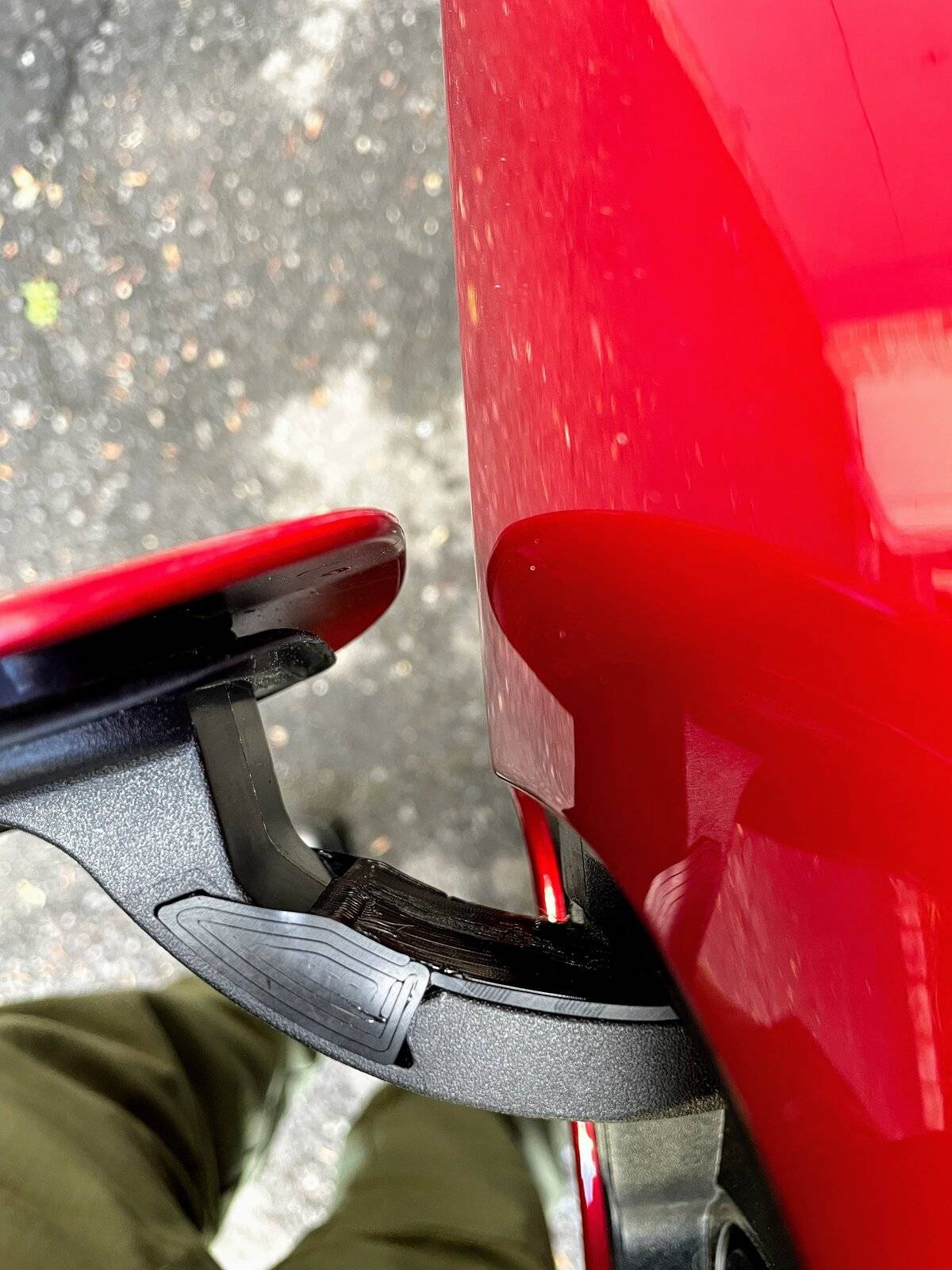

After:


Scarpia

Well-Known Member
First Name
Mike
Joined
Jan 5, 2021
Messages
162
Reaction score
210
Location
SoCal
Vehicles
Infinite Blue Premium, Standard Range, RWD
Country flag
Got the new one yesterday (shout out to @AjzRide!) and put it on today. The older one worked pretty well for me after shaving it down a bit, but I had broken the top tab off when installing it. This is a better fit and works great.
Again, thanks to everyone for their work on this project - the time and effort is appreciated. The whole thing is really quite brilliant.


Kamuelaflyer

Well-Known Member
Joined
Feb 18, 2020
Messages
2,903
Reaction score
5,615
Location
Hawaii
Vehicles
2021 MME, Premium, infinite Blue. ER AWD
Country flag
Nice job! The new one greatly reduces the chance of damage and doesn’t impede closing the cover. It does stop the door from popping all the way open initially but is easy to open all the way by hand.

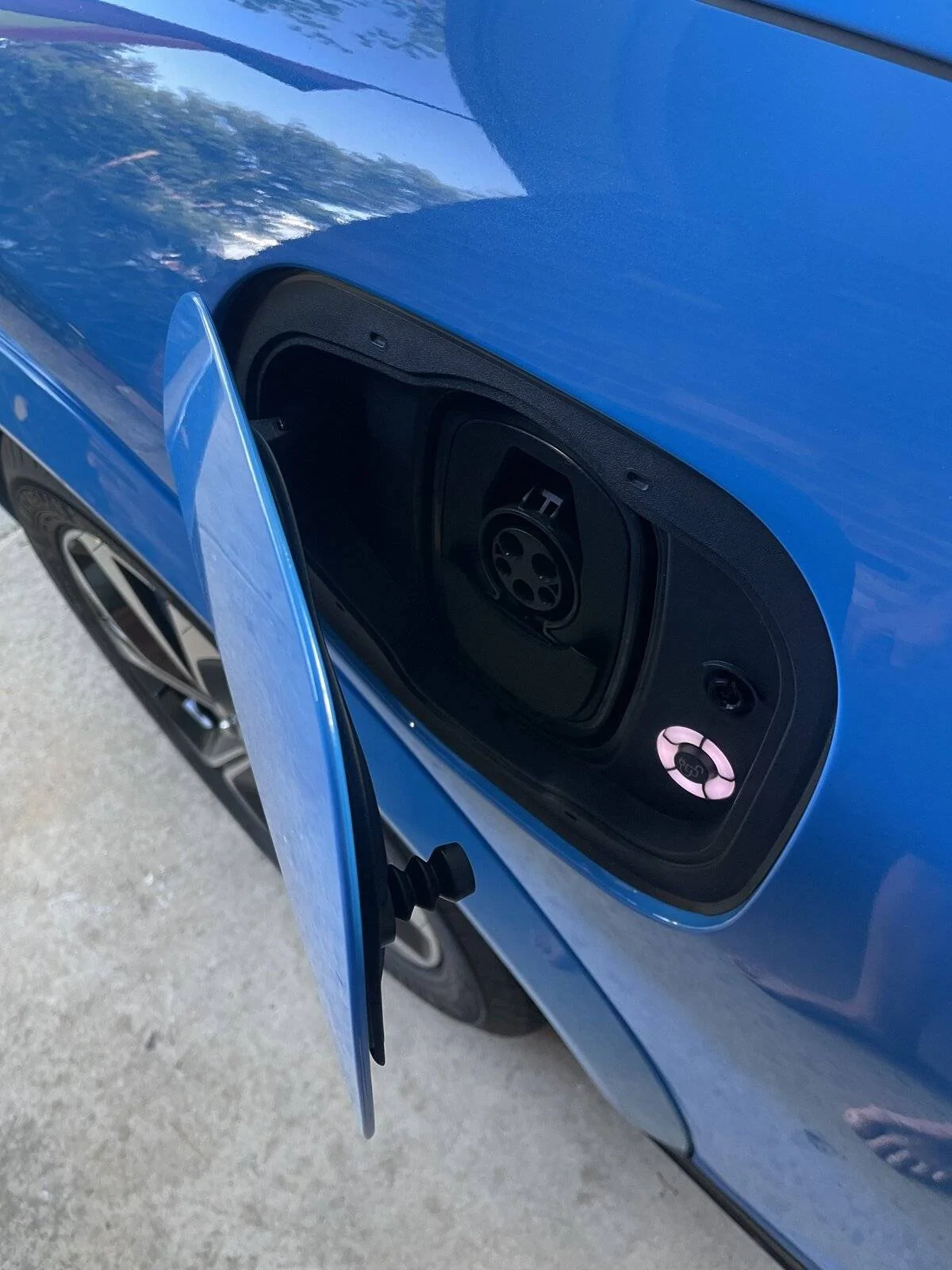

The door stops at

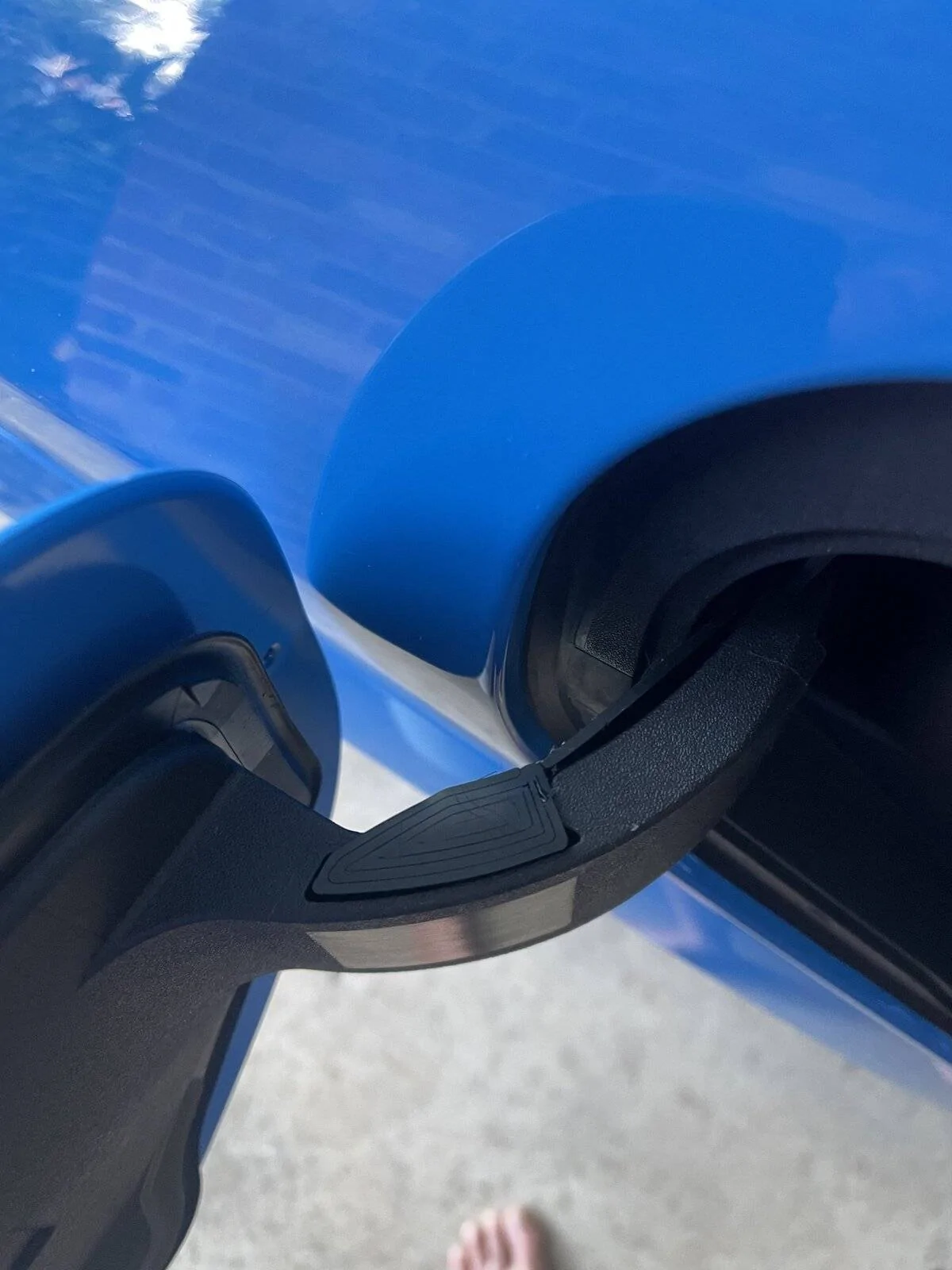

The door then opens fine and does a nice job of resisting against over-extension and impact with the body.
Thanks for those photos Mark. I’ve ordered a pair for my MME (1 to use and a spare). Those do a good job of showing how it’ll work.


al14

Well-Known Member
First Name
Alisdair
Joined
Jan 6, 2021
Messages
94
Reaction score
54
Location
Scotland
Vehicles
Mach-e RWD extended range
Occupation
Taiji Instructor
Country flag
UPDATE 4 June 2021:
If you'd like to get the highest quality possible part with the black vapor finish, you can now just go here and place an order with JawsTec.
$20 plus $10 shipping on quantity one.

https://www.jawstec.com/product/wedge-mme-chargeport-door/

Original Post:

A few weeks back at the #NationalMustangDay event in Detroit, @JWW mentioned an incident with a basketball led to hyper-extension of his MME charge port cover and made a dent just forward of the charge port cover. I immediately set to looking for a preventative solution. Unfortunately, before I could complete my quest, our MME suffered a similar, but less dramatic fate. We don't even know how it happened other than perhaps it was very windy one day when we using a DC fast charger. We're going to need to get the dent fixed, but I wanted to make sure that we had a solution to prevent a re-occurrence, before taking any action.

Fast forward to now. I have developed a 3D model for an insert that adds a small wedge on the inside of the charge port arm to prevent it from opening too far.
Sure you could still body slam it and overcome the wedge, but you'll probably break the cover off before that happens.

Below are the pics of the finished design. This has to be printed in TPU or similar flexible material with a shore hardness rating of 85A-90A or it can't be finagled into position. Installation has to be done with the charge port cover closed as much as possible, while working the wedge into place, then after that it's pretty easy to insert the upper and lower retaining wings.

I've posted two versions of the part, one without support so you can send off to a service to have it printed in TPU 85A (or similar) using Selective Laser Sintering technology or if you have a direct drive printer you can try using your slicer's built-in support with that version (V.1.N).
The second version of the part is the one I print on my Lulzbot Taz Pro with in-built support, meaning I do not let my slicer generate support. I had to keep tweaking the inbuilt support version (V.1A.S) to increase the gap between the angled support at the top. A gap of 0.5mm between the in-built support and the actual part wasn't enough, but 0.75mm seems to be a happy medium re: it does work as support and it isn't too difficult to remove. All I had to do was use some side cutters to get a grip on the angled bit and tear it free.

https://www.thingiverse.com/thing:4847310

Video showing installation + usage:
was going to order but only an expedited delivery option of $50 for a $20 item is ridiculous. I have paid far less delivery from the states to the UK for bigger and heavier items. Good idea but poor marketing.

OP
AEtherScythe

AEtherScythe

Well-Known Member
First Name
Leon
Joined
Oct 11, 2020
Messages
98
Reaction score
293
Location
Michigan
Vehicles
Ford Mustang Mach-E, Ford Escape Hybrid
Occupation
Sr. IT/Product Architect; Enterprise and Cloud Manageability Engineering
Country flag
was going to order but only an expedited delivery option of $50 for a $20 item is ridiculous. I have paid far less delivery from the states to the UK for bigger and heavier items. Good idea but poor marketing.
Uploading to Shapeways might work better from Europe. I suggest writing them and see if you can get it in black and whether they can do a vapor polish finish. Remember you want SLS processing and TPU material.


AlpaChino

Member
First Name
JB
Joined
May 4, 2021
Messages
9
Reaction score
30
Location
Indiana
Vehicles
Mach-e Premium eAWD Ext Range, Rapid Red
Country flag
Amazing work, you are a lifesaver! Many thanks.

UPDATE 4 June 2021:
If you'd like to get the highest quality possible part with the black vapor finish, you can now just go here and place an order with JawsTec.
$20 plus $10 shipping on quantity one.

https://www.jawstec.com/product/wedge-mme-chargeport-door/

Original Post:

A few weeks back at the #NationalMustangDay event in Detroit, @JWW mentioned an incident with a basketball led to hyper-extension of his MME charge port cover and made a dent just forward of the charge port cover. I immediately set to looking for a preventative solution. Unfortunately, before I could complete my quest, our MME suffered a similar, but less dramatic fate. We don't even know how it happened other than perhaps it was very windy one day when we using a DC fast charger. We're going to need to get the dent fixed, but I wanted to make sure that we had a solution to prevent a re-occurrence, before taking any action.

Fast forward to now. I have developed a 3D model for an insert that adds a small wedge on the inside of the charge port arm to prevent it from opening too far.
Sure you could still body slam it and overcome the wedge, but you'll probably break the cover off before that happens.

Below are the pics of the finished design. This has to be printed in TPU or similar flexible material with a shore hardness rating of 85A-90A or it can't be finagled into position. Installation has to be done with the charge port cover closed as much as possible, while working the wedge into place, then after that it's pretty easy to insert the upper and lower retaining wings.

I've posted two versions of the part, one without support so you can send off to a service to have it printed in TPU 85A (or similar) using Selective Laser Sintering technology or if you have a direct drive printer you can try using your slicer's built-in support with that version (V.1.N).
The second version of the part is the one I print on my Lulzbot Taz Pro with in-built support, meaning I do not let my slicer generate support. I had to keep tweaking the inbuilt support version (V.1A.S) to increase the gap between the angled support at the top. A gap of 0.5mm between the in-built support and the actual part wasn't enough, but 0.75mm seems to be a happy medium re: it does work as support and it isn't too difficult to remove. All I had to do was use some side cutters to get a grip on the angled bit and tear it free.

https://www.thingiverse.com/thing:4847310

Video showing installation + usage:


ChasingCoral

Well-Known Member
First Name
Mark
Joined
Feb 3, 2020
Messages
7,858
Reaction score
15,260
Location
Maryland
Vehicles
GB MME FE, Leaf, Tacoma, F-150 Lightning reserved
Country flag
The door then opens fine and does a nice job of resisting against over-extension and impact with the body.
Thanks to @AEtherScythe for the design and @AjzRide for the implementation. I think I installed this just in time. Yesterday, Marlin was plugged in to charge in the car port. I had just unplugged the lawn mower cord on the adjacent wall when I turned and bumped right into the charge port door pushing in and forward. I'm confident I would have a dent today if I hadn't installed this guard!


machefan

Well-Known Member
Joined
Jan 14, 2020
Messages
1,243
Reaction score
1,743
Location
NJ
Vehicles
RR FE 21', Leaf 18' and Wranger 17'
Occupation
IT
Country flag
Thanks to @AEtherScythe for the design and @AjzRide for the implementation. I think I installed this just in time. Yesterday, Marlin was plugged in to charge in the car port. I had just unplugged the lawn mower cord on the adjacent wall when I turned and bumped right into the charge port door pushing in and forward. I'm confident I would have a dent today if I hadn't installed this guard!
I will say that again :)

Thanks to @AEtherScythe for the design and @AjzRide for the implementation!!!!


hybrid2bev

Well-Known Member
Joined
Dec 4, 2019
Messages
1,878
Reaction score
4,948
Location
USA
Vehicles
2021 Mustang Mach-E Premium 4X, 2020 Explorer ST
Country flag
Thanks to @AEtherScythe for the design and @AjzRide for the implementation. I think I installed this just in time. Yesterday, Marlin was plugged in to charge in the car port. I had just unplugged the lawn mower cord on the adjacent wall when I turned and bumped right into the charge port door pushing in and forward. I'm confident I would have a dent today if I hadn't installed this guard!
Talked me into it. I ordered one today.


JohnnyForensic

Well-Known Member
First Name
John
Joined
Apr 14, 2021
Messages
92
Reaction score
137
Location
VA, US
Vehicles
MME 4X (Ord 4/6/21, Mfg 6/27/21, Del ??)
Occupation
Digital Forensics
Country flag
UPDATE 4 June 2021:
If you'd like to get the highest quality possible part with the black vapor finish, you can now just go here and place an order with JawsTec.
$20 plus $10 shipping on quantity one.

https://www.jawstec.com/product/wedge-mme-chargeport-door/

Original Post:

A few weeks back at the #NationalMustangDay event in Detroit, @JWW mentioned an incident with a basketball led to hyper-extension of his MME charge port cover and made a dent just forward of the charge port cover. I immediately set to looking for a preventative solution. Unfortunately, before I could complete my quest, our MME suffered a similar, but less dramatic fate. We don't even know how it happened other than perhaps it was very windy one day when we using a DC fast charger. We're going to need to get the dent fixed, but I wanted to make sure that we had a solution to prevent a re-occurrence, before taking any action.

Fast forward to now. I have developed a 3D model for an insert that adds a small wedge on the inside of the charge port arm to prevent it from opening too far.
Sure you could still body slam it and overcome the wedge, but you'll probably break the cover off before that happens.

Below are the pics of the finished design. This has to be printed in TPU or similar flexible material with a shore hardness rating of 85A-90A or it can't be finagled into position. Installation has to be done with the charge port cover closed as much as possible, while working the wedge into place, then after that it's pretty easy to insert the upper and lower retaining wings.

I've posted two versions of the part, one without support so you can send off to a service to have it printed in TPU 85A (or similar) using Selective Laser Sintering technology or if you have a direct drive printer you can try using your slicer's built-in support with that version (V.1.N).
The second version of the part is the one I print on my Lulzbot Taz Pro with in-built support, meaning I do not let my slicer generate support. I had to keep tweaking the inbuilt support version (V.1A.S) to increase the gap between the angled support at the top. A gap of 0.5mm between the in-built support and the actual part wasn't enough, but 0.75mm seems to be a happy medium re: it does work as support and it isn't too difficult to remove. All I had to do was use some side cutters to get a grip on the angled bit and tear it free.

https://www.thingiverse.com/thing:4847310

Video showing installation + usage:
Thank you so much for all the work you did on this; I've ordered mine and I won't even have the car for another two months.

That said, I wonder if Ford has made changes to those rolling off the line recently to further prevent this issue since it's such a prevalent thread here and we know they're watching? Does anyone with a very recent delivery know if the door has been manufactured any differently?

Regardless, I'll have mine in hand to install the first day. Much appreciated.

OP
AEtherScythe

AEtherScythe

Well-Known Member
First Name
Leon
Joined
Oct 11, 2020
Messages
98
Reaction score
293
Location
Michigan
Vehicles
Ford Mustang Mach-E, Ford Escape Hybrid
Occupation
Sr. IT/Product Architect; Enterprise and Cloud Manageability Engineering
Country flag
Thank you so much for all the work you did on this; I've ordered mine and I won't even have the car for another two months.

That said, I wonder if Ford has made changes to those rolling off the line recently to further prevent this issue since it's such a prevalent thread here and we know they're watching? Does anyone with a very recent delivery know if the door has been manufactured any differently?

Regardless, I'll have mine in hand to install the first day. Much appreciated.
I know through channels that Ford is aware of the issue (and my work), but I do not know if any change has been made to the actual charge port door assembly to mitigate the problem.
