This is a lengthy tutorial with photos showing how I added my dash cam and radar detector to my Mach-E
A few points before we get started:
Obtaining switched and constant 12 V power
The radar detector needs a switched 12 V power supply and the dash cam needs both a switched 12 V supply and a constant 12 V supply to record problems while the car is parked. In previous vehicles, I had no trouble finding both switched and constant power somewhere in the overhead mirror compartment but could only find switched on this car.

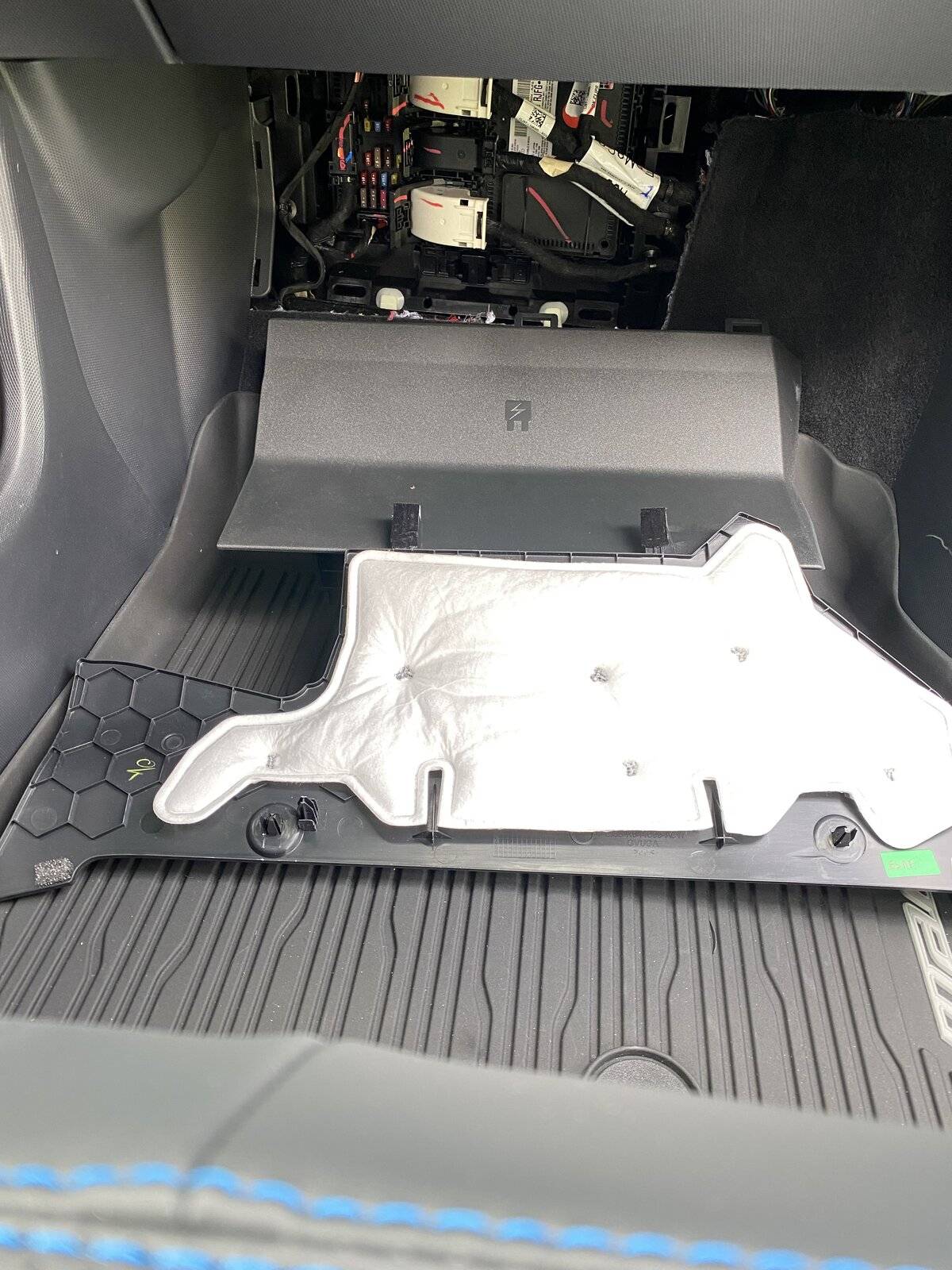

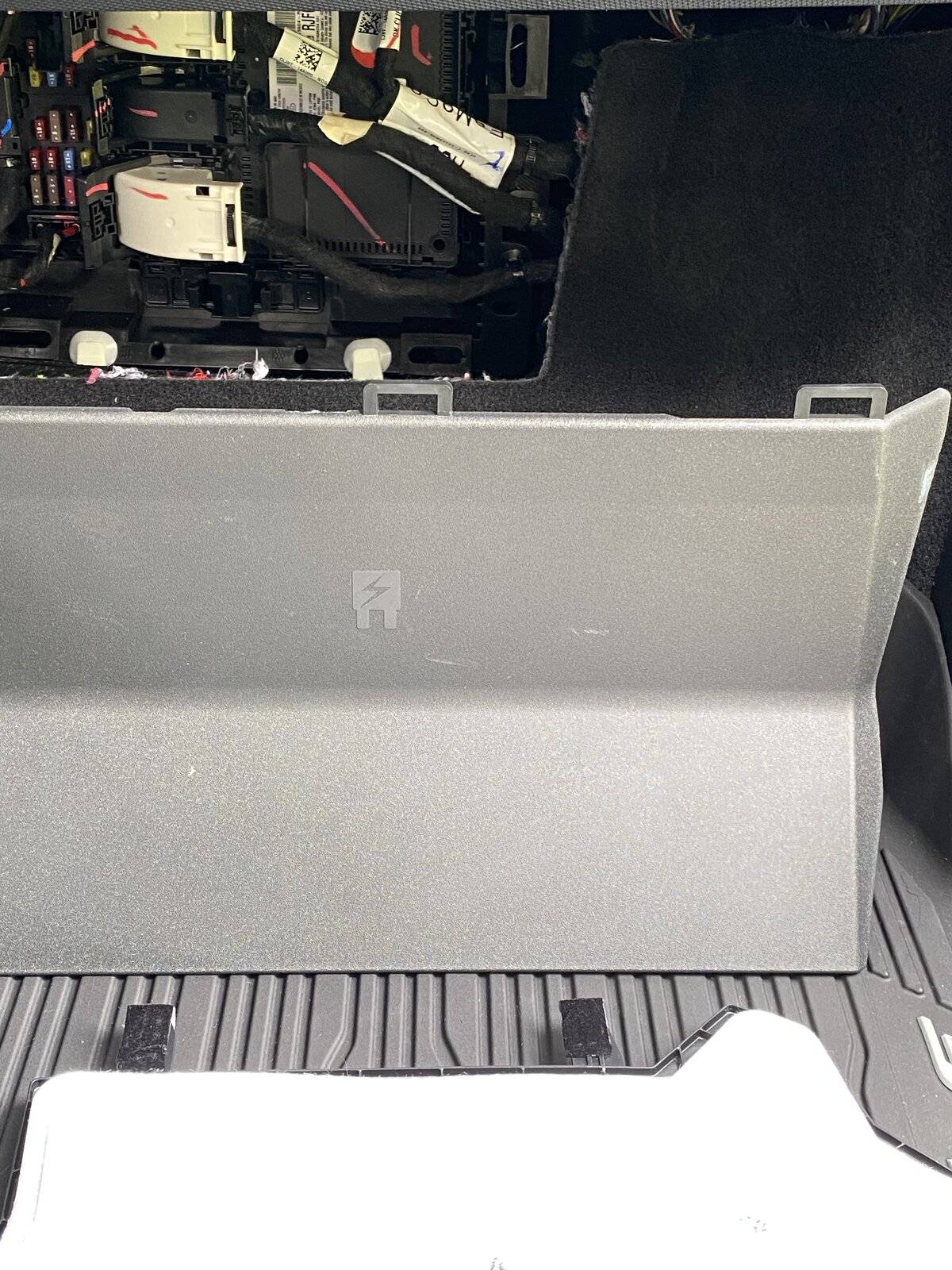

I also do not like to overly strain the built-in wires. When possible, I prefer to run new circuits from the fuse box up to the windshield to power both toys. That is what I did in this case. There is a fuse box behind the passenger kick panel. With a little experimentation, I found high capacity circuits of both types. Page 278 of the owners manual will show you how to remove that kick plate.

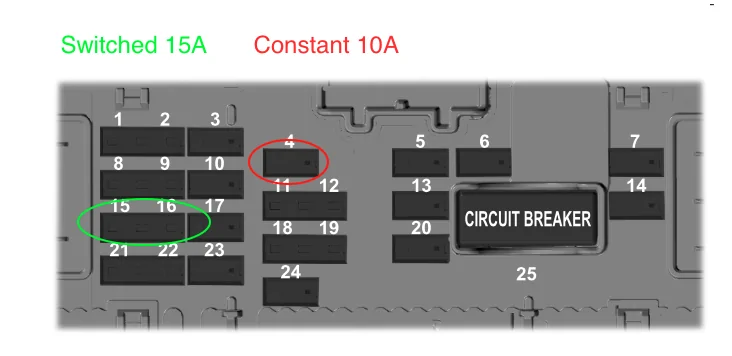

From page 279 of the owners manual:

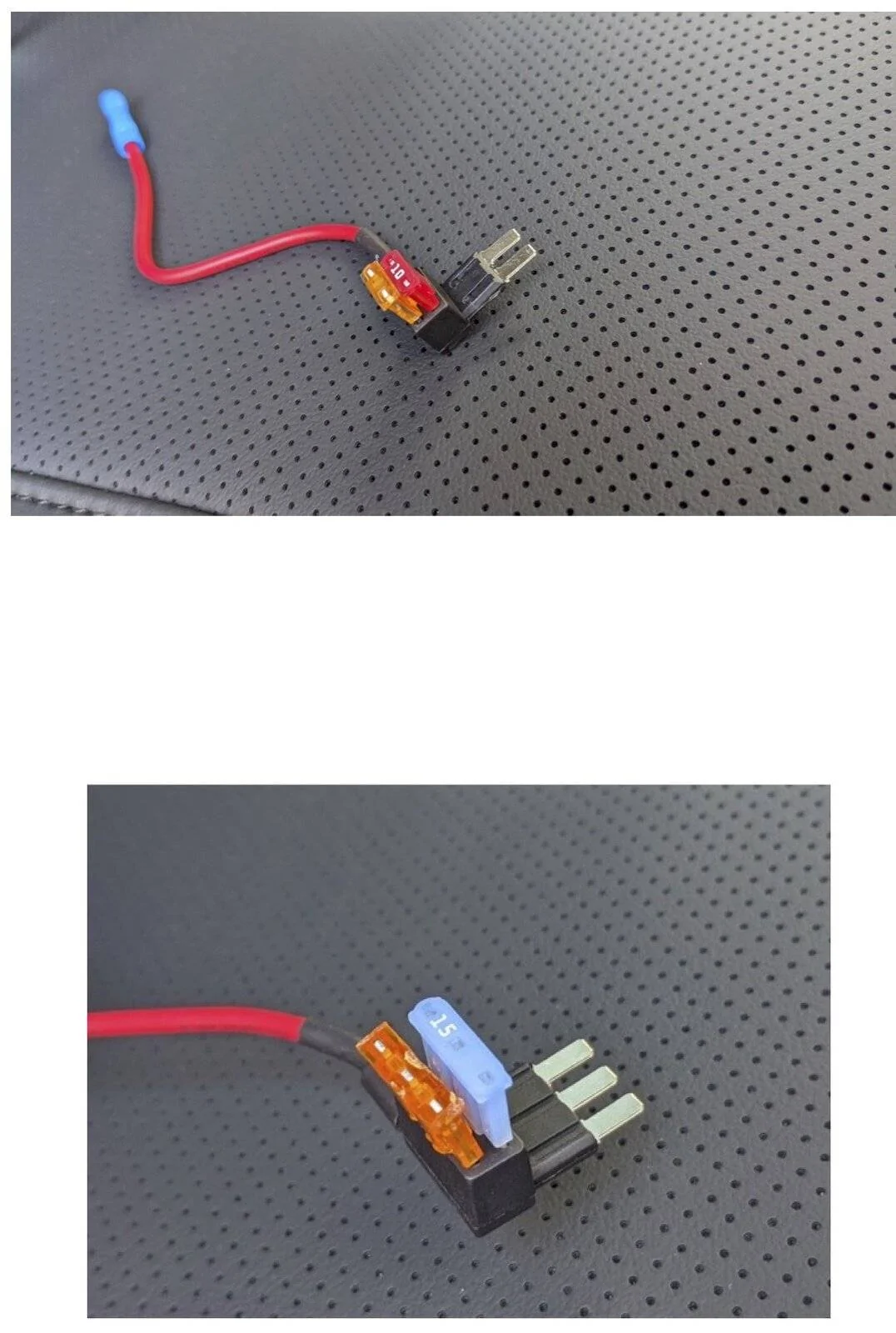

While I previously would simply tap into an existing wire, I like my toys to have their own fuses in case something goes wrong. I recently started using these "add a tap" products to make tapping-in easier and safer. The existing fuse gets moved into the bottom slot and a new 2.5 amp fuse goes to my toys.
The physically smaller fuse it is called a Micro 2 and the larger one is called a Micro 3.
Here are the links for the add-a-taps:
https://www.amazon.com/gp/product/B082YZWSSY/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1
https://www.amazon.com/gp/product/B07R8R2T7T/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1
I normally have extra three conductor wire around the house however I had to purchase some for this project. I normally like 20 gauge wire but somehow accidentally bought 22 gauge wire. This is definitely capable of carrying enough power for these two small devices.
Routing Wires

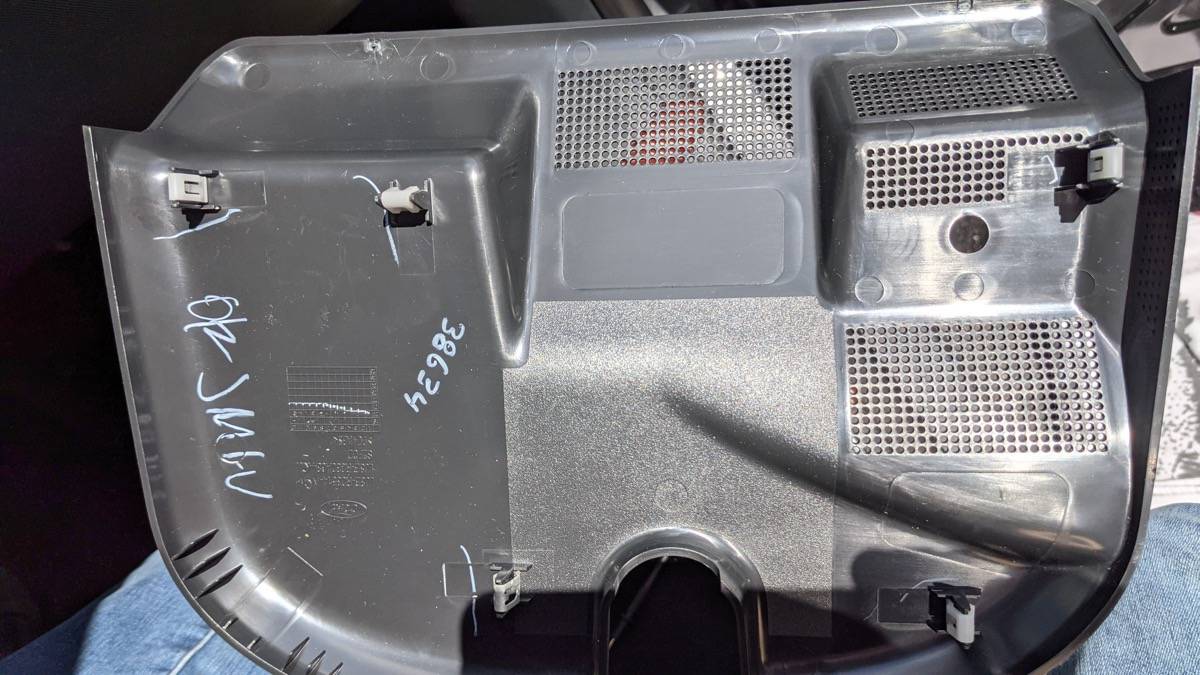

I was able to easily route this wire up towards the mirror housing. First I removed this side panel using a small plastic pry tool. It is held on by six plastic clips:

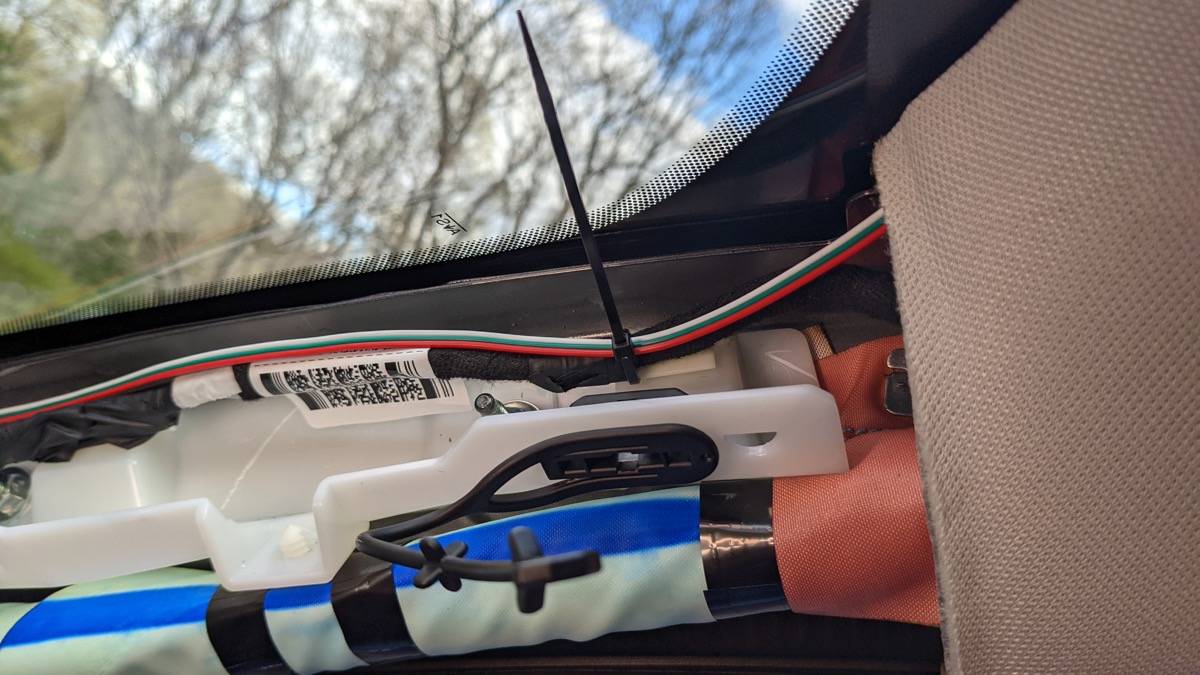

Next, I carefully pried off the A column cover with the pry tools. There is an airbag in here. Any wires you run must go behind the airbag. I prefer to zip tie them to ensure they do not fall in front of the airbag.
I next removed the cover over the mirror housing. I did this with gentle finger pressure pulling downward to release the 5 clips.
Next, I connected the appropriate switched power to my radar detector, switched and constant to the dash cam plug and both to negative. I prefer to solder all wires and cover with shrink wrap tubing. I also have serious OCD therefore labeled everything however in this picture you cannot read the labels because they are facing away from you. Red is constant, green is switched and the white is my negative.

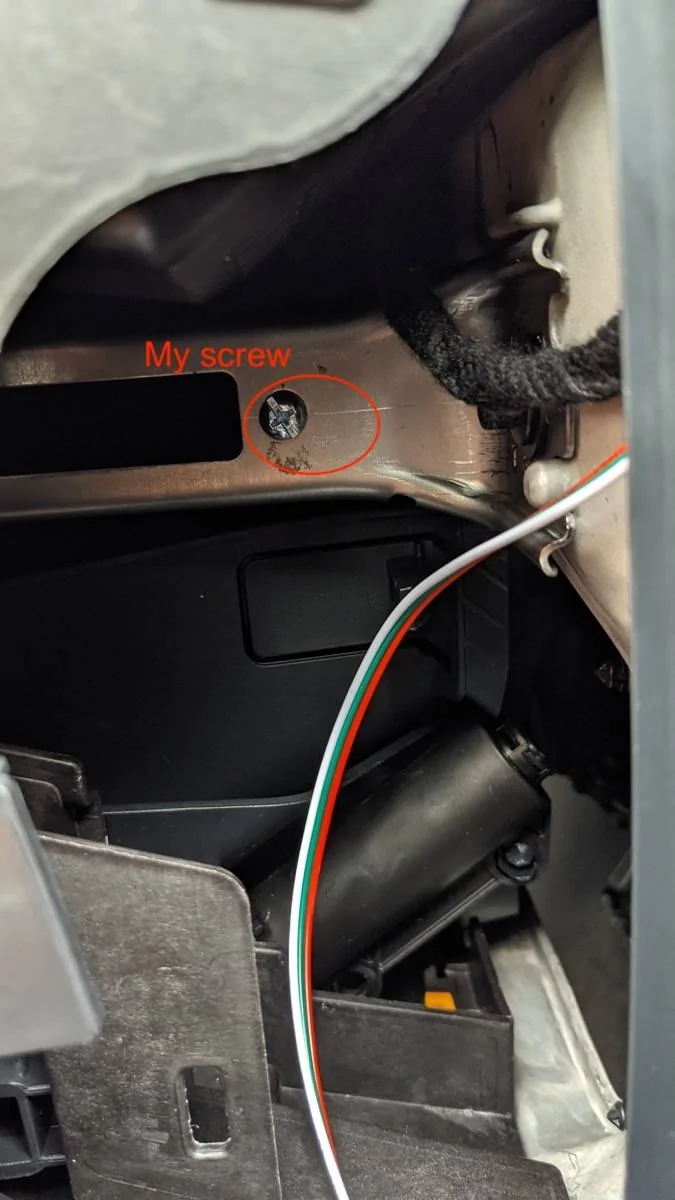

I almost forgot, speaking about the negative lead, I could not find a good metal anchoring point anywhere in that fuse box. Everything is plastic in there. Therefore, I found a nice piece of steel in that side compartment below the A column. There were two round holes. I took a metal machine screw, washer and nut and fastened the raw white wire directly to that piece of the frame. Again, with the OCD, I used thread locker liquid on the bolt to ensure it never came loose accidentally.
At this point, I connected the red and green leads to the add-a-taps below in the fuse box, plugged everything in, and made sure everything worked as I expected with the car on and off.
Connection to Rear Camera
The next step was to run the video lead to the rear camera. Fortunately, the ceiling liner is not strongly attached to the roof as in the other cars I had to work on. Simply pull down gently using a pry tool to work under the rubber gasket. Going between the front and rear doors around the B column required a little work. Instead of using my fish tape, I took a small diameter wire hanger to thread the wire through. Once the wire hanger is visible on both ends, I simply used electrical tape and pulled it through. Note: I could not pry the B column cover off easily and didn't want to risk breaking anything. Likewise, going to the trunk, the plastic holding the liner in place felt too sturdy and I simply used fish tape to pull the wire all the way into the trunk.

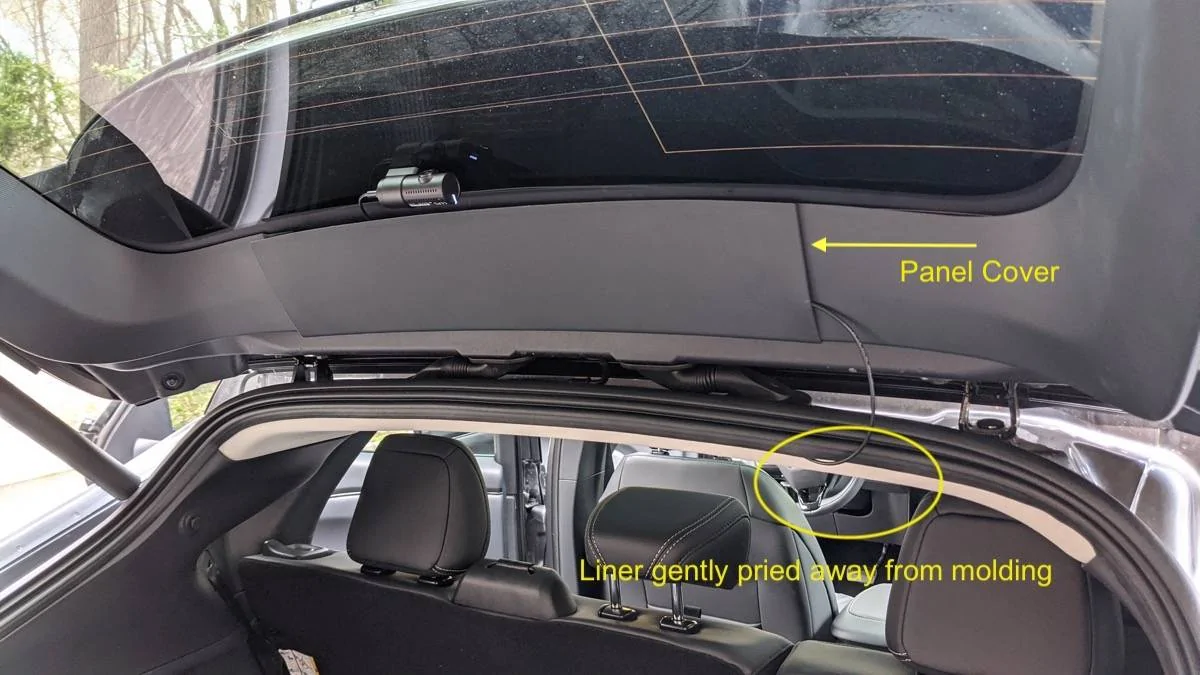

To make the job as neat as possible, I also pried off the plastic cover noted in the photo above. It is held on by six retaining clips. I then mounted the rear camera as high up as possible on the window.

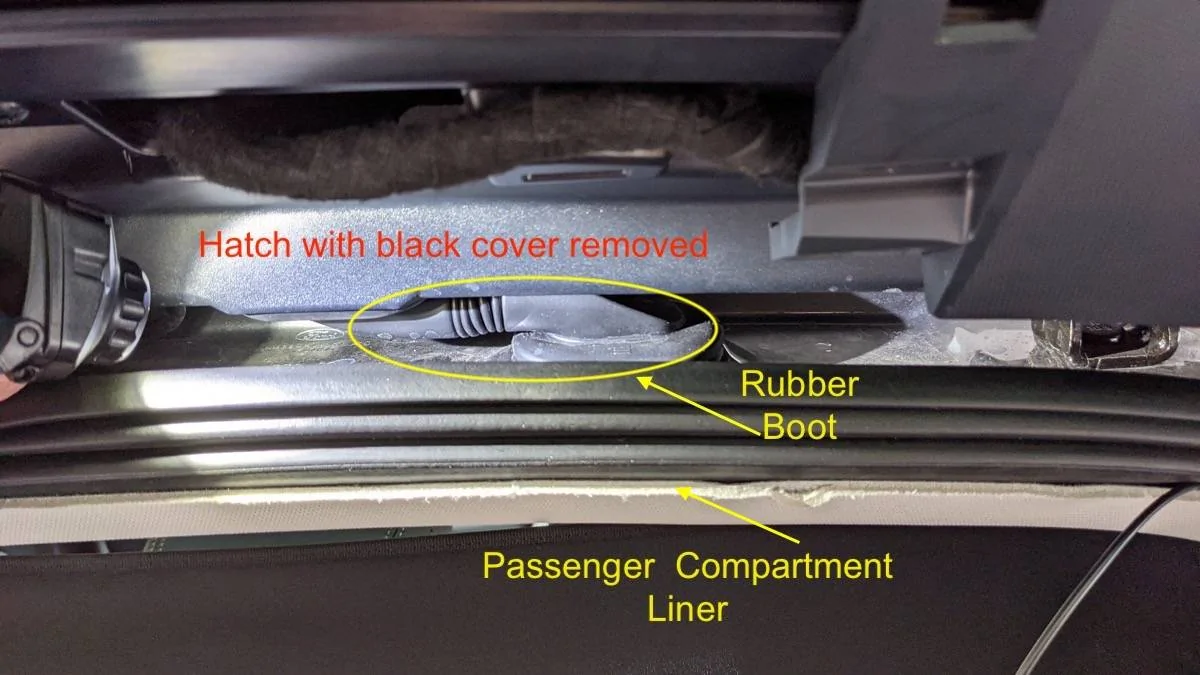

Normally, I would run the wire to the rear camera through the "boot" between the main compartment and the hatch. This is the first car that I was not able to do so. The boot is sufficiently deep under the liner and into the hatch, that no amount of manipulation with fish tape would let me get a string through there. Therefore, I will have that little bit of wire hanging down between the liner and the hatch on the right side but it is not visible when I look in the rearview mirror.
Once that was done, it was simply a matter of putting everything back together. The only difficult part was getting the A column to sit properly. Work slowly. There is a vent built into that column that has to be seated at the base in order for the column to fit properly.
The final result:
Please write with any questions. I am happy to help out anyone trying a similar project.
Jeff
