EA/ABRP trip report

timbop

Well-Known Member
First Name
Tim
Joined
Jan 3, 2020
Threads
63
Messages
6,729
Reaction score
13,758
Location
New Jersey
Vehicles
Solar powered 2021 MME ER RWD & 2022 Corsair PHEV
Occupation
Software Engineer
Country flag
After a 4 day 1300 mile road trip from NJ to Port Canaveral via Atlanta, I figured I would share some of my results on ABRP accuracy and Electrify America reliability. It won't be a long report as we're about to set sail, but in brief:

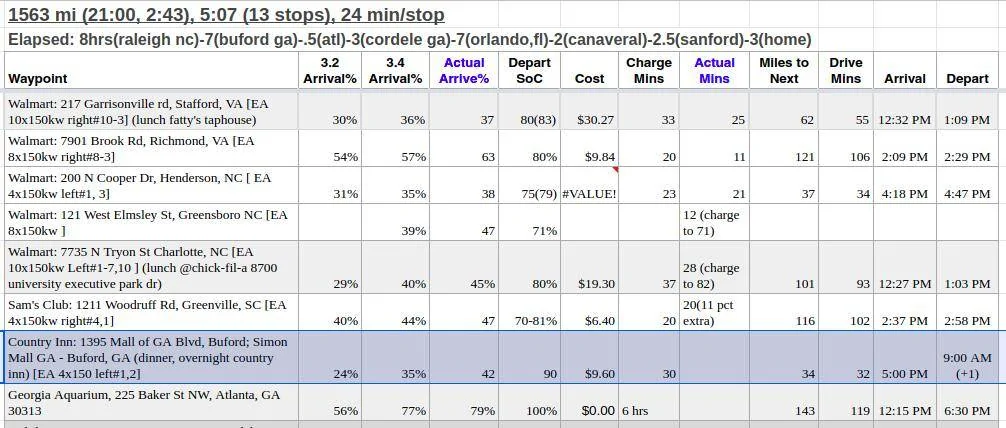

ABRP: after changing the "base" mi/kwh to 3.4 and setting the speed limits to 1.07x speed limit with a 75mph max (I wasn't interested in adding speeding tickets to the expenses) I'd have to give ABRP a B+. I probably could have tweaked the settings some more to get closer to actual kwh usage and charge time (I set the overhead for charging to 1 minute) it was within a few percent. Here's a quick excerpt on estmated vs actual for the first part of the trip:
Ford Mustang Mach-E EA/ABRP trip report Screenshot from 2021-10-02 08-06-22


As for the performance of EA, we did have a few of locations where I had to move, but those were in line with expectations after looking at plugshare. The great news is that I always got a charge, and P&C worked flawlessly. At 2 troubled locations (charlotte and gainseville FL) I ran into technicians working on the units and they confirmed how temperamental those locations are. I had worked in lots of alternatives if I didn't get a charge, but never had to use them. We also tended to start chatting with other EV owners or we were eating so ended up going over the "target" charge several times. Overall I would give EA a C+ since we always got a charge, but the number of "first try flawless" charges was in the 70% range, and we never left a location without reaching our target charge and the charge rates were exactly what they should have been. I did post in plugshare for every EA location we hit along the I-95/I-85/I-75 corridor from NJ to Atlanta via durham NC and finally down to Orlando.

Questions will have to wait until I get back from sea, assuming the Mrs doesn't throw me overboard :)
Sponsored



Mach-Lee

Well-Known Member
First Name
Lee
Joined
Jul 16, 2021
Threads
204
Messages
7,732
Reaction score
15,308
Location
Wisconsin
Vehicles
2022 Mach-E Premium AWD
Occupation
Sci/Eng
Country flag
I've also concluded that ABRP has significant accuracy issues, the default consumption is way too high. Even adjusting it down still isn't quite right as you found. Wonder if we could work with them on that, not sure what kind of inputs they are using for their model? They seem very Tesla focused.


AZBill

Well-Known Member
First Name
Bill
Joined
May 26, 2021
Threads
12
Messages
1,476
Reaction score
1,734
Location
Arizona
Vehicles
Rivian R1T, Hummer EV SUT, MME CA Route 1
Occupation
Engineer
Country flag
I've also concluded that ABRP has significant accuracy issues, the default consumption is way too high. Even adjusting it down still isn't quite right as you found. Wonder if we could work with them on that, not sure what kind of inputs they are using for their model? They seem very Tesla focused.
My personal experience with ABRP for my Bolt and my Mach E is that it is not accurate with respect to elevation changes and higher speed limits. It does not seem to matter what you put in for mile/kwh at the 65mph reference in the app, if you have a trip with an elevation change or a 75mph speed limit, it takes a ridiculous input to get an answer that matches reality.

As an example, I took a trip from Phoenix to Grand Canyon, a 6000 foot elevation climb, mostly at 75mph. I reached a charger with 33% battery and ABRP predicted 13% left. To get a matching number in ABRP, I had to set the consumption for 65mph to 4.7mile/kwh. My actual consumption was 3.1 mile/kwh to the charger.


RockwallRick

Well-Known Member
Joined
Apr 15, 2021
Threads
12
Messages
1,647
Reaction score
1,557
Location
Lake Wales, Florida
Vehicles
22 Ford Maverick FX4
Country flag
I saw your Gainesville, Fl post on Plugshare. Good to know it is possible to charge there but sounds like more work needs to be done! From where I live that is a much needed charging point for Road Trips but next time I will skip the Steak n Shake and go to Arby’s instead!!


JPMACH

Active Member
First Name
Jay
Joined
Mar 10, 2021
Threads
3
Messages
43
Reaction score
15
Location
MI
Vehicles
Mach-E FE
Occupation
Retired
Country flag
After a 4 day 1300 mile road trip from NJ to Port Canaveral via Atlanta, I figured I would share some of my results on ABRP accuracy and Electrify America reliability. It won't be a long report as we're about to set sail, but in brief:

ABRP: after changing the "base" mi/kwh to 3.4 and setting the speed limits to 1.07x speed limit with a 75mph max (I wasn't interested in adding speeding tickets to the expenses) I'd have to give ABRP a B+. I probably could have tweaked the settings some more to get closer to actual kwh usage and charge time (I set the overhead for charging to 1 minute) it was within a few percent. Here's a quick excerpt on estmated vs actual for the first part of the trip:
Ford Mustang Mach-E EA/ABRP trip report Screenshot from 2021-10-02 08-06-22


As for the performance of EA, we did have a few of locations where I had to move, but those were in line with expectations after looking at plugshare. The great news is that I always got a charge, and P&C worked flawlessly. At 2 troubled locations (charlotte and gainseville FL) I ran into technicians working on the units and they confirmed how temperamental those locations are. I had worked in lots of alternatives if I didn't get a charge, but never had to use them. We also tended to start chatting with other EV owners or we were eating so ended up going over the "target" charge several times. Overall I would give EA a C+ since we always got a charge, but the number of "first try flawless" charges was in the 70% range, and we never left a location without reaching our target charge and the charge rates were exactly what they should have been. I did post in plugshare for every EA location we hit along the I-95/I-85/I-75 corridor from NJ to Atlanta via durham NC and finally down to Orlando.

Questions will have to wait until I get back from sea, assuming the Mrs doesn't throw me overboard :)
Great summary, thank you!! I am heading to Charlotte this weekend, can you provide the location of the EA charger you commented on? I have several EV apps including FordPass and when looking up EV Charging Stations, they are not all consistent. This will be my first long-distance trip so I am interested in seeing how the charging route will be.



OP
OP
timbop

timbop

Well-Known Member
First Name
Tim
Joined
Jan 3, 2020
Threads
63
Messages
6,729
Reaction score
13,758
Location
New Jersey
Vehicles
Solar powered 2021 MME ER RWD & 2022 Corsair PHEV
Occupation
Software Engineer
Country flag
I've also concluded that ABRP has significant accuracy issues, the default consumption is way too high. Even adjusting it down still isn't quite right as you found. Wonder if we could work with them on that, not sure what kind of inputs they are using for their model? They seem very Tesla focused.
Actually, I thought it was reasonab;y accurate - within 5% seems fair enough to me given the number of variables involved.

Great summary, thank you!! I am heading to Charlotte this weekend, can you provide the location of the EA charger you commented on? I have several EV apps including FordPass and when looking up EV Charging Stations, they are not all consistent. This will be my first long-distance trip so I am interested in seeing how the charging route will be.
Not sure if this is still needed, but the walmart in Charlotte with the EA was on north tryon street


JPMACH

Active Member
First Name
Jay
Joined
Mar 10, 2021
Threads
3
Messages
43
Reaction score
15
Location
MI
Vehicles
Mach-E FE
Occupation
Retired
Country flag
Actually, I thought it was reasonab;y accurate - within 5% seems fair enough to me given the number of variables involved.


Not sure if this is still needed, but the walmart in Charlotte with the EA was on north tryon street
Thanks, still needed. I will check out Walmart when I make my trip
