Electrify america plug and charge and charging speeds on point today, hit 156kw (somehow)

Cherlin

Member
First Name
Daniel
Joined
Jan 11, 2021
Messages
19
Reaction score
109
Location
United States, CA
Vehicles
2017 Focus RS , 2017 Mazda CX5, Premium EX4 order
Occupation
Electric Utilities - Management
Country flag

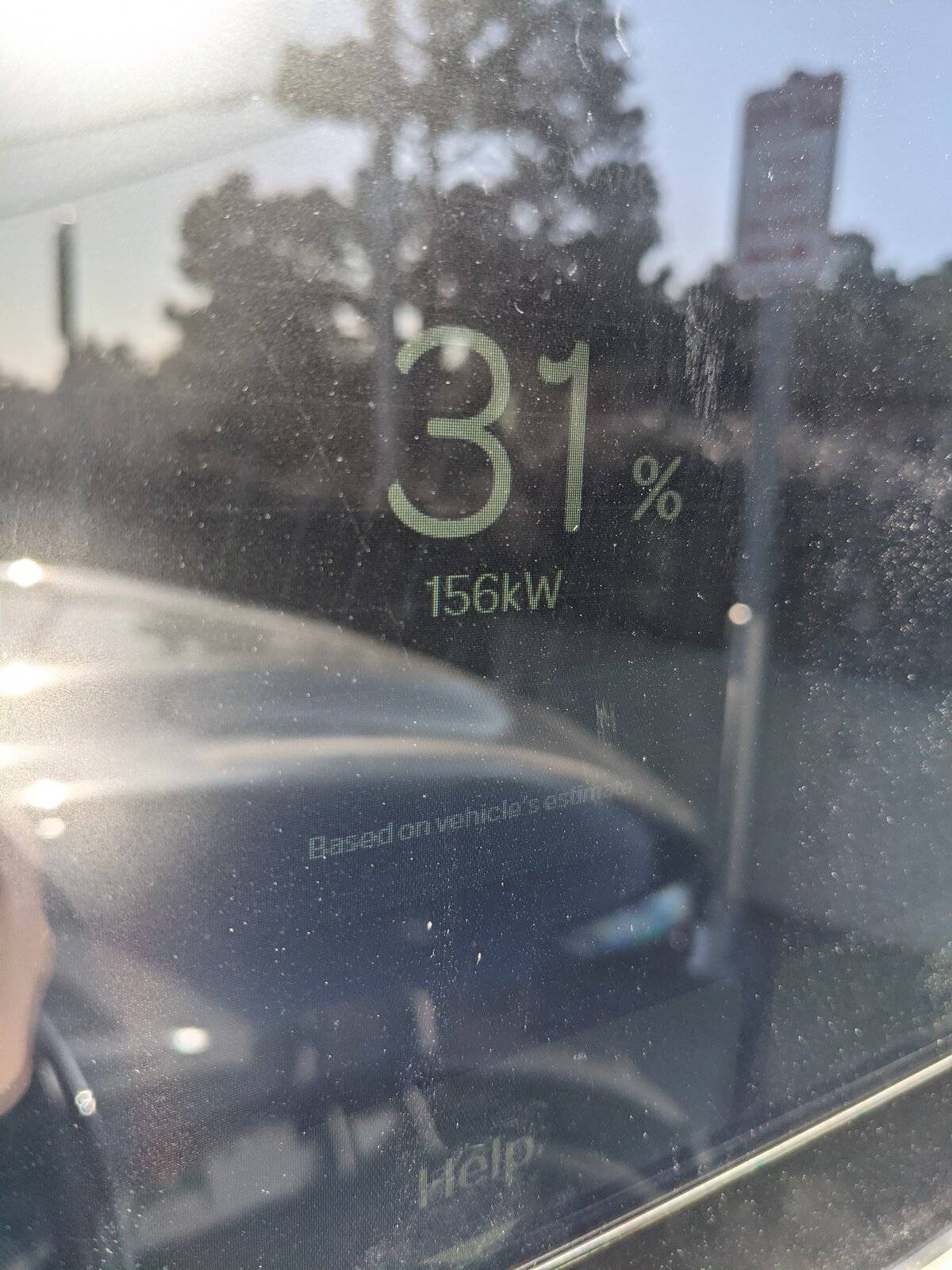

So my wife and I did a 300ish mile road trip today and hit up an electrify america fast charger (third one I have used, plug and charge has worked flawless every time!) In pacific grove ca today at 28% and were greated with the highest charging speeds and fastest charge we have seen yet, right away we hit 156kw (which is over what I thought our max was, but maybe that factors in loss?) And had a relatively flat curve to about 65% where it started tapering until we hit 80%

Very impressed with it's charging so far!

Advertisement



JellyBelly

Well-Known Member
First Name
Kris
Joined
Jun 27, 2020
Messages
2,292
Reaction score
1,807
Location
San Diego
Vehicles
MME RR FE
Country flag
Nice. Both easternrefugee and chasingcoral reported over 150 kWH rates today as well in other threads. Good to see its working well on some chargers


VegStang

Well-Known Member
First Name
Leo
Joined
Jan 30, 2020
Messages
781
Reaction score
982
Location
Silicon Valley
Vehicles
Pacifica PHEV, Mercedes BEV (Past Fords- Escape Hybrid, 67 Mustang Convertible)
Occupation
Artist, animal rights activist
Country flag
That's excellent to see, might have to give that location a try on our first trip in the MME to Monterey/Big Sur. Around 63 temp wise there at the time?

So my wife and I did a 300ish mile road trip today and hit up an electrify america fast charger (third one I have used, plug and charge has worked flawless every time!) In pacific grove ca today at 28% and were greated with the highest charging speeds and fastest charge we have seen yet, right away we hit 156kw (which is over what I thought our max was, but maybe that factors in loss?) And had a relatively flat curve to about 65% where it started tapering until we hit 80%

Very impressed with it's charging so far!



Woeo

Well-Known Member
First Name
Woeo
Joined
Feb 2, 2020
Messages
704
Reaction score
781
Location
Maryland
Vehicles
Fusion Energi
Country flag

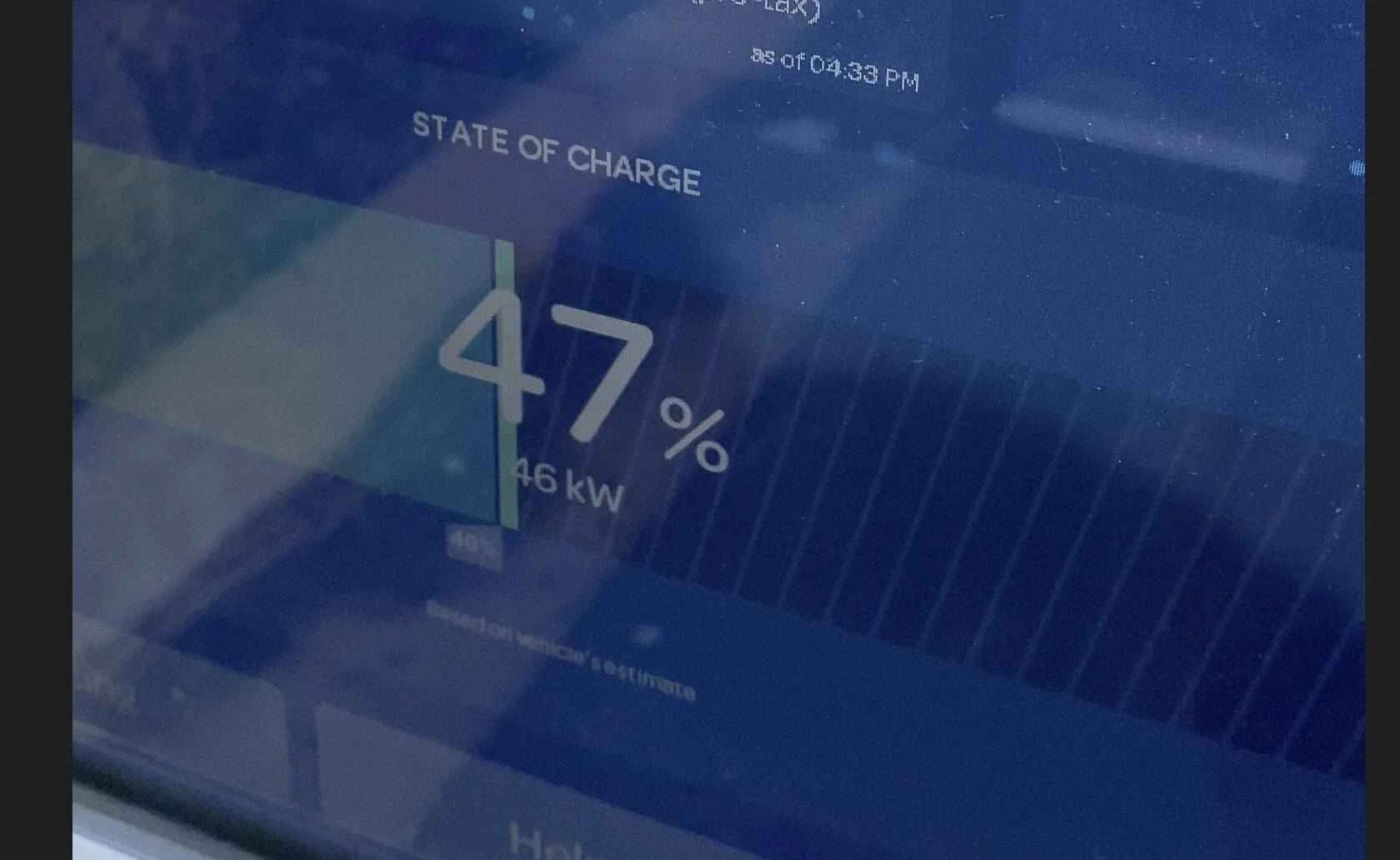

Tried Clarksburg, Md EA. Plugged into four different DC chargers. Plug and play would not work. After connection to the car, EA screen would show me an opportunity to pay through credit card or their app. I did find the EA chargers through the Ford Pass App and was successful in starting the initialization, twice after recognizing the car and starting the fan the units showed an error message and gave up. Twice I was able to begin the charge and each time after a short bit the charge rate did not rise above 48kWh.

SOC was about 50%. Temps were in the low 50's. Car had been driven for a bit, but not hard. I did not turn off E-heat as Bjorn has suggested.



RyZt

Well-Known Member
Joined
Nov 17, 2019
Messages
549
Reaction score
656
Location
San Jose
Vehicles
Mach E4X
Country flag
Over the weekend, I used two EA locations along I-5 in California.

At Panoche Shell in Firebaugh, connection failed for my first try, but worked for my second attempt. P&C didn't work. But I was able to charge using Apple/Google Play. Peak rate was 135ish on a 150kW charger. I started charging at 50%.

At Countryside Market Shell in Bakersfield, P&C worked. Peak rate was 156kW on a 350kW charger.


benk016

Well-Known Member
First Name
Ben
Joined
Nov 12, 2020
Messages
1,169
Reaction score
1,616
Location
Tulsa, Oklahoma
Vehicles
2021 Mustang Mach-E First Edition
Country flag
Tried Clarksburg, Md EA. Plugged into four different DC chargers. Plug and play would not work. After connection to the car, EA screen would show me an opportunity to pay through credit card or their app. I did find the EA chargers through the Ford Pass App and was successful in starting the initialization, twice after recognizing the car and starting the fan the units showed an error message and gave up. Twice I was able to begin the charge and each time after a short bit the charge rate did not rise above 48kWh.

SOC was about 50%. Temps were in the low 50's. Car had been driven for a bit, but not hard. I did not turn off E-heat as Bjorn has suggested.

Curious if the ones that failed almost immediately were 350kw stations? I've had the exact same thing happen on 350kw stations, But the 150kw stations work just fine.

OP
OP

Cherlin

Member
First Name
Daniel
Joined
Jan 11, 2021
Messages
19
Reaction score
109
Location
United States, CA
Vehicles
2017 Focus RS , 2017 Mazda CX5, Premium EX4 order
Occupation
Electric Utilities - Management
Country flag
Over the weekend, I used two EA locations along I-5 in California.

At Panoche Shell in Firebaugh, connection failed for my first try, but worked for my second attempt. P&C didn't work. But I was able to charge using Apple/Google Play. Peak rate was 135ish on a 150kW charger. I started charging at 50%.

At Countryside Market Shell in Bakersfield, P&C worked. Peak rate was 156kW on a 350kW charger.
My 156KW was also on a 350KW station, I noticed it tends to stay higher longer as well the 1 time I used a 350kw charger, I think more testing is needed, but maybe there is a correlation?


RyZt

Well-Known Member
Joined
Nov 17, 2019
Messages
549
Reaction score
656
Location
San Jose
Vehicles
Mach E4X
Country flag
My 156KW was also on a 350KW station, I noticed it tends to stay higher longer as well the 1 time I used a 350kw charger, I think more testing is needed, but maybe there is a correlation?
Mine took 31 minutes from 29% to 80% (according to charge log in Ford Pass app) at the EA 350kW charger. It reached 150kW shortly after starting. I didn't monitor the charge curve. Temperature was in the 50-70 °F range.

EA receipt (email from Ford) showed 48 kWh delivered.

The above numbers suggest that 3kWh was lost during the charging process. It is likely that the peak rate was no more than 150kW from the battery's perspective, as the rest was lost somewhere between the charger and the battery.
