I just had an electrician come over today and give me a bid for Nema 14-50 garage install. Unfortunately, I found this thread after he left. I will text him to clarify that proper gauge and receptacle are included. I'm worried because his quote seemed relatively affordable at 1k. I think I may just buy the Bryant and give it to him when he returns next week. Anyone know what box and plate should be purchased with it?

Also...make fun, it's fine.. I have an idiot question(s).

1. When you say proper torque is vital, which screws on the installation are you talking about? Just in case I want to check when he leaves.

2. My run appears pretty long to get the box centered in my garage. I'd guess close to 50 feet (max) unless he can go through the ceiling. It sounds like some have suggested 4 gauge with a run this long. Assuming his quote is 6, how much more should I expect him to charge if I want 4 gauge?

TIA
Torque on the wire clamping screws on the back of the outlet.

6 gauge is fine for 50 feet. You don’t have to upsize until you get to 100’ or more. 4 ga will be a lot more since it isn’t used commonly. Make sure he’s using copper wire though, not aluminum.
Sponsored



mattmiz

New Member
First Name
Matt
Joined
Jul 26, 2022
Threads
0
Messages
3
Reaction score
5
Location
85747
Vehicles
Mach-E GT
Country flag
Adding this just as a caution to other folks I guess. I live in AZ, where yes it gets hot and never as hot as this year. Even so, I had no idea what to be looking out for in terms of EV charging, or that I even need to be looking for anything at all. Lesson learned.

A bit over a year ago I had a licensed electrician put in a 50A/240V breaker, run 6/3 wire and hook it all up to a NEMA 14-50 outlet in my garage (Leviton, which I didn't even know to vet, and was ultimately probably the mistake).

I did at one point a month or so ago get a flashing red LED on the Grizzl-E (something about bad ground) but that ultimately reset and didn't reappear, which is weird in and of itself. Today, saw the car wasn't charging and the Grizzl-E was dead, so I checked the breaker, which was tripped. Tried to reset it but wasn't happening. So, turned it off and pulled the plug. Pulling the plug alone was much harder than it should've been, which was a pretty big tell. Finally got it off, and this was the result:

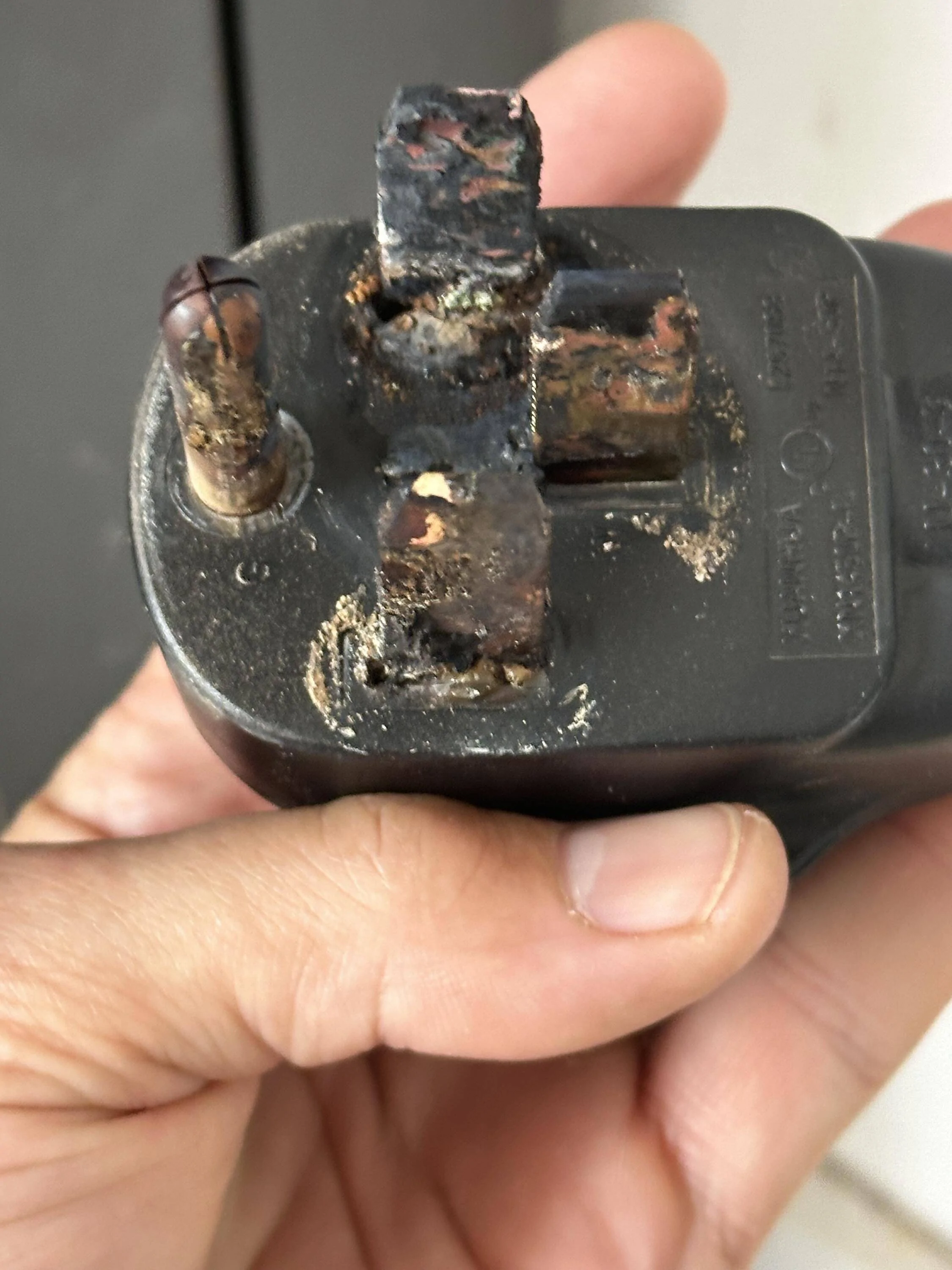

Ford Mustang Mach-E EV Charger Risks: Home Charging Installation Risks and Advice [by Munro Live] IMG_3363

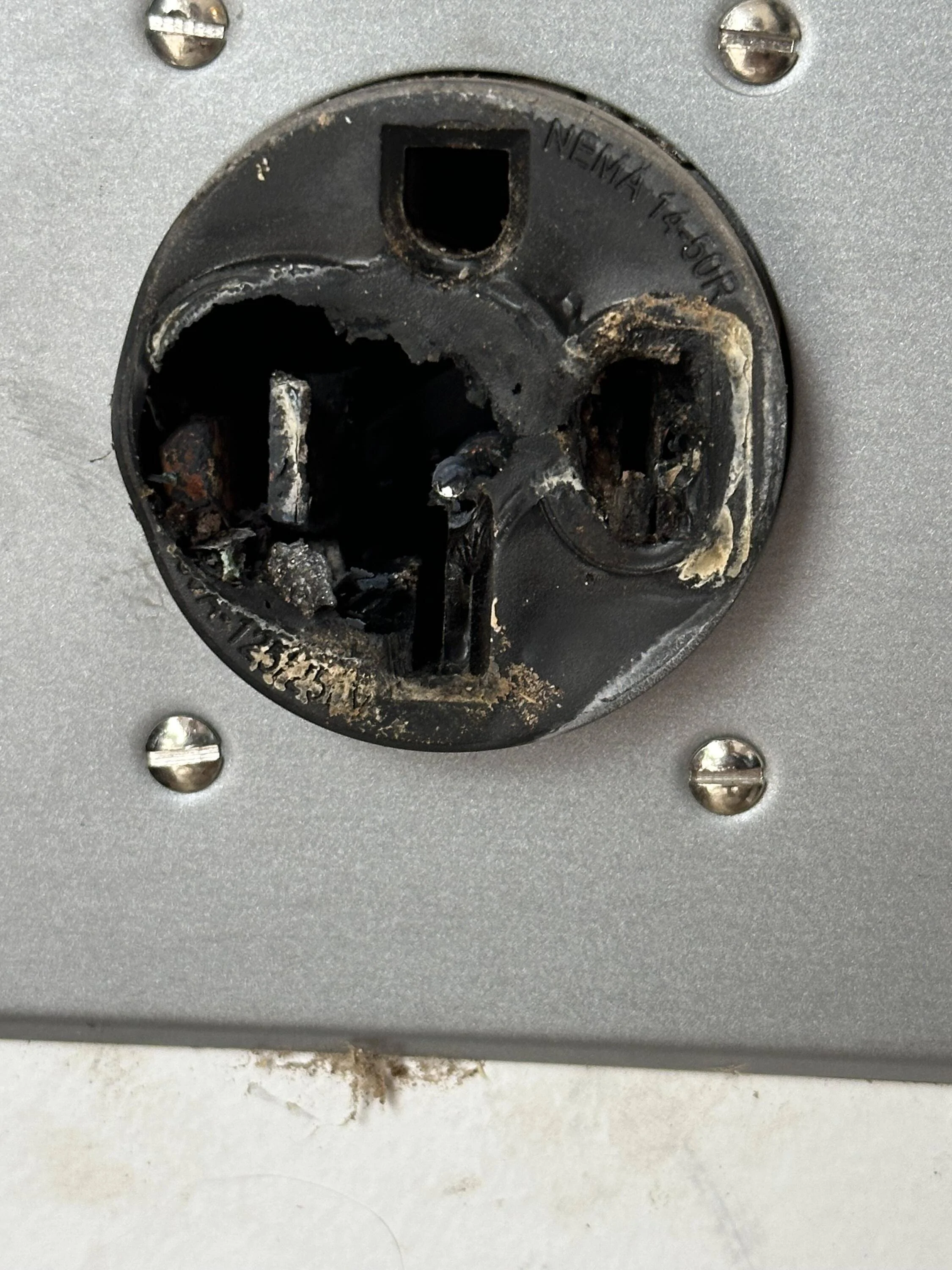

Ford Mustang Mach-E EV Charger Risks: Home Charging Installation Risks and Advice [by Munro Live] IMG_3365

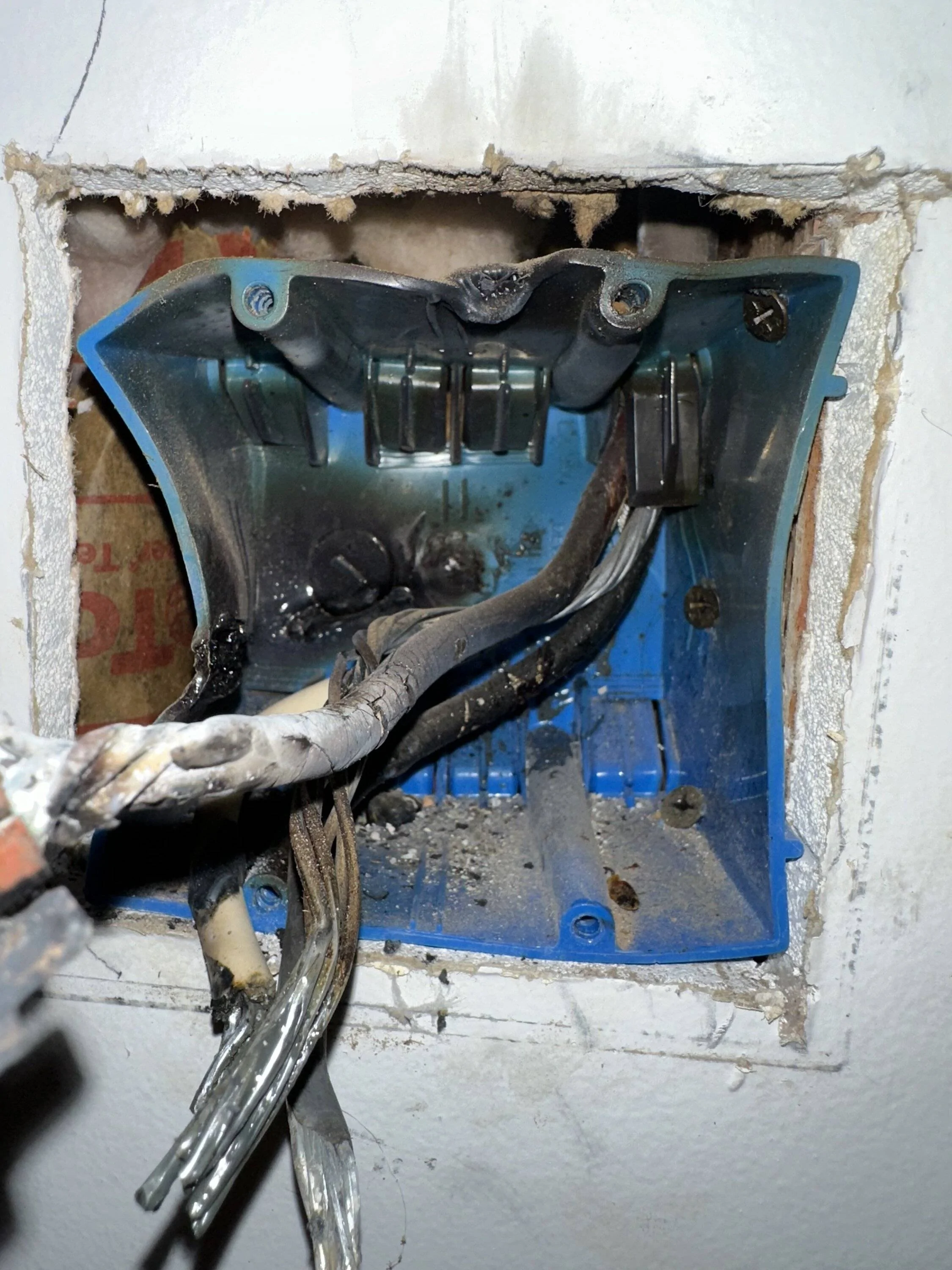

Oooof. As if that wasn't bad enough, I pulled the outlet cover off and removed the outlet and saw this:
