Nice day, tore apart the frunk again. Pulled Fuse F72 to simulate dead/low 12V LVB.

At the bumper emergency release red/black wires -
Jump pack with override does work, small 12V lead acid battery does work. 9V battery (double checked with power supply does not work).

When the process starts, the resistance across the red/black wires is 47k ohm (means very low initial current). That means electronics is being powered to run the frunk emergency release process. After a moment, there is a first pulse of about a second at about 1.2A (Fluke meter DC clamp on min-max) to the little motorized gear box actuator. Then, after another moment, there is another 1.2A pulse, also about a second in time (did not break out gear to measure time or current exactly).

There could be overvoltage protection, however I strongly recommend, short of advice from Ford, to not try two 9V batteries, because 18V might damage the electronic circuits (this is not last century all relay logic, there is some electronics involved, possibly even a small micro).
Sponsored


Last edited:

CHeil402

Well-Known Member
First Name
Chris
Joined
Sep 21, 2020
Threads
8
Messages
723
Reaction score
1,314
Location
King of Prussia, PA
Vehicles
2017 Audi A4, 2021 MME
Occupation
Electrical Engineer
Country flag
Nice day, tore apart the frunk again. Pulled Fuse F72 to simulate dead/low 12V LVB.

At the bumper emergency release red/black wires -
Jump pack with override does work, small 12V lead acid battery does work. 9V battery (double checked with power supply does not work).

When the process starts, the resistance across the red/black wires is 47k ohm (means very low initial current). That means electronics is being powered to run the frunk emergency release process. After a moment, there is a first pulse of about a second at about 1.2A (Fluke meter DC clamp on min-max) to the little motorized gear box actuator. Then, after another moment, there is another 1.2A pulse, same about a second in time (did not break out gear to measure time exactly).

There could be overvoltage protection, however I strongly recommend, short of advice from Ford, to not try two 9V batteries, because 18V might damage the electronic circuits (this is not last century all relay logic, there is some electronics involved, possibly even a small micro).
Thanks for being the first (that I know of) to check this and for taking a current measurement. See this post here for details on that circuit (and my understanding). Based on the 1.2 A current draw, an 8 AA battery pack of 12 V would seem to work if you want to try that.

https://www.macheforum.com/site/thr...k-release-to-store-in-bumper.4443/post-132773
https://www.macheforum.com/site/thr...k-release-to-store-in-bumper.4443/post-135437

OP
OP

louibluey

Well-Known Member
First Name
Joe
Joined
Dec 21, 2020
Threads
60
Messages
888
Reaction score
1,097
Location
NY
Vehicles
FE "Louibluey" GB
Occupation
retired
Country flag
Chris, Sorry, I totally forgot your AA solution. I think with one or two battery holders, that might be one of the safest solutions for in bumper battery storage. In a crash, the individual batteries probably would not be much of a problem. I worry a bit if a small 12V lead acid battery has too much energy, crushed, it might be fire or ignition hazard.

Others have used the 12V release wires, from the initial dead 12V battery episodes. This was just a lazy sunny day effort to try a 9V battery and the pulled F72 fuse to simulate a dead LVB.


CHeil402

Well-Known Member
First Name
Chris
Joined
Sep 21, 2020
Threads
8
Messages
723
Reaction score
1,314
Location
King of Prussia, PA
Vehicles
2017 Audi A4, 2021 MME
Occupation
Electrical Engineer
Country flag
Chris, Sorry, I totally forgot your AA solution. I think with one or two battery holders, that might be one of the safest solutions for in bumper battery storage. In a crash, the individual batteries probably would not be much of a problem. I worry a bit if a small 12V lead acid battery has too much energy, crushed, it might be fire or ignition hazard.

Others have used the 12V release wires, from the initial dead 12V battery episodes. This was just a lazy sunny day effort to try a 9V battery and the fuse F72 simulated dead LVB.
When looking at the other posts I realized that I had responded to you directly over there too, lol. Anyway, thanks for digging through your car to test this. I would strongly believe based on your testing that one 8 AA battery holder would work.

https://www.amazon.com/Thicken-Battery-Holder-Standard-Connector/dp/B07WP1CYYW

I think lithium AA batteries will survive this operation the most times as they have stronger current characteristics... but for only needing to operate for a second or two, I think any AAs would work. And I like the AA approach because they're easy to find, they store for long periods of time well, and as you pointed out are likely less dangerous in a crash.

OP
OP

louibluey

Well-Known Member
First Name
Joe
Joined
Dec 21, 2020
Threads
60
Messages
888
Reaction score
1,097
Location
NY
Vehicles
FE "Louibluey" GB
Occupation
retired
Country flag

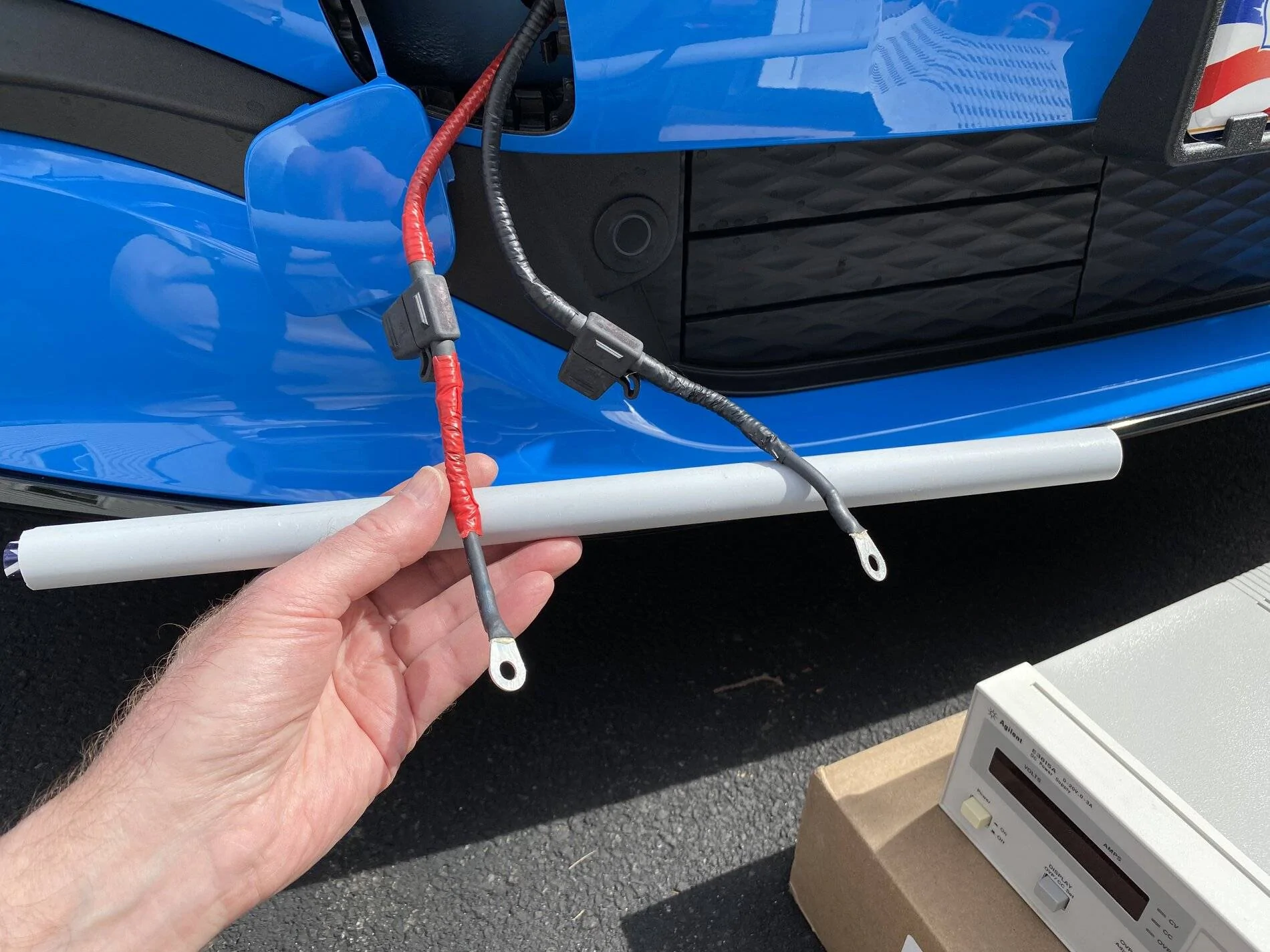

Here is another possible AA battery holder, a short section of 1/2" electrical conduit to hold the eight AA batteries, no metal parts to corrode. It fits fine in the bumper, and should be okay with two plastic caps at either end, somehow secured in place (both the caps and conduit). The red and black wires and ring lugs reach both ends, no problem.
