GOM seems a bit pessimistic

JamieGeek

Well-Known Member
Joined
Dec 29, 2019
Messages
2,404
Reaction score
4,031
Location
Southeastern Michigan
Website
spareelectrons.wordpress.com
Vehicles
Mach-E, old: Bolt, C-Max Energi, Focus Electric
Country flag
This morning I went for a little drive (100 miles or so, see trip meter). When I left it was -3F out, when I arrived home it was 20F out. Range when I left was showing 180 miles with 100% charged. Reset the Trip 1 meter sitting in the garage before pulling out after preconditioning it for a good 30 minutes.

Lets look at some details:

When I got home:

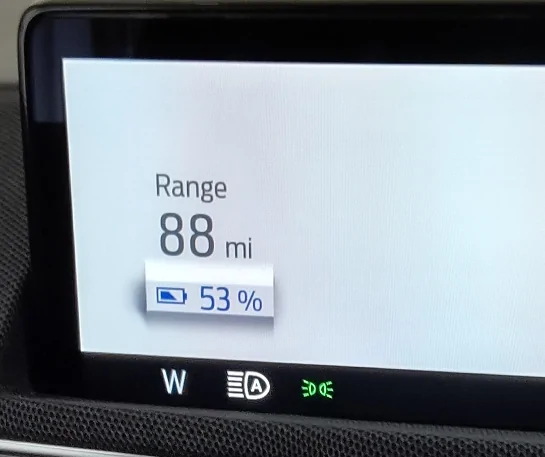

Here you see I have 53% battery left which means I used 47% of the battery.

This means I used 88*.47=41.4kWh of electricity.

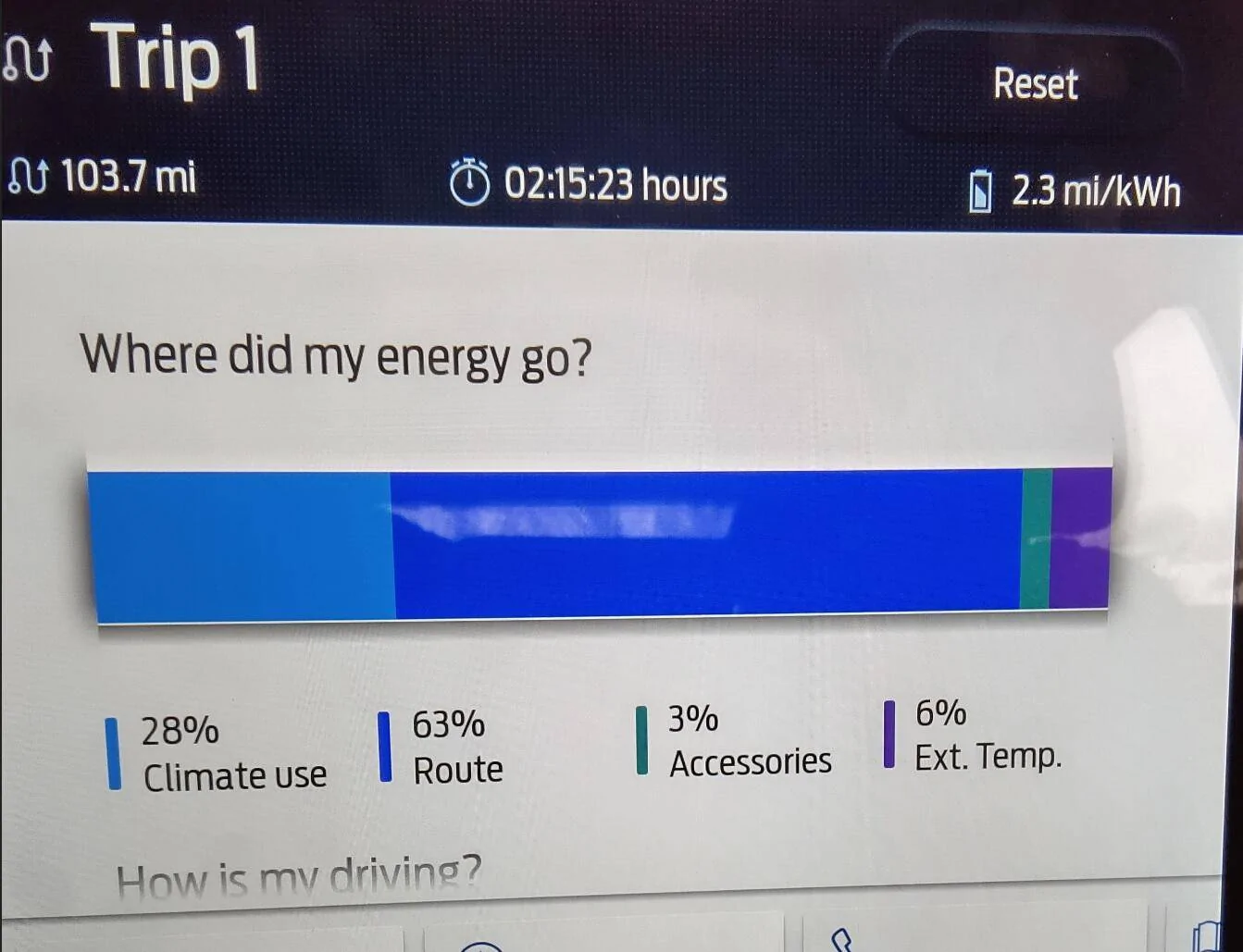

If I do this: 103.7/41.4 = 2.5miles/kWh...thats funny the trip meter says 2.3.

Using the 2.5 miles/kWh figure means my 100% range should have been 220 miles and my current GOM should be showing 116 miles.

(I'm guessing the trip computer uses the GOM value to come up with the 2.3 figure instead of simply using the miles traveled!?)

Cruise control was set at 77mph and HVAC was set to 68F (Note, however, that the first leg of the trip--1/2 of it--was during rush hour and I didn't get a chance to do 77 mph that much. The 2nd leg was pretty much all 77 mph.)





Advertisement



agoldman

Well-Known Member
Joined
Jan 23, 2020
Messages
1,484
Reaction score
1,287
Location
Maryland
Vehicles
2020 volvo xc60 Polestar Plug-in. Mach E FE & GT on order
Country flag
climate use 28%...


zhackwyatt

Well-Known Member
Joined
Dec 18, 2019
Messages
1,191
Reaction score
1,882
Location
Arizona
Vehicles
'21 InfBlu Prem MMEx Past: '13 C-Max '98 Explorer
Country flag
This morning I went for a little drive (100 miles or so, see trip meter). When I left it was -3F out, when I arrived home it was 20F out. Range when I left was showing 180 miles with 100% charged. Reset the Trip 1 meter sitting in the garage before pulling out after preconditioning it for a good 30 minutes.

Lets look at some details:

When I got home:

Here you see I have 53% battery left which means I used 47% of the battery.

This means I used 88*.47=41.4kWh of electricity.

If I do this: 103.7/41.4 = 2.5miles/kWh...thats funny the trip meter says 2.3.

Using the 2.5 miles/kWh figure means my 100% range should have been 220 miles and my current GOM should be showing 116 miles.

(I'm guessing the trip computer uses the GOM value to come up with the 2.3 figure instead of simply using the miles traveled!?)

Cruise control was set at 77mph and HVAC was set to 68F (Note, however, that the first leg of the trip--1/2 of it--was during rush hour and I didn't get a chance to do 77 mph that much. The 2nd leg was pretty much all 77 mph.)
Maybe trip doesn't account for regen.

OP
JamieGeek

JamieGeek

Well-Known Member
Joined
Dec 29, 2019
Messages
2,404
Reaction score
4,031
Location
Southeastern Michigan
Website
spareelectrons.wordpress.com
Vehicles
Mach-E, old: Bolt, C-Max Energi, Focus Electric
Country flag
  • Thread starter
  • Thread Starter
  • #5
climate use 28%...
That is a possibility: The trip meter is only using kWh for route to calculate its miles/kWh figure.

But that would make the miles/kWh value larger.

(Frankly 28% is pretty good in <0F temps.)
(Still think the trip meter there should list out the values in kWh; not percentages.)
