I was able to attend the boot camp at weber state university. For people with a bit technical background and interest in EV battery technology I highly recommend this class.
To find more details check the Weber Auto YouTube Channel: WeberAuto - YouTube
To find more details about their classes check: EV Training (weber.edu)

Here some details when we removed the HV battery on the GT.

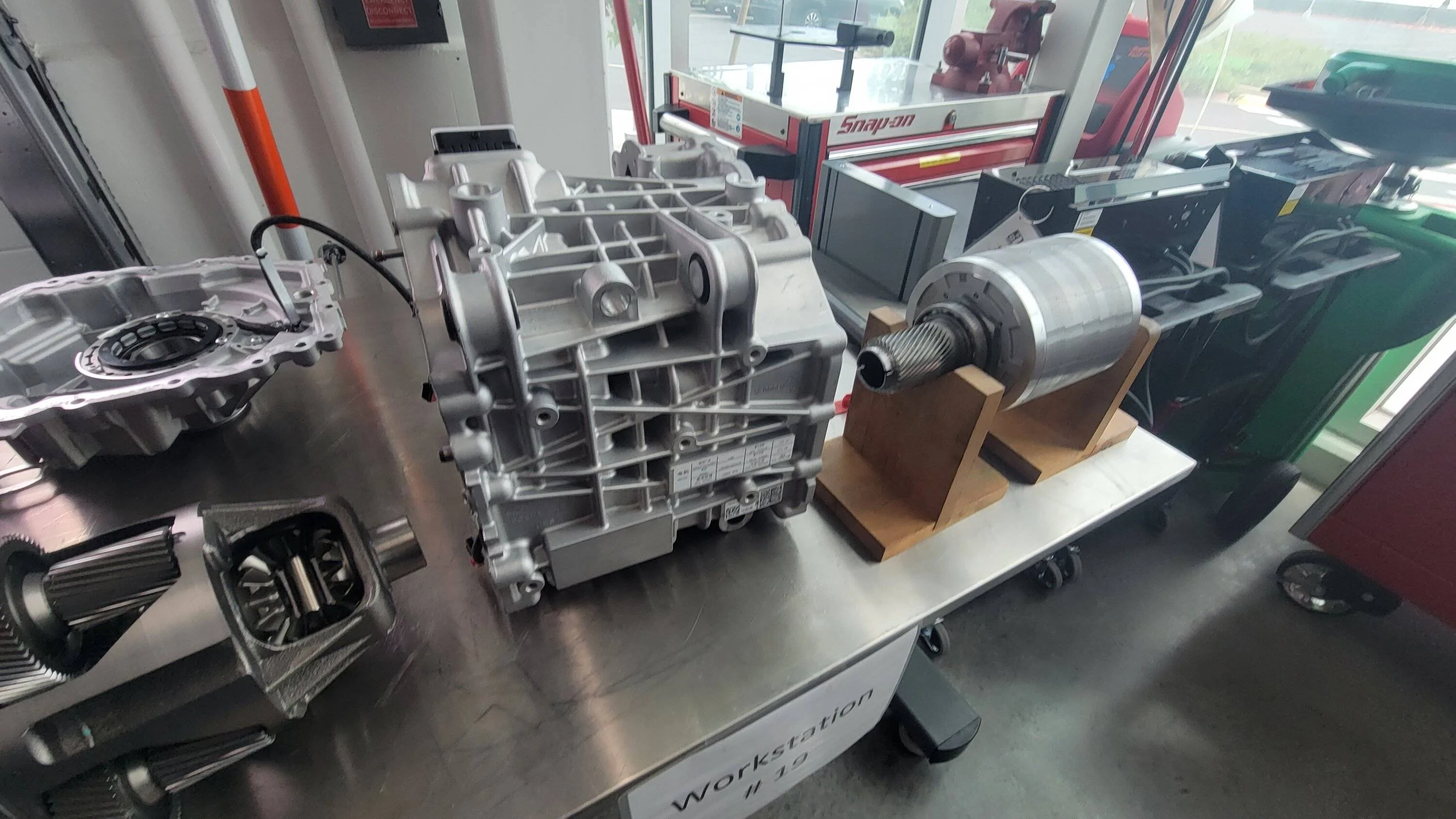

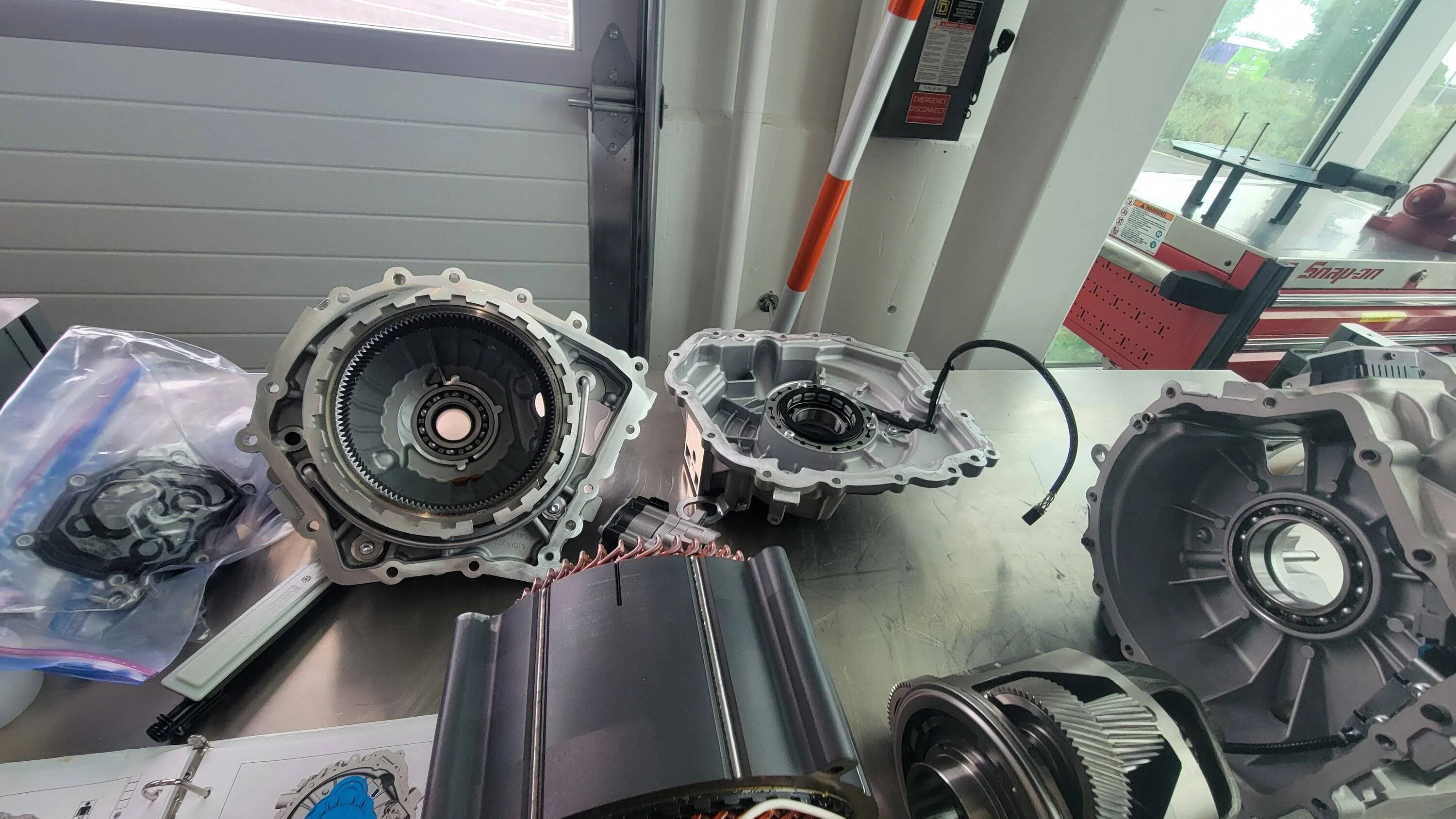

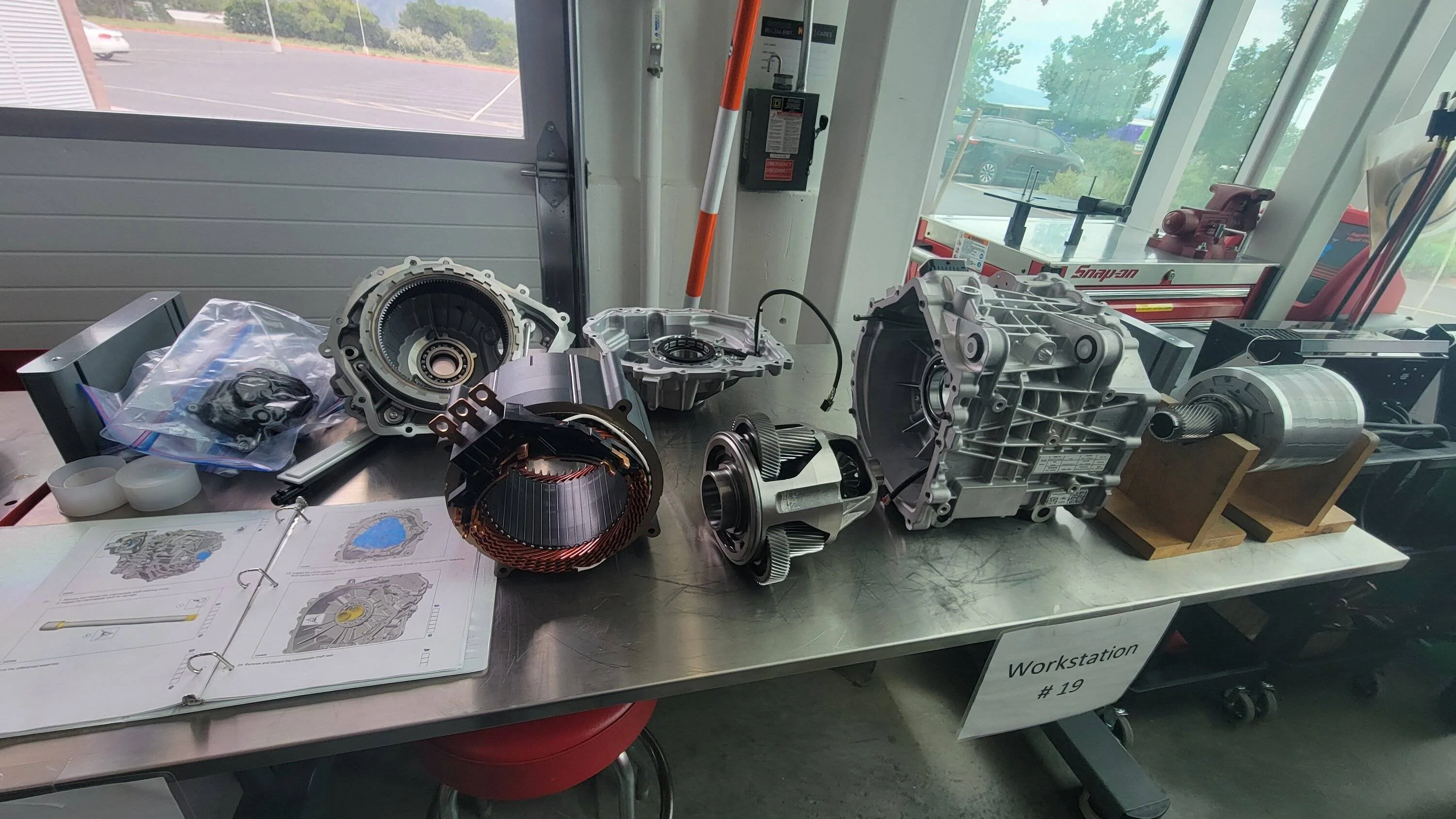

The rear motor cover and front motor cover was already removed, when we started working on the battery and the car was already on the lift. We were a group of people and it took us less than 1 hour to remove and open the battery pack. Note that we had Ford Hand Books and the car was ready to get the battery out (on the lift and some covers removed).

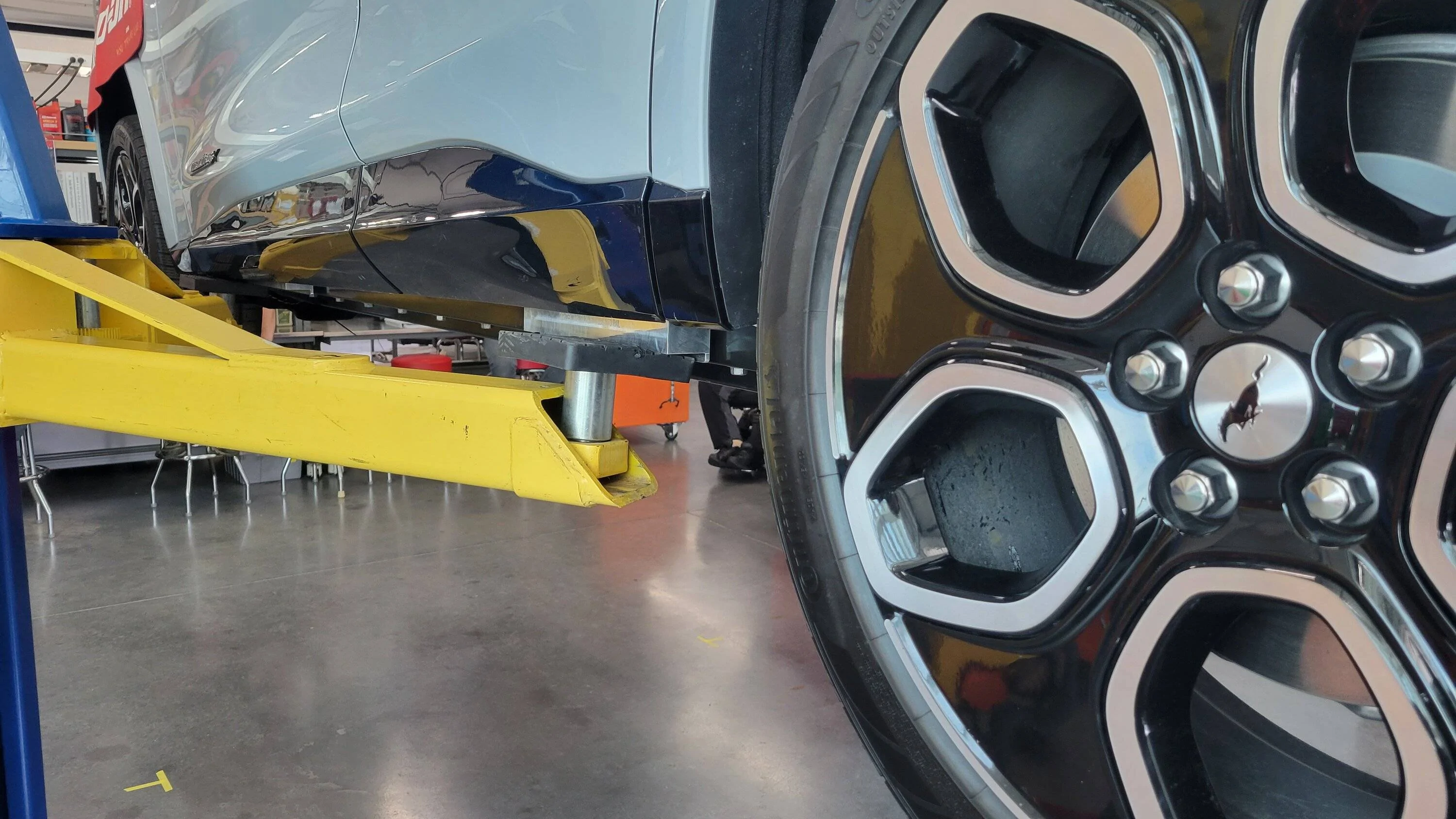

Here some images how the car needs to be lifted. The lift needs to be from the side, so you can get the battery out towards the bottom. Apparently Ford did not realize that they put the actual lifting points on the battery frame metal part, so they had to design this galvanized pieces which fit into the side chassis, so you have a better lifting point. I agree that the lift itself might need better pads to lift, as you see it was already sort of bending a bit.


Prior to lifting we had to make sure the battery is disconnected securely, which means you turn off the car, take the fob far away (no paak near), disconnect the 12V Battery and disengage the green low voltage service disconnect in the frunk. (follow OEM procedure)
I actually talk about this switch in my video about the charge coupler manual disconnect: charge coupler manual release | Ford Mustang Mach E - YouTube

Next was that we had to lift up the car and drain all the coolant. There are two hoses towards the rear motor and 4 hoses on the front. There is a procedure to follow according to the workshop manual. Once the coolant was removed we had to dry wipe everything (clean according to the books) and then we could disconnect the battery pack and measure voltage to assure there was no power on the plugs anymore (connectors dissengaged).

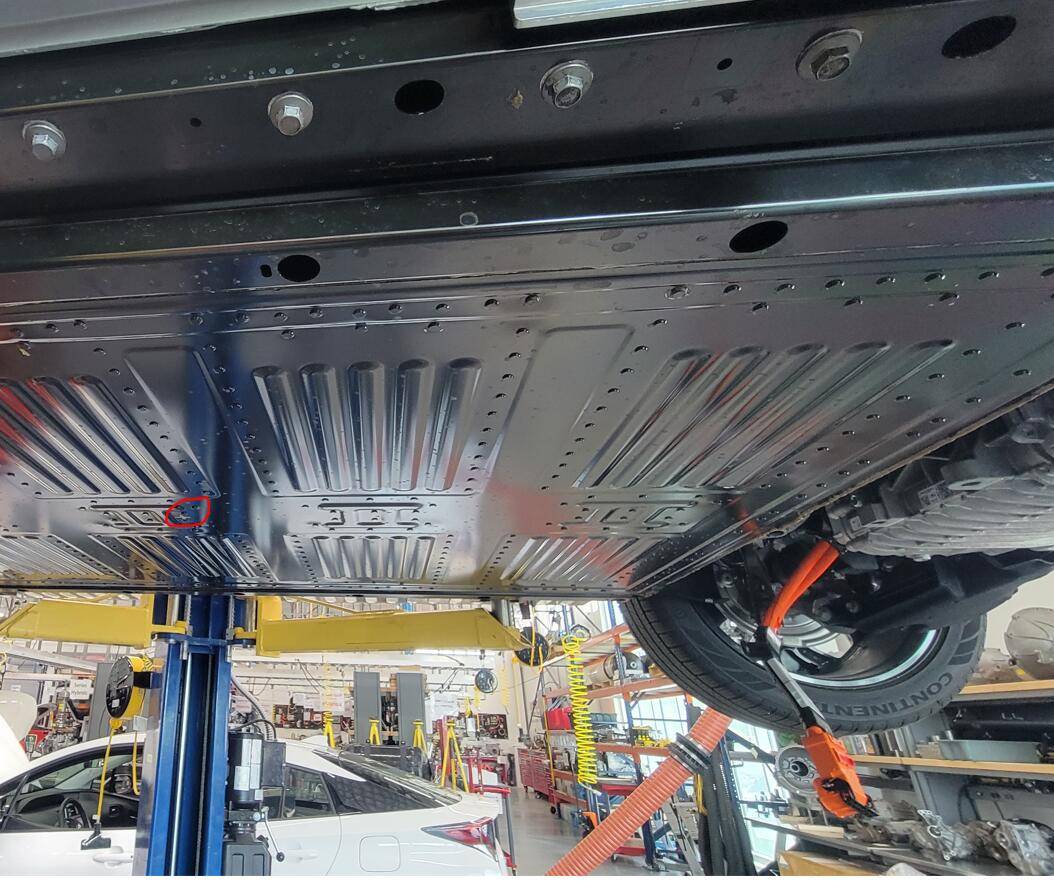

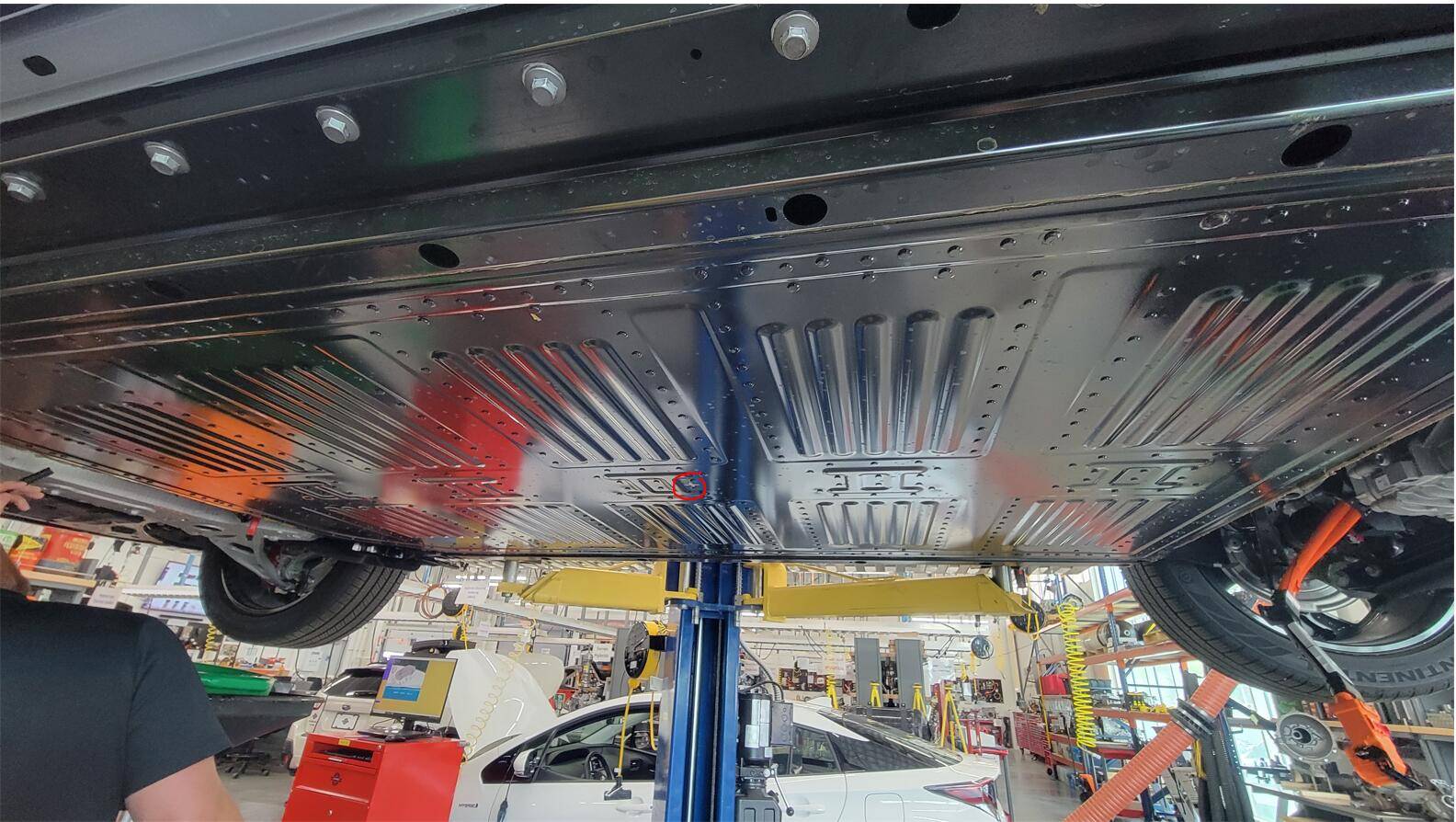

Next was getting a scissor hoist table and position it towards the center of the gravity of the battery. Ford does not specify it in the book, it says the battery is heavier in the end. Professor John Kelly marked the battery where it has its COG according to his experience. Note this is a Mach E GT, other Mach E's might have a different battery installed (sr Range eg).

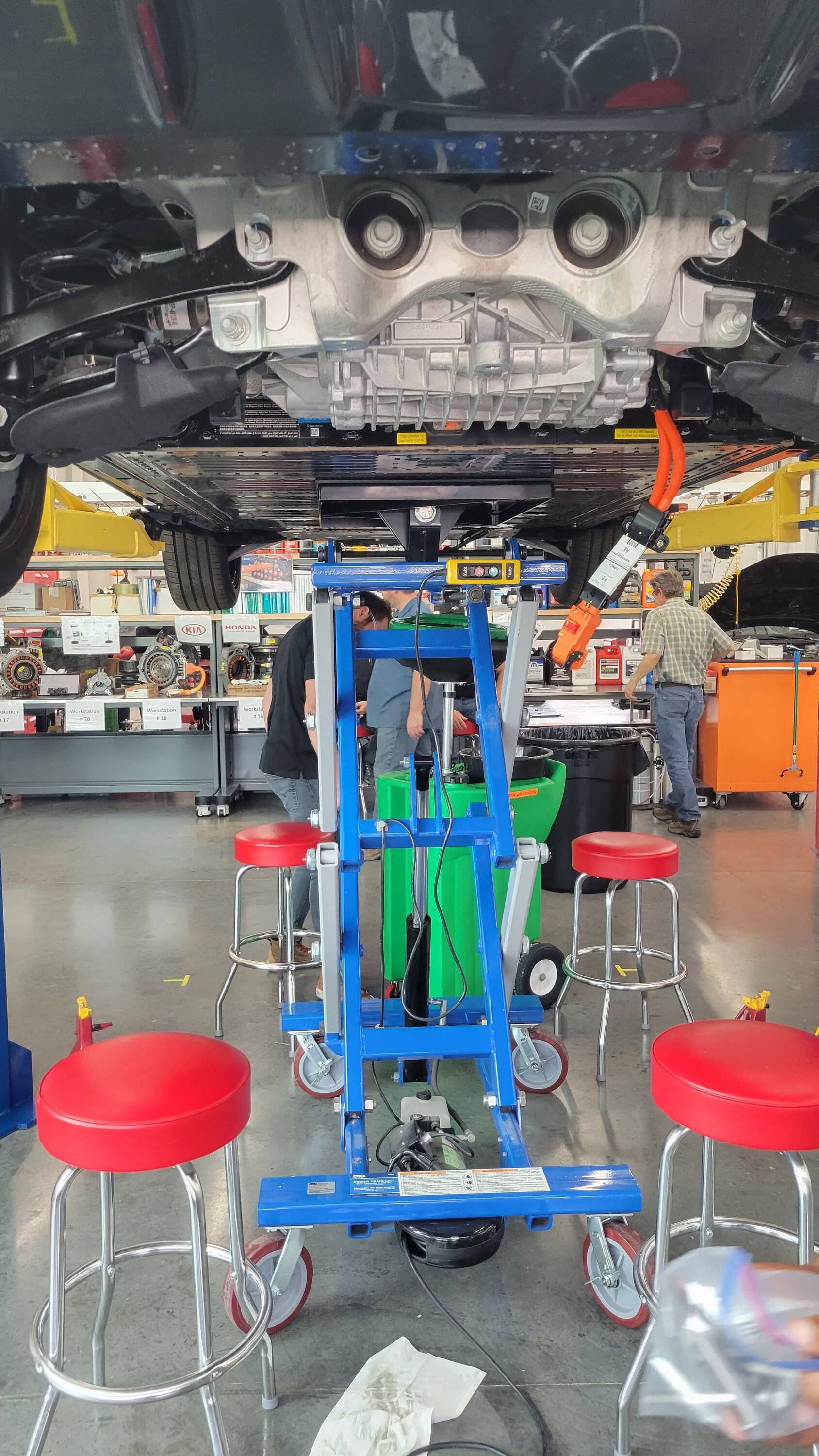

Here an image when we had the lift positioned. The four chairs where just positioned so the battery cannot tip over. Incase someone accidently leans on it too much.

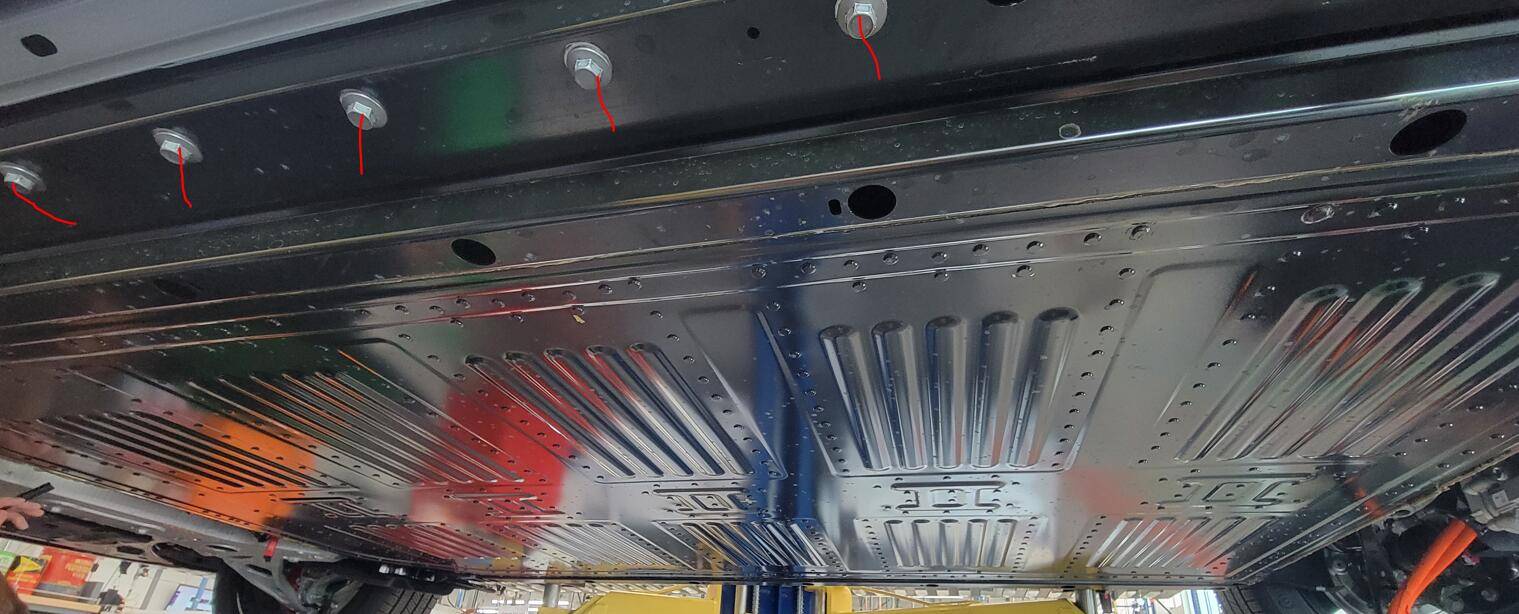

Now we had to remove all the screws and bolts around the battery frame. There is several on the back, in the corners and on the sides. Of course always with instructions from the book, to assure we follow the right steps.


Unfortunately I did not take a pic of the corner bolts and brackets

Next we lowered the battery for 1 inch (couple cm) to assure it is in balance with the lift, in case we would need to reposition.

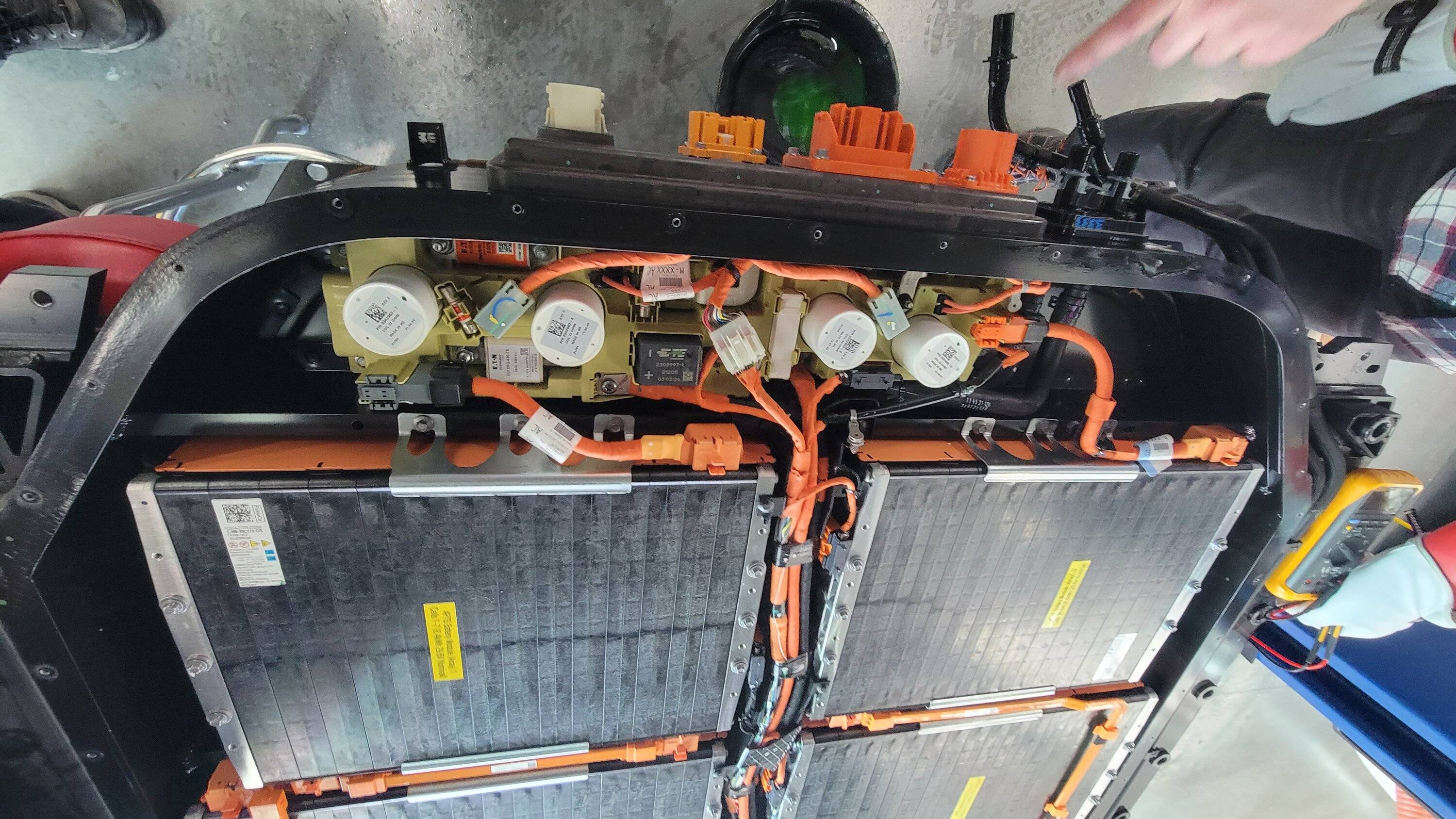

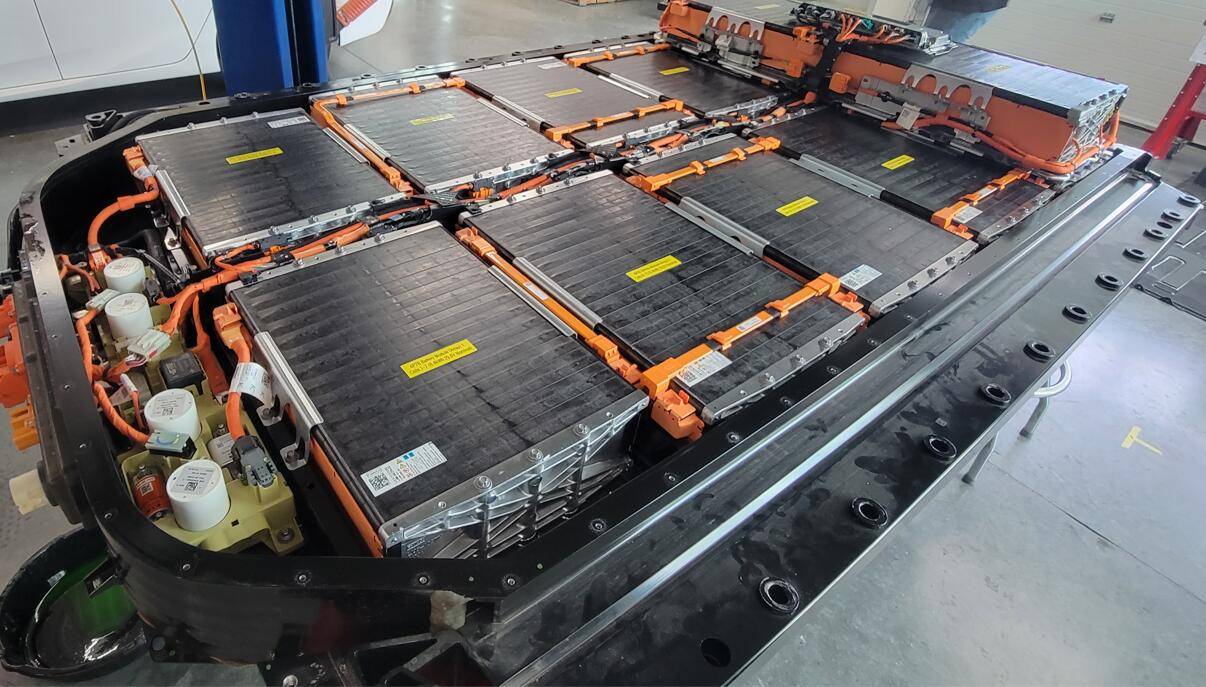

Then when we were sure we had it in balance, we were able to lower it all the way, and we were able to remove the cover to look at its cell modules, its contactors, resistors, capacitors, control unit, thermal management etc.

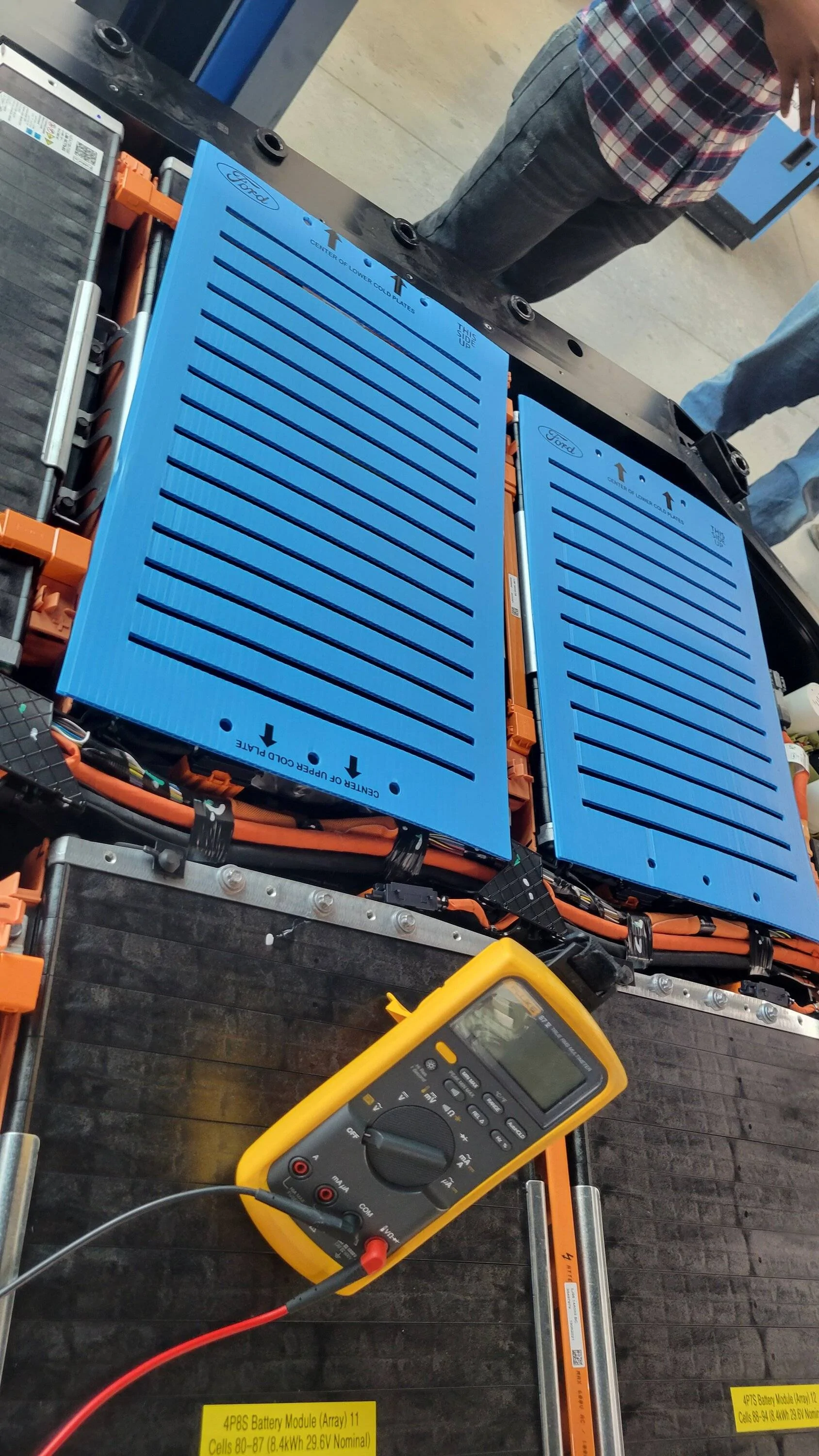

Interesting was also, if you would be changing cell blocks/module , you would need to install a new heat transfer paste. Ford has a template how to install the paste which would look like this:

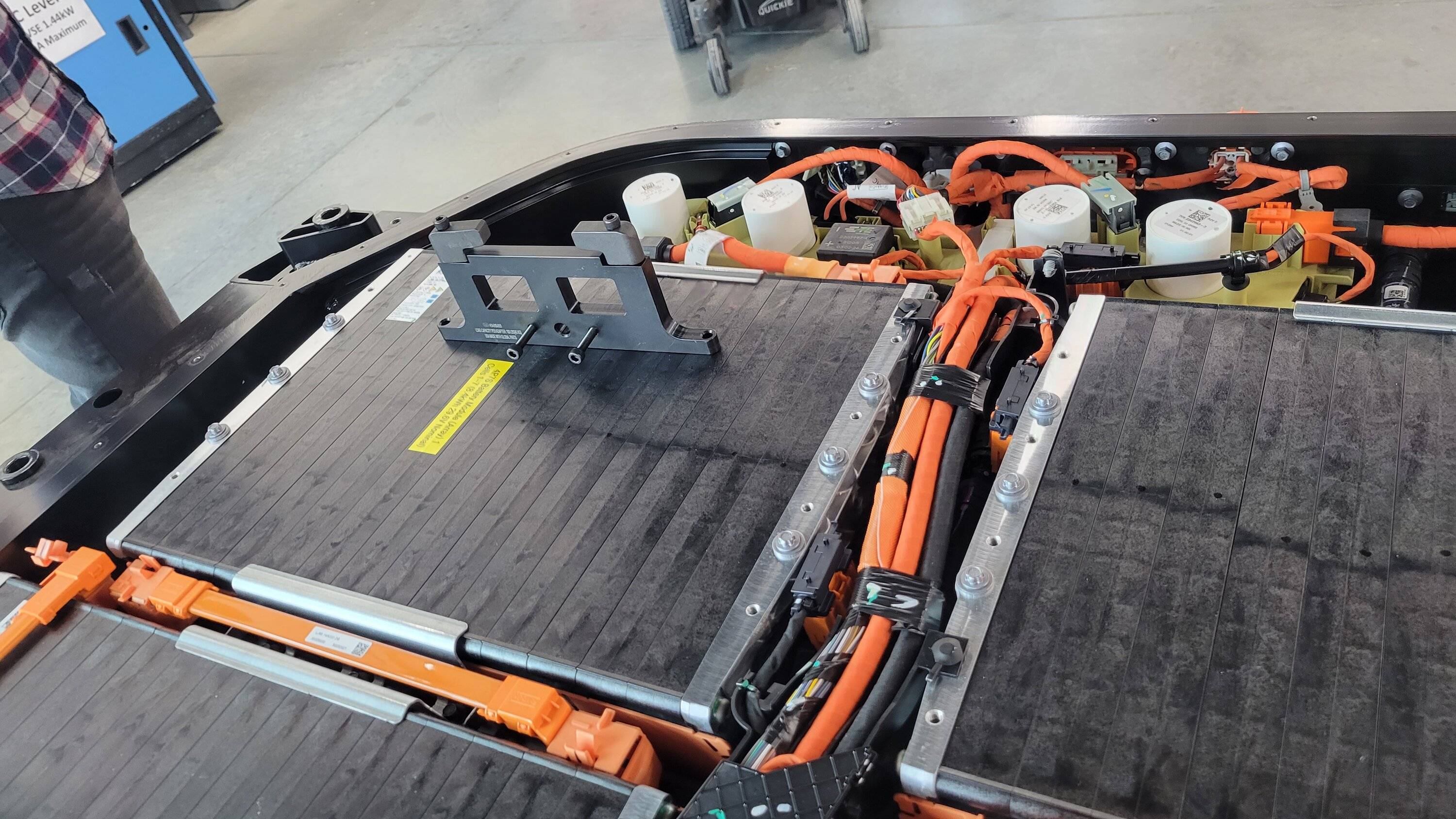

For removing cell modules there is a special bracket to hoist them out, as well you will always need to lift them out in pairs:



Again, as the car was on the hoist, it took us less than 1 hour to remove it. We were several people though and the car had it out already several times for training purposes.

I was thinking of doing a video about it, not sure if I have enough photos and enough proper sources with me, as I am not at the University anymore.

I think this write up should give you an idea on how to do it.

Note that you need to have basic knowledge about how to work save around high voltage batteries, otherwise you can get killed from high voltage.









Last edited:

scoopman

Well-Known Member
Joined
Jan 30, 2021
Threads
23
Messages
1,216
Reaction score
2,037
Location
Bay Area
Vehicles
2021 "Mach N Cheese" GT PE? , 2021 VW ID.4 Pro S
Occupation
junction box software tester
Country flag
Someone should send that dealership that dropped that poor GT off a lift to that class, they might learn something.


scoopman

Well-Known Member
Joined
Jan 30, 2021
Threads
23
Messages
1,216
Reaction score
2,037
Location
Bay Area
Vehicles
2021 "Mach N Cheese" GT PE? , 2021 VW ID.4 Pro S
Occupation
junction box software tester
Country flag


VegStang

Well-Known Member
First Name
Leo
Joined
Jan 30, 2020
Threads
5
Messages
1,038
Reaction score
1,169
Location
Silicon Valley
Vehicles
Pacifica PHEV, Mercedes BEV (Past Fords- Escape Hybrid, 67 Mustang Convertible)
Occupation
Artist, animal rights activist
Country flag
If only my local Ford dealer service bay looked like this one. Clean, lots of space...


Blue highway

Well-Known Member
First Name
Steve
Joined
Oct 15, 2021
Threads
2
Messages
484
Reaction score
612
Location
Oregon
Vehicles
Mach E Premium SR RWD
Country flag
In the ICE car world, engines and transmissions have serial numbers… because they cost a lot…. I wonder if EV batteries have serial numbers?

OP
OP
Benjamin Kegele

Benjamin Kegele

Well-Known Member
First Name
Benjamin
Joined
Mar 7, 2021
Threads
112
Messages
369
Reaction score
726
Location
Northern California
Vehicles
MME 21, VW Atlas, Harley Davidson Heritage Softail
Country flag
In the ICE car world, engines and transmissions have serial numbers… because they cost a lot…. I wonder if EV batteries have serial numbers?
Usually ever major component on equipment has a s/n


ripperAZ

Well-Known Member
First Name
Ripper
Joined
Mar 4, 2022
Threads
11
Messages
420
Reaction score
531
Location
AZ DESERT
Vehicles
2022 Ice White Mustang Mach E AWD EX BATT
All I have to say is

Holy Crap ….

It’s a lot better than how they make hotdogs at the sausage factory

Jes sayin. A MacGyver award for you. The inner e pony. Exposed.


Jimbo

Well-Known Member
First Name
Jimbo
Joined
Dec 16, 2021
Threads
0
Messages
117
Reaction score
122
Location
US
Vehicles
Premium 4X
Very nice writeup and pics.
As I think you alluded to, for the first pic, man that does not look safe

OP
OP
Benjamin Kegele

Benjamin Kegele

Well-Known Member
First Name
Benjamin
Joined
Mar 7, 2021
Threads
112
Messages
369
Reaction score
726
Location
Northern California
Vehicles
MME 21, VW Atlas, Harley Davidson Heritage Softail
Country flag
Very nice writeup and pics.
As I think you alluded to, for the first pic, man that does not look safe
Yea I believe they will need to get different pads for their lift or modify them.


Rk808

Member
First Name
Neil
Joined
Apr 2, 2022
Threads
0
Messages
16
Reaction score
13
Location
Hawaii
Vehicles
Mirai: Volvo XC60; MME
Occupation
Engineer
Very cool picks and info. makes you wonder if it would be as easy as adding some battery modules to get extended range when they are available from accident vehicles

OP
OP
Benjamin Kegele

Benjamin Kegele

Well-Known Member
First Name
Benjamin
Joined
Mar 7, 2021
Threads
112
Messages
369
Reaction score
726
Location
Northern California
Vehicles
MME 21, VW Atlas, Harley Davidson Heritage Softail
Country flag
Very cool picks and info. makes you wonder if it would be as easy as adding some battery modules to get extended range when they are available from accident vehicles
I believe that will be an issue wiyh your thermal managment and with the software.
