Mach-E Aftermarket wheel and tire information and pictures

mtxpert

Well-Known Member
First Name
Mike
Joined
Jun 16, 2021
Threads
5
Messages
109
Reaction score
246
Location
Phoenix
Vehicles
21 Mach E
Occupation
IT
Country flag

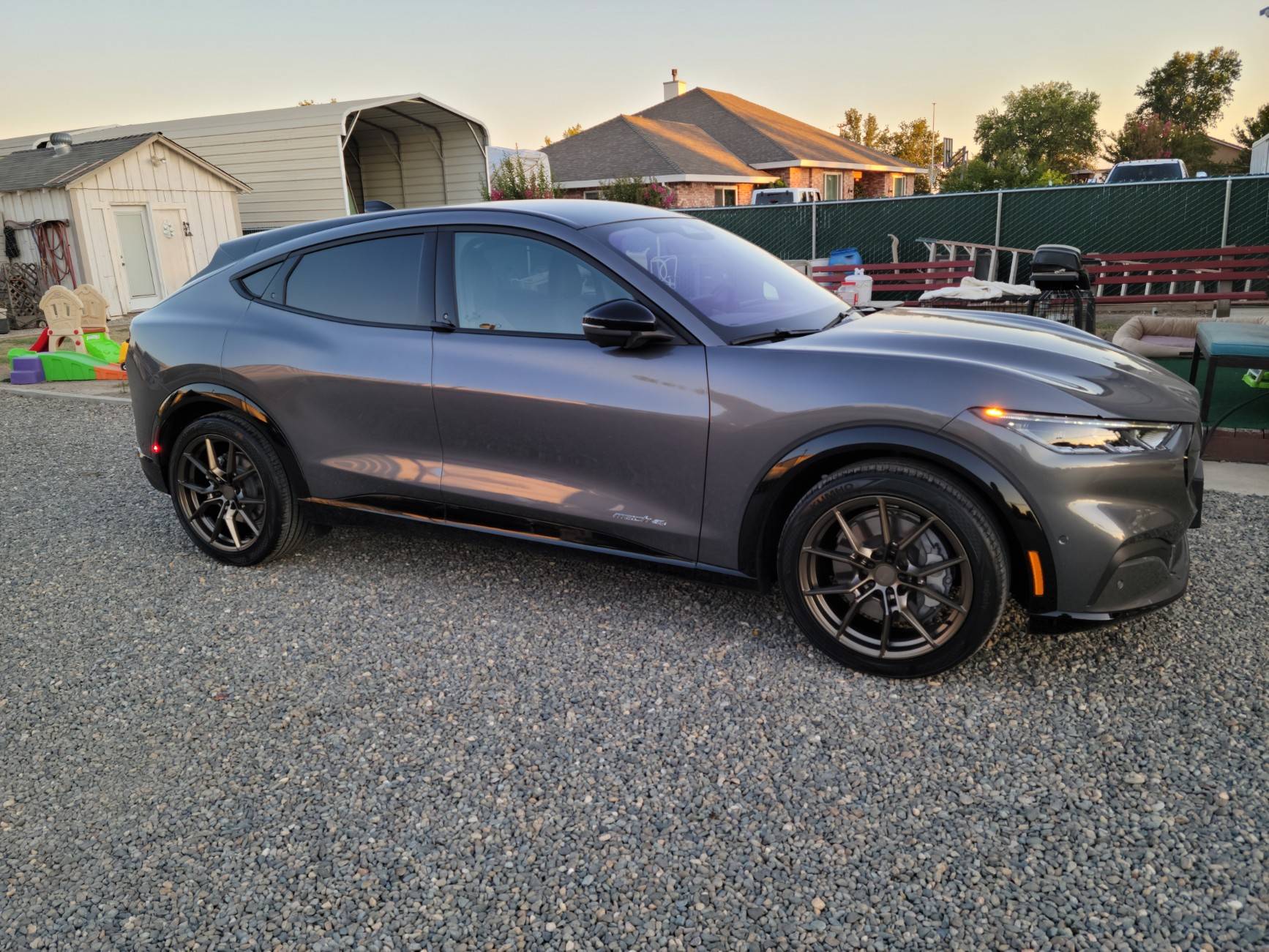

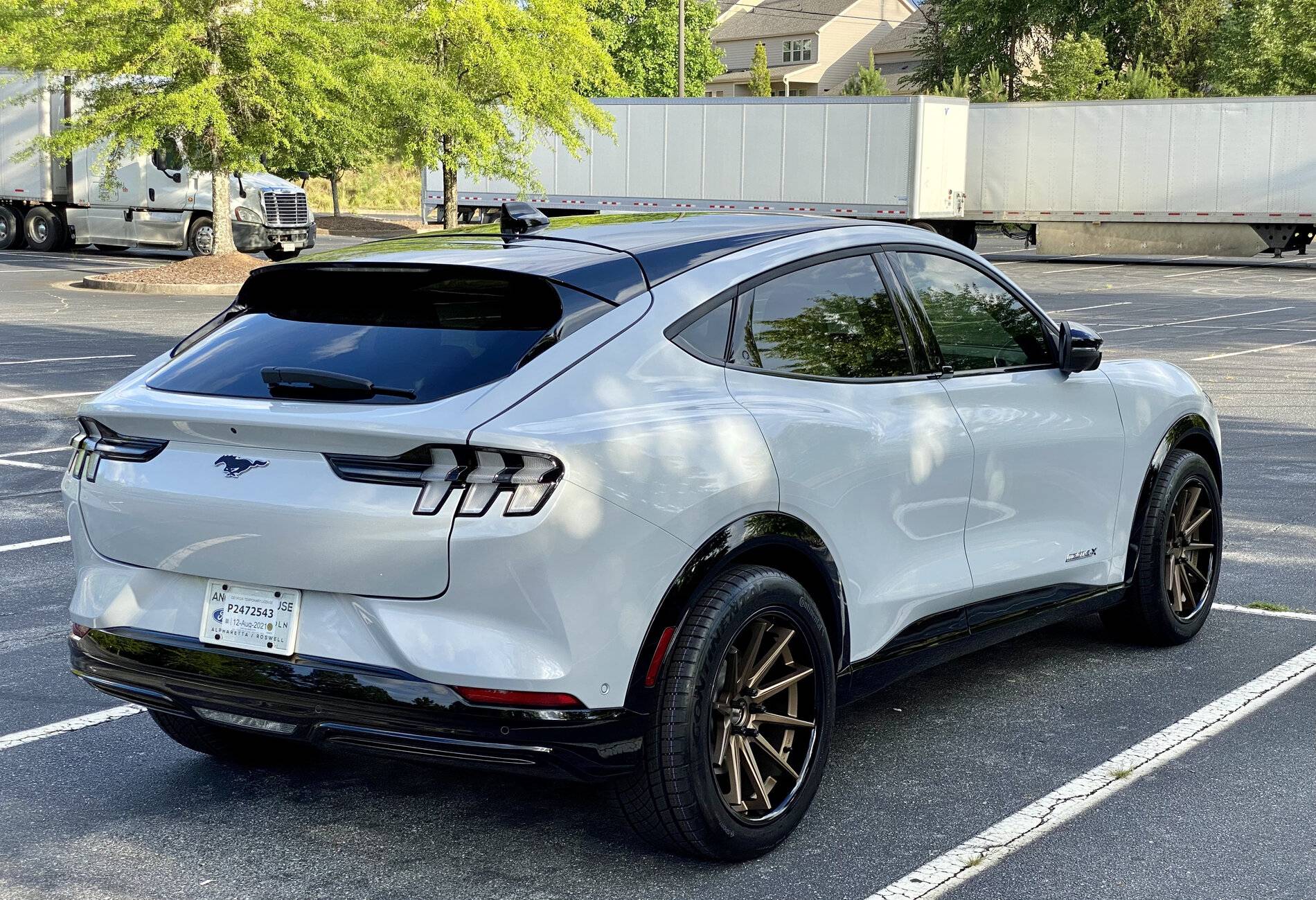

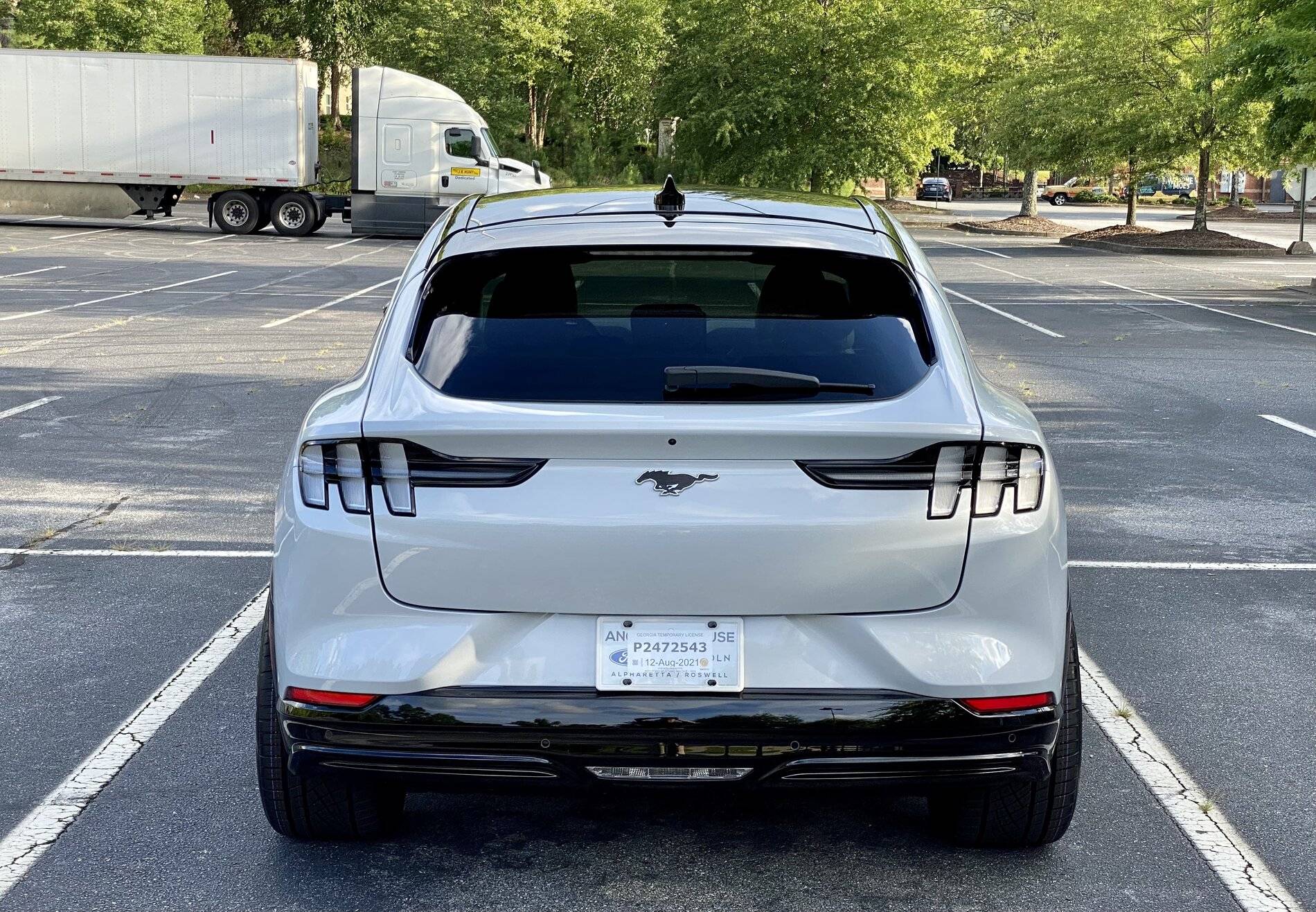

Probably a good idea to get people's aftermarket wheel/tire size/specs etc with pictures so everyone looking to do fitments can review.

I'll start with my setup:
20x9 +38 with a 245/45/20 and 20x10.5 +45 295/40/20
Ride quality has definitely improved as well as handling, range is down a little bit but we haven't really driven it much yet.
Long term I'll be switching to a 20x10 +50 in the rear and probably move to a 275/40 and 245/45 staggered setup due to the plan to lower it














Last edited:

Mach-Tony

Well-Known Member
First Name
Anthony
Joined
May 26, 2021
Threads
11
Messages
196
Reaction score
289
Location
Sacramento, CA
Vehicles
2021 Carbonized Grey Premium AWD
Occupation
Mechanical Engineer
Country flag

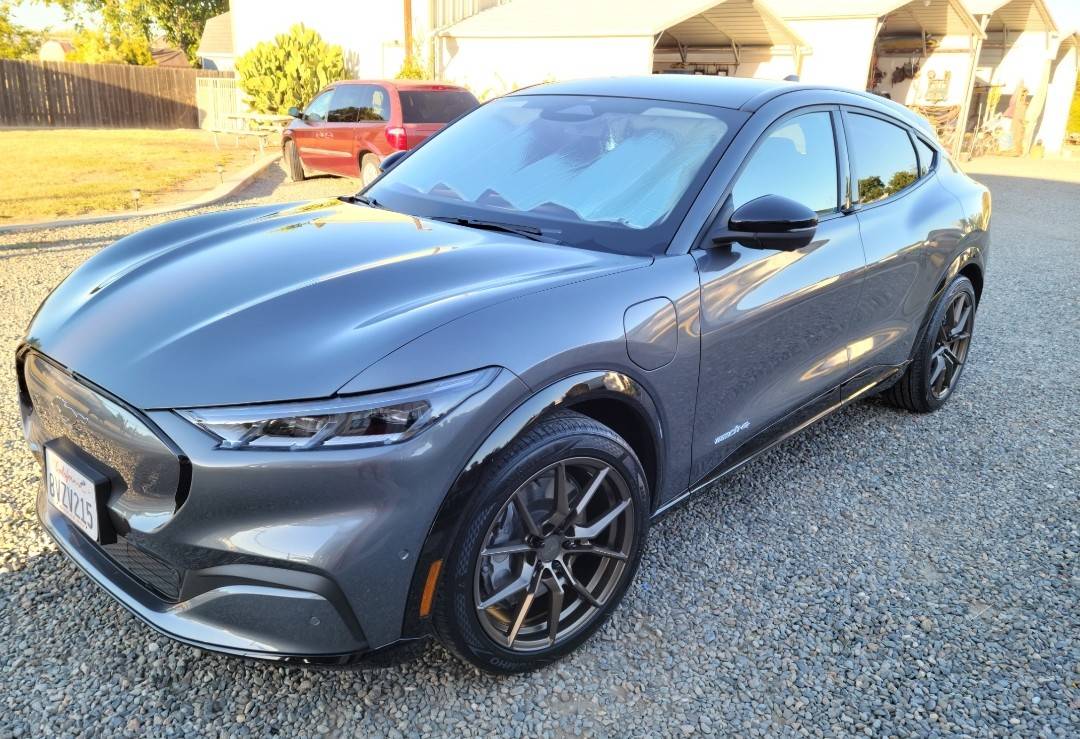

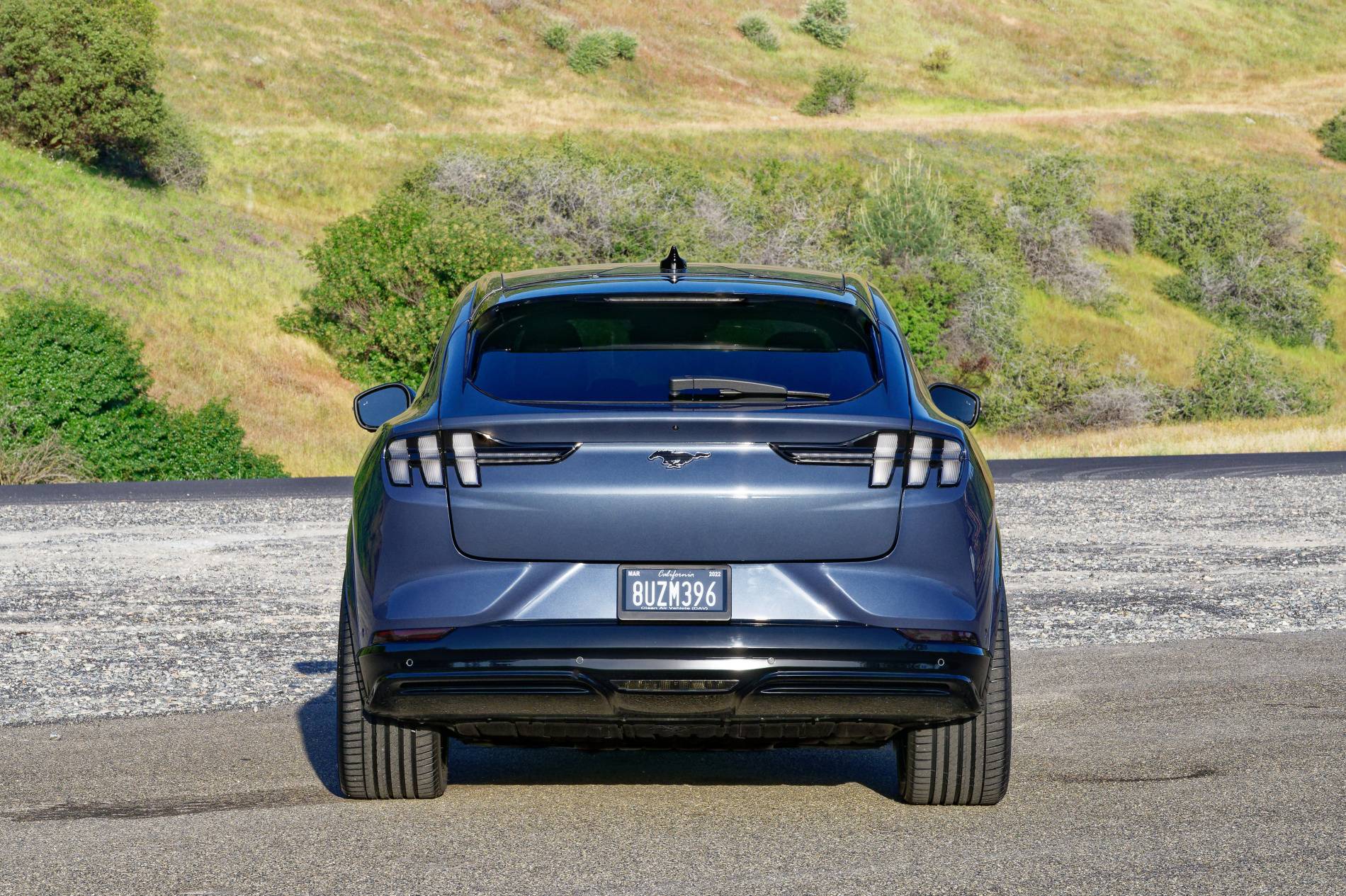

Here is mine:

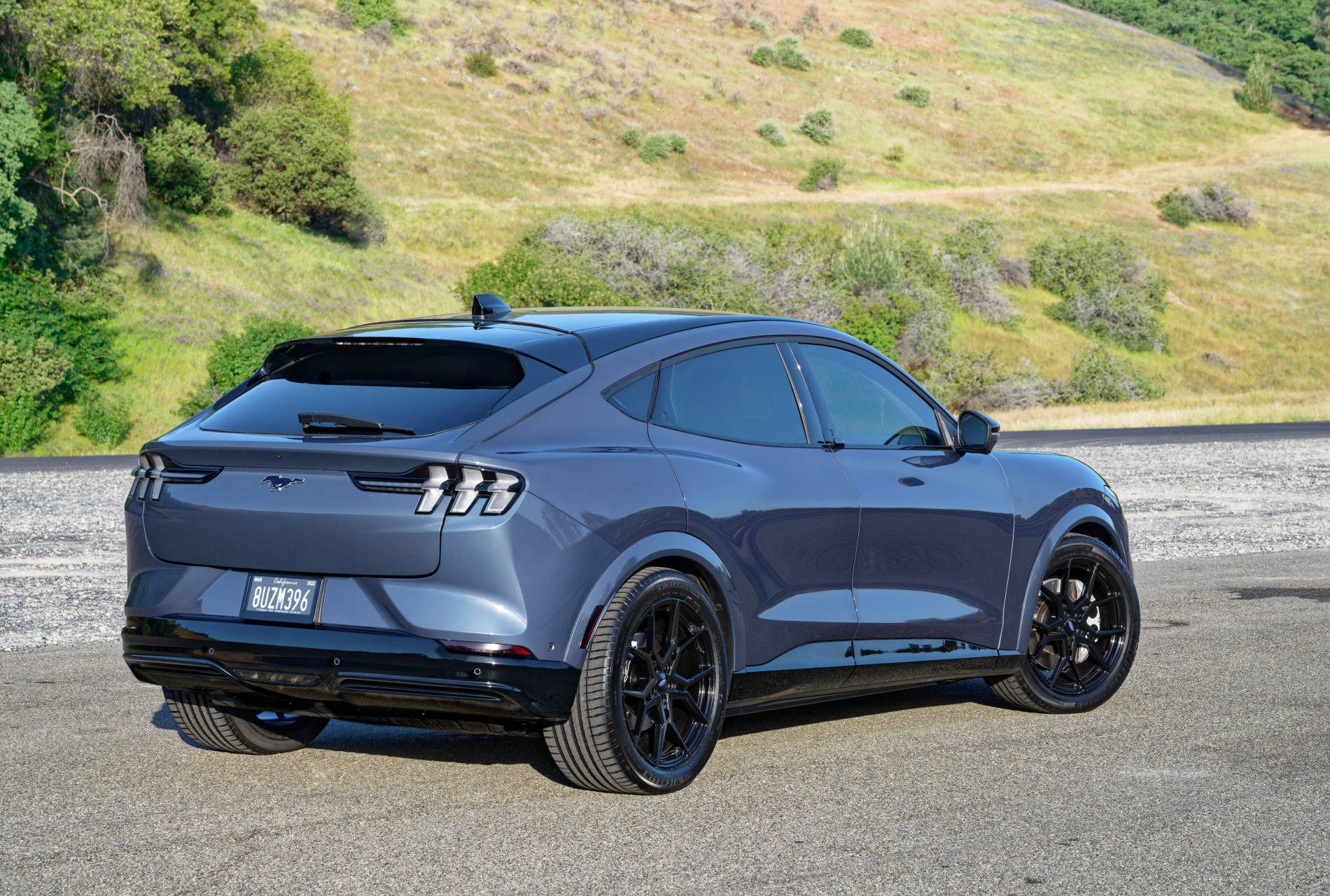

20x8.5 +40 square setup with 245/45ZR20 tires all around.
TSW Neptune Rotary Forged wheels with a load rating of 1650 per wheel, which they say is fine because it's more than half of the highest axle weight rating.

Even though the whole setup is lighter by about 4-5 lbs per wheel, I see about a 10% decrease in efficiency on my mostly highway driving commute. Well worth it, though! Much better handling and still a smooth ride.






Last edited:

markboris

Well-Known Member
First Name
Mark
Joined
Nov 13, 2019
Threads
21
Messages
1,460
Reaction score
2,967
Location
Sonora, CA
Vehicles
_______ '20 Shelby GT500 FPB '21 Mach-E GTPE IS
Occupation
Retired
Country flag
My setup:

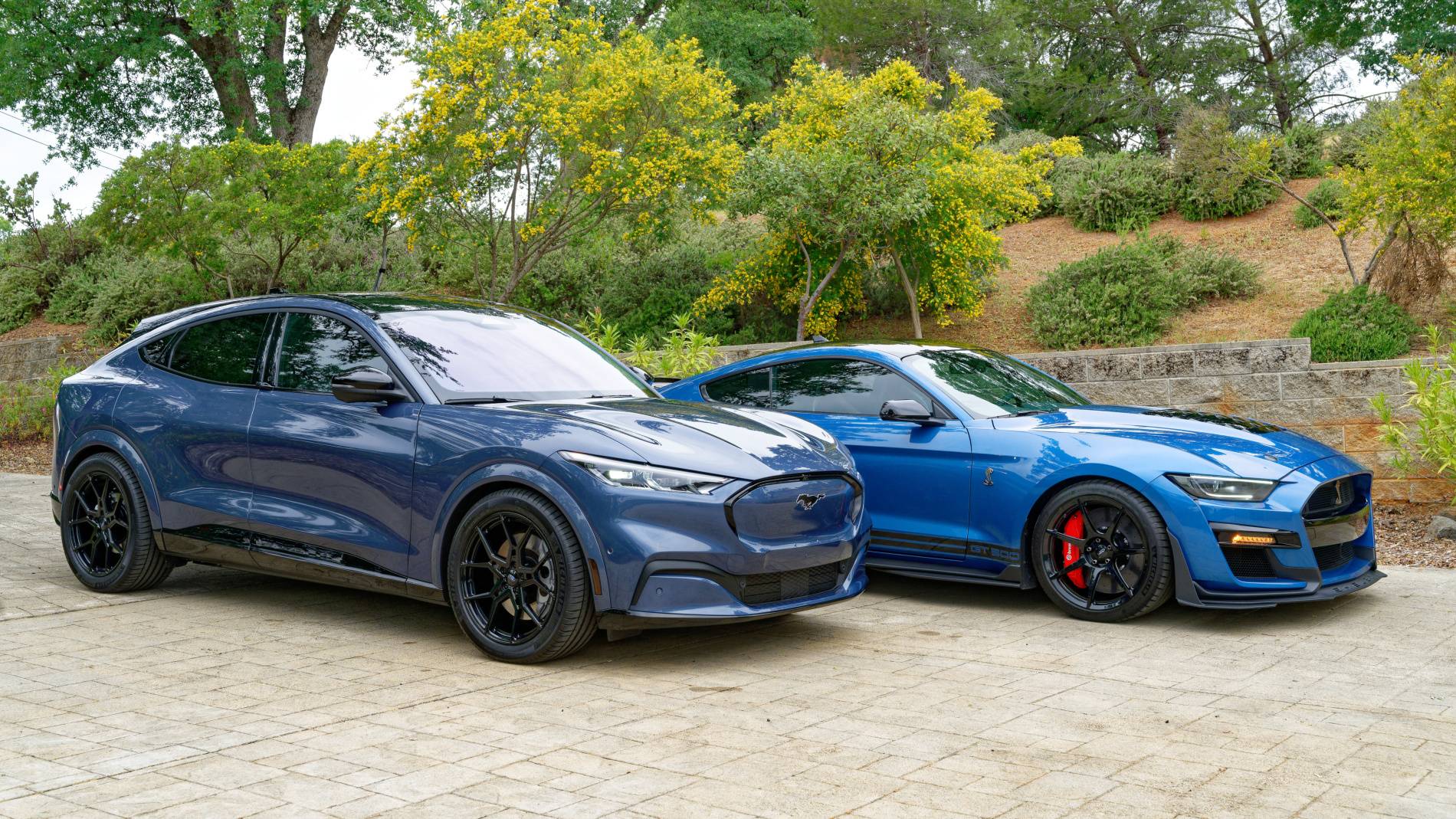

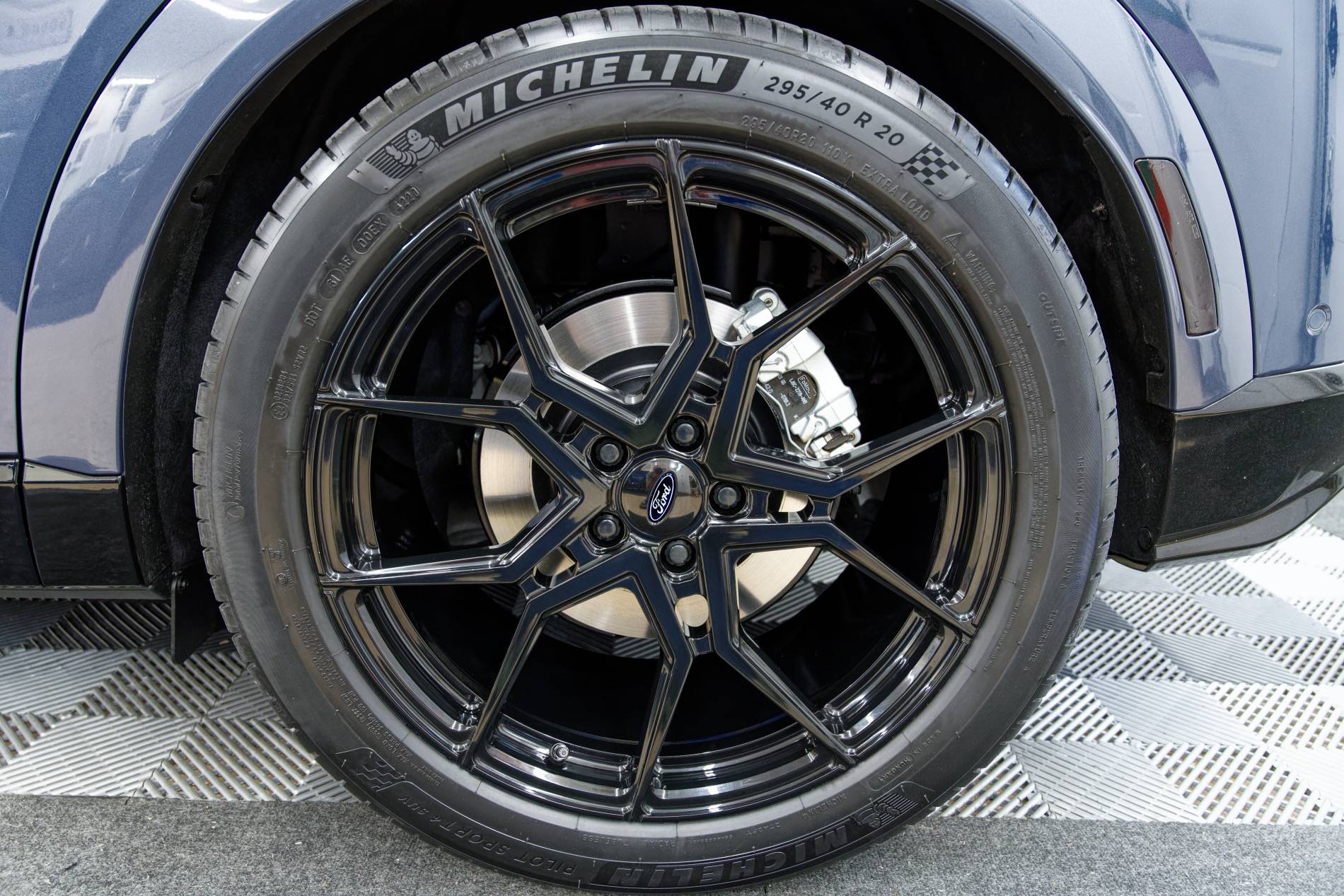

Signature SV706 wheels in gloss black. Front 20x8.5 +34, rear 20x10 +47. Michelin Pilot Sport 4 SUV tires front 255/45/20, rear 295/40/20. Even though the wheels and tires are much larger than OEM, was able to shave off 14.5 lbs total weight on the new setup.

As Mike had stated with his Mach-E, the car drives and handles much better. I have had this setup now for over 4000 miles and probably have a 10% hit in the range. Since I only had the car for one week before changing out the wheels and tires, I have no clue what my mi/kWh was stock but I can say that the average I am getting for the total 4000 miles is 3.0 mi/kWh. The trip I took two weeks ago to Yosemite and then to the SF bay area then back home was 457 miles and averaged 3.3 mi/kWh.

I have an Iconic Silver GTPE on order and thinking of ordering another set of wheels in a simple 5 spoke design. I would be getting the same size wheel specs but changing the tires to 245/45/20 front and 275/40/20 rear because I want to go with Michelin Pilot Sport 4s tires and they are not available in the 295/40/20 size.

















SV706 Mach E Mark-3.jpg

Last edited:

50 Deep

Well-Known Member
Diamond Sponsor
First Name
Terrance
Joined
Feb 18, 2021
Threads
23
Messages
182
Reaction score
425
Location
Sacramento, CA
Vehicles
20 GT500, 17 GT350R, 15 GT3, 00 Lightning, 91 Fox
Occupation
Wheel Whore
Country flag

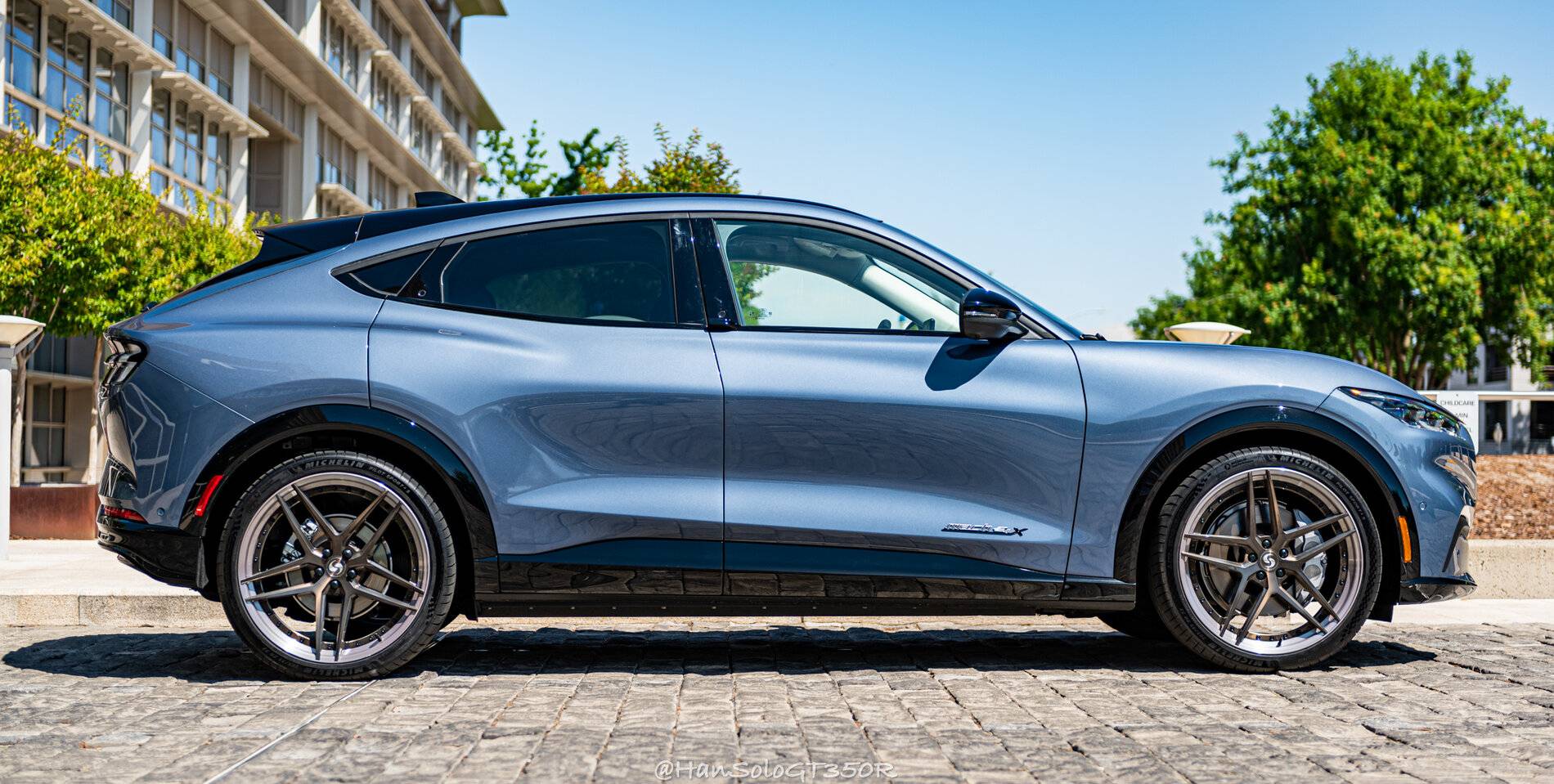

Here is our 22x9 Square Signature Wheel Multipiece SV301S. We are running a 265/35/22 Michelin at all four corners.

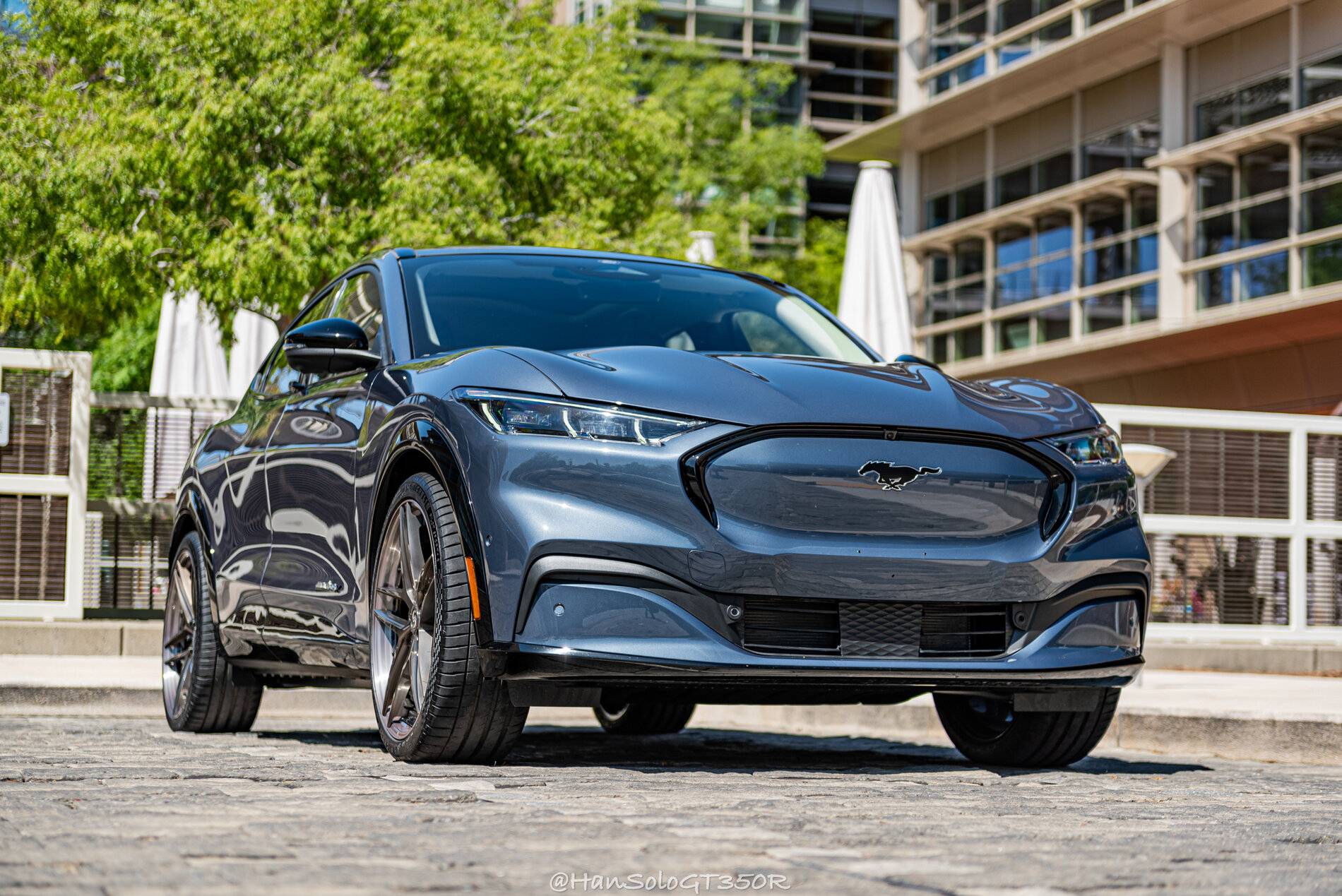

SV301S Mach E Set 1-06.jpg
SV301S Mach E Set 1-10.jpg
SV301S Mach E Set 1-09.jpg

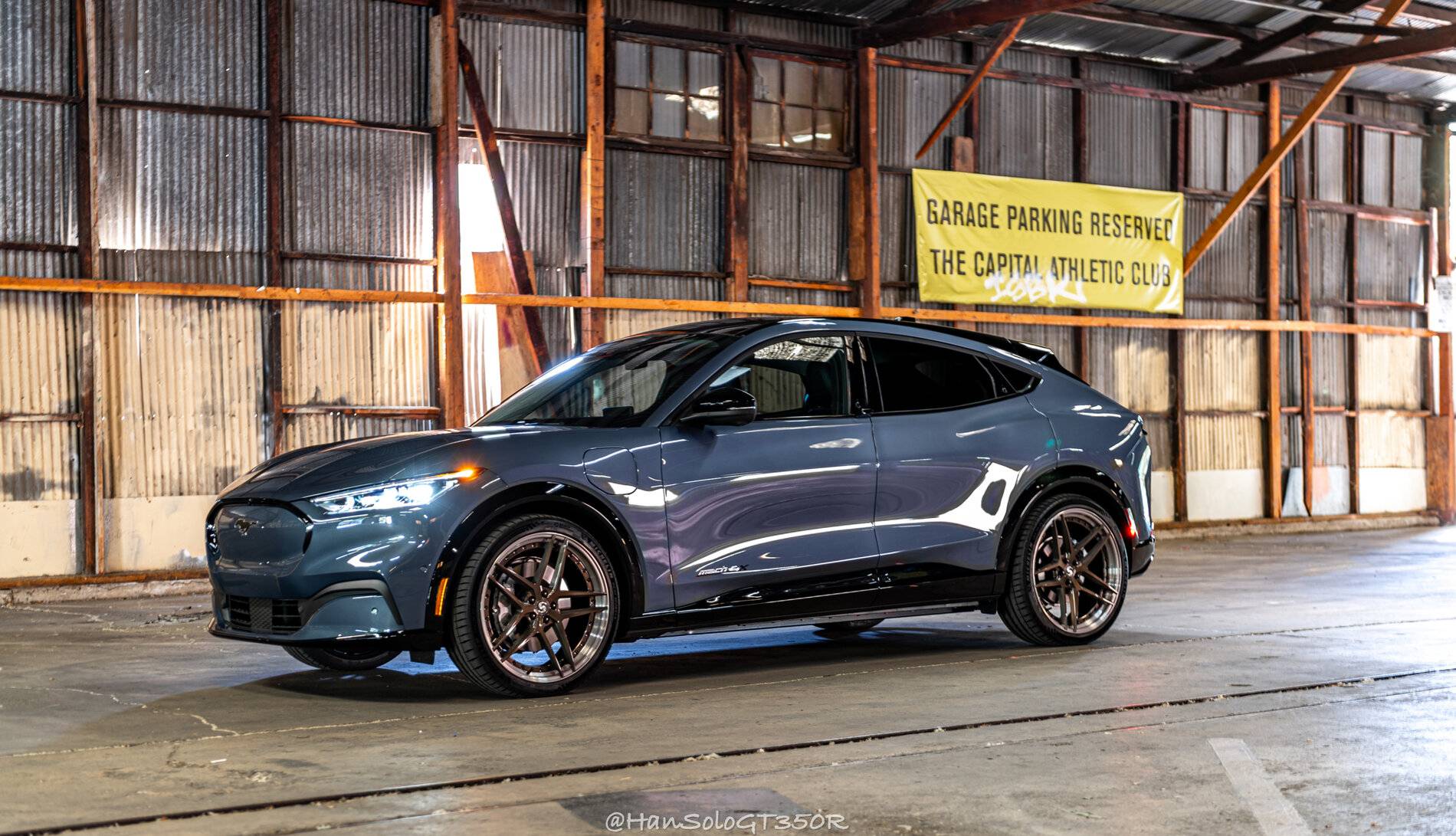

SV301S Mach E Set 1-04.jpg

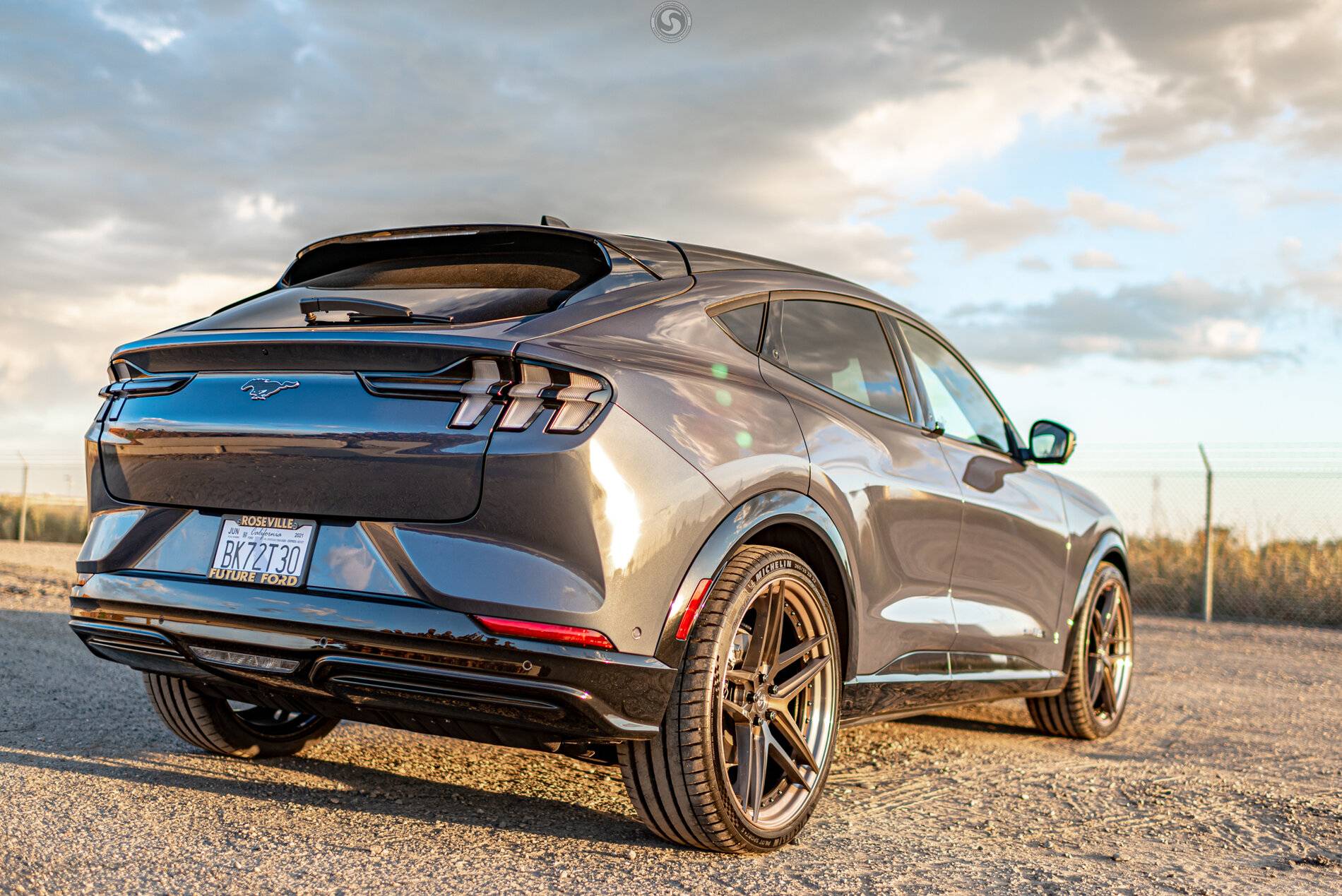

SV301S Mach E-14.jpg
SV301S Mach E-07.jpg

Last edited:


dtbaker61

Well-Known Member
First Name
Dan
Joined
May 11, 2020
Threads
92
Messages
3,059
Reaction score
2,810
Location
santa fe,nm
Website
www.envirokarma.org
Vehicles
MME (delivered 2/26/21), DIY eMiata BEV
Occupation
Solar Sales/install
Country flag
I'm thrilled with results.... new wheels are an inch wider, 6.5# lighter, and the alloy nuts take off about 10oz more per wheel!

I finally got all the bits in house, and had a local tire shop slide the stock tires from my Select onto my new wheels. I figure I will run the OEM tires until worn out, and then go for nicer, wider, sticker summer tires. I'll put some nice Snow/Ice tires on the factory wheels for winter when it snows since I do hit the mountains for skiing, etc...

My goals in wheel selection were to stay at stock diameter, reduce weight as much as possible while sticking with a 700kg rated wheel, and hold the cost down as much as possible.... which means one-piece alloy, probably with pretty much straight 'spokes'. I found choices somewhat limited with correct bolt circle and offset; but decided on:

msrp $250ea -
18x8.5 Enkei TS-V, part number 522-885-3140 - 19.5#, 5x108bc, 40mm inset, 72.6 bore
I got mine from pattersonperformanceparts.com

note that OEM Select wheels are:
18x7.5 - 25.6#, 5x108bc, 63.4 bore

This means I also had to get
$14 + 72.6-63.4 centric rings :
.amazon.com/ZHTEAPR-Wheel-Centric-72-6mm-63-4mm/dp/B08L8VVDDW/ref=asc_df_B08L8VVDDW/?

$164 + valves+TPS+'activator' : .americanmuscle.com/search?keywords=389789

$55 + 14x1.5 lug nuts because factory nuts have a chrome cap that doesn't fit in Enkei holes : vmsracing.com

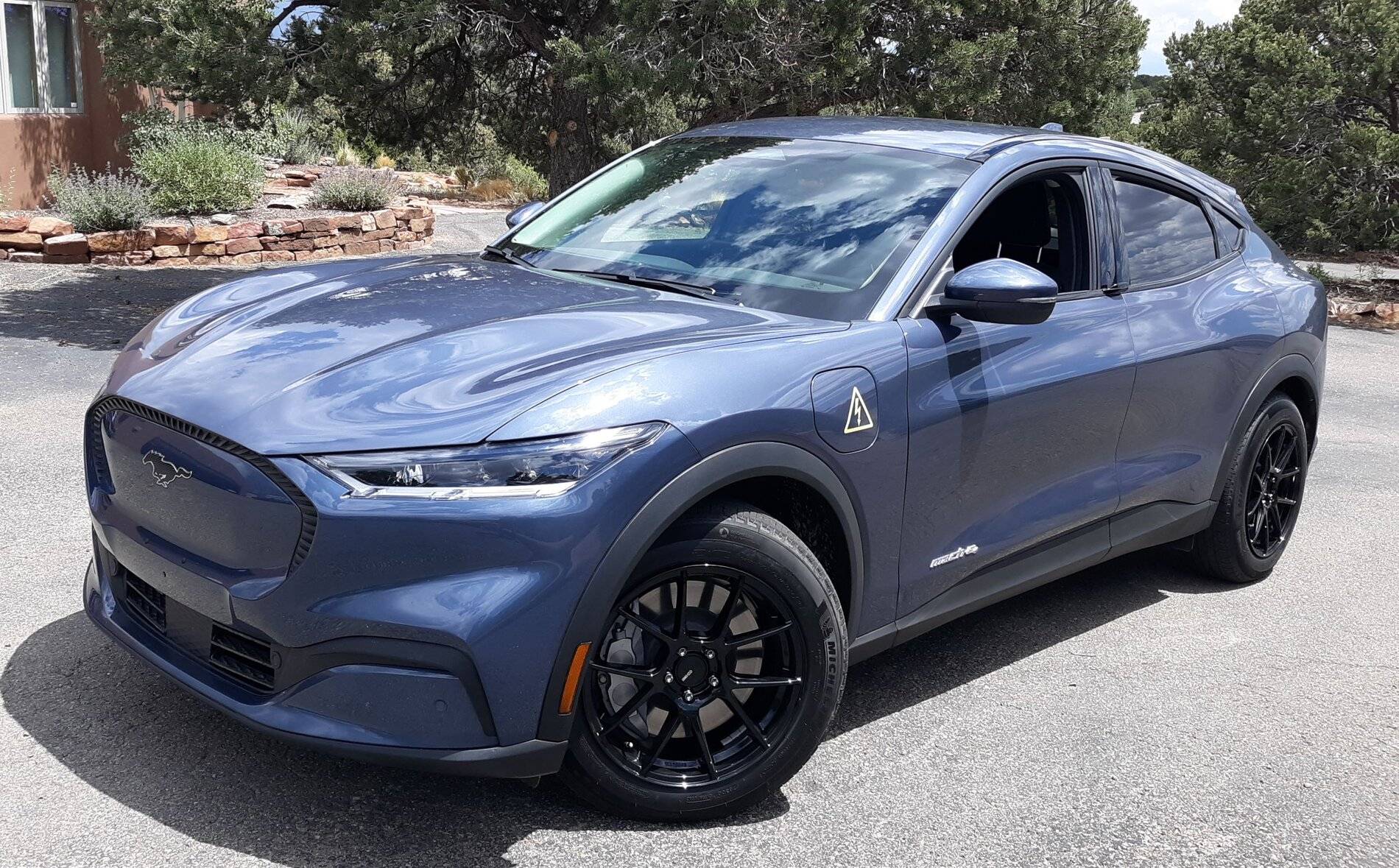

installed fq view.jpg

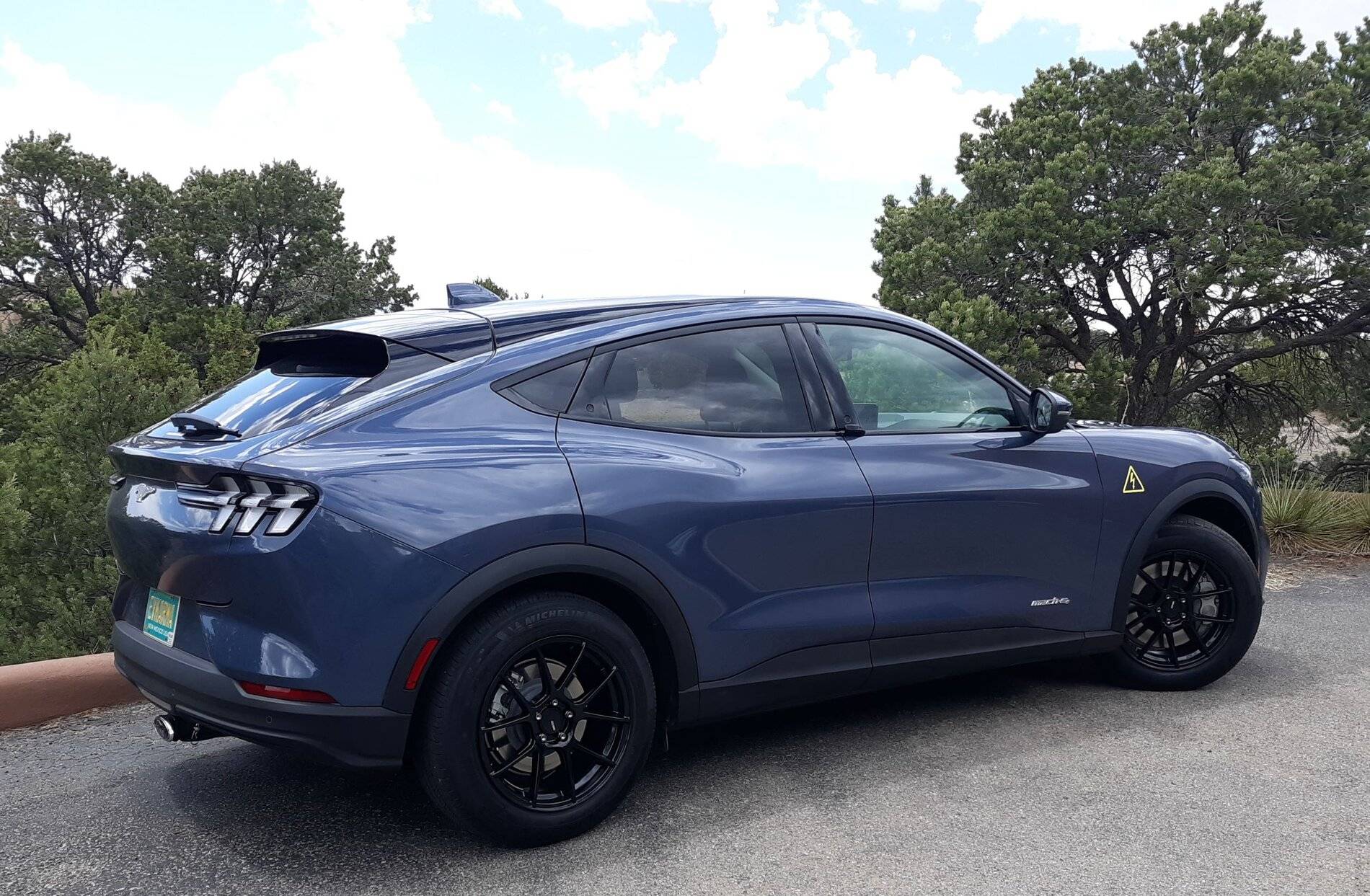

installed rq view.jpg


sookestang

Well-Known Member
Joined
May 19, 2021
Threads
7
Messages
69
Reaction score
122
Location
Vancouver Island
Vehicles
Mach E
Country flag
Had the front completed with PPF at SCH Auto in Victoria m, BC and asked them to paint the calipers a custom blue.

The total was about $2500. $2000 was PPF install.

The wheels are Klasse GT4 which I’ve posted before.

Have a great weekend.


sookestang

Well-Known Member
Joined
May 19, 2021
Threads
7
Messages
69
Reaction score
122
Location
Vancouver Island
Vehicles
Mach E
Country flag
Had the front completed with PPF at SCH Auto in Victoria m, BC and asked them to paint the calipers a custom blue.

The total was about $2500. $2000 was PPF install.

The wheels are Klasse GT4 which I’ve posted before.

Have a great weekend.


Dear1nc

Well-Known Member
First Name
Nick
Joined
Jun 7, 2021
Threads
4
Messages
140
Reaction score
164
Location
South Lyon, Mi
Vehicles
Mach E GT PE
Country flag
Here is our 22x9 Square Signature Wheel Multipiece SV301S. We are running a 265/35/22 Michelin at all four corners.

SV301S Mach E Set 1-06.jpg
SV301S Mach E Set 1-10.jpg
SV301S Mach E Set 1-09.jpg
SV301S Mach E Set 1-04.jpg
SV301S Mach E-14.jpg
SV301S Mach E-07.jpg
Wheel and tire combo is absolute fire! How does the ride compare? A lot stiffer or "better" as some say? I worry slightly about the 265/35 with potholes but it looks like a decent amount of meat on there...


Rocky29670

Well-Known Member
Joined
Jun 10, 2020
Threads
20
Messages
366
Reaction score
453
Location
Clemson, SC
Vehicles
2009 Toyota Camry Hybrid (Sold), 2013 Ford Fusion (borrowing until MME gets here), Mustang Mach E Premium ER AWD
Country flag
My setup:
Signature SV706 wheels in gloss black. Front 20x8.5 +34, rear 20x10 +47. Michelin Pilot Sport 4 SUV tires front 255/45/20, rear 295/40/20. Even though the wheels and tires are much larger than OEM, was able to shave off 14.5 lbs total weight on the new setup.

As Mike had stated with his Mach-E, the car drives and handles much better. I have had this setup now for over 4000 miles and probably have a 10% hit in the range. Since I only had the car for one week before changing out the wheels and tires, I have no clue what my mi/kWh was stock but I can say that the average I am getting for the total 4000 miles is 3.0 mi/kWh. The trip I took two weeks ago to Yosemite and then to the SF bay area then back home was 457 miles and averaged 3.3 mi/kWh.

I have an Iconic Silver GTPE on order and thinking of ordering another set of wheels in a simple 5 spoke design. I would be getting the same size wheel specs but changing the tires to 245/45/20 front and 275/40/20 rear because I want to go with Michelin Pilot Sport 4s tires and they are not available in the 295/40/20 size.

















SV706 Mach E Mark-3.jpg
I really like that setup, what did that cost you?


MyLittlePony2022

Well-Known Member
First Name
William
Joined
Jul 17, 2021
Threads
30
Messages
636
Reaction score
599
Location
SF Bay Area, California
Vehicles
2022 "Mach-E Auto" GTPE, Cyber Orange
Country flag
I am new to the forum. Waiting for the 2022's to come out and put my order in for a MME GT. I am trying to do the research on wheels since there is no way I can keep the stock wheels on the GT and I am not paying $5K for the GT PE for a those wheels and a 0.3 seconds differential.

The last time I had to think about what "rims" I hoped to buy was when I was 16 and you had a choice between Centerline and Cragar. ;)I will keep the stock tires until l wear them out and then think about other tires. Not wanting to really increase the tire size or buy a set of wheels beyond the $2K to $3K range. Just improve the handling a bit and make it look good.

I do have a question about the reduction in mileage. I see posts that they kept the OEM tire size, changed out the wheels (reduced weight) and the mileage went down by 10%. To me, loosing 26 miles on a 260 mile range is not ideal. Why does the mileage go down with a simple wheel change? Are the wheels more drag? Are the tires more suited for performance (more rolling friction) and reducing the mileage? Education and advise is always welcomed.


50 Deep

Well-Known Member
Diamond Sponsor
First Name
Terrance
Joined
Feb 18, 2021
Threads
23
Messages
182
Reaction score
425
Location
Sacramento, CA
Vehicles
20 GT500, 17 GT350R, 15 GT3, 00 Lightning, 91 Fox
Occupation
Wheel Whore
Country flag
Wheel and tire combo is absolute fire! How does the ride compare? A lot stiffer or "better" as some say? I worry slightly about the 265/35 with potholes but it looks like a decent amount of meat on there...
The vehicle actually rides better than OEM in almost all settings. You can watch the suspension movement some here





Dear1nc

Well-Known Member
First Name
Nick
Joined
Jun 7, 2021
Threads
4
Messages
140
Reaction score
164
Location
South Lyon, Mi
Vehicles
Mach E GT PE
Country flag
The vehicle actually rides better than OEM in almost all settings. You can watch the suspension movement some here



Really good video! If you had to pick a size for a daily commuter would it be 20",21" or 22"? I'm still on the fence between 21 and 22's. The 265/35/22 tires have a decent amount of meat on them. I’m not worried about range! More about looks and ride quality.

Last edited:

50 Deep

Well-Known Member
Diamond Sponsor
First Name
Terrance
Joined
Feb 18, 2021
Threads
23
Messages
182
Reaction score
425
Location
Sacramento, CA
Vehicles
20 GT500, 17 GT350R, 15 GT3, 00 Lightning, 91 Fox
Occupation
Wheel Whore
Country flag
Really good video! If you had to pick a size for a daily commuter would it be 20",21" or 22"? I'm still on the fence between 21 and 22's. The 265/35/22 tires have a decent amount of meat on them. I’m not worried about range! More about looks and ride quality.
I would use cost as the main factor in deciding between the three sizes. I have built wheel setups in all three configurations and everyone tends to agree on the ride quality remaining great.
