I decided to venture and do this without any help or wiring diagrams. I couldn't find ANY resources online for any reference. I managed to figure it out and I took photos along the way to help others that may be wanting to do the same.

I've done many mirror taps in the past, but this one was a bit intimidating, not knowing where to tap because of all the unusually color coded wires, and all the tech involved in this piece.
nicely done!
too bad Ford didn't build in a pre-wired plug for radar detectors.... I'm finding that 90mph comes up way too easy. ;)


Thor188

Active Member
First Name
Charles
Joined
Aug 15, 2020
Threads
2
Messages
43
Reaction score
85
Location
Ottawa, Canada
Vehicles
Lincoln MKX, Audi A4
Country flag
I decided to venture and do this without any help or wiring diagrams. I couldn't find ANY resources online for any reference. I managed to figure it out and I took photos along the way to help others that may be wanting to do the same.

I've done many mirror taps in the past, but this one was a bit intimidating, not knowing where to tap because of all the unusually color coded wires, and all the tech involved in this piece.

PLEASE PLEASE be VERY careful removing the plastic housing. I don't want to be responsible for anyone breaking this piece. Be gentle and take your time.

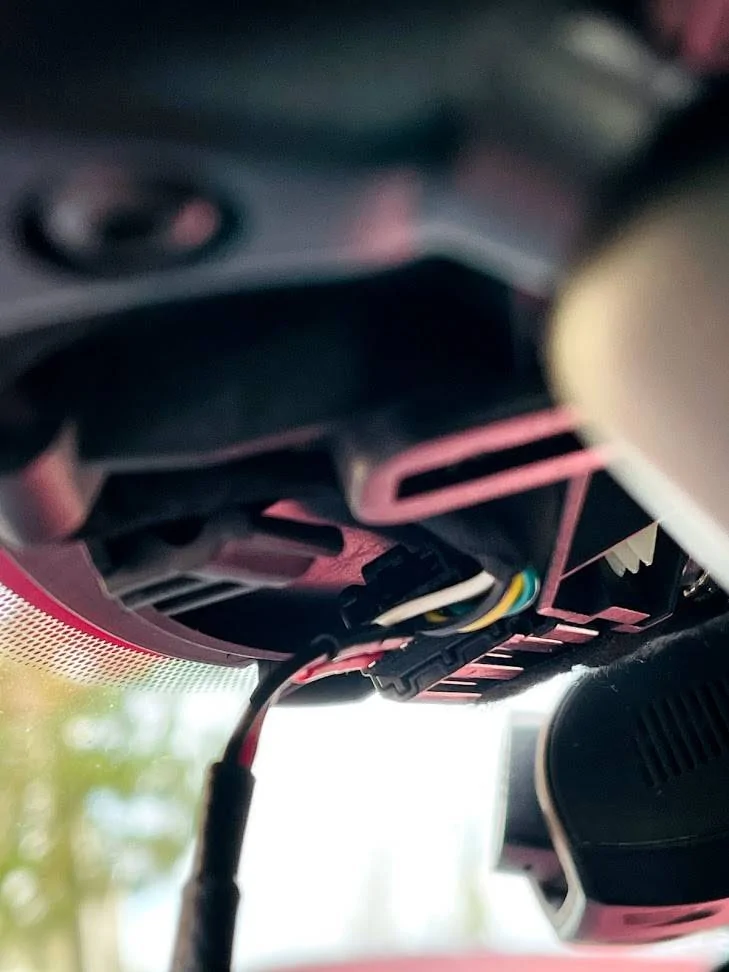

Circled is the terminal that you will be using removing and tapping into. The release is on the top, towards the windshield.


Testing the taps:

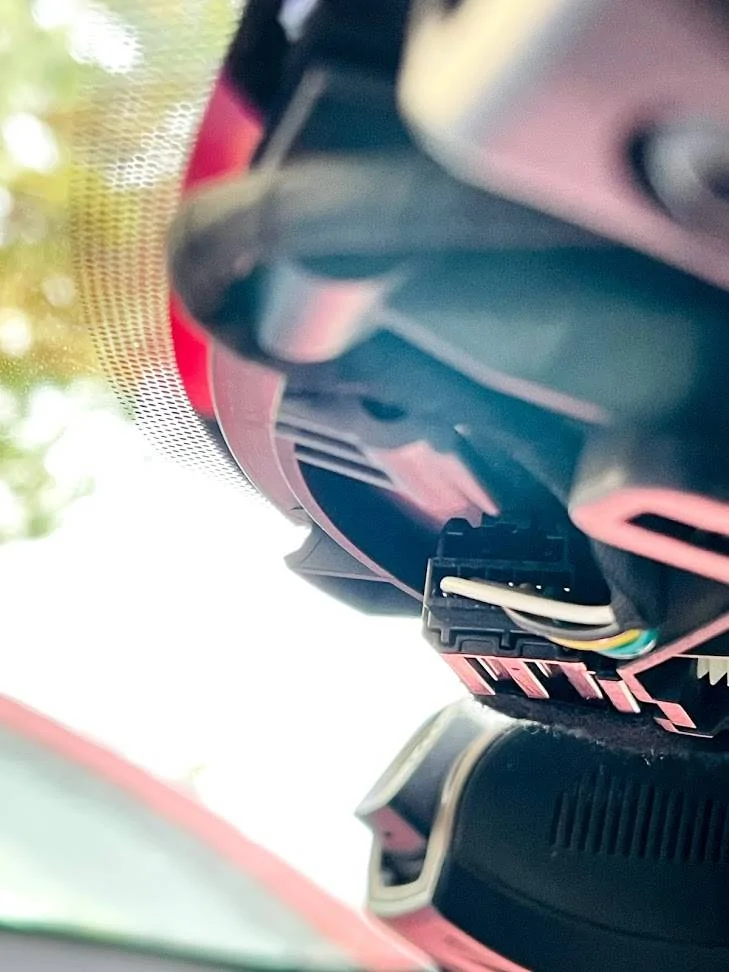

The Black Wire is the neutral/ground. Connect the Black tap wire to this. The White Wire is the 12v switched lead. Connect the Red tap wire to this.


This is what it looks like tapped:


Testing:


Vehicle off:


Vehicle on:


Complete!


Can you advise, in your first picture, what the little black button-like item is/does top left corner. Thx

OP
OP
jdmrc93

jdmrc93

Well-Known Member
First Name
Joe
Joined
Jun 25, 2020
Threads
20
Messages
345
Reaction score
874
Location
Allen Park, MI, USA
Vehicles
2021 Mustang Mach-E First Edition in Grabber Blue
Occupation
IT Network Engineer
Country flag
Can you advise, in your first picture, what the little black button-like item is/does top left corner. Thx
It’s not a button, I believe it’s a light sensor of some sort.

OP
OP
jdmrc93

jdmrc93

Well-Known Member
First Name
Joe
Joined
Jun 25, 2020
Threads
20
Messages
345
Reaction score
874
Location
Allen Park, MI, USA
Vehicles
2021 Mustang Mach-E First Edition in Grabber Blue
Occupation
IT Network Engineer
Country flag
Does the iRR coating on the front windshield affect a radar detector?
Does the radar detector work through the metallic windshield? Since transponders have a hard time working through it, I wonder if the windshield will also block some signals.
So I have noticed that the radar seems to work fine, but my unit's GPS is not working properly due to the coating. I had to move it to the portion of the windshield where the black dots are, to the left of the housing. It works just fine there. Other transponders should work fine in that space as well. It must have a relatively weak GPS unit inside, since my phone seems to work pretty well being on the charging pad.



jericho

Well-Known Member
First Name
Jerry
Joined
Jul 1, 2020
Threads
42
Messages
177
Reaction score
146
Location
Pacific Northwest
Vehicles
c8, Red '21 FE Mach E (traded), '23 Red GT
Country flag

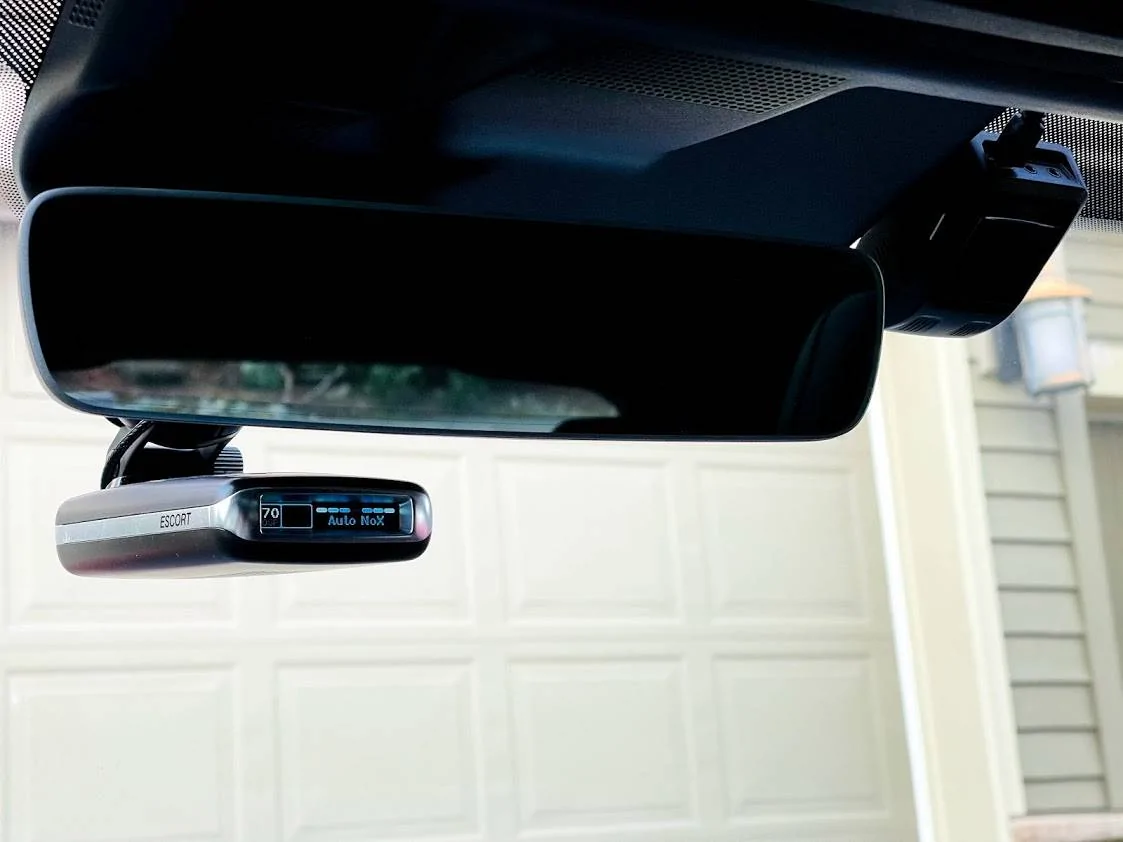

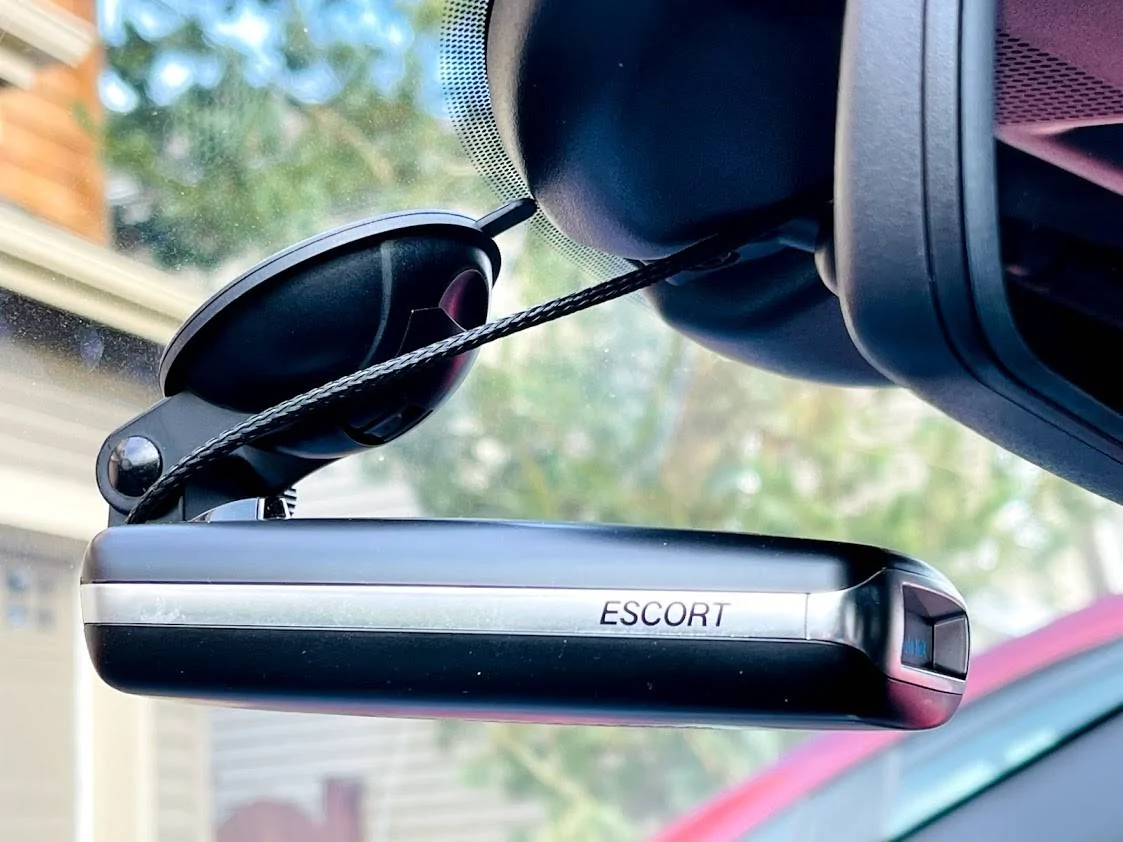

thanks jdmrc93 !! I just got my hardwire done for my escort passport max. With your mapping of the wires, and the cautious prying of the plastic, it was a relatively quick install. Only issue now is that the GPS on the escort passport max doesn't seem to be working... i'm going to have to move it around to see if it works better in a different position. Thanks so much!
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5366
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5365
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362


ChasingCoral

Well-Known Member
First Name
Mark
Joined
Feb 3, 2020
Threads
376
Messages
12,404
Reaction score
24,520
Location
Maryland
Vehicles
GB E4X FE, Leaf, Tacoma, F-150 Lightning ordered
Occupation
Retired oceanographer
Country flag

Grux40

Well-Known Member
First Name
Jason
Joined
Jun 29, 2020
Threads
4
Messages
47
Reaction score
81
Location
43147
Vehicles
Mach-E Premium RWD Ext. Range - Infinite Blue
Occupation
CTO
Country flag
I decided to venture and do this without any help or wiring diagrams. I couldn't find ANY resources online for any reference. I managed to figure it out and I took photos along the way to help others that may be wanting to do the same.

I've done many mirror taps in the past, but this one was a bit intimidating, not knowing where to tap because of all the unusually color coded wires, and all the tech involved in this piece.

PLEASE PLEASE be VERY careful removing the plastic housing. I don't want to be responsible for anyone breaking this piece. Be gentle and take your time.

Circled is the terminal that you will be using removing and tapping into. The release is on the top, towards the windshield.
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362


Testing the taps:
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362


The Black Wire is the neutral/ground. Connect the Black tap wire to this. The White Wire is the 12v switched lead. Connect the Red tap wire to this.
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362


This is what it looks like tapped:
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362


Testing:
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362


Vehicle off:
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362


Vehicle on:
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362


Complete!
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362


Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362
Thanks for this. Worked perfectly to install my Valentine 1 Gen 2 the other day. Only issue I had was me being an idiot and forgetting to plug the connector back in before turning on the car to test. Ya have to plug the connector back into its home before you get power dumb dumb (me).

OP
OP
jdmrc93

jdmrc93

Well-Known Member
First Name
Joe
Joined
Jun 25, 2020
Threads
20
Messages
345
Reaction score
874
Location
Allen Park, MI, USA
Vehicles
2021 Mustang Mach-E First Edition in Grabber Blue
Occupation
IT Network Engineer
Country flag
thanks jdmrc93 !! I just got my hardwire done for my escort passport max. With your mapping of the wires, and the cautious prying of the plastic, it was a relatively quick install. Only issue now is that the GPS on the escort passport max doesn't seem to be working... i'm going to have to move it around to see if it works better in a different position. Thanks so much!
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362
Ford Mustang Mach-E Mirror Tap Instructions for Radar Detector or Dash Cam (Switched 12v) - DIY Writeup IMG_5362
I have mine placed directly under the black film to the left of the rearview mirror. That helped with GPS, works perfectly now. BUT I'm getting the feeling that the metallic windshield (which causes the GPS issues) is interfering with Radar/Laser detection.

OP
OP
jdmrc93

jdmrc93

Well-Known Member
First Name
Joe
Joined
Jun 25, 2020
Threads
20
Messages
345
Reaction score
874
Location
Allen Park, MI, USA
Vehicles
2021 Mustang Mach-E First Edition in Grabber Blue
Occupation
IT Network Engineer
Country flag
Thanks for this. Worked perfectly to install my Valentine 1 Gen 2 the other day. Only issue I had was me being an idiot and forgetting to plug the connector back in before turning on the car to test. Ya have to plug the connector back into its home before you get power dumb dumb (me).
Glad to hear it worked out for you!

OP
OP
jdmrc93

jdmrc93

Well-Known Member
First Name
Joe
Joined
Jun 25, 2020
Threads
20
Messages
345
Reaction score
874
Location
Allen Park, MI, USA
Vehicles
2021 Mustang Mach-E First Edition in Grabber Blue
Occupation
IT Network Engineer
Country flag
Does the iRR coating on the front windshield affect a radar detector?
I take that back, I'm definitely noticing some impairment.


Grux40

Well-Known Member
First Name
Jason
Joined
Jun 29, 2020
Threads
4
Messages
47
Reaction score
81
Location
43147
Vehicles
Mach-E Premium RWD Ext. Range - Infinite Blue
Occupation
CTO
Country flag
I take that back, I'm definitely noticing some impairment.
I have mine mounted below the mirror using a Blend Mount. I havent had many bogeys to test with yet but I had a Ka alert that looked like it was coming up behind me while stopped at a red light and getting stronger. The only LEO's came from in front me (1 Sheriff's deputy and a city). I wondered if the V1 Gen2 wasn't able to detect it from the front due to the windshield and was instead getting a reflection off my rear window or something. More testing to come before I confirm this and try to move the detector above the mirror to the black area. Not even sure the best way to do that and hope Blend Mount will accept a return I guess.....


Grux40

Well-Known Member
First Name
Jason
Joined
Jun 29, 2020
Threads
4
Messages
47
Reaction score
81
Location
43147
Vehicles
Mach-E Premium RWD Ext. Range - Infinite Blue
Occupation
CTO
Country flag
My Valentine 1 Gen 2 is for sure having issues with IRR windshield. I am going to have to move it up next to the mirror in the black area. Looking at this mount:

https://www.amazon.com/Permanent-Wi...c0e50&pd_rd_wg=FUjhM&pd_rd_i=B01IGQPRJ8&psc=1

Concerned the headliner will be in the way and force a bad angle of the V1 though. Anyone try something like this? Bummed that the Blend Mount isn't going to work in the MME.


back_at_it_19

Well-Known Member
Joined
Jul 9, 2020
Threads
11
Messages
658
Reaction score
621
Location
Seattle area
Vehicles
'21 Job 1 GB FE and '22 Red Prem4x
Country flag
My Valentine 1 Gen 2 is for sure having issues with IRR windshield. I am going to have to move it up next to the mirror in the black area. Looking at this mount:

https://www.amazon.com/Permanent-Wi...c0e50&pd_rd_wg=FUjhM&pd_rd_i=B01IGQPRJ8&psc=1

Concerned the headliner will be in the way and force a bad angle of the V1 though. Anyone try something like this? Bummed that the Blend Mount isn't going to work in the MME.
I have a v1 gen1. With the suction cup clip it is NOT positioned in the black dots area bc of the headliner. I don’t have a solution.
