Scooby24

Well-Known Member
First Name
Greg
Joined
Jul 2, 2021
Threads
24
Messages
1,894
Reaction score
2,866
Location
Olathe, KS
Vehicles
'21 MME-GT Star White; '22 MME Prem AWD DGM
Occupation
Perioperative Revenue Manager
Country flag


There's a whole lotta room for improvement here.
Sponsored



Texas-E

Well-Known Member
Joined
May 16, 2021
Threads
8
Messages
284
Reaction score
482
Location
Texas
Vehicles
2021 Mach-E
Country flag
I'm sure there is a lot of room for improvement. I'd love for him to spend time talking about repairability vs. assembly ease in his videos, though.

I really don't get my feelings hurt by his videos. I think he is biased, and it is obvious, though. Flopping parts out of a beat-up Home Depot box pretty much indicates how they approached this. It would have been interesting to see the reassembled Ford cooling system to compare it to Tesla... but I suspect that isn't as dramatic.


theo1000

Well-Known Member
First Name
Theo
Joined
Apr 16, 2021
Threads
0
Messages
473
Reaction score
607
Location
Shawnee, KS
Vehicles
Mach-E 2021 IB, Audi Etron, Chevy Volt, BMW I3,
Country flag
There's a whole lotta room for improvement here.
No the guy doesn't know what he is talking about. The battery cooling on the MachE is a lot more robust and redundant. There is a reason the old volts and bolts have seen a lot less degradation than the TSLA folks. The Mache is based on that robust cooling system.

Keep in mind the TSLA's have 100's of feet of narrow tube channels between the cells inside the modules. The Mach-E design pedigree keeps call the channels outside the battery compartment. This has proven to be much more effective.


Jimrpa

Well-Known Member
First Name
Jim
Joined
Sep 10, 2020
Threads
229
Messages
6,982
Reaction score
9,276
Location
Wayne, PA
Vehicles
2021 Infinite Blue Premium Mustang Mach E ER AWD
Occupation
Retied (formerly tried to herd highly technical, independent cats)
Country flag
Where’s the Tesla 12V battery and it’s associated “fixture”? The Tesla “heat pump” doesn’t have ANYTHING analogous to a condenser? Really? And just how does THAT work? Where do they radiate heat from the AC in the summertime? How about pulling heat in the wintertime? Or are they just relying on some variant of Maxwell’s demons? (Perhaps Elon’s Imps?)

OP
OP
Scooby24

Scooby24

Well-Known Member
First Name
Greg
Joined
Jul 2, 2021
Threads
24
Messages
1,894
Reaction score
2,866
Location
Olathe, KS
Vehicles
'21 MME-GT Star White; '22 MME Prem AWD DGM
Occupation
Perioperative Revenue Manager
Country flag
I'm sure there is a lot of room for improvement. I'd love for him to spend time talking about repairability vs. assembly ease in his videos, though.

I really don't get my feelings hurt by his videos. I think he is biased, and it is obvious, though. Flopping parts out of a beat-up Home Depot box pretty much indicates how they approached this. It would have been interesting to see the reassembled Ford cooling system to compare it to Tesla... but I suspect that isn't as dramatic.

Why would anyone get their feelings hurt by his videos? From an engineering perspective, I don't think he's displaying any real bias other than having a bias towards better and more efficient engineering.

Ford can improve their design here and I appreciate that the inefficiencies are being brought to light. That's what prompts change. Munro's points have been taken by the OEMs and some things he's mentioned could be improved have made their way into production.

If there's any offense taken in his videos I'd suspect the bias resides moreso in the person taking offense.



memcm_expert

Well-Known Member
First Name
Randall
Joined
Oct 4, 2020
Threads
15
Messages
98
Reaction score
186
Location
Washington
Vehicles
Mach E First Edition Carbonized Grey, Audi Q7
Occupation
Systems Engineer Lead
Country flag
I am looking forward to seeing what the Lucid looks like. From what I have see so far, I'm very impressed with the Lucid engineering.

OP
OP
Scooby24

Scooby24

Well-Known Member
First Name
Greg
Joined
Jul 2, 2021
Threads
24
Messages
1,894
Reaction score
2,866
Location
Olathe, KS
Vehicles
'21 MME-GT Star White; '22 MME Prem AWD DGM
Occupation
Perioperative Revenue Manager
Country flag
Where’s the Tesla 12V battery and it’s associated “fixture”? The Tesla “heat pump” doesn’t have ANYTHING analogous to a condenser? Really? And just how does THAT work? Where do they radiate heat from the AC in the summertime? How about pulling heat in the wintertime? Or are they just relying on some variant of Maxwell’s demons? (Perhaps Elon’s Imps?)
It's in the video...The battery is integrated in the fixture they showed. The Heat pump is using a water based heat exchanger for the condenser.

OP
OP
Scooby24

Scooby24

Well-Known Member
First Name
Greg
Joined
Jul 2, 2021
Threads
24
Messages
1,894
Reaction score
2,866
Location
Olathe, KS
Vehicles
'21 MME-GT Star White; '22 MME Prem AWD DGM
Occupation
Perioperative Revenue Manager
Country flag
No the guy doesn't know what he is talking about. The battery cooling on the MachE is a lot more robust and redundant. There is a reason the old volts and bolts have seen a lot less degradation than the TSLA folks. The Mache is based on that robust cooling system.

Keep in mind the TSLA's have 100's of feet of narrow tube channels between the cells inside the modules. The Mach-E design pedigree keeps call the channels outside the battery compartment. This has proven to be much more effective.
Did we watch the same video? He wasn't addressing the battery pack's cooling, he was addressing the less efficient design of the entire cooling system from an engineering perspective which requires more hoses, more weight, more brackets, twice as many pumps, large condenser, etc.

I do think he knows quite a lot about which he speaks.


snikt

Well-Known Member
Joined
Apr 5, 2021
Threads
5
Messages
209
Reaction score
188
Location
Denver, CO
Vehicles
2021 Tesla Model 3 LR
Country flag
Where’s the Tesla 12V battery and it’s associated “fixture”? The Tesla “heat pump” doesn’t have ANYTHING analogous to a condenser? Really? And just how does THAT work? Where do they radiate heat from the AC in the summertime? How about pulling heat in the wintertime? Or are they just relying on some variant of Maxwell’s demons? (Perhaps Elon’s Imps?)

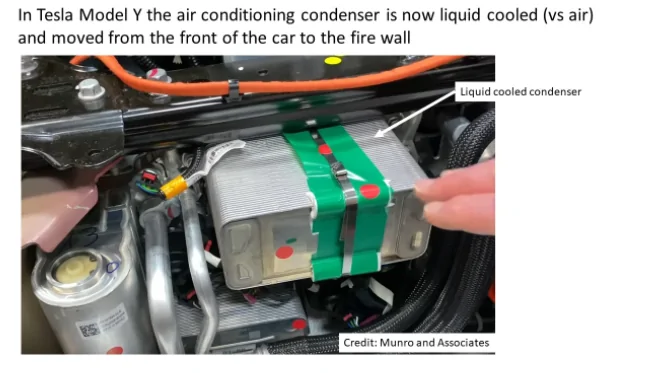

There is a condenser, it's just tiny in comparison

Ford Mustang Mach-E Munro Mach-E Teardown - Thermal System Part 2 1626449202988


BillK

Well-Known Member
First Name
Bill
Joined
Jan 25, 2021
Threads
3
Messages
60
Reaction score
147
Location
Texas
Vehicles
Lucid Air GT, Zero SR/F
Occupation
Retired-ish
Country flag
Pretty well knew what this video would contain before i watched. Could the Ford be better optimized for weight? You bet. Does the Ford system look more durable that the Tesla? Absolutely!

Tesla's octovalve looks very clever. It also looks like it was designed by people with no experience working in vehicle design. Let me give you one quick example. Have you ever seem a washer fluid bottle leak? It's not uncommon. Octovalve is made of the same PA66, but acturally has heavy components mounted on vertical panels where they will exert torque with every bump and pothole. On the Ford components are accessible for service. Making a repair on the Tesla system will be very labor intensive.

I'm not worried about coolant leaks from hoses since all EV cooling systems operate at moderate temperatures and effectively no system pressure. Hose leaks when they do occur are easily repaired anyway.


Jimrpa

Well-Known Member
First Name
Jim
Joined
Sep 10, 2020
Threads
229
Messages
6,982
Reaction score
9,276
Location
Wayne, PA
Vehicles
2021 Infinite Blue Premium Mustang Mach E ER AWD
Occupation
Retied (formerly tried to herd highly technical, independent cats)
Country flag
There is a condenser, it's just tiny in comparison

Ford Mustang Mach-E Munro Mach-E Teardown - Thermal System Part 2 1626449202988
I freely admit I am not a thermal systems engineer, but heat has to be moved out of the vehicle at some point. This is usually done via some form of radiative surface. Where is the heat being radiated away into the environment? Maybe I’m dumb and that little, enclosed box, covered with green tape IS radiating heat into it he environment and onto the components (which are other parts of the cooling system?) around it?


db4z

Well-Known Member
First Name
Bill
Joined
Mar 21, 2021
Threads
2
Messages
182
Reaction score
206
Location
TX
Vehicles
Focus RS
Country flag
There is a condenser, it's just tiny in comparison

Ford Mustang Mach-E Munro Mach-E Teardown - Thermal System Part 2 1626449202988
The condenser being liquid cooled along with some more valves is essentially the key to making the system run as a heat pump as it allows the refrigerant system to either heat or cool the water loop. In A/C mode the difference is the refrigerant heat has to be transfered to water and then the water has to transfer the heat to the air with a radiator whereas the mach e's is transfering the refrigerant directly to air. Yes the mach e design adds more parts and weight but it should theoretically be more efficient in a/c mode but at expense of not having a heat pump function in cold conditions.

I suspect the frunk was late design decision and the Ford team had to work very hard at cramming all the components into a smaller space and thus the resulting hoses were the consequence. Ford is well in their way in developing next gen bev platforms so I would expect a lot of this to improved.


BillK

Well-Known Member
First Name
Bill
Joined
Jan 25, 2021
Threads
3
Messages
60
Reaction score
147
Location
Texas
Vehicles
Lucid Air GT, Zero SR/F
Occupation
Retired-ish
Country flag
There is a condenser, it's just tiny in comparison

Yes, that is the condenser. It transfers heat to coolant that is then sent through a radiator in the front of the car. That radiator must be larger than an equivalent refrigerant to air heat exchanger.

BTW, It is best to mount brazed plate heat exchangers vertically (skinny end on top), but I guess Sandy hasn't noticed that yet (insert random eyeroll emoji here).


Jimrpa

Well-Known Member
First Name
Jim
Joined
Sep 10, 2020
Threads
229
Messages
6,982
Reaction score
9,276
Location
Wayne, PA
Vehicles
2021 Infinite Blue Premium Mustang Mach E ER AWD
Occupation
Retied (formerly tried to herd highly technical, independent cats)
Country flag
It's in the video...The battery is integrated in the fixture they showed. The Heat pump is using a water based heat exchanger for the condenser.
Right. I rewatched the video and found the battery. Thanks.
