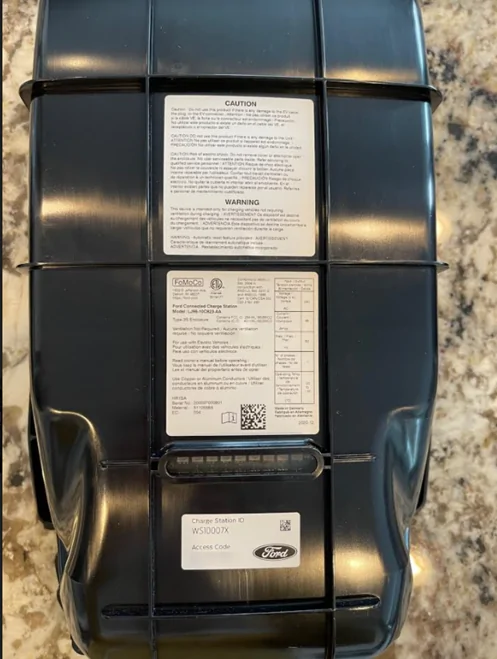

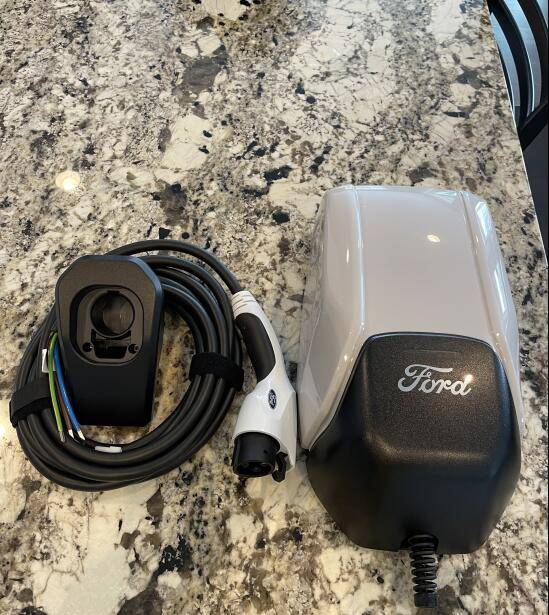

My Ford Connected Charge Station just arrived! Now, I just need my dealer to figure out the Ford Options plan! 🤣 I have an electrician coming out tomorrow to install. Once installed, I will post more pics.










Advertisement



Jimrpa

Well-Known Member
First Name
Jim
Joined
Sep 10, 2020
Messages
744
Reaction score
918
Location
Wayne, PA
First Name
Jim
Vehicles
2018 Ford Escape
Country flag
Can you give us an idea of size? I’m particularly interested in how far out from the wall this thing will protrude.


SnBGC

Well-Known Member
First Name
Greg
Joined
Apr 20, 2020
Messages
1,759
Reaction score
2,874
Location
Phoenix
First Name
Greg
Vehicles
Ford Focus Electric, Ford C-Max Energi, 1999 F250 PSD, 2000 F250 PSD, 1968 GTO, 1955 Bel Air
Occupation
Managet
Country flag
My Ford Connected Charge Station just arrived! Now, I just need my dealer to figure out the Ford Options plan! 🤣 I have an electrician coming out tomorrow to install. Once installed, I will post more pics.
Thanks for the pics. 👍

Cool! I received FedEx tracking info on mine but sadly, with the inclement weather, I doubt it will arrive anytime soon. No worries as I don’t have a car to charge anyway 😀😀😀
When is your car expected to arrive?


benk016

Well-Known Member
First Name
Ben
Joined
Nov 12, 2020
Messages
317
Reaction score
337
Location
Tulsa, Oklahoma
First Name
Ben
Vehicles
2021 Mustang Mach-E First Edition
Country flag
How much is your electrician charging? I had a guy come out today and quoted $1600. And that was just for the electrical run to the location. Not including the charger. The run is 12 foot from my electrical panel. $1600 is a whole lot of money for 13 feet of wire, and some conduit and a breaker.


wmaney

Well-Known Member
First Name
Wade
Joined
Oct 12, 2020
Messages
134
Reaction score
272
Location
California
First Name
Wade
Vehicles
Mach-e GT on order - daughter drives Ford Focus Titanium
Country flag
How much is your electrician charging? I had a guy come out today and quoted $1600. And that was just for the electrical run to the location. Not including the charger. The run is 12 foot from my electrical panel. $1600 is a whole lot of money for 13 feet of wire, and some conduit and a breaker.
I have a 240 volt in our circuit breaker box that is for an electric dryer - but our dryer is gas - so its not used; I had a guy come out and he quoted $650.00 to put the Ford Charger in - the circuit breaker is on the outside of our garage wall and would go straight through the wall with the front of the car about 7' ahead of where the unit would mount - so plenty of length on the cord.


benk016

Well-Known Member
First Name
Ben
Joined
Nov 12, 2020
Messages
317
Reaction score
337
Location
Tulsa, Oklahoma
First Name
Ben
Vehicles
2021 Mustang Mach-E First Edition
Country flag
I have a 240 volt in our circuit breaker box that is for an electric dryer - but our dryer is gas - so its not used; I had a guy come out and he quoted $650.00 to put the Ford Charger in - the circuit breaker is on the outside of our garage wall and would go straight through the wall with the front of the car about 7' ahead of where the unit would mount - so plenty of length on the cord.
I didn't even think of that. My biggest issue was that I was thinking I needed to move around several breakers in my panel into tandem breakers since my panel is full. However, My stove was wired with a 40amp breaker. I could totally just pull that breaker out, replace with a 60amp, and leave the lines to the stove capped off for if someone lives here next and wants electric instead of gas.


NotSoJon

Well-Known Member
Joined
Dec 27, 2020
Messages
64
Reaction score
136
Location
Chicago, IL
Vehicles
Honda CRV, Mustang Mach-E reservation holder
Country flag
How much is your electrician charging? I had a guy come out today and quoted $1600. And that was just for the electrical run to the location. Not including the charger. The run is 12 foot from my electrical panel. $1600 is a whole lot of money for 13 feet of wire, and some conduit and a breaker.
My guy just got back to me with a quote. 65 feet of 1" conduit and we're going to run two lines out to the garage and install two 240V plugs (one for the mme, one for a future EV) and 120V outlet. $2,000 for the whole job and he said ~ $300 is for the additional 240V line. That's right in your ballpark except 4x the distance


TheVirtualTim

Well-Known Member
First Name
Tim
Joined
Oct 11, 2020
Messages
374
Reaction score
766
Location
Dearborn, MI
First Name
Tim
Vehicles
Mach-E First Edition, Escape Hybrid
Country flag
I can add a few photos (my charger also came today and I installed this evening ... took about 3 hours)

There were some questions regarding how it mounts to the wall, so...

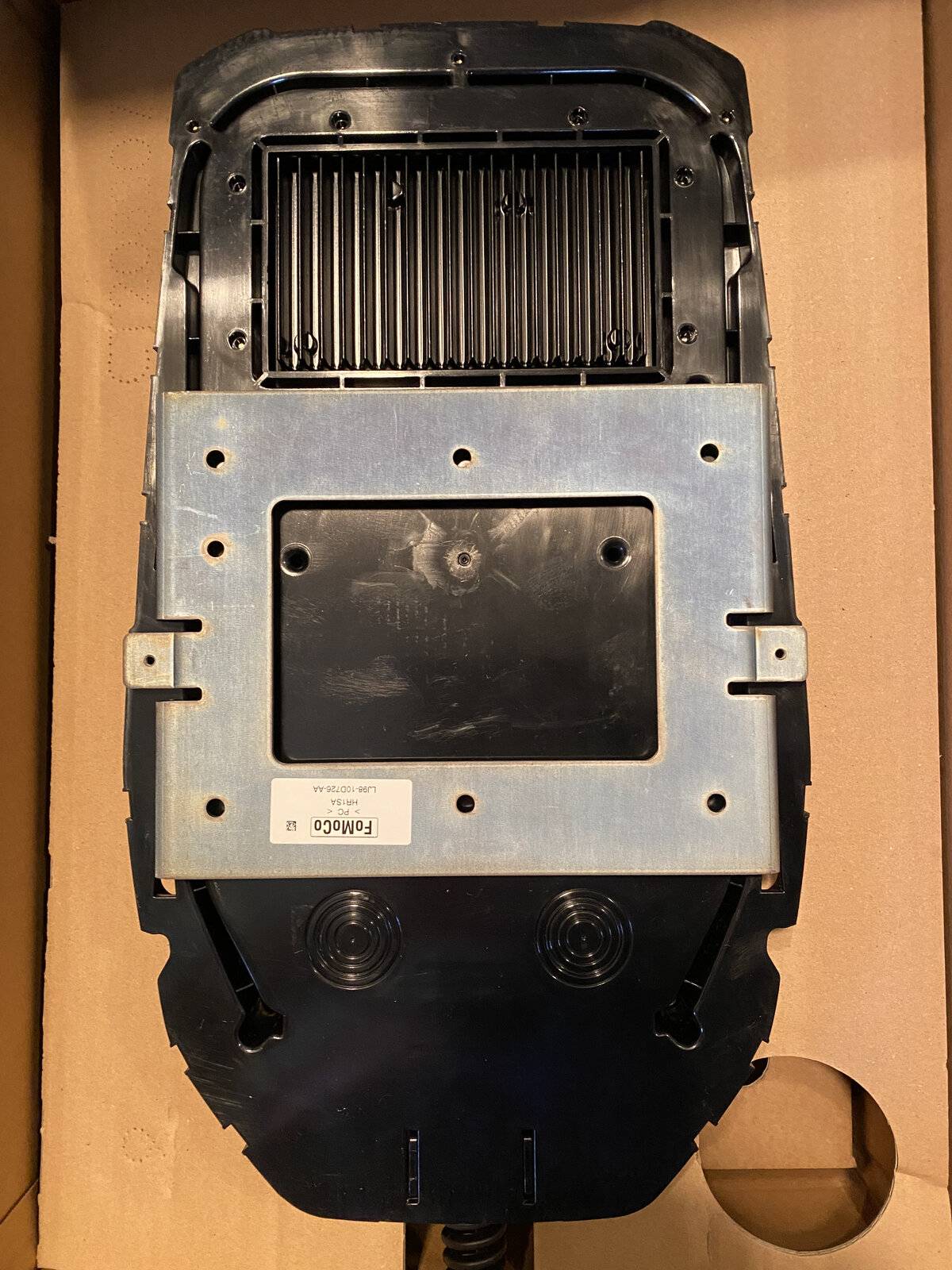

The metal bracket is mounted either to a post (via the two center screws) or to a wall (via the four corner screws). The charger hooks onto that mounting plate and slides down. There are two screws that attach to those small wings you see (left and right) which prevent it from sliding up.

The two bullseye designs in the bottom are meant for you to cut open (I used a spade bit) if you plan to route the power in through the back.

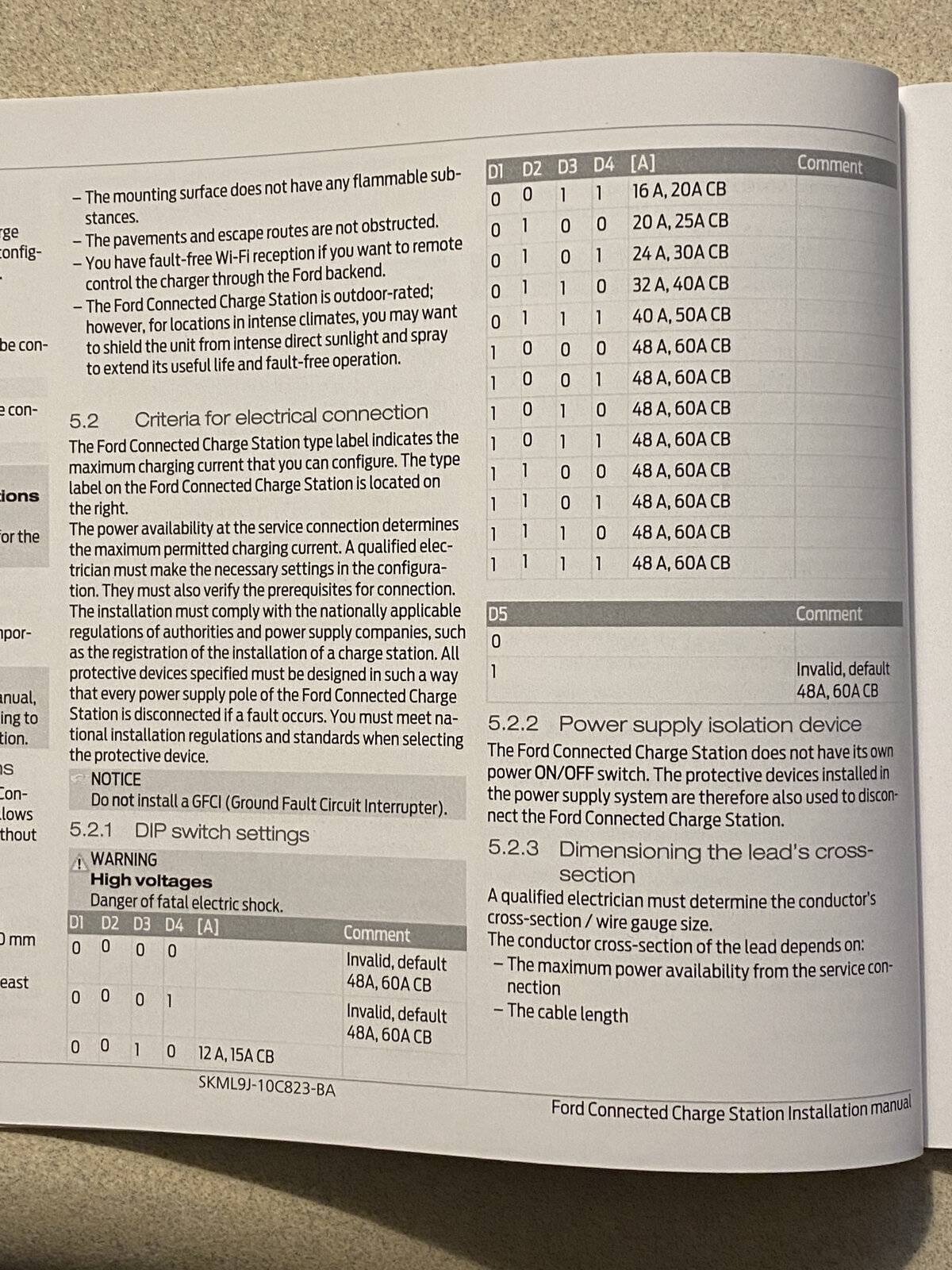

The wiring was pretty easy & obvious ... it was the DIP switches that were a bit confusing because ... well ... have a look:



I'm not sure why the first two rows say "Invalid, default 48A, 60A CB" ... I took that to mean it's an invalid setting. If that's true, I'd rather they just say "invalid" or "don't use".

And then ... EIGHT (count 'em) different patterns that all result in 48A, 60A CB (which is what I wanted). Why eight? I sort of took that to mean that if D1 is ON then you get 48A, 60A CB ... regardless of the settings of D2 through D4.

And then there's D5 ... where the ON position is "Invalid, default 48A, 60A CB" again. So I set it to OFF.
But if D5 only has one valid setting ... why even have it?

Anyway ... after the install, I ran the setup app, connected it to Bluetooth, joined it to WiFi, named it, and added it to the Ford Pass app. It complained for the first 15 minutes or so about not being able to connect to server (there may have been a server side configuration or an update) but after a few minutes it stopped complaining and now it works fine.

I also "invited" my spouse to use it ... so that it shows up in both of our Ford Pass apps. That's another area where Ford's documentation could stand to be improved.


buffasnow

Well-Known Member
First Name
Jeff
Joined
Oct 20, 2020
Messages
243
Reaction score
361
Location
Buffalo, NY
First Name
Jeff
Vehicles
Grabber Blue FE, 85 Mustang GT (pasturized)
Country flag
I can add a few photos (my charger also came today and I installed this evening ... took about 3 hours)

There were some questions regarding how it mounts to the wall, so...


The metal bracket is mounted either to a post (via the two center screws) or to a wall (via the four corner screws). The charger hooks onto that mounting plate and slides down. There are two screws that attach to those small wings you see (left and right) which prevent it from sliding up.

The two bullseye designs in the bottom are meant for you to cut open (I used a spade bit) if you plan to route the power in through the back.

The wiring was pretty easy & obvious ... it was the DIP switches that were a bit confusing because ... well ... have a look:



I'm not sure why the first two rows say "Invalid, default 48A, 60A CB" ... I took that to mean it's an invalid setting. If that's true, I'd rather they just say "invalid" or "don't use".

And then ... EIGHT (count 'em) different patterns that all result in 48A, 60A CB (which is what I wanted). Why eight? I sort of took that to mean that if D1 is ON then you get 48A, 60A CB ... regardless of the settings of D2 through D4.

And then there's D5 ... where the ON position is "Invalid, default 48A, 60A CB" again. So I set it to OFF.
But if D5 only has one valid setting ... why even have it?

Anyway ... after the install, I ran the setup app, connected it to Bluetooth, joined it to WiFi, named it, and added it to the Ford Pass app. It complained for the first 15 minutes or so about not being able to connect to server (there may have been a server side configuration or an update) but after a few minutes it stopped complaining and now it works fine.

I also "invited" my spouse to use it ... so that it shows up in both of our Ford Pass apps. That's another area where Ford's documentation could stand to be improved.
Seems odd to me that the multiple defaults would be the highest current rather than the lowest.


mburtsvt

Well-Known Member
First Name
Michael
Joined
Dec 27, 2020
Messages
135
Reaction score
173
Location
California
First Name
Michael
Vehicles
2019 Mustang GT, 2018 F-150
Occupation
Retired
Country flag

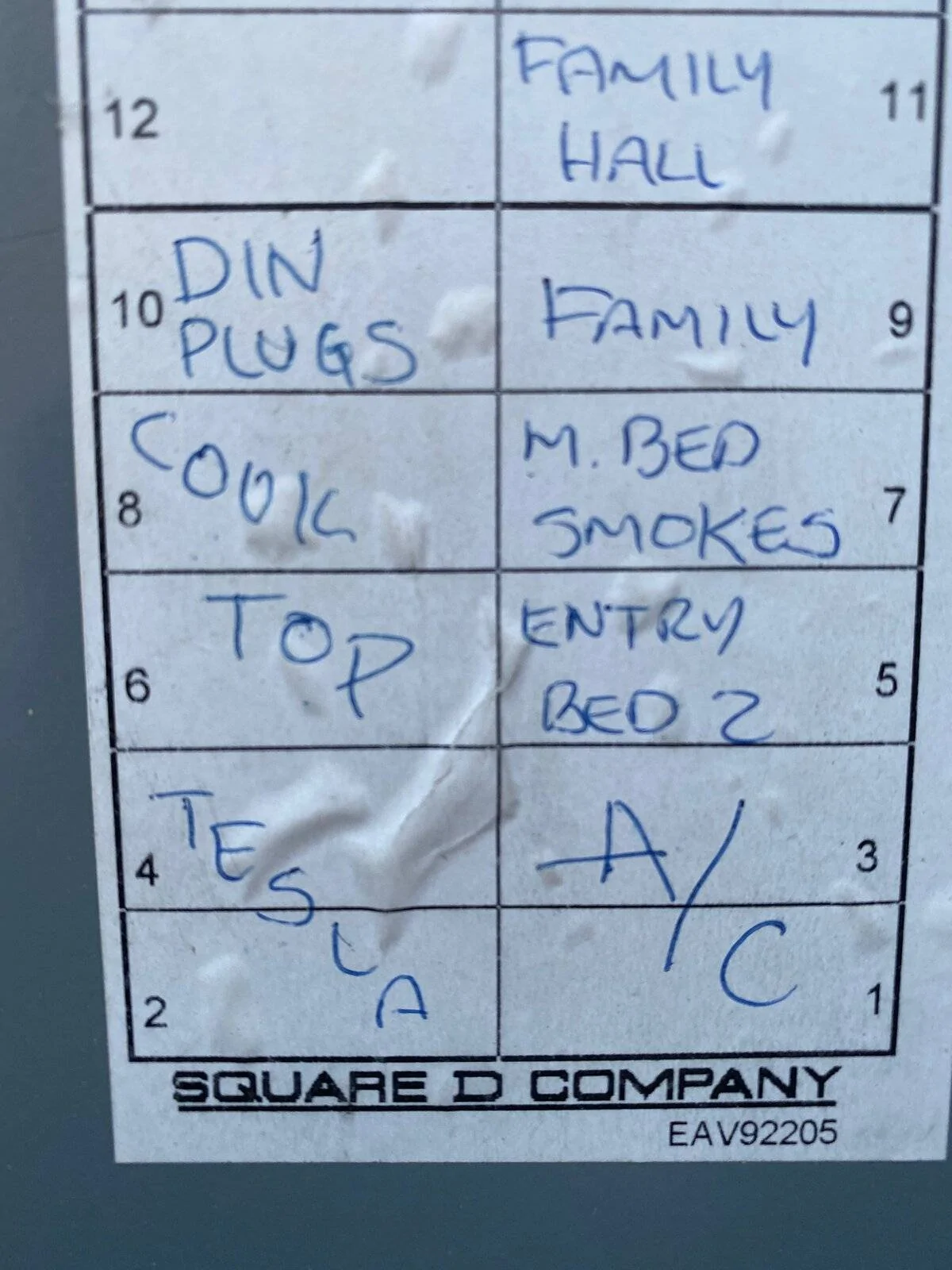

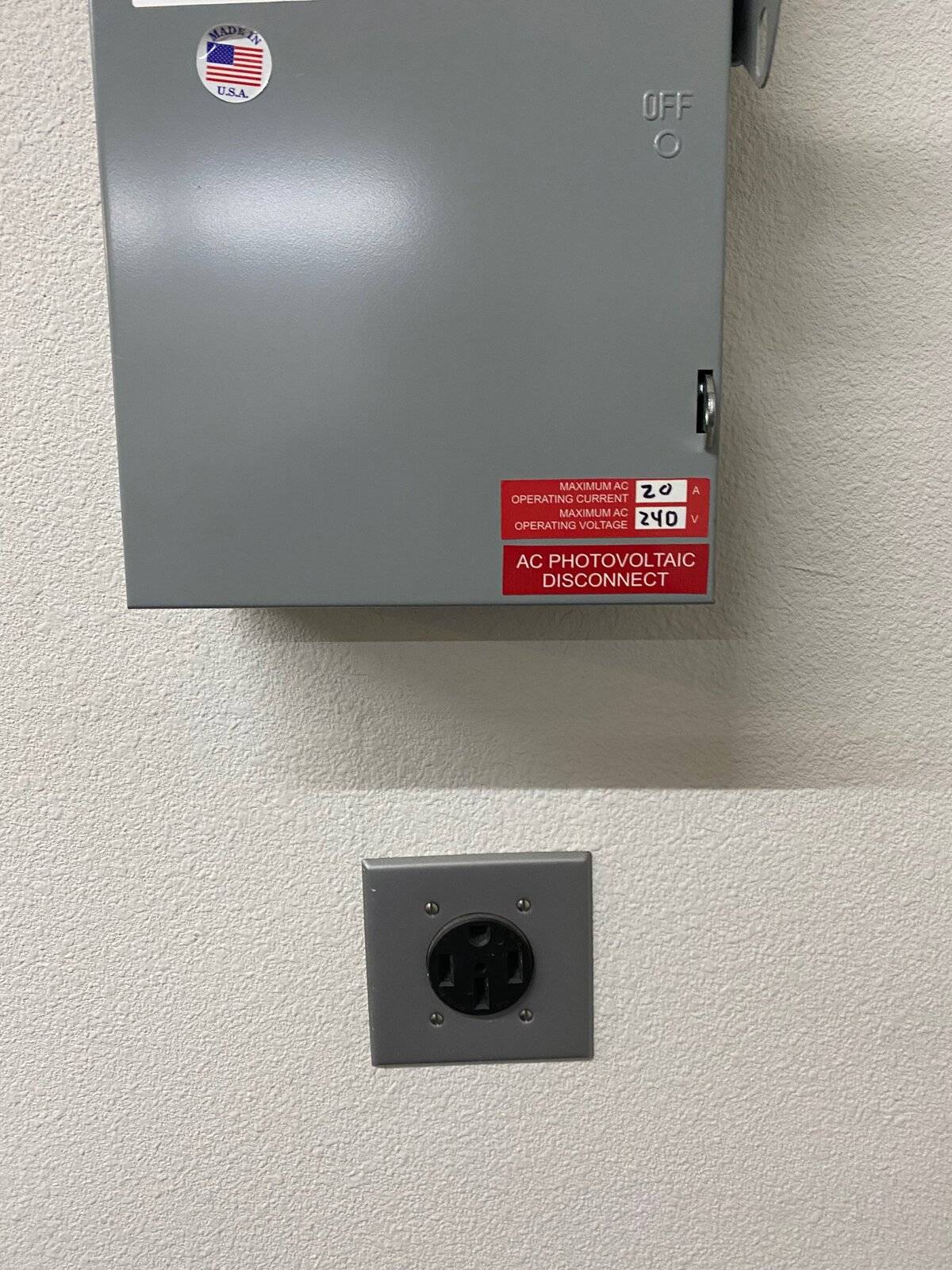

Funny story…..our home was built in 2015 just when Tesla’s were becoming popular, (yes..we are in Nor Cal). I have a plug right under the solar panel controller that is for a charger. When I went to the breaker box - look what I found…..

I will cross it out and put Ford in it’s place as soon as I get the car.


1pt21Gigawatts

Well-Known Member
First Name
David
Joined
Dec 11, 2019
Messages
338
Reaction score
368
Location
New York
First Name
David
Vehicles
2012 Toyota Camry
Occupation
Architect
Country flag
I can add a few photos (my charger also came today and I installed this evening ... took about 3 hours)

There were some questions regarding how it mounts to the wall, so...


The metal bracket is mounted either to a post (via the two center screws) or to a wall (via the four corner screws). The charger hooks onto that mounting plate and slides down. There are two screws that attach to those small wings you see (left and right) which prevent it from sliding up.

The two bullseye designs in the bottom are meant for you to cut open (I used a spade bit) if you plan to route the power in through the back.

The wiring was pretty easy & obvious ... it was the DIP switches that were a bit confusing because ... well ... have a look:



I'm not sure why the first two rows say "Invalid, default 48A, 60A CB" ... I took that to mean it's an invalid setting. If that's true, I'd rather they just say "invalid" or "don't use".

And then ... EIGHT (count 'em) different patterns that all result in 48A, 60A CB (which is what I wanted). Why eight? I sort of took that to mean that if D1 is ON then you get 48A, 60A CB ... regardless of the settings of D2 through D4.

And then there's D5 ... where the ON position is "Invalid, default 48A, 60A CB" again. So I set it to OFF.
But if D5 only has one valid setting ... why even have it?

Anyway ... after the install, I ran the setup app, connected it to Bluetooth, joined it to WiFi, named it, and added it to the Ford Pass app. It complained for the first 15 minutes or so about not being able to connect to server (there may have been a server side configuration or an update) but after a few minutes it stopped complaining and now it works fine.

I also "invited" my spouse to use it ... so that it shows up in both of our Ford Pass apps. That's another area where Ford's documentation could stand to be improved.
Do you have any images of the lights lit up, it on the wall, or it charging? Would also like to see the sizing and how far it sticks out. Did you put the little hanger it comes with on the wall too?
