Thank you @SAVAGE and @TheVirtualTim!!!

I know some people were looking for confirmation that a bottom knockout is available for bottom feeding the supply conduit.

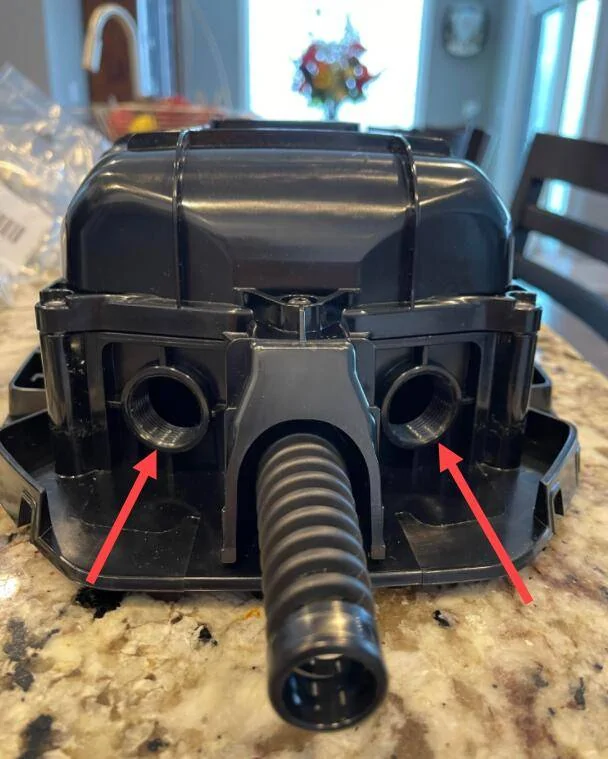

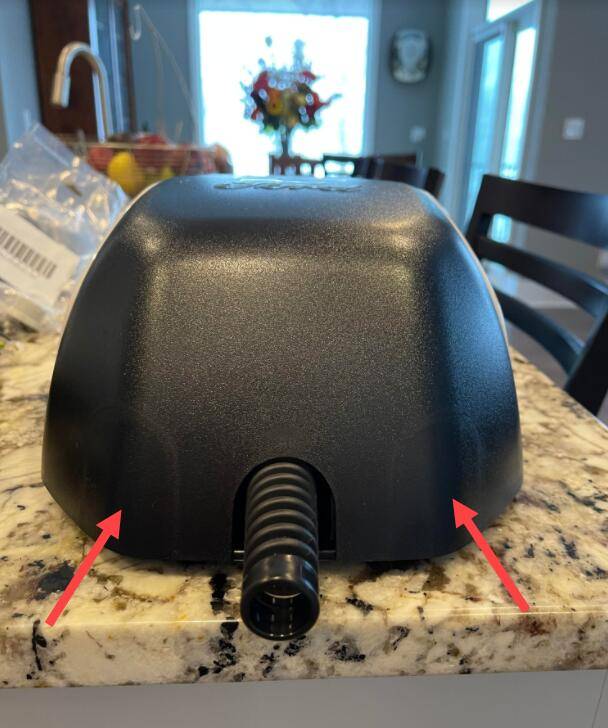

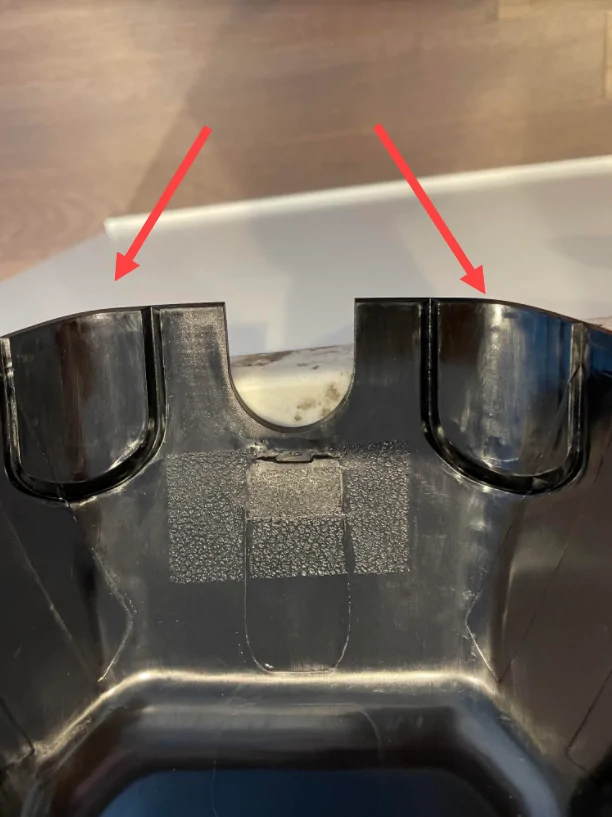

Here is what the cover looks like before install. Looks like I will have the option to run conduit, PVC or a whip in from either side.

Ford Mustang Mach-E My Ford Connected Charge Station arrived! 1612362375748
Ford Mustang Mach-E My Ford Connected Charge Station arrived! 1612362393261

Ford Mustang Mach-E My Ford Connected Charge Station arrived! 1612362401070


Raymondjram

Well-Known Member
First Name
Raymond
Joined
Jun 28, 2020
Threads
19
Messages
581
Reaction score
624
Location
Bayamon
Vehicles
2014 Ford Fusion Hybrid LE sedan
Occupation
Retired Engineer
Country flag
How much is your electrician charging? I had a guy come out today and quoted $1600. And that was just for the electrical run to the location. Not including the charger. The run is 12 foot from my electrical panel. $1600 is a whole lot of money for 13 feet of wire, and some conduit and a breaker.
As an EE who has done plenty of home installations, including my own 15 kW Level 2 Juicebox EVSE for less than $300, this job is not worth the quote you got. Get a different quote and try to do some of the work yourself and save money. Just be sure the quote covers the certification.

Last edited:

Jimrpa

Well-Known Member
First Name
Jim
Joined
Sep 10, 2020
Threads
230
Messages
7,006
Reaction score
9,298
Location
Wayne, PA
Vehicles
2021 Infinite Blue Premium Mustang Mach E ER AWD
Occupation
Retied (formerly tried to herd highly technical, independent cats)
Country flag

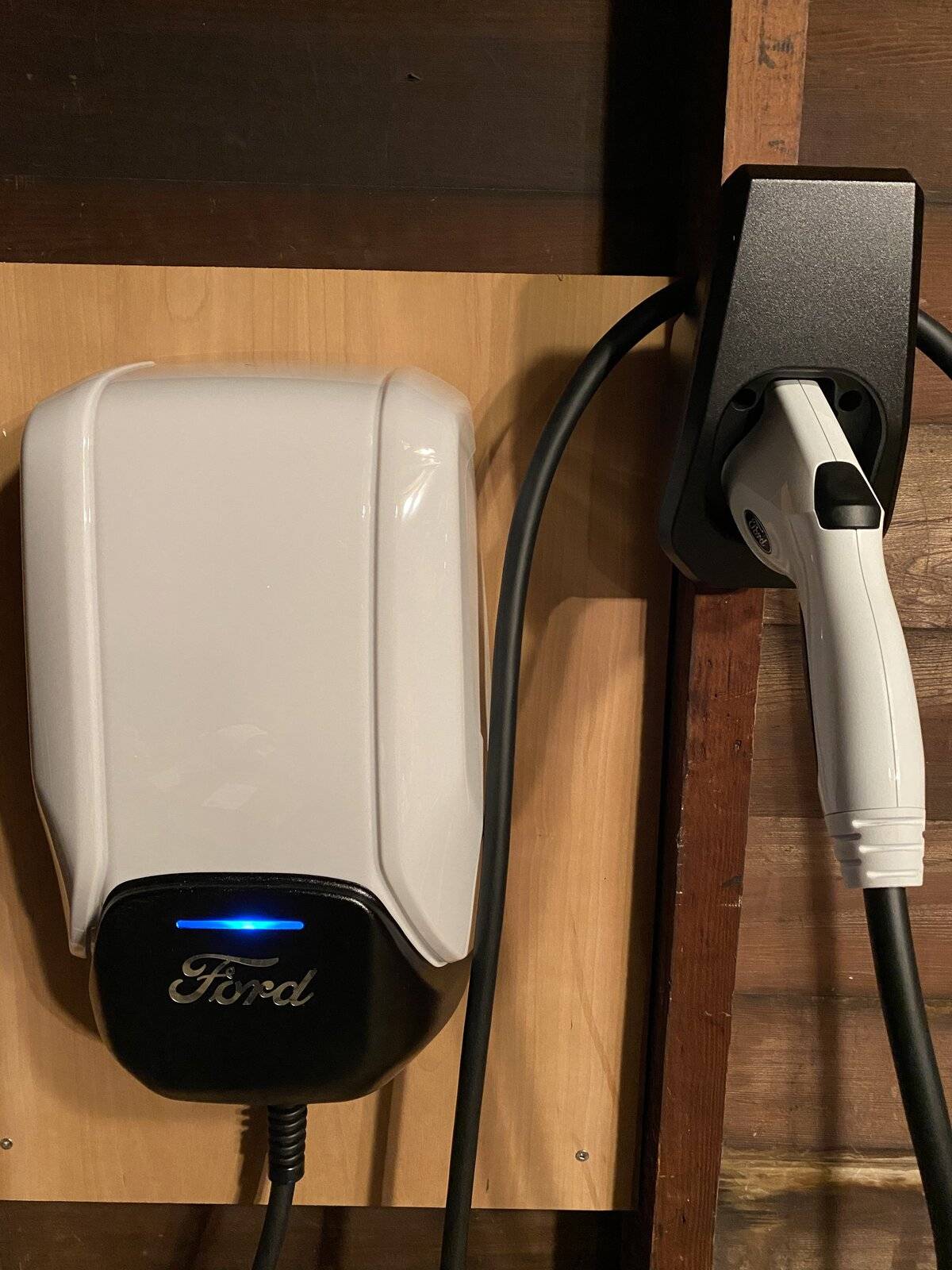

I plan to move the holster ... that's temporary. But here it is on the wall.

It is noticeably larger than my ChargePoint Home Flex ... and sticks out more too. I can take some measurements (tomorrow) and post the numbers if that would be helpful.

Ford Mustang Mach-E My Ford Connected Charge Station arrived! 1612362401070
Yes, please!


ChasingCoral

Well-Known Member
First Name
Mark
Joined
Feb 3, 2020
Threads
376
Messages
12,403
Reaction score
24,517
Location
Maryland
Vehicles
GB E4X FE, Leaf, Tacoma, F-150 Lightning ordered
Occupation
Retired oceanographer
Country flag

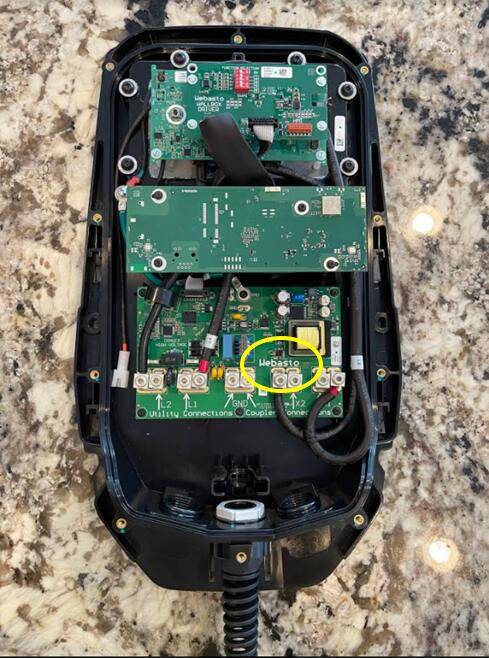

The Ford EVSE is probably based off another Webasto EVSE model that has more configuration option. Otherwise, there is no need to have so many DIP switches for the options that they have,
