You sir, are a gentleman and a scholar. Thank you for imparting your perspective for the group.¡Viva México, hermanos! I learned a lot about power electronics from a good man from Puebla, so here are some more thoughts on power and voltage.

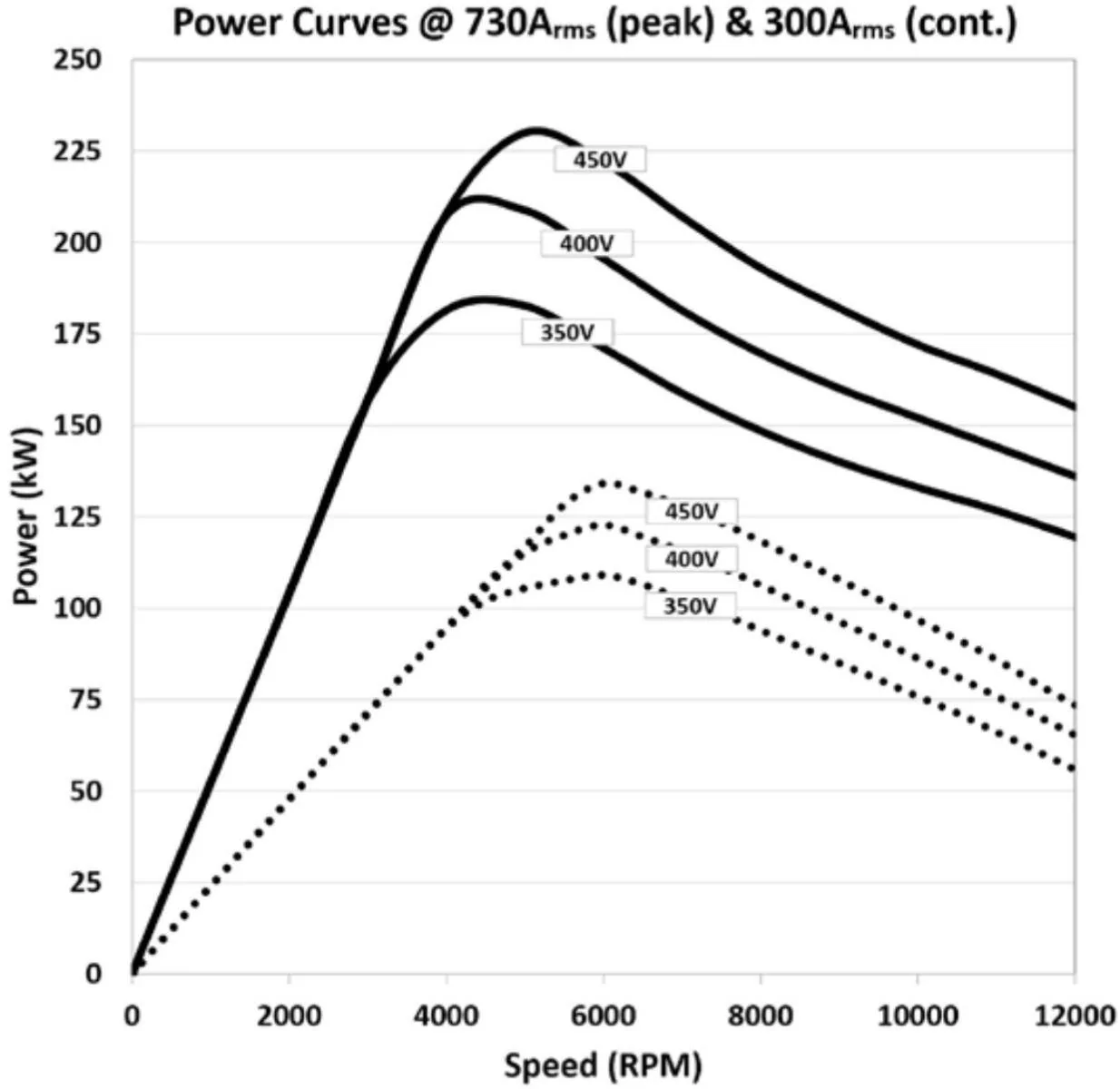

I think that the graphs you show are probably pretty close in scale and shape to the motors in the MachE. The absolute values are certainly off some, but you are looking at a graph for the same design of motor from the same manufacturer in a similar iDM, so the "shape" is probably representative.
From this, we can tell that power is roughly proportional to voltage (over the constant torque range), and that power at 12kRPM is about 65% of the peak power. Pushing out a bit further to 13.8k RPM you're probably looking at about 55% of peak power.
This makes the voltage point well - I took some measurements on my Premium AWD ER (more detail here: https://www.macheforum.com/site/threads/driving-dynamics-and-charging-data-files.8473/page-2) and it looks like the resting battery voltage is about 387V at 100% SOC, and about 360V at 72% SOC. I also measured an internal resistance of 35.5 mOhms, which you can use to calculate voltage drop at different powers.
So by charging to 100% you'd have about 8% more power to work with, compared to 72%, or about 36hp peak. That isn't enough to explain the trap speed, but it would certainly help. Voltage drop under sustained high power will bleed more off too. At full power the car should be pulling close to 1000A, which would see a voltage drop of about 35 volts, or almost 10%.
I'm looking forward to seeing some more runs with voltage and current data recorded, it should give us a better idea of when things are limiting and why.
