Official Instructions to Replace the 12V Battery (LVB)

breeves002

Well-Known Member
First Name
Sam
Joined
Feb 21, 2021
Messages
394
Reaction score
645
Location
St. Louis, MO
Vehicles
2021 Mach-E FE
Country flag
I had come across some threads today about LVB issues. Having owned a Focus Electric in the past I know how bad 12v batteries can be in EVs. Hoping the Mach-E doesn't have issues.

I decided to do some research and found information Ford recommends for replacing the 12v battery - and I must say it is way too complicated. I have no idea what they were thinking or why it is this complicated of a process.

Disclaimer: Do not take my word for any of this. I am the messenger and fixing cars with HV systems can be dangerous if you don't know what you're doing or have the proper tools.

To replace 12v Battery

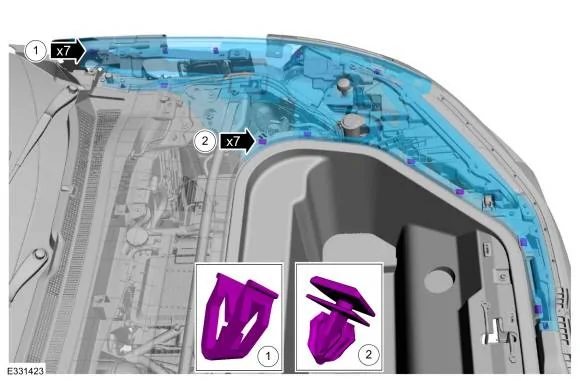

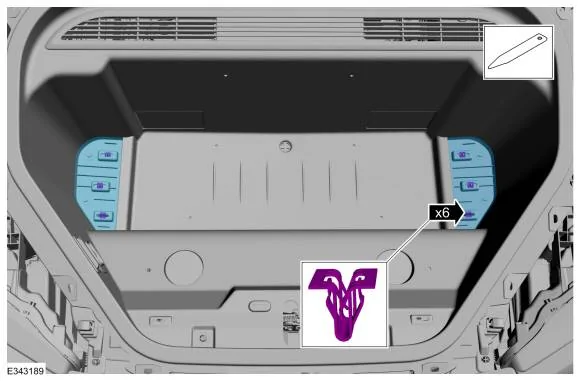

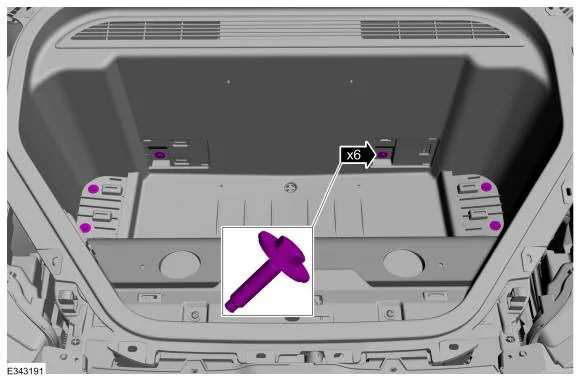

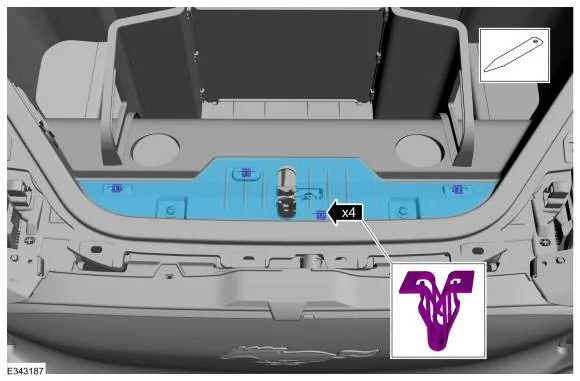

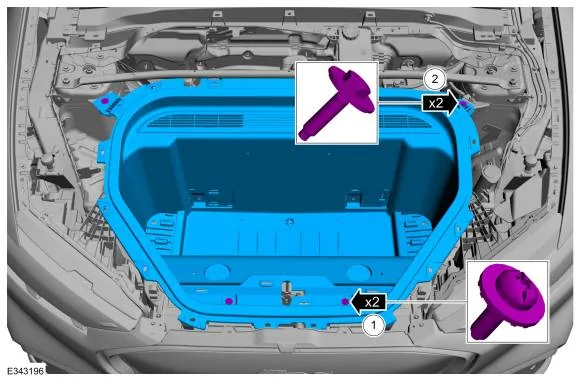

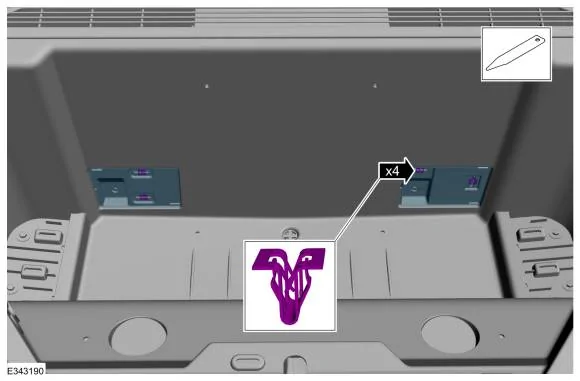

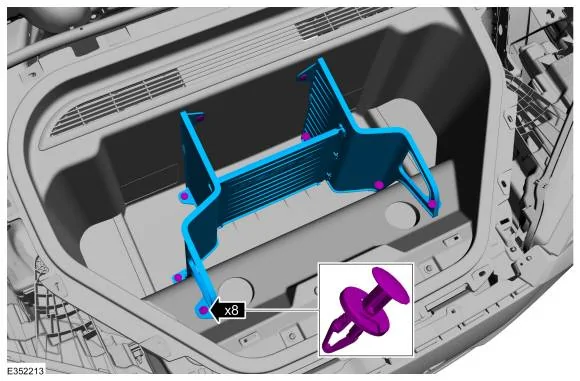

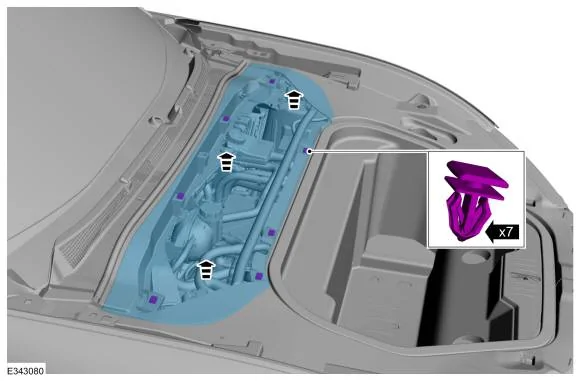

Remove all of the trim pieces under the hood and the luggage tub completely. I don't know if this is truly necessary, you may be able to wiggle it out but it does look like it is partially underneath it.













Next step is to de-energize the HV system.
Note: I have no idea why ford wants you to do this but its in there. They have a procedure to do this including using FDRS to confirm the HVB is de-energized or a "manual" way to do it with a ton of warnings. Manual way is also done with FDRS...just no FDRS confirmation it is at 0 voltage.

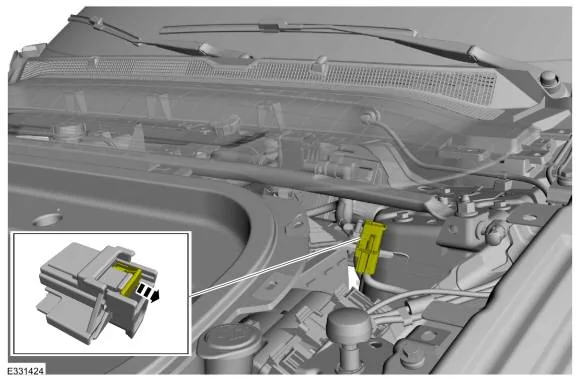

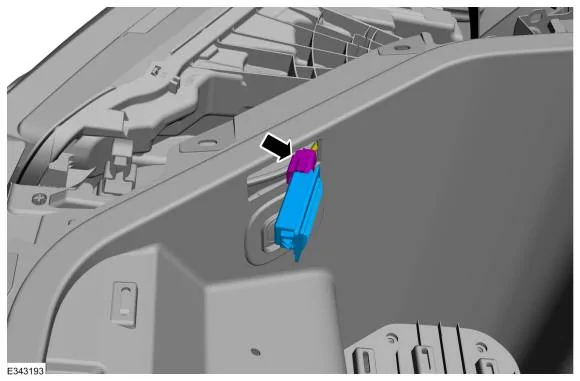

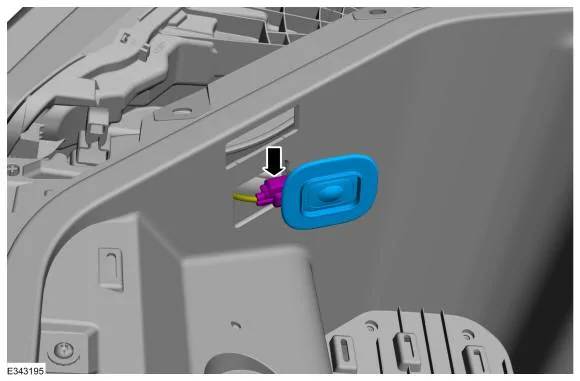

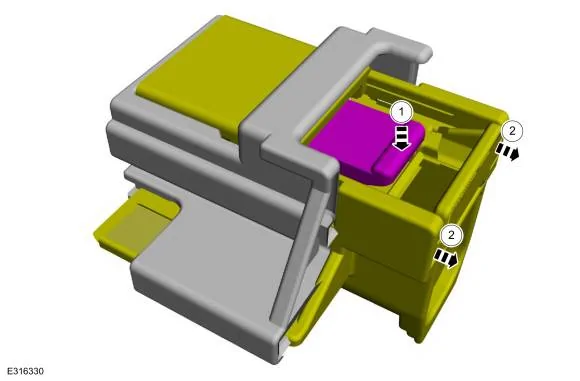

It appears there is a "lock out tag out" type device under the hood they call the CPA or Connector Position Assurance. Procedure is simple. Push the tab and pull the connector out, then put something in the hole to keep it from clipping back down. Now in theory the system is de-energized.

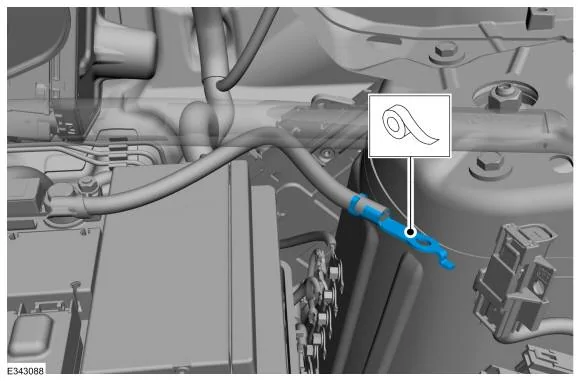

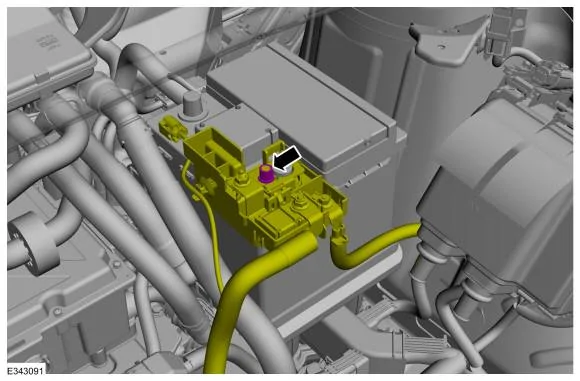

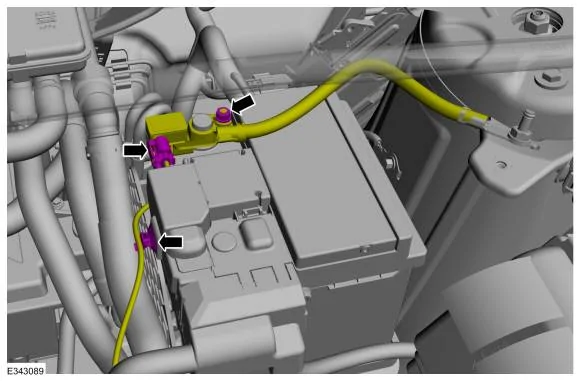

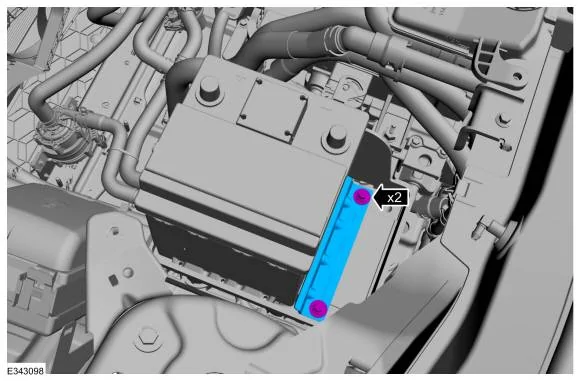

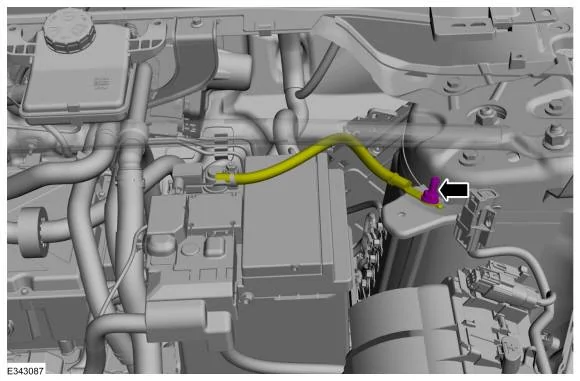

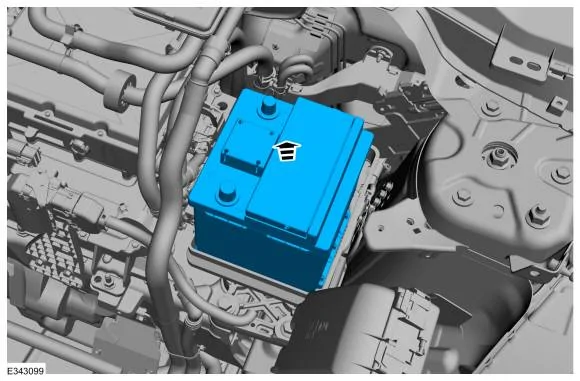

Once the HV is de-energized they call for removing the negative battery cable from the chassis and taping it. After doing that you are supposed to remove the negative from the battery (remove current sense connector) and then positive from the battery. You also have to remove the strut tower brace to get the LVB out...though without the luggage tub you could probably slide it out.









This seems extreme. Are dealers going to actually do this whole procedure? Is it too dangerous to replace your own LVB? AutoZone certainly will not do it for you... I also really hope luggage compartment removal isn't necessary as it seems like a massive pain.

Last note - I feel like the HV system de-energization is more of an extra safety thing although it shouldn't actually be needed. DO NOT take my word for that though because you can kill yourself or damage your car if you don't do things the way Ford has said to do it!


Garbone

Well-Known Member
First Name
Gary
Joined
Dec 16, 2020
Messages
463
Reaction score
629
Location
Florida
Vehicles
21 Mach E Select RWD, 12 Explorer, 62 C10
Occupation
Loafer
Country flag
I could see this being replaced with a marine box and deep cycle golf cart battery in the frunk if I had to replace it outside of warranty. Seems a bit absurd as far as the plastic clips and widgets go.


JellyBelly

Well-Known Member
First Name
Kris
Joined
Jun 27, 2020
Messages
2,288
Reaction score
1,785
Location
San Diego
Vehicles
MME RR FE
Country flag

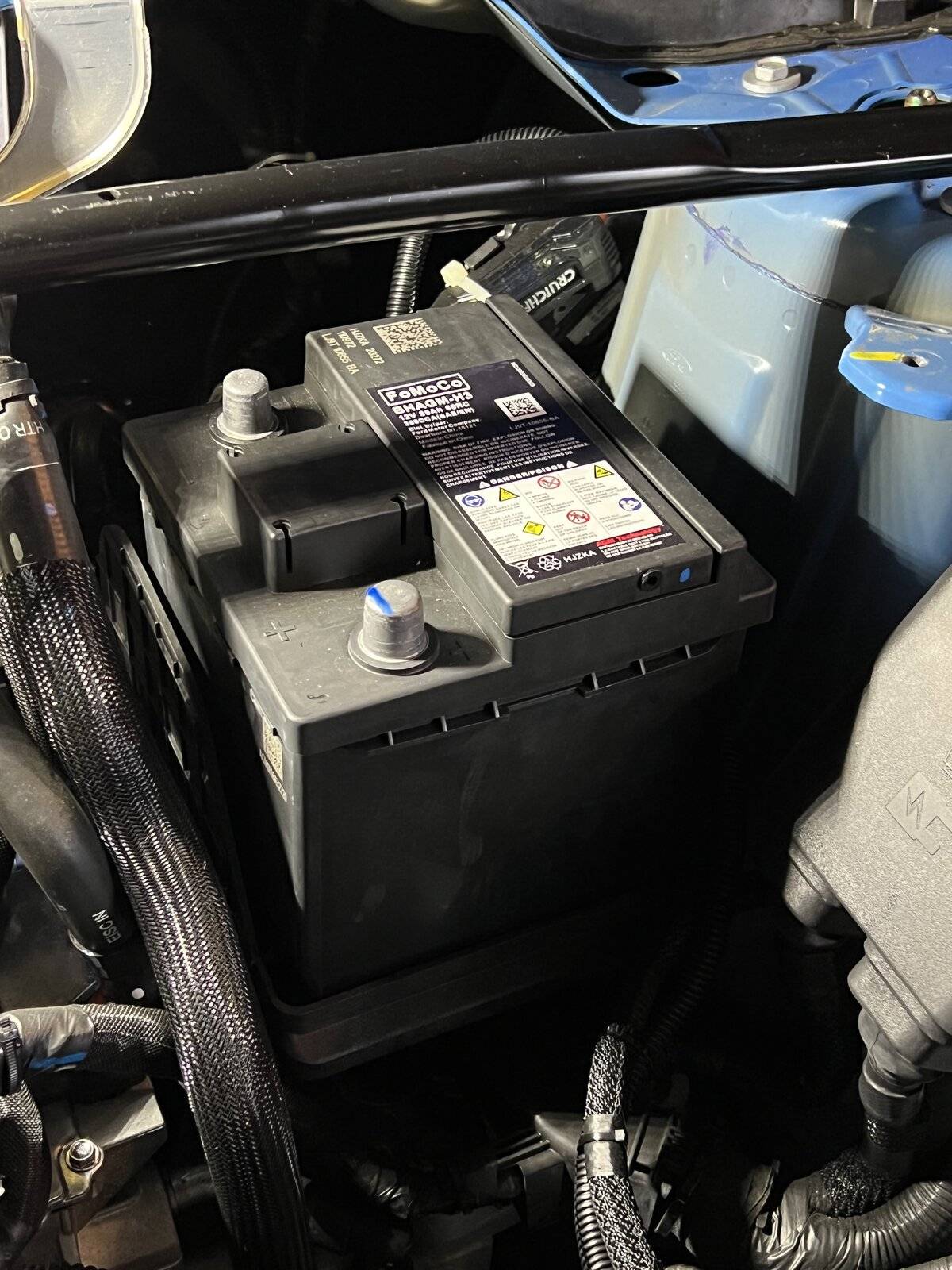

Wow - this is a lot of surgery to replace the battery that is visible when the three panels are removed. Pretty much requires Ford dealership to do this

OP
OP
breeves002

breeves002

Well-Known Member
First Name
Sam
Joined
Feb 21, 2021
Messages
394
Reaction score
645
Location
St. Louis, MO
Vehicles
2021 Mach-E FE
Country flag
That wins my vote for dumbest design ever - by a wide margin.
Dubmest ever? Not sure about that, but it is up there in the dumb design category.

Also dumb design...not including an owners manual. It nice and on the touchscreen, but what about those times the touchscreen doesn't work. C'mon Ford.


zhackwyatt

Well-Known Member
Joined
Dec 18, 2019
Messages
1,283
Reaction score
2,092
Location
Arizona
Vehicles
'21 InfBlu Prem MMEx Past: '13 C-Max '98 Explorer
Country flag
Last note - I feel like the HV system de-energization is more of an extra safety thing although it shouldn't actually be needed. DO NOT take my word for that though because you can kill yourself or damage your car if you don't do things the way Ford has said to do it!
They do that because the car wakes up periodically to charge the 12-volt. The idea is that battery replacement "should" be relatively rare as it's an AGM battery and the HVB should be maintaining the LVB.

The recent posts about the LVB dying is because the system is not working as designed. Time will tell if the design proves itself.

OP
OP
breeves002

breeves002

Well-Known Member
First Name
Sam
Joined
Feb 21, 2021
Messages
394
Reaction score
645
Location
St. Louis, MO
Vehicles
2021 Mach-E FE
Country flag

louibluey

Well-Known Member
First Name
Joe
Joined
Dec 21, 2020
Messages
329
Reaction score
417
Location
NY
Vehicles
Mach-E FE "Louibluey" Grabber Blue
Country flag
No, I don't have a link these are screenshots I took out of a database that requires a login.
I kinda figured that from one your later posts. Thank you for posting the instructions!


RetiredDP

Well-Known Member
First Name
Steve
Joined
Mar 30, 2020
Messages
147
Reaction score
130
Location
Camino, CA
Vehicles
Focus RS
Occupation
Retired Director of Videography, Editor, Compressionist
Country flag
No, I don't have a link these are screenshots I took out of a database that requires a login.
I'm curious as to how you would discharge the battery? I don't think rolling the lift-cart into a pond would work...?
