Very interesting lesson by John Kelly of WeberAuto


Can’t figure how to auto run video…….Duh, it did share it………

hope you all enjoy…… Bill P




BigMach-E

Well-Known Member
Joined
Jul 15, 2021
Threads
18
Messages
311
Reaction score
356
Location
Bay Area
Vehicles
Mach-E Shadow Black 2021
Occupation
IT
Country flag
Thanks for the post! I have to say, if you told me 2 years ago I would care and/or be able to make any sense out of this stuff, I would say that is ridiculous.


Ming

Well-Known Member
Joined
Oct 29, 2021
Threads
0
Messages
201
Reaction score
123
Location
Texas
Vehicles
2021 MME premium SR RWD; 2022 Civic; Tesla MYP
Country flag
great video. didn't know the junction box is this complicated.


AZBill

Well-Known Member
First Name
Bill
Joined
May 26, 2021
Threads
9
Messages
759
Reaction score
875
Location
Arizona
Vehicles
GMC Sierra, Bolt, Sky, MME CA Route 1
Occupation
Engineer
Country flag
Based on this video, I believe that the software fix likely increases the pre-charge of the capacitors for a longer period to eliminate any inrush current. I suspected before this may have been an issue. Having a voltage differential between the capacitors and the battery could lead to arcing when closing the contactors.

I do not understand why he thinks all 4 contactors have to be on to DC fast charge. The inverters should not have to be on during fast charging. In fact, for safety reasons, you would not want the motors powered on while connected to the CCS charger.


GrumblesTheDog

Well-Known Member
Joined
Aug 21, 2020
Threads
6
Messages
346
Reaction score
531
Location
Ohio
Vehicles
2021 Mustang Mach-E GB FE
Country flag
Thanks for posting! Agree, very interesting. I am super curious, if DCFC goes through two separate dedicated contactors, why would that contribute to the positive contactor welding open/shut? Is it something generalized about the heat that's generated? Or something waaaay above my understanding regarding how current travels immediately before/after charging?



Mach-Lee

Well-Known Member
First Name
Lee
Joined
Jul 16, 2021
Threads
55
Messages
1,846
Reaction score
3,088
Location
Wisconsin
Vehicles
2022 Mach-E Premium AWD
Occupation
Sci/Eng
Country flag
Thanks for posting! Agree, very interesting. I am super curious, if DCFC goes through two separate dedicated contactors, why would that contribute to the positive contactor welding open/shut? Is it something generalized about the heat that's generated? Or something waaaay above my understanding regarding how current travels immediately before/after charging?
Yes, current flows through the main contactors while DCFCing, so DCFC will continue to heat them if they're already hot. This is why some people have gotten stranded shortly after a high-power DCFC session. I will have more details in a future post.


Ming

Well-Known Member
Joined
Oct 29, 2021
Threads
0
Messages
201
Reaction score
123
Location
Texas
Vehicles
2021 MME premium SR RWD; 2022 Civic; Tesla MYP
Country flag
I do not understand why he thinks all 4 contactors have to be on to DC fast charge. The inverters should not have to be on during fast charging. In fact, for safety reasons, you would not want the motors powered on while connected to the CCS charger.
it looks the board is designed this way, not just he thinks... the DCFC contactors connect to motor invertor side first, then through outside contactors to the battery.
there's no direct connection to battery through DCFC contactors.


Matstar

Member
Joined
Feb 2, 2022
Threads
2
Messages
13
Reaction score
7
Location
Canada
Vehicles
Mach E Premium

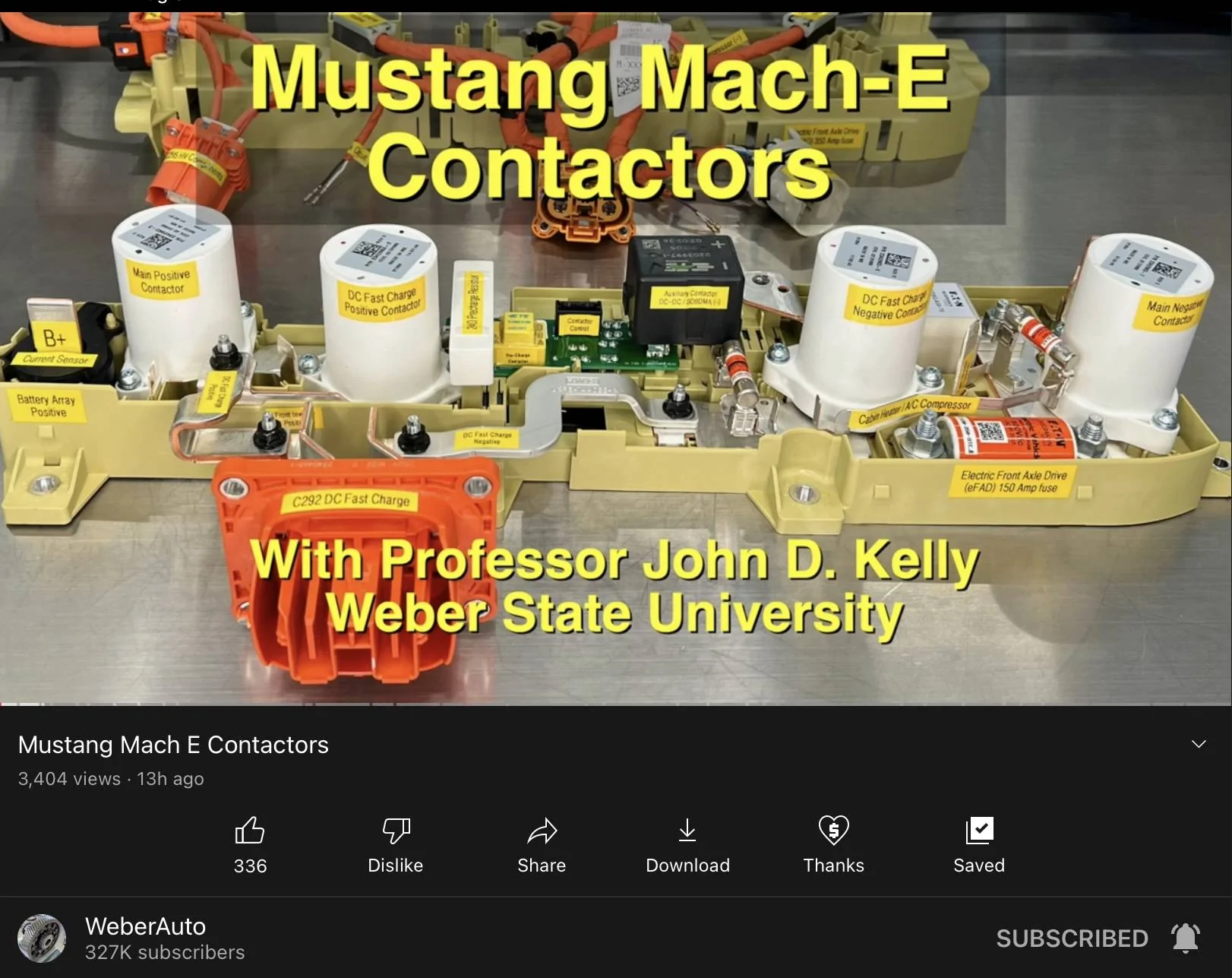

A great video that explains what a contactors box (HVBJB) is and how it works on the Mach E

This is the module affected by the recall.



louibluey

Well-Known Member
First Name
Joe
Joined
Dec 21, 2020
Threads
59
Messages
870
Reaction score
1,045
Location
NY
Vehicles
Mach-E FE "Louibluey" GB sold, '23 GTPE order Aug
Country flag
Professor Kelly is amazing, beautiful presentation!


ridgebackpilot

Well-Known Member
First Name
Michael
Joined
Mar 27, 2022
Threads
20
Messages
327
Reaction score
472
Location
Carmel Valley, CA
Vehicles
2022 MME GTPE; 2022 MME Premium ER
Occupation
Attorney
Very interesting video. Towards the end, Professor Kelly explains why we never see the full 150 kW rate of charge at Electrify America DC-fast charging stations. The car can accept 375 amps from the chargers (150 kW @400 volts) but the EA chargers are only capable of putting out 350 amps maximum. Which explains why I've only ever seen about 140 kW maximum rate of charge at an EA station, and then only when my car battery is pretty low.


MellowJohnny

Well-Known Member
First Name
Christian
Joined
Nov 16, 2021
Threads
12
Messages
204
Reaction score
233
Location
YYZ
Vehicles
2022 Mach-E Premium AWD
Country flag
Has anyone posted a picture of a pooched contactor? I would assume (maybe incorrectly) that there would be physical evidence of an arching / welding event?

OP
OP

BillPitman

Well-Known Member
First Name
Bill
Joined
May 10, 2021
Threads
9
Messages
150
Reaction score
104
Location
Pa.
Vehicles
Ford Escape, Space White Mach e
Occupation
Retired
Country flag
Has anyone posted a picture of a pooched contactor? I would assume (maybe incorrectly) that there would be physical evidence of an arching / welding event?
It appears to be a sealed unit……. Bill P


Xadion

Active Member
Joined
Jul 26, 2022
Threads
0
Messages
37
Reaction score
18
Location
USA
Vehicles
Pending 2022 Mach-E Premium RWD SR
Figure best to ask here... Did they make any part or physical update to manufacturing or is it all even post recall prod cars just software?


ElectrifyCLT

Well-Known Member
First Name
Kevin
Joined
Aug 1, 2021
Threads
14
Messages
230
Reaction score
388
Location
Charlotte, NC
Vehicles
Mach E GT- Dark Matter Grey
Country flag
Very interesting video. Towards the end, Professor Kelly explains why we never see the full 150 kW rate of charge at Electrify America DC-fast charging stations. The car can accept 375 amps from the chargers (150 kW @400 volts) but the EA chargers are only capable of putting out 350 amps maximum. Which explains why I've only ever seen about 140 kW maximum rate of charge at an EA station, and then only when my car battery is pretty low.
The 350 Kw units can actually put out 500A when they are at full power, and as a result many of us have seen peaks in the 160 range.

It makes a very small difference over the course of a full charge but you can get marginally better charging when hooked into a 350 Kw unit
