Wheel Sizes

kdryden99

Well-Known Member
First Name
Richard
Joined
Sep 25, 2020
Messages
241
Reaction score
194
Location
Montreal Canada
First Name
Richard
Vehicles
Nissan Sentra Spec-V, Nissan Rogue, Future Infinite Blue Mach E
Country flag
Last edited by a moderator:
OP

kdryden99

Well-Known Member
First Name
Richard
Joined
Sep 25, 2020
Messages
241
Reaction score
194
Location
Montreal Canada
First Name
Richard
Vehicles
Nissan Sentra Spec-V, Nissan Rogue, Future Infinite Blue Mach E
Country flag
  • Thread starter
  • Thread Starter
  • #4
I'd be really curious if a 17 inch fits. A bit disappointed it's 108 and not 114.3


GoGoGadgetMachE

Well-Known Member
First Name
Michael
Joined
Jan 23, 2020
Messages
852
Reaction score
1,508
Location
Ohio
First Name
Michael
Vehicles
2013 Ford Fusion Energi, 2020 Mach-E First Edition (ordered)
Country flag
eh as long as I can put a lift kit on, I am not worried; I can get the tires I want when the time comes.



Wildthing

Well-Known Member
Joined
Feb 23, 2020
Messages
73
Reaction score
96
Location
Canada
Vehicles
Hyundai Kona Electric
Country flag

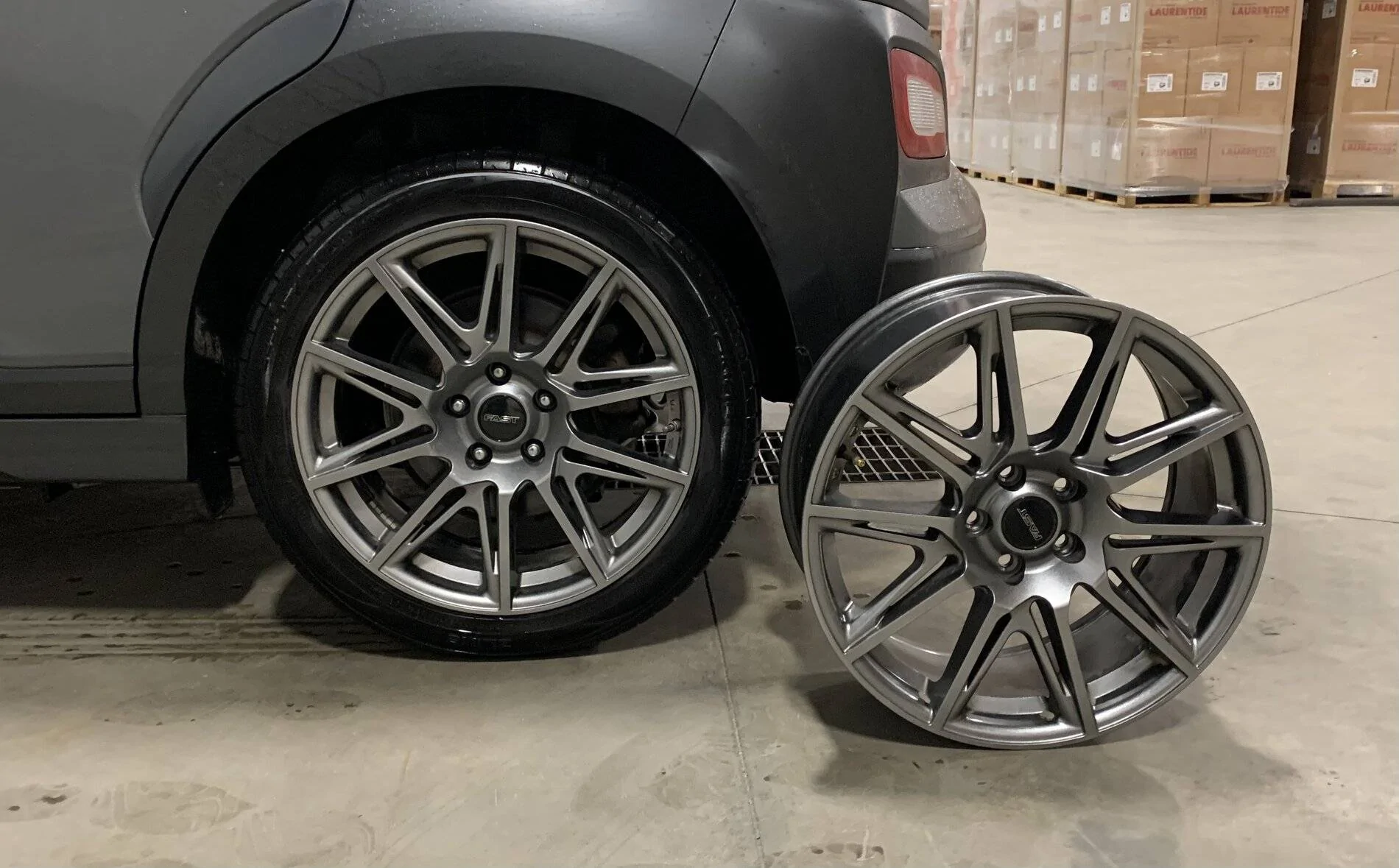

I have 18 inches wheels on my Kona Electric that I wanted to use for winter but they are 5x114.3.

so I bought identical 5x108 wheels this week 😃


Nak

Well-Known Member
First Name
Mike
Joined
Jan 5, 2020
Messages
287
Reaction score
255
Location
Camas, Washington
First Name
Mike
Vehicles
Tesla Model Y Performance, Tesla Model 3, 1992 K1500 Blazer
Country flag
That wheel page shows offset 38-53... I'm wondering where they got those numbers. That's a fairly large range. I wouldn't be too sure yet that everything in that range will fit well. Sure, the wheel might bolt up, but if you put a 38mm offset wheel on a car designed for a 53mm offset you may end up with problems. Plus, you don't know what the load rating of the wheel needs to be. I randomly chose one of the wheels listed on that page and it had a load rating of 1600. No way will that be strong enough for an E. The wheel load is determined by taking 50% of the heaviest axle rating of the vehicle (GAWR – gross axle weight rating). Example; if your heaviest axle weight rating is 3800 lbs then your wheel load requirement would be 1900 lbs. I don't know what the GAWR of the E will be, but I'll bet the rear axle is rated higher than 3200 pounds, probably closer to 3800.


hybrid2bev

Well-Known Member
Joined
Dec 4, 2019
Messages
963
Reaction score
1,958
Location
USA
Vehicles
2017 C-Max Hybrid, 2020 Explorer ST
Country flag
That wheel page shows offset 38-53... I'm wondering where they got those numbers. That's a fairly large range. I wouldn't be too sure yet that everything in that range will fit well. Sure, the wheel might bolt up, but if you put a 38mm offset wheel on a car designed for a 53mm offset you may end up with problems. Plus, you don't know what the load rating of the wheel needs to be. I randomly chose one of the wheels listed on that page and it had a load rating of 1600. No way will that be strong enough for an E. The wheel load is determined by taking 50% of the heaviest axle rating of the vehicle (GAWR – gross axle weight rating). Example; if your heaviest axle weight rating is 3800 lbs then your wheel load requirement would be 1900 lbs. I don't know what the GAWR of the E will be, but I'll bet the rear axle is rated higher than 3200 pounds, probably closer to 3800.
Weight for the MME if it helps.
Standard Range: RWD 4,394 lbs and AWD 4,587 lbs
Extended Range: RWD 4,727 lbs and AWD 4,920lbs

OP

kdryden99

Well-Known Member
First Name
Richard
Joined
Sep 25, 2020
Messages
241
Reaction score
194
Location
Montreal Canada
First Name
Richard
Vehicles
Nissan Sentra Spec-V, Nissan Rogue, Future Infinite Blue Mach E
Country flag
  • Thread starter
  • Thread Starter
  • #10
Weight for the MME if it helps.
Standard Range: RWD 4,394 lbs and AWD 4,587 lbs
Extended Range: RWD 4,727 lbs and AWD 4,920lbs
I wouldnt be surprised if they only went with offset and bolt pattern. Most companies probably wont even check the weight rating.
