Hooooo boy... That is so cool. They really didn't put enough lighting in the back area there. Way to go John. 😎🐩
Thanks Steve. If you were blinded last night around midnight, sorry I opened the back while visiting a friend in Menlo Park 🤣
Sponsored



MrPeanut

Well-Known Member
First Name
Bob
Joined
Dec 11, 2021
Threads
1
Messages
62
Reaction score
20
Location
Wake Forest, NC
Vehicles
2022 MME Premium ER
Occupation
Retired
Country flag
@MyLittlePony2022 made a modification to his MME, adding strip LED lighting to his cargo area. He wired the LED strips to the power and ground of the C489 connector (for the side lamp module in the cargo area), and since the power to that module is always on (until the car times out), he added a physical switch to enable his added lighting to be turned on or off.

I decided to see if it is feasible to use the OEM lamp module to trigger a solid-state relay to turn on/off the added LED strips. (My initial idea actually was to try to use the third wire to C489 (Switch – Overhead Console # External Control) to trigger the relay, but I discovered that in fact that wire is the LIN bus to the module and so it cannot be used as a trigger. So I instead needed to do surgery on the OEM lamp module to extract a suitable trigger.

Before we go further, I want to stress that I do not recommend others do this mod! It is time consuming, could easily end up trashing your lamp module, and if things really go south it might even damage your BCM (which would be certifiably bad). If you decide to proceed, you’re on your own. I cannot be responsible for any issues that arise should you attempt this mod.

OK, enough of the backstory and warnings, here’s what I did.

To summarize, we have three input pins on C489 (the connector to the OEM lamp module):

  1. Battery Saver +12V (this is on whenever the car is on and remains on for about 20 minutes after the car is shut off)
  2. Switch – Overhead Console # External Control (LIN)
  3. Ground


Courtesy @MyLittlePony2022

Pin 2 is the LIN bus and is not used (directly) for this project. Instead, we tap inside the lamp module to obtain the appropriate signal to use with our solid-state relay.

To open the module, you’ll need to remove the clear diffuser plastic by carefully prying it open from behind. There are small tabs that hold it in place and those tabs can be pushed out from behind. Once the diffuser is off, the lens assembly drops out (tapping the module onto its face helps), and then the PCB assembly can be gently pried out. It is simply press-fit in the module housing, so there’s little worry of damaging it if you’re careful.

Here is the disassembled module:

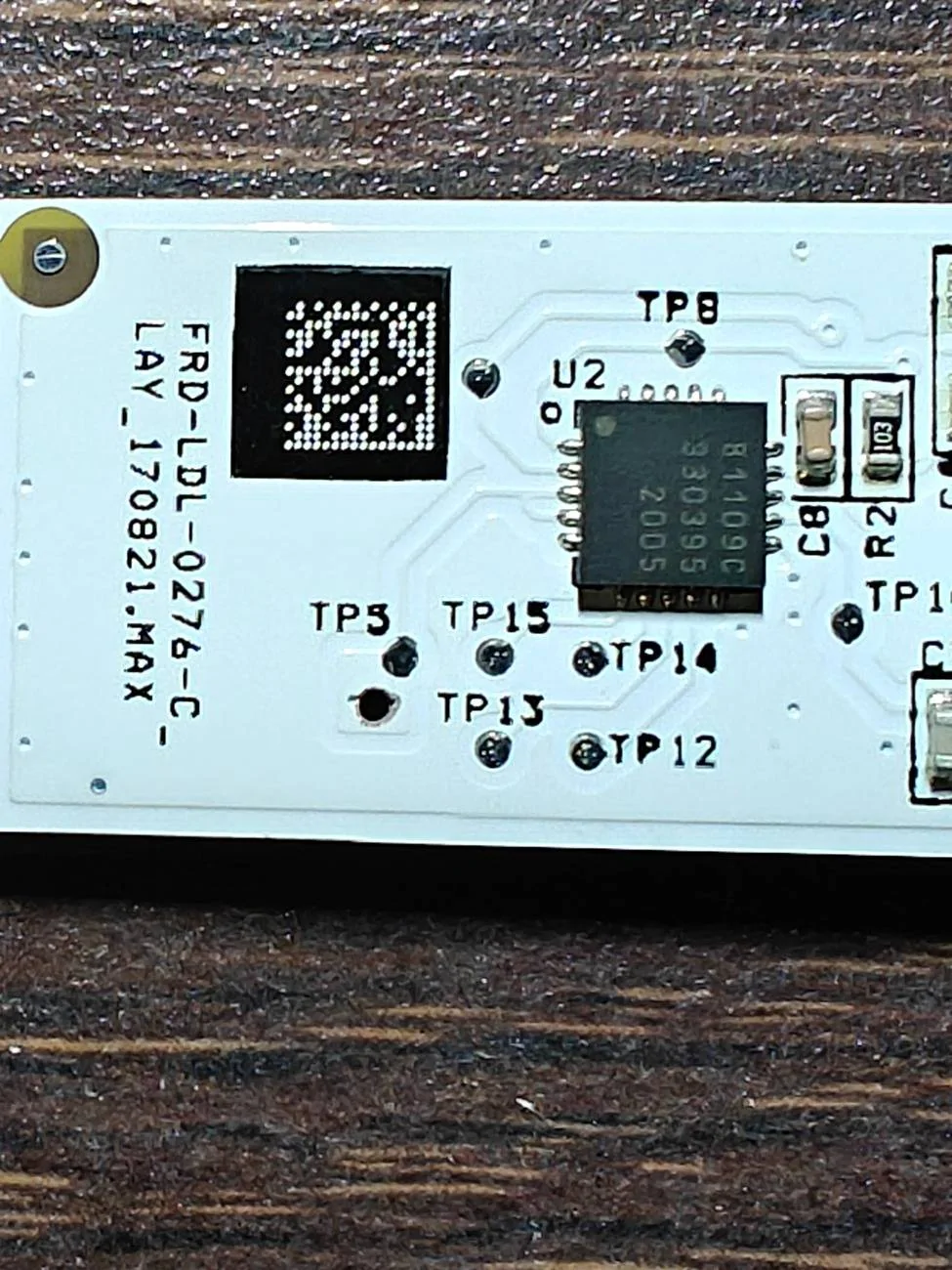

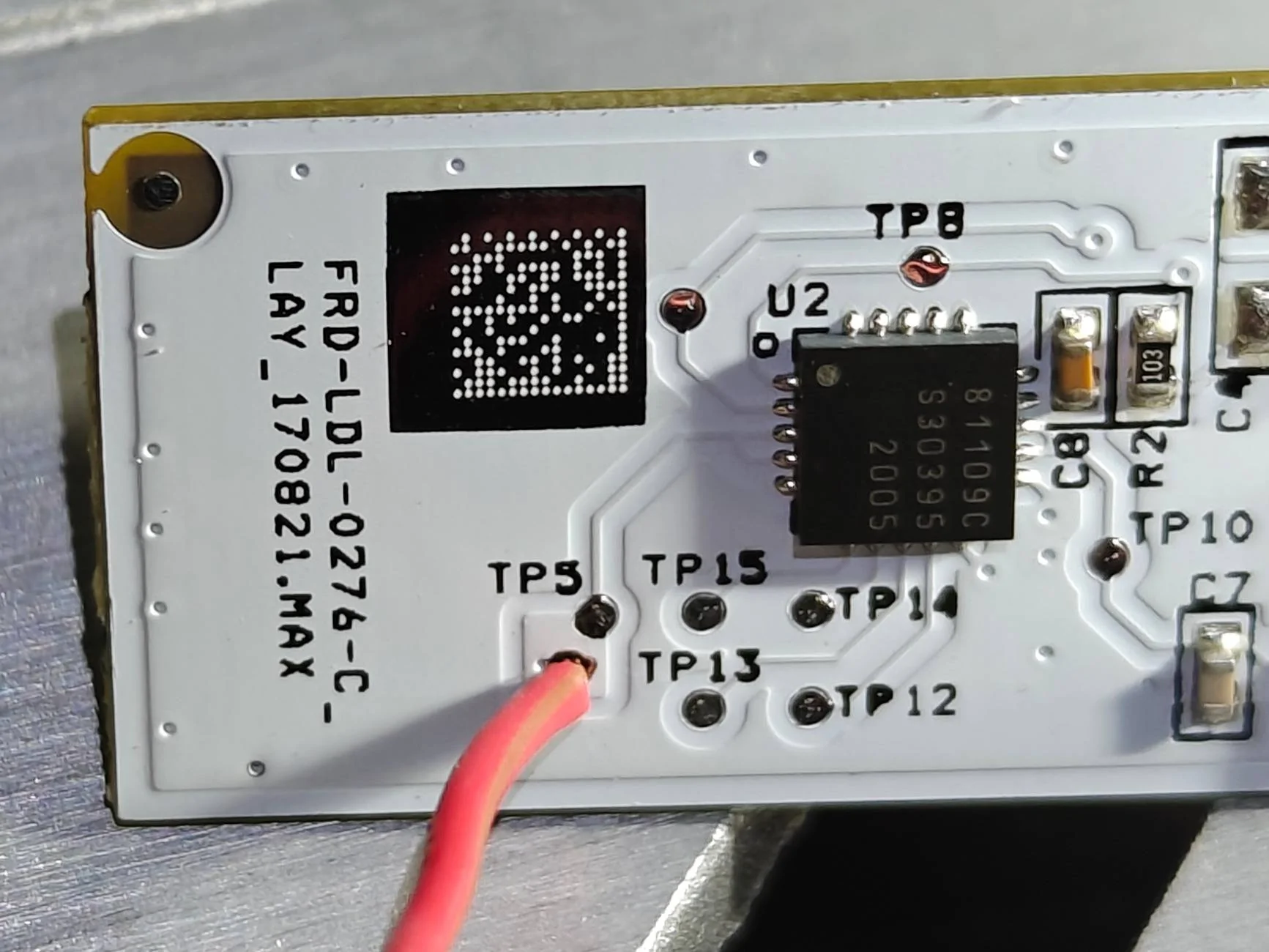

After much testing and basically trashing my lamp module, I determined that Test Point 5 (TP5) is the correct net (signal in a circuit) to drive the SS relay. Tapping that test point directly is not recommended because unless you can protect against all strain to the tap wire, there is a very high probability that you will damage the circuit and need to make repairs (like I did). And while it certainly isn’t for the faint of heart, the best way I could figure out to tap that net is to drill through the PCB. I used a 1/16” drill bit and carefully drilled at the spot shown in the photo below:

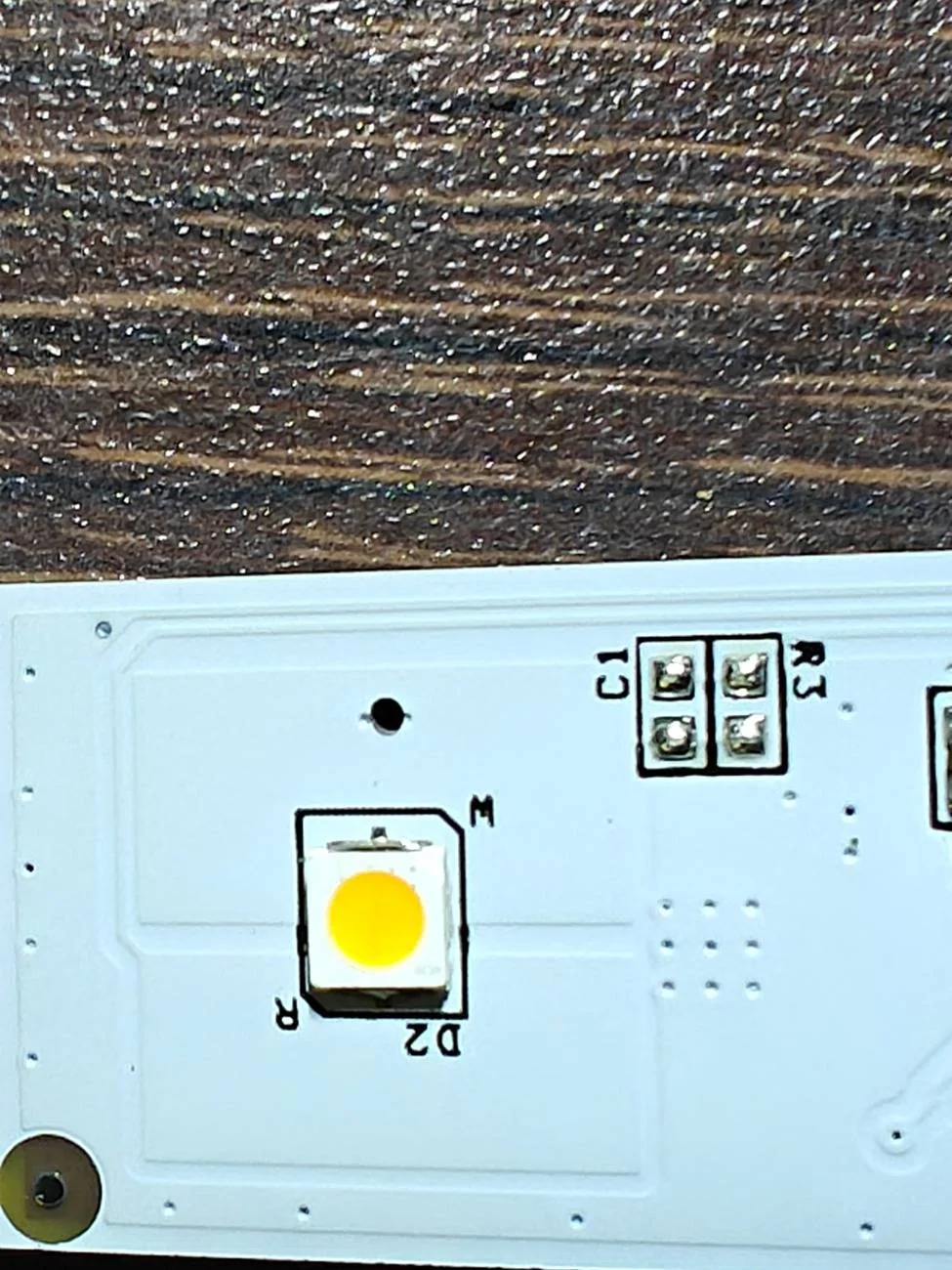

I then, on the other side of the PCB, scraped off a small section of the white coating in the area shown below:


This exposed bare copper which is on the same net as TP5 (and the “W” contact of D2, the yellow colored LED you see on the right side of the PCB shown above).

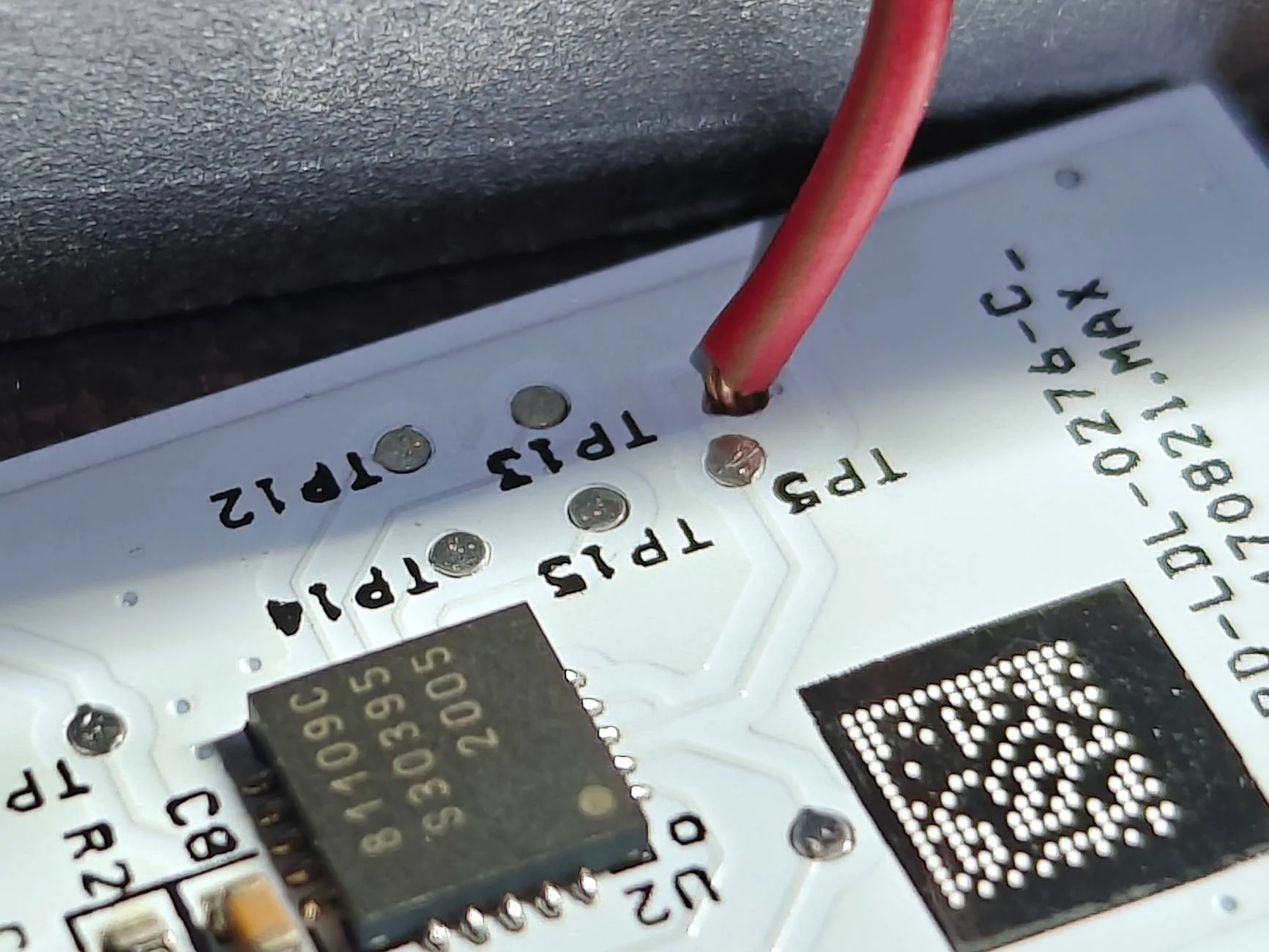

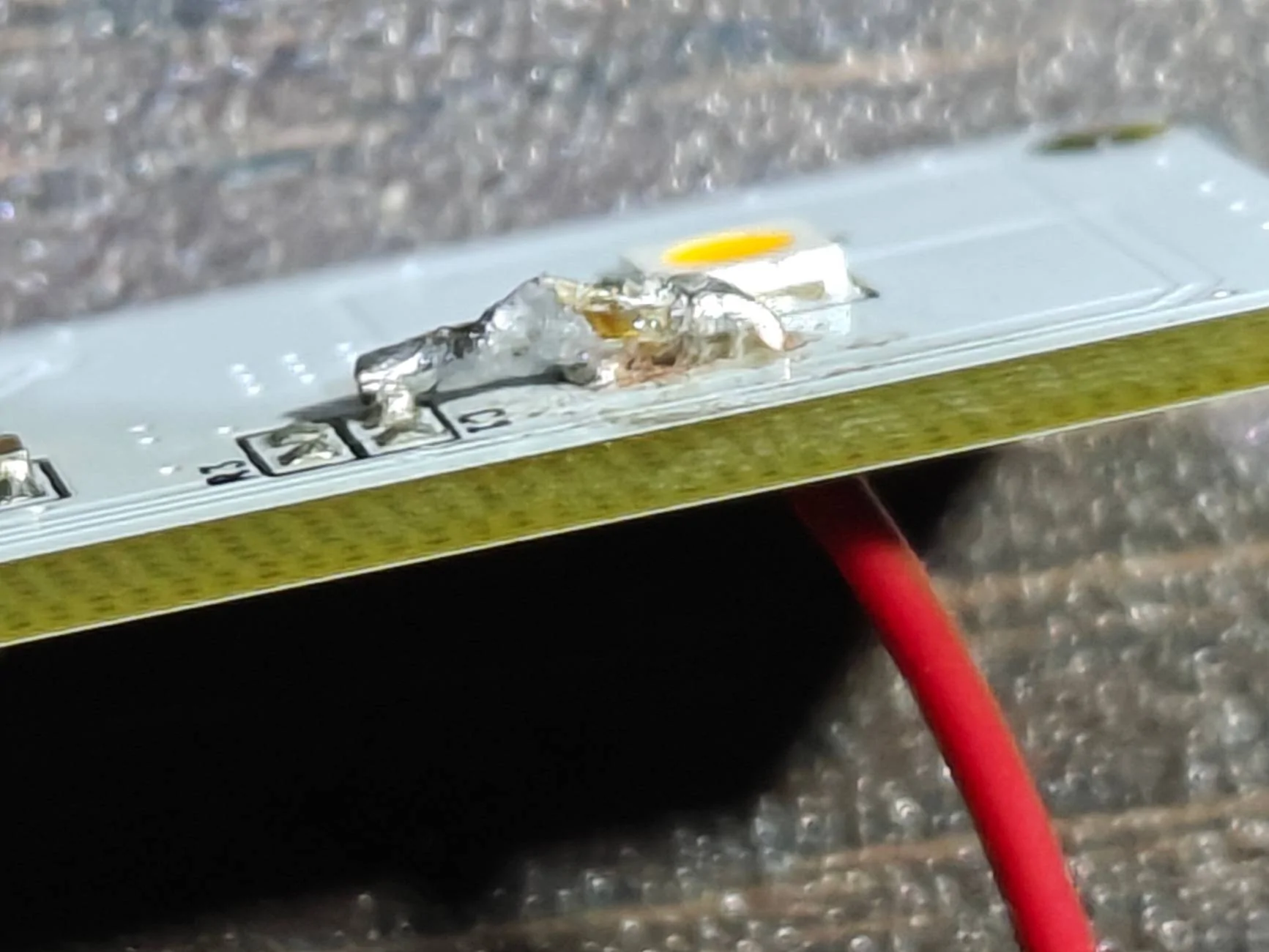

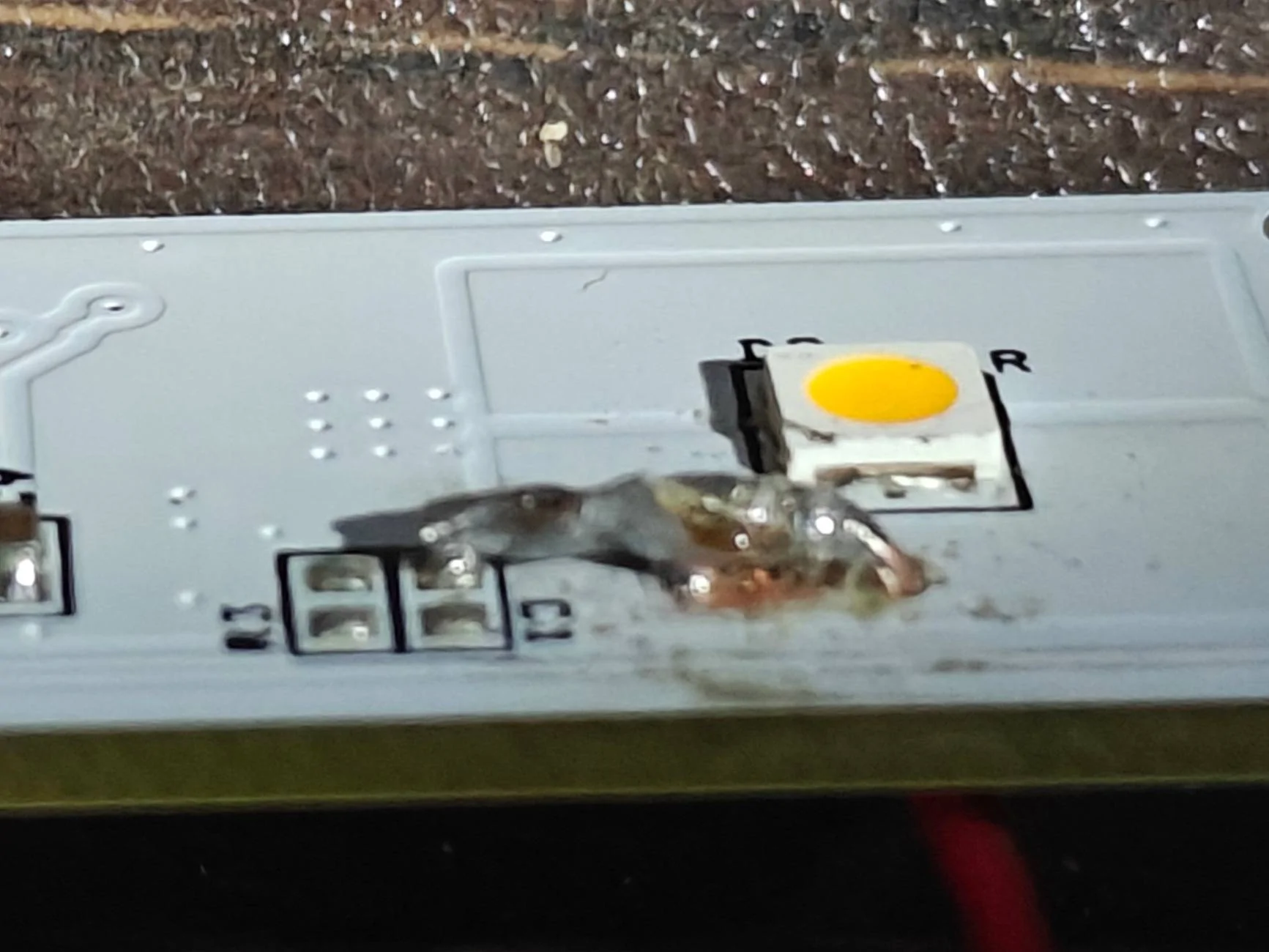

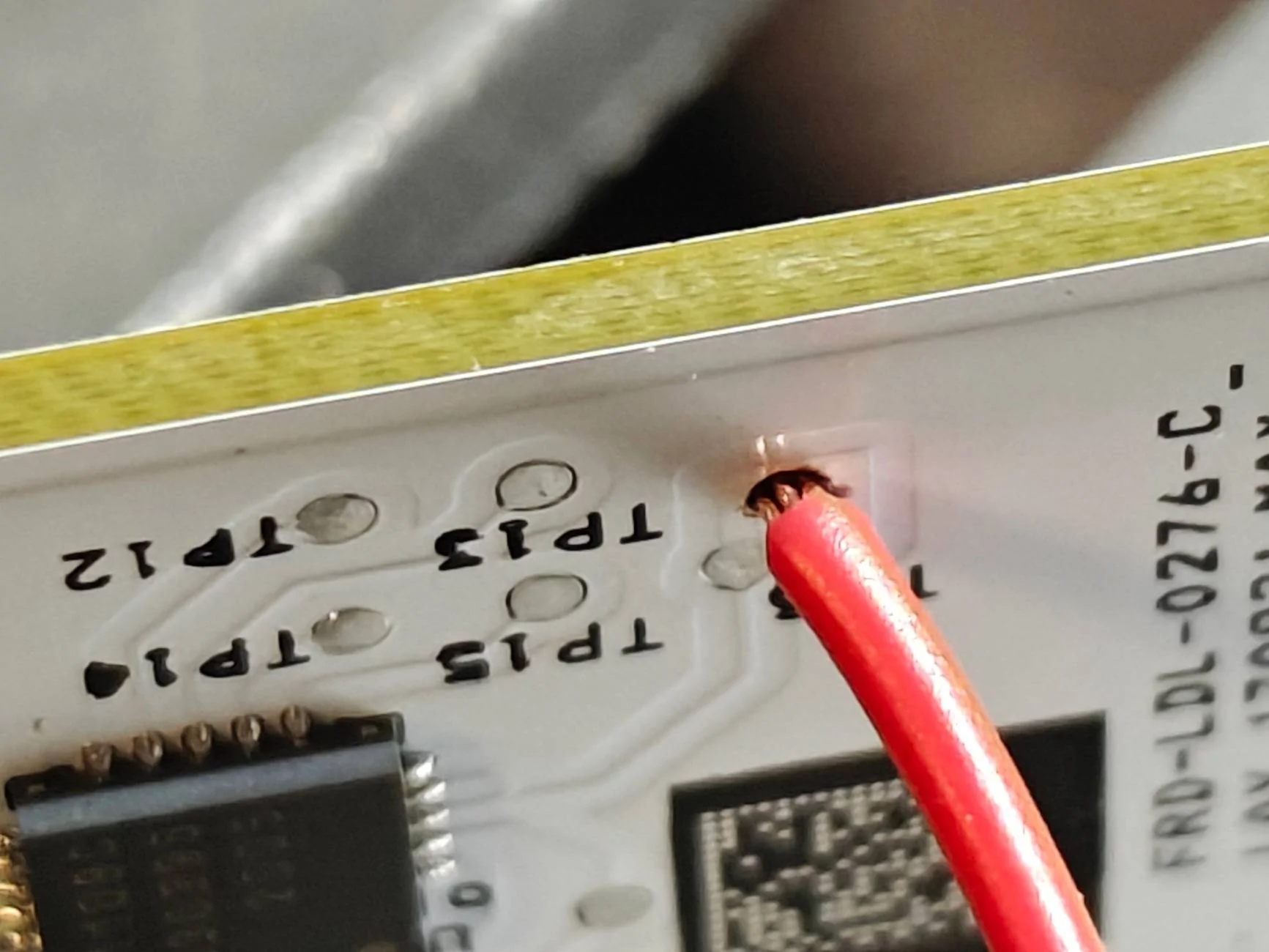

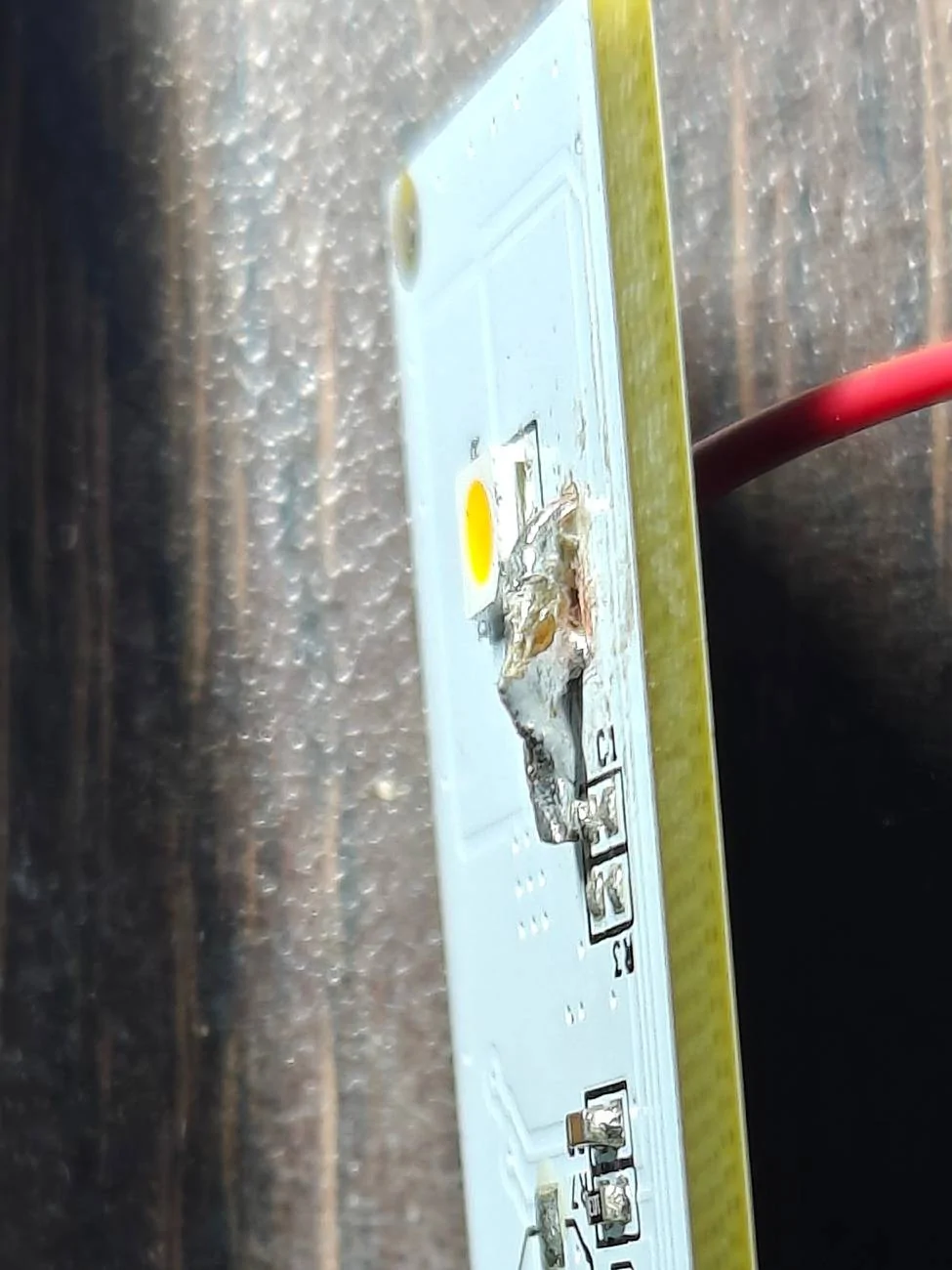

Below you can see my finished modification. You can run a small wire to the inner pad of the bare C1 spot if you’d like (it is part of the same net).



Do not tap only TP5. I initially did that, and the tap wire pulled up the test point and broke the signal trace. I needed to repair the trace and who knows how long it will last… (Luckily the lamp module isn’t too expensive.)

To switch the LED strips on and off I used a 12VDC Solid-State Relay with a 1-amp load rating (Omron G3SD-Z01P). I purchased it from Digikey.com but unfortunately, I purchased the last one they have in stock, so I don’t know if anyone (crazy enough to try this mod) can easily find it. If you do want to try the mod, I suggest you search for a 12VDC input solid state relay with at least a 1-amp load rating.

Here is the schematic of the very simple circuit used to drive the LED Strips:


And here is the wiring diagram that shows schematically how I chose to wire up the circuit:


Here is the finished wiring harness. I drilled a hole in the back of the housing for the trigger wire to pass through. You can see the wavey trigger wire coming out of the back and going to the relay. I added 3M locking tape (heavy duty Velcro) to the top of the relay to mount to the back of the housing, though I’d not mounted it yet in this photo.


Here’s everything all buttoned up:


I ran the two LED strips in series, with the wire connecting them running behind the soundproofing under the floor (below the lift gate sill trim). The trim is easy to remove: just two bolts on the inside easily visible, two bolts holding the tie-downs, and a few clips.

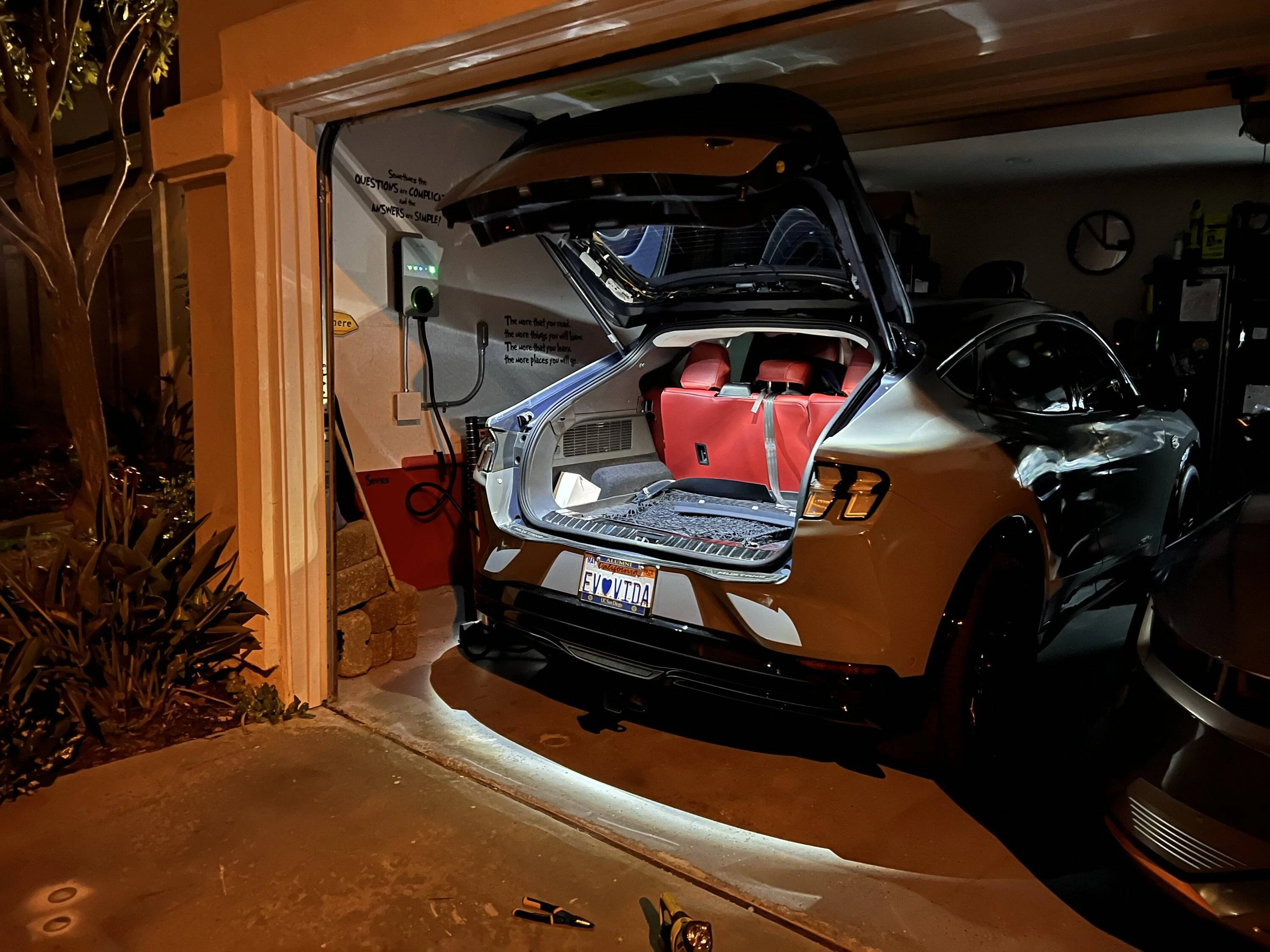

Here's the finished result:

Am I happy with the results? Yes! Would I do it again? No! Should you do it? You need to decide, but I really don't recommend it.

Oh, and here's what my trunk looked like an hour before the video was made:



MrPeanut

Well-Known Member
First Name
Bob
Joined
Dec 11, 2021
Threads
1
Messages
62
Reaction score
20
Location
Wake Forest, NC
Vehicles
2022 MME Premium ER
Occupation
Retired
Country flag
That's a really cool modification. Wish I had the expertise and patience to try it! Great job!


21st Century Pony

Well-Known Member
First Name
Martin
Joined
May 21, 2022
Threads
31
Messages
1,702
Reaction score
1,754
Location
Arlington, Virginia
Vehicles
Ford Mustang Mach E 2022 Premium AWD ER
Country flag
Thanks guys! Now if can only get the damned strips to stay attached 🤣
If you have (access to) a safety wire spool and a safety twist tool, you can put in several appropriately spaced safety wire loops around the LEWD strips into the plastic trim panels to hold the light strips. Safety wire will likely stay in place for the life of the car, and is nearly invisible to boot.



OP
OP
JohnFoxeSheets

JohnFoxeSheets

Well-Known Member
First Name
John
Joined
Jan 29, 2022
Threads
21
Messages
2,449
Reaction score
3,394
Location
San Francisco
Website
johnfoxesheets.com
Vehicles
2022 Iced Blue Silver Mach E GT
Occupation
Retired Engineer
Country flag
If you have (access to) a safety wire spool and a safety twist tool, you can put in several appropriately spaced safety wire loops around the LEWD strips into the plastic trim panels to hold the light strips. Safety wire will likely stay in place for the life of the car, and is nearly invisible to boot.
Thanks. I actually got some 3M VHB tape and added it to the original tape and it works great.


HuntingPudel

Well-Known Member
First Name
Steve
Joined
Mar 23, 2021
Threads
65
Messages
8,061
Reaction score
9,624
Location
Bay Area, CA
Vehicles
2021 MME GT-PE, 1979 Fire-Am, 1972 K/5 Blazer
Occupation
Engineering
Country flag
Thanks. I actually got some 3M VHB tape and added it to the original tape and it works great.
I have a can or three of safety wire and the twist pliers. Between aircraft and race cars I used to use that a lot. LOL. If you ever need any John, come visit. 😊🐩

OP
OP
JohnFoxeSheets

JohnFoxeSheets

Well-Known Member
First Name
John
Joined
Jan 29, 2022
Threads
21
Messages
2,449
Reaction score
3,394
Location
San Francisco
Website
johnfoxesheets.com
Vehicles
2022 Iced Blue Silver Mach E GT
Occupation
Retired Engineer
Country flag
I have a can or three of safety wire and the twist pliers. Between aircraft and race cars I used to use that a lot. LOL. If you ever need any John, come visit. 😊🐩
Thank you Steve!


EV_Vida

Well-Known Member
First Name
Simon
Joined
Sep 25, 2022
Threads
1
Messages
60
Reaction score
53
Location
San Diego
Vehicles
Mach E CR1
Country flag

First Name
Matthew
Joined
Oct 19, 2023
Threads
2
Messages
22
Reaction score
27
Location
Venice, FL
Vehicles
2023 Ford Mustang Mach-E Select
Occupation
Ford Dealership Employee
Country flag

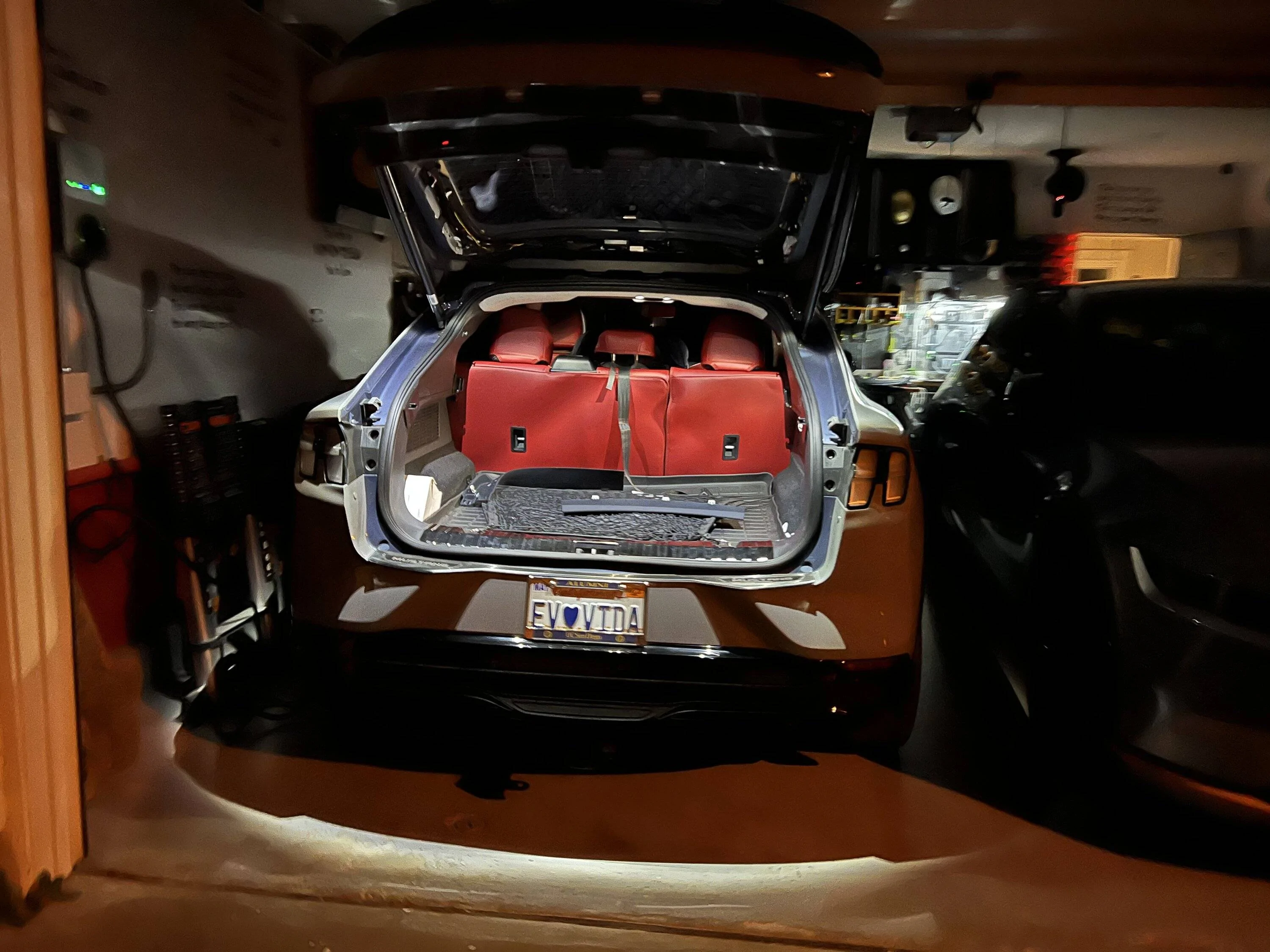

Shout out to the OP! The description is solid and on point. Just wanted to share our results.

we call these halo lights:

Ford Mustang Mach-E Mach-E Cargo LED Strip Lighting Project -  Another (My) Approach trim.6985909F-62A4-4A19-9212-52E9A1FA211B.MOV



Ford Mustang Mach-E Mach-E Cargo LED Strip Lighting Project -  Another (My) Approach trim.6985909F-62A4-4A19-9212-52E9A1FA211B.MOV
What did you do for your interior lights?
