I recently received my A2Z NACS adapter and decided to visit the closest supported Tesla Supercharger for testing (Ford adapter wasn't going to arrive in time for planned trips). Charged from 19% to 80%. In short, everything worked as expected. 👍 Kudos to Tesla and Ford engineers for getting everything worked out so this is a superior charging experience. Parking to get the cable to reach is the worst part.

First, I have some tips for pulling up:
  • You will have to pull up really far so your nose is over the curb.
  • Make sure there are no objects in the plane between the Supercharger dispensers like bollards or lamp posts.
    • Some spots may not be usable by Fords because of obstacles.
  • Try to use the spot furthest to the right first. Park next to other non-Teslas if possible.
  • Especially if you have a GT, also make sure there aren't objects sticking up from the ground that will scrape your front splitter.
    • I've seen spots with electrical boxes or bollard remnants sticking up from the ground.
  • Ignore the lines on the ground when pulling up. You should be focused on the dispenser pedestal and positioning your vehicle in reference to that only. Shoot the gap between the dispensers.
  • Pretend the side of the Supercharger is like your garage door jamb when you're pulling in your garage. You want to be as far left as possible while driving past without touching. Pull up until your front left corner is right beside the dispenser.
Here's what optimal positioning looks like. Driver's view:

Ford Mustang Mach-E Charged Mach-E at Tesla Supercharger via Adapter IMG_2743


Tire is almost touching curb:

Ford Mustang Mach-E Charged Mach-E at Tesla Supercharger via Adapter IMG_2746


Of course each site is different so positioning may vary. I want to emphasize that not every space at a Supercharger will be usable for Fords because of obstacles, always look and verify the area is clear for your nose before pulling in. At this Supercharger, I could not use 2 of the 8 spots. There was a big concrete lamppost base between two of the chargers, and the end spot was not available to me because there was a bollard to the right of that dispenser. So I had to use the second dispenser from the right (which takes up two Tesla spots). But I did this late at night so I had the Supercharger all to myself. Behold the glory of 8 working stalls to choose from:

Ford Mustang Mach-E Charged Mach-E at Tesla Supercharger via Adapter IMG_2747


Plug & Charge worked great, shortest handshake time ever (~15 sec). 👏 I fully preconditioned to 26ºC before leaving home, but the battery had cooled off during the drive to 17ºC. My peak rate was only about 120 kW at 19% and the boost was very short because of the sub-optimal battery temps. Couldn't do anything about that because we can't en-route precondition to Superchargers yet, and there were no other nearby chargers to substitute in the nav. Hopefully they add them soon so we can get preconditioning and max rates.

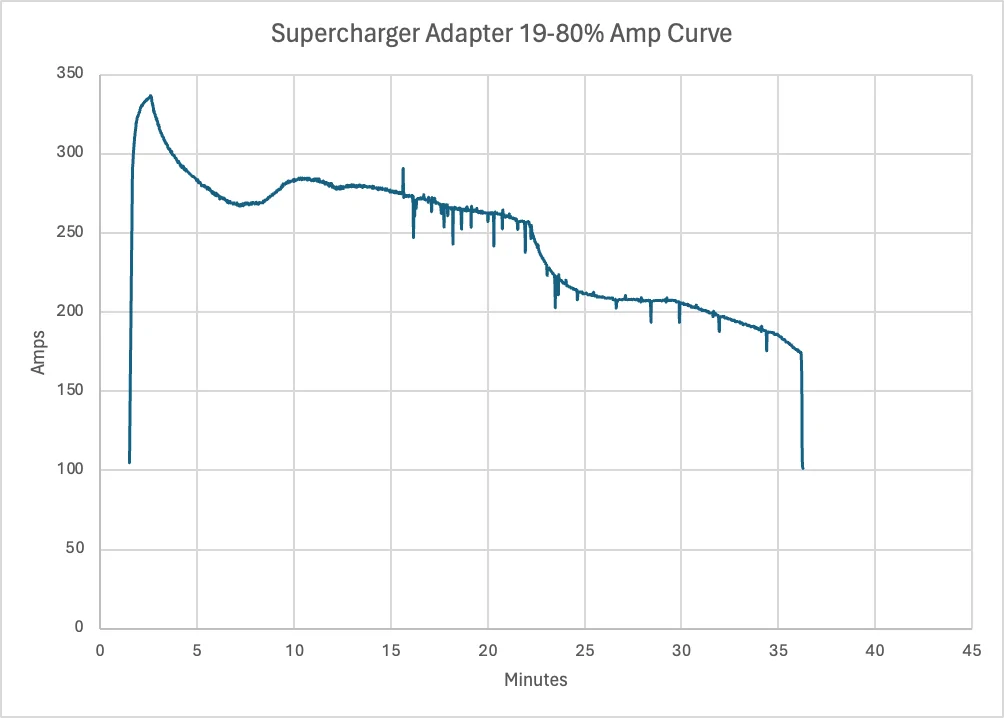

Here's the charge curve from 19% to 80%. Again, weird dip at the beginning because of cold battery temps:

Ford Mustang Mach-E Charged Mach-E at Tesla Supercharger via Adapter IMG_2754.PNG


The full 500 amps is available to use the whole time. Not many CCS chargers are capable of 500A or maintained to that level. No "limited by charger" here, full power baby!

Ford Mustang Mach-E Charged Mach-E at Tesla Supercharger via Adapter IMG_2742.PNG


Ford Mustang Mach-E Charged Mach-E at Tesla Supercharger via Adapter 1711228927369-wv


And this is for the charger nerds, but this is exquisite output regulation. Delivered amps perfectly tracks requested amps, within one amp, without delay. 🤤 Why can't other companies make DC chargers that function perfectly like this?

Ford Mustang Mach-E Charged Mach-E at Tesla Supercharger via Adapter IMG_2755.PNG


One good change I noticed is the software allows the battery temp to get up to 40ºC after the update, before it would only allow 35ºC max which was too conservative. This should help decrease slowdowns from thermal throttling in hotter temps and reduce A/C compressor noise/use.

The A2Z adapter worked fine and didn't even get warm (15ºF temps). I verified the safety interlocks on both latches work and present the 330 Ω load if opened. The adapter is dense, very tough and feels like quality construction. The tolerances were good, the Tesla cable seemed like a perfect fit without getting stuck, same with the CCS side. The only annoying thing about it was the latch for the Tesla cable. It's a little difficult to slide, which could be a challenge for some people. The slide could have been made more ergonomic, perhaps with a triangular profile or knurled texture. But it works and I have no other option right now, so can't complain too much.


And now for a story. So while I was sitting at the deserted Supercharger wondering if any Teslas would show up and react to newfound awesomeness at their station, of all things a KIA EV6 pulls in and backs up. It's a couple. Wife gets out and tried to plug in, and that went about as expected. I walked over and told them it wouldn't work with their car. She said her car told her it would. 😬 I replied "It only works with Teslas, Fords, and Rivians right now". She asked where the next charger was, I told them. Well, the next CCS charger was a 50 kW unit 41 miles down the interstate in the direction they were headed. The only other option was to backtrack 31 miles to the Electrify America station they had already passed. So if you're doing the math, that's a 72 mile stretch on I-94 without a CCS charger, but the Supercharger is right in the middle of that stretch. After looking at their navigation for a few minutes, they left.

I don't know how low they were, but having to go an extra 30-40 miles to the next charger in 15ºF temps could be a dicey situation. I hope they made it. Clearly they were inexperienced owners to think a Tesla Supercharger would work on their KIA, but if their navigation system sent them there, that's a major fail for KIA. I felt bad if that was the case, that's shouldn't happen to anyone. They were probably pretty embarrassed and frustrated. Accurate route planning to compatible, functioning chargers is critical. It also shows how important it is for everyone to access the Superchargers, especially ones in areas where there are no other CCS chargers nearby. I was able to charge and they couldn't, even if I had let them use my adapter. Realizing the degree of disparity here, I was unsettled. Changing needs to be equal for everyone already.

So in summary, the Plug & Charge Supercharger experience is great and getting access is a big deal. This will help non-Tesla travel in some areas immensely. I'm hoping to use a few Superchargers for a trip in a couple weeks, the alternative is a bunch of less reliable stations that are slower. The A2Z adapter works fine and others can't come soon enough. There's going to be a lot of charging disparity until everyone can get access. Dawn of a new age for EVs, the world just got smaller.

Last edited:

smunro622

Well-Known Member
First Name
Stu
Joined
Jul 4, 2023
Threads
13
Messages
87
Reaction score
28
Location
United States
Vehicles
2023 Mach E Premium
Occupation
Consultant
Country flag
Nice write up, which app and OBD connector did you use/buy for battery info....


RickMachE

Well-Known Member
Joined
Jul 1, 2021
Threads
203
Messages
13,332
Reaction score
18,198
Location
SE MI
Vehicles
2022 Mach-E Premium 4X, 2022 Lightning Lariat
Country flag
So if one wants to compare what the vehicle is asking for with what the charger is delivering, Charger Output Current vs. ChgOAR is what to use? I attempted to use EV Charger Power and ChgInPwr, also ChPLim.

OP
OP
Mach-Lee

Mach-Lee

Well-Known Member
First Name
Lee
Joined
Jul 16, 2021
Threads
208
Messages
7,918
Reaction score
15,929
Location
Wisconsin
Vehicles
2022 Mach-E Premium AWD
Occupation
Sci/Eng
Country flag
So if one wants to compare what the vehicle is asking for with what the charger is delivering, Charger Output Current vs. ChgOAR is what to use? I attempted to use EV Charger Power and ChgInPwr, also ChPLim.
Yes. In my Car Scanner parameter screenshot, look at the three amperage values. First one is the maximum available amps, second one is what the charger is delivering, and third is what the car is asking for. If the charger derates, the first one will decease. If the charger is a POS, the delivered amps will be less than the request (sometimes by 10+ amps) which increases your charge times.



emichnov

Well-Known Member
First Name
Eric
Joined
Mar 14, 2022
Threads
22
Messages
214
Reaction score
257
Location
Mass
Vehicles
2022 Mach-E Premium
Country flag
Solid report, Mach-Lee! Great tips! We start a 4600 mile trip a week from today and both my wife and I will read through these tips. We have our A2Z adapter and I plan to join the Tesla membership for better rates, so we plan to focus on Tesla chargers this trip. Who knows, maybe we will never need a non-Tesla fast charger the whole trip!


silverelan

Well-Known Member
Joined
Nov 25, 2019
Threads
119
Messages
3,103
Reaction score
4,414
Location
Seattle
Vehicles
2021 Mustang Mach-E GT
Country flag
Hey Lee, thanks so much for the report! That was an interesting tidbit on the adjustment to 40C.

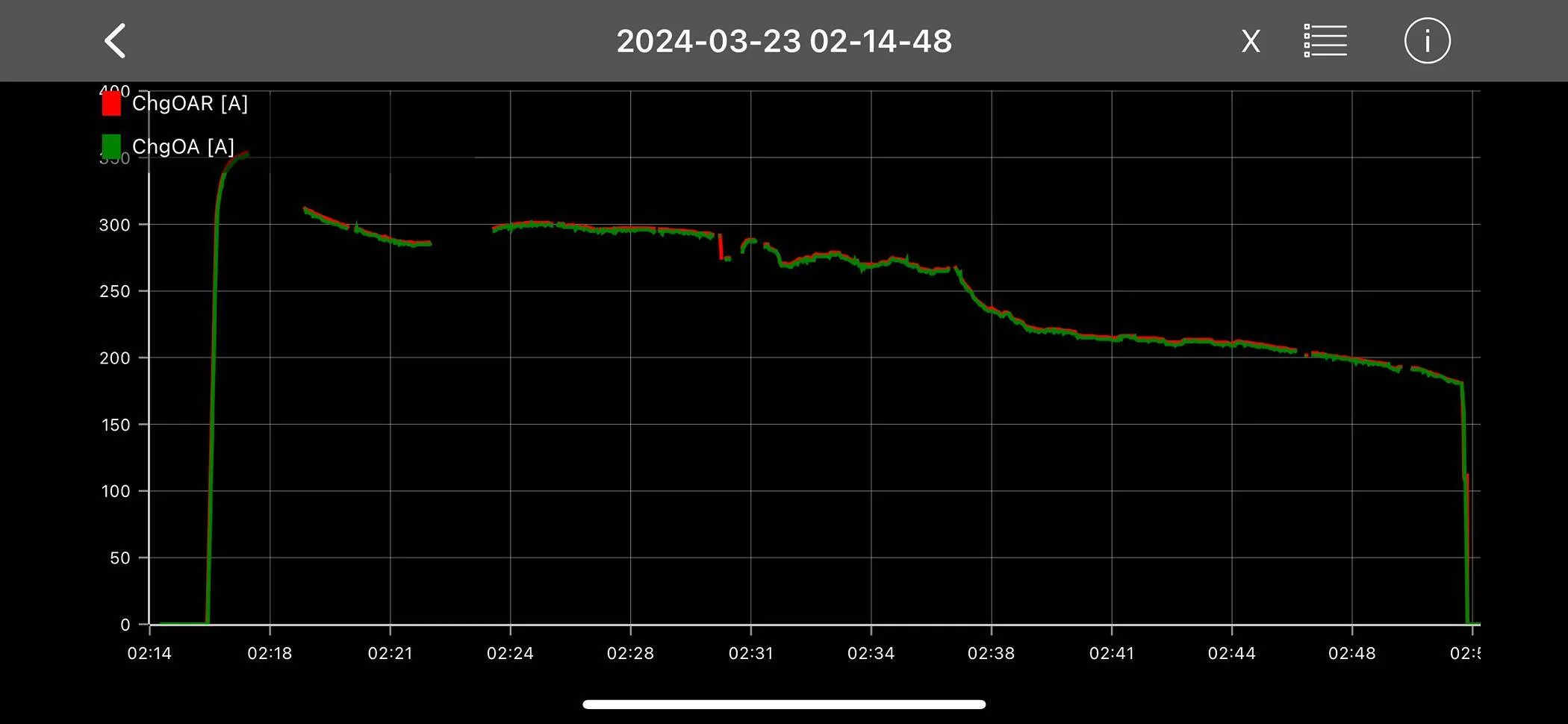

Maybe it's just a function of the cooler temps, but I noticed on your charge curve graph the same amperage drop I observed in my recent DC fast charges. The MME no longer seems to hold ~215A between 70% and 80%. In the past, I would see a flat power level of 75-80kW all the way to 80% but now it's down into the 60kW range right before the 80% drop.

Unless Ford updated the boost to be longer than 2 minutes, net result of the lower amps is slower charging to 80%.

Ford Mustang Mach-E Charged Mach-E at Tesla Supercharger via Adapter 1711205872413-6k

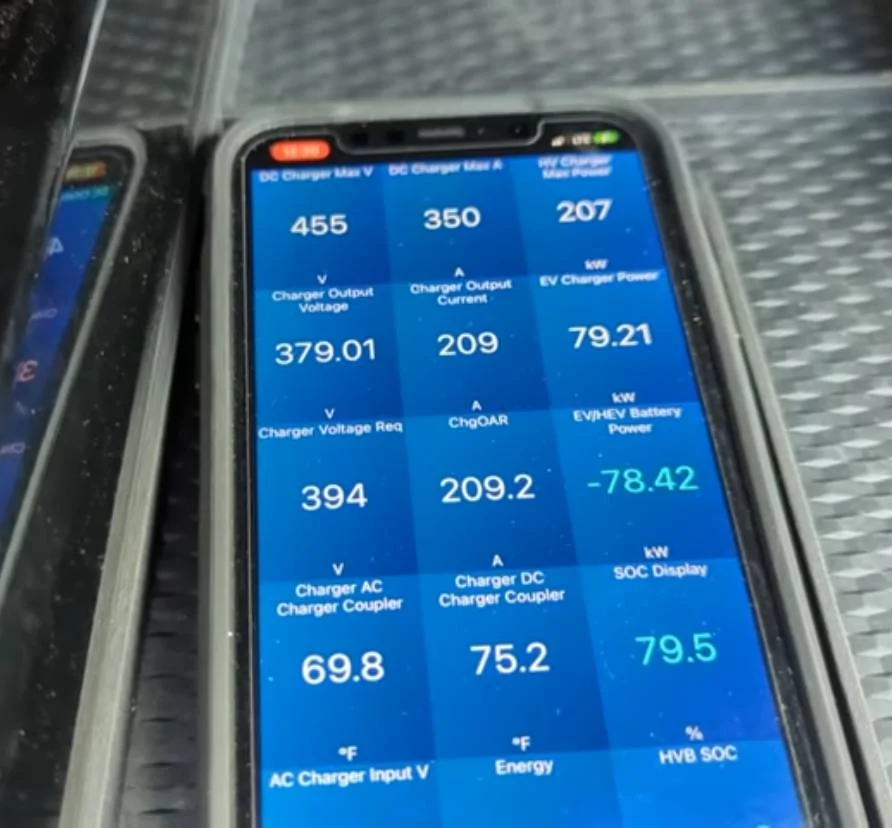

here’s a couple of screenshots from @Mach-E VLOG charge recording from when Ford first adjusted the curve above 80% and you can see that Blucifer was right at 78-79kW.

Ford Mustang Mach-E Charged Mach-E at Tesla Supercharger via Adapter IMG_3078

Ford Mustang Mach-E Charged Mach-E at Tesla Supercharger via Adapter IMG_3079


Flint302

Well-Known Member
First Name
Bill
Joined
Dec 15, 2021
Threads
10
Messages
160
Reaction score
323
Location
Northern NJ
Vehicles
2021 Mach E Premium AWD, 2016 Audi A3
Occupation
Retired government
Country flag
Awesome write-up. Thank you for taking the time to share this.


4sallypat

Well-Known Member
First Name
Pat
Joined
Mar 30, 2022
Threads
66
Messages
2,082
Reaction score
1,590
Location
Southern California
Vehicles
'23 MME delivered May '23 + '22 Lightning July '22
Occupation
Network Tech
Country flag
....
So in summary, the Plug & Charge Supercharger experience is great and getting access is a big deal. This will help non-Tesla travel in some areas immensely. I'm hoping to use a few Superchargers for a trip in a couple weeks, the alternative is a bunch of less reliable stations that are slower. The A2Z adapter works fine and others can't come soon enough. There's going to be a lot of charging disparity until everyone can get access. Dawn of a new age for EVs, the world just got smaller.
Thank you for that detailed report.

Can't wait for mine to ship out this Monday!


david_quick

Well-Known Member
First Name
David
Joined
Sep 10, 2023
Threads
25
Messages
257
Reaction score
162
Location
Bremerton WA
Vehicles
2023 Mach E GT
Occupation
Retired
Country flag
Mach-Lee when did you order the A2Z? I ordered one on 2/29for the same reason. Just trying to get a feel for their shipping times.

Edit: Just looked at the confirmation email it was 3/4.

Last edited:

4sallypat

Well-Known Member
First Name
Pat
Joined
Mar 30, 2022
Threads
66
Messages
2,082
Reaction score
1,590
Location
Southern California
Vehicles
'23 MME delivered May '23 + '22 Lightning July '22
Occupation
Network Tech
Country flag

mach-ebert

Well-Known Member
Joined
Jun 26, 2023
Threads
4
Messages
96
Reaction score
97
Location
Wisconsin
Vehicles
2021 Mach-E Premium FE
Occupation
Technology
Country flag
Mach-Lee when did you order the A2Z? I ordered one on 2/29 for the same reason. Just trying to get a feel for their shipping times.
Ordered mine 2/29 as well. Received the shipping notification on 3/14 and received it on 3/20.


JustBob

Well-Known Member
First Name
Bob
Joined
Feb 25, 2023
Threads
12
Messages
76
Reaction score
129
Location
Wisconsin
Vehicles
Mach-E GTPE, Impala, Santa Fe
Occupation
Engineer
Country flag
Ordered mine 2/29 as well. Received the shipping notification on 3/14 and received it on 3/20.
So many were ordered on that first day that the time you ordered played a big factor for the delivery date. Mine went through at 9:03am with a May delivery date. Later in the day I was hearing August, then September the next day.
