We have no females up here; too cold. Waiting to see how close the cals are.
Yeah, at leat before COVID we could travel some to see some nice 168 lbs females south of the border but now even the borders are closed. God help us :)
Sponsored


OP
OP
EVmodeler

EVmodeler

Well-Known Member
First Name
Doug
Joined
Oct 30, 2020
Threads
10
Messages
132
Reaction score
291
Location
SW Virginia
Vehicles
Mach-E AWD ER IB Job 1
Occupation
Engr Prof emeritus
Country flag
I modified the acceleration model for the RWD extended range MME, and also adjusted the mass to match the Ford target of 6.1 seconds.

I wasn't sure if I should start a new thread for RWD since the title of this thread is AWD.


Attachments

ChasingCoral

Well-Known Member
First Name
Mark
Joined
Feb 3, 2020
Threads
502
Messages
14,306
Reaction score
28,654
Location
Maryland
Vehicles
2021 GB E4X FE, 2022 F-150 Lightning Lariat ER
Occupation
Retired oceanographer
Country flag
I modified the acceleration model for the RWD extended range MME, and also adjusted the mass to match the Ford target of 6.1 seconds.

I wasn't sure if I should start a new thread for RWD since the title of this thread is AWD.
As the thread originator, you can edit the title to just Mach E Acceleration Modeling.

OP
OP
EVmodeler

EVmodeler

Well-Known Member
First Name
Doug
Joined
Oct 30, 2020
Threads
10
Messages
132
Reaction score
291
Location
SW Virginia
Vehicles
Mach-E AWD ER IB Job 1
Occupation
Engr Prof emeritus
Country flag
As the thread originator, you can edit the title to just Mach E Acceleration Modeling.
Done. It is specific to the ER battery so far.
Are there any MPGe numbers/images from window sticker from SR models, RWD or AWD, yet?



ChasingCoral

Well-Known Member
First Name
Mark
Joined
Feb 3, 2020
Threads
502
Messages
14,306
Reaction score
28,654
Location
Maryland
Vehicles
2021 GB E4X FE, 2022 F-150 Lightning Lariat ER
Occupation
Retired oceanographer
Country flag
Done. It is specific to the ER battery so far.
Are there any MPGe numbers/images from window sticker from SR models, RWD or AWD, yet?

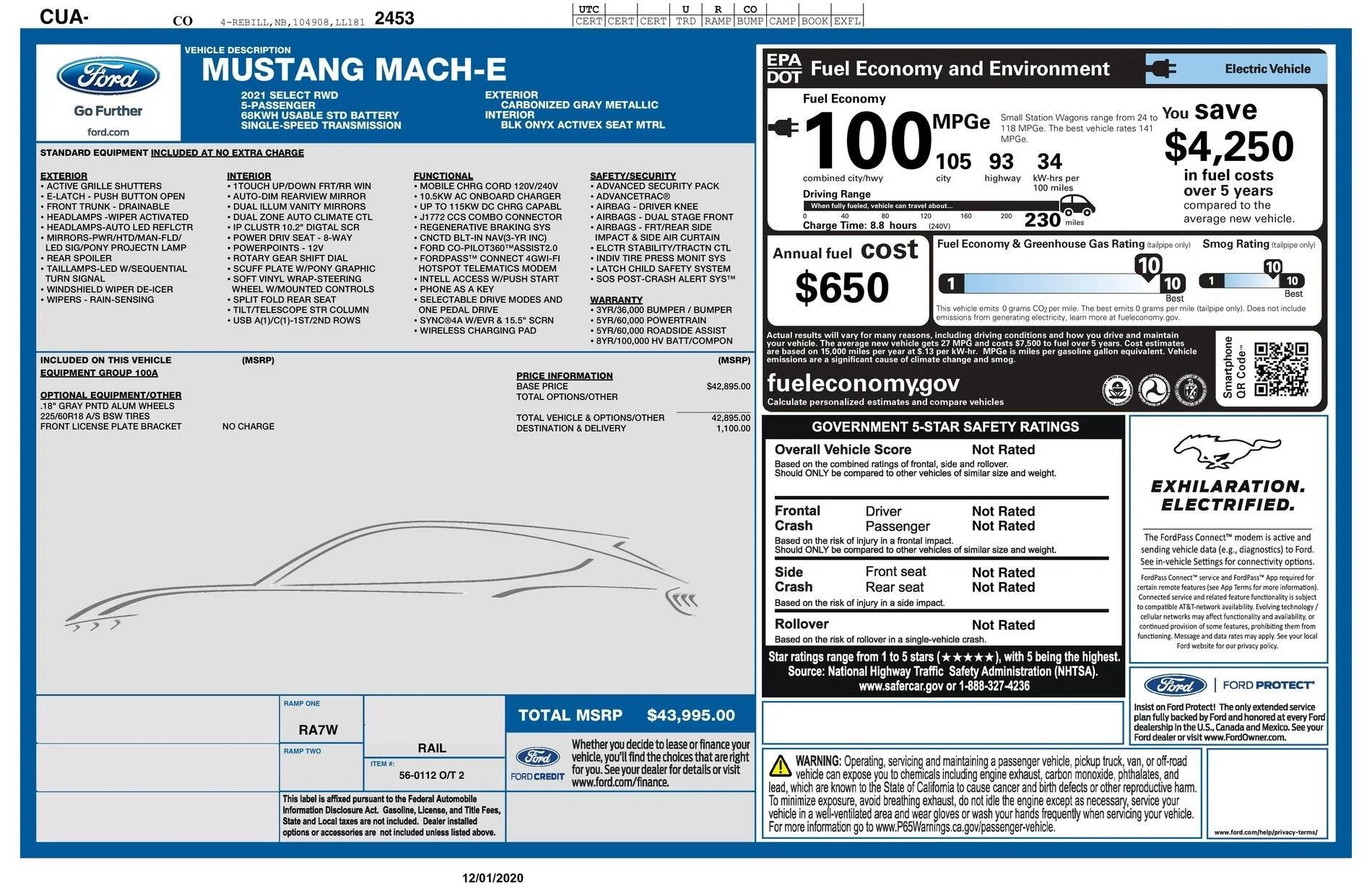

Here's a Select E (RWD, SR)
Ford Mustang Mach-E Mach-E Extended Range -- acceleration modeling Select E window sticker VIN obscured


ChasingCoral

Well-Known Member
First Name
Mark
Joined
Feb 3, 2020
Threads
502
Messages
14,306
Reaction score
28,654
Location
Maryland
Vehicles
2021 GB E4X FE, 2022 F-150 Lightning Lariat ER
Occupation
Retired oceanographer
Country flag

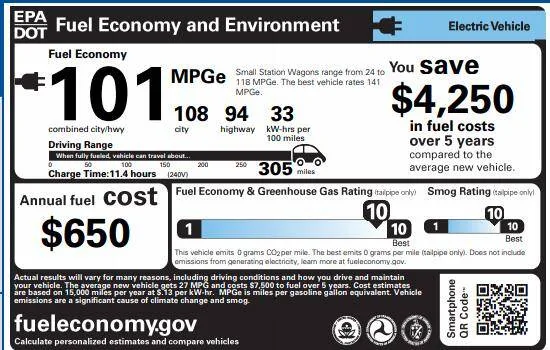

And here's the last one -- Premium E4


Attachments

CHeil402

Well-Known Member
First Name
Chris
Joined
Sep 21, 2020
Threads
8
Messages
726
Reaction score
1,325
Location
King of Prussia, PA
Vehicles
2017 Audi A4, 2021 MME
Occupation
Electrical Engineer
Country flag

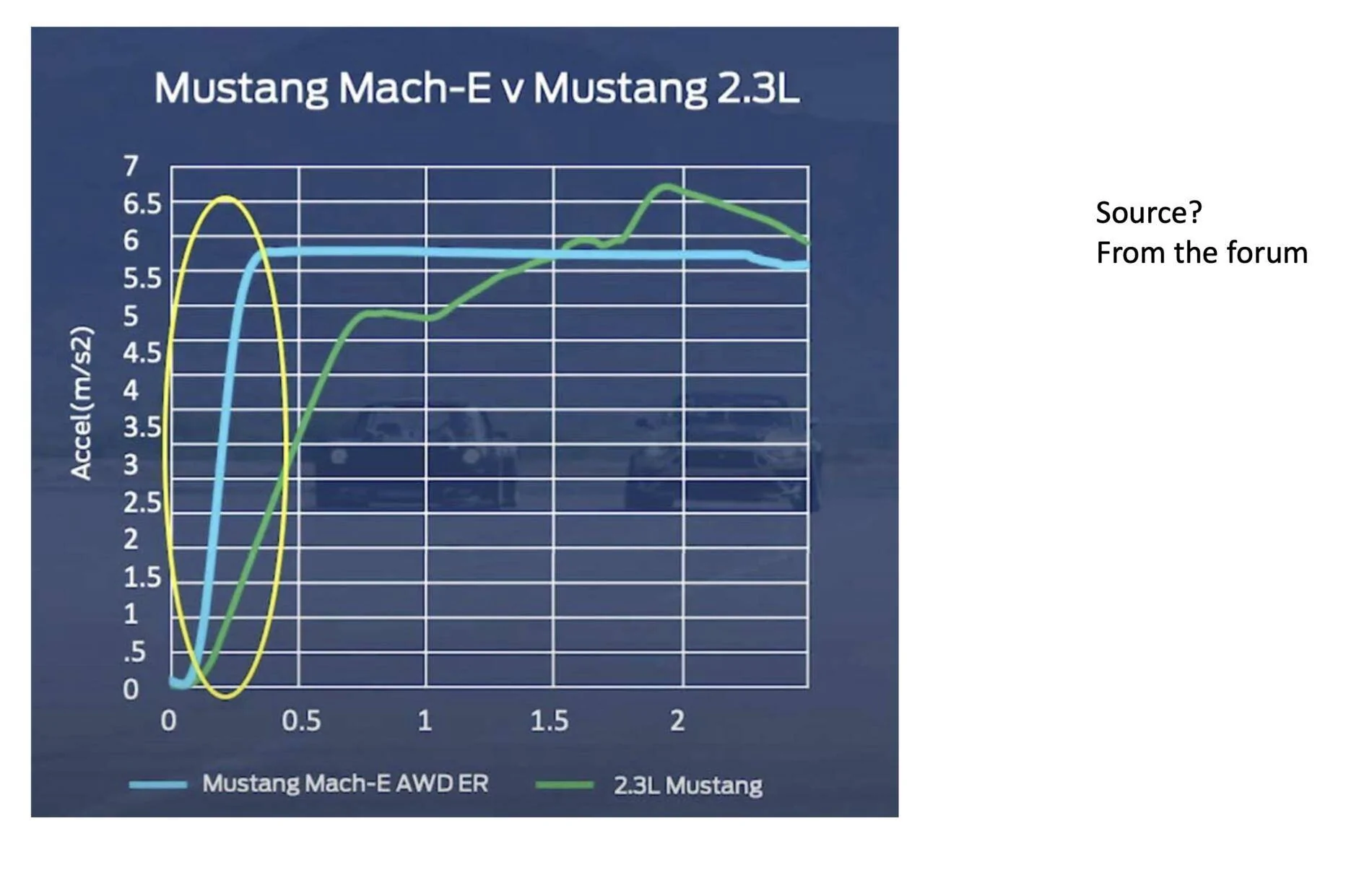

Awesome report! The acceleration chart is presented in a couple of the Mach E webinars. One is here in https://www.macheforum.com/site/threads/mach-e-web-series-part-4-performance-and-charging.1578/

Screen Shot 2020-12-02 at 10.22.43 AM.webp
That's some impressive jerk! (It's an engineering unit, I swear... jerk is the rate of change of acceleration over time, much like acceleration is the rate of change of velocity over time).

Even if the ICE mustang has a higher peak acceleration, the jerk rates don't compare which is what gives you that EV 'kick' feeling off the line. For reference, that works out to about 32 mphpsps (miles per hour per second per second). And for comparison, passenger trains (what I work with in my day job) typically limit the jerk rate in all but emergency braking to 3 mphpsps so people don't get hurt :p.


ChasingCoral

Well-Known Member
First Name
Mark
Joined
Feb 3, 2020
Threads
502
Messages
14,306
Reaction score
28,654
Location
Maryland
Vehicles
2021 GB E4X FE, 2022 F-150 Lightning Lariat ER
Occupation
Retired oceanographer
Country flag
That's some impressive jerk! (It's an engineering unit, I swear... jerk is the rate of change of acceleration over time, much like acceleration is the rate of change of velocity over time).

Even if the ICE mustang has a higher peak acceleration, the jerk rates don't compare which is what gives you that EV 'kick' feeling off the line. For reference, that works out to about 32 mphpsps (miles per hour per second per second). And for comparison, passenger trains (what I work with in my day job) typically limit the jerk rate in all but emergency braking to 3 mphpsps so people don't get hurt :p.
You can see the jerk at 0:19 in this video
That's me trying to maintain the video of the road while fighting the jerk (the car's jerk, not talking about anyone in the car).


CHeil402

Well-Known Member
First Name
Chris
Joined
Sep 21, 2020
Threads
8
Messages
726
Reaction score
1,325
Location
King of Prussia, PA
Vehicles
2017 Audi A4, 2021 MME
Occupation
Electrical Engineer
Country flag
You can see the jerk at 0:19 in this video
That's me trying to maintain the video of the road while fighting the jerk (the car's jerk, not talking about anyone in the car).
Excellent engineering example! Per the accel curve, the jerk goes to zero after that 0.4 second mark (right as you stabalize the camera, haha).

OP
OP
EVmodeler

EVmodeler

Well-Known Member
First Name
Doug
Joined
Oct 30, 2020
Threads
10
Messages
132
Reaction score
291
Location
SW Virginia
Vehicles
Mach-E AWD ER IB Job 1
Occupation
Engr Prof emeritus
Country flag
That's some impressive jerk! (It's an engineering unit, I swear... jerk is the rate of change of acceleration over time, much like acceleration is the rate of change of velocity over time).

Even if the ICE mustang has a higher peak acceleration, the jerk rates don't compare which is what gives you that EV 'kick' feeling off the line. For reference, that works out to about 32 mphpsps (miles per hour per second per second). And for comparison, passenger trains (what I work with in my day job) typically limit the jerk rate in all but emergency braking to 3 mphpsps so people don't get hurt :p.
And don't forget snap crackle and pop - yes, real names for even higher order derivatives.
I model and evaluate Longitudinal jerk for ACC, and lateral jerk for lane centering.
