OP
SAVAGE

SAVAGE

Well-Known Member
First Name
Jefferson
Joined
Jun 24, 2020
Messages
64
Reaction score
274
Location
Iowa
First Name
Jefferson
Vehicles
MME
Country flag
    Featured
  • Thread starter
  • Thread Starter
  • #76
How’d you pop out the hole for the cable? Does it look ok?
There is an area in the charger designated as a 'knock out' to cut around and allow for the connection to come in.





Advertisement



Maquis

Well-Known Member
First Name
Dave
Joined
Dec 21, 2020
Messages
341
Reaction score
447
Location
Illinois
First Name
Dave
Vehicles
2021 Mach E Premium; 2017 F150 XLT; 2013 Explorer XLT; 1965 Mustang Convertible; 1953 Chevy 3100
Country flag
There is an area in the charger designated as a 'knock out' to cut around and allow for the connection to come in.
I drilled mine out with a holesaw. It looked too stout to knock it out without damaging something.


TheVirtualTim

Well-Known Member
First Name
Tim
Joined
Oct 11, 2020
Messages
374
Reaction score
766
Location
Dearborn, MI
First Name
Tim
Vehicles
Mach-E First Edition, Escape Hybrid
Country flag
I drilled mine out with a holesaw. It looked too stout to knock it out without damaging something.
This is basically what I did (although I fed the power in through the back) ... but the "punch outs" looked like they had too much material to just punch out ... so I used a 1" spade bit.

Electricians have hole punches that will punch into the service panels so they can run conduits, etc. ... and those things punch right through the metal. One of those punches would easily pop through the plastic case material.

My guess is they expect the electricians will punch the holes using their tools. In my case, I generally hang the hardware and my electrician connects the wiring -- which means I put my own hole in the box.

Part of my install was some carpentry work. My garage is not finished ... the studs are all visible. So I needed to make a panel between studs to mount it. I did that work and mounted the wood panel, installed the bracket, determined where the wiring hole needed to be and put the holes through the EVSE box and through the wood.

From there... the install is pretty easy so the electrician's time is minimal.

(I should mention that my electrician had already pre-run the wire ... we were just waiting for the charger).


Maquis

Well-Known Member
First Name
Dave
Joined
Dec 21, 2020
Messages
341
Reaction score
447
Location
Illinois
First Name
Dave
Vehicles
2021 Mach E Premium; 2017 F150 XLT; 2013 Explorer XLT; 1965 Mustang Convertible; 1953 Chevy 3100
Country flag
[QUOTE="TheVirtualTim, post: 105191, member: 1606"

Electricians have hole punches that will punch into the service panels so they can run conduits, etc. ... and those things punch right through the metal. One of those punches would easily pop through the plastic case material.

[/QUOTE]

Hah! I have a set of knockout punches, but I never thought to use them on plastic. I'm sure it would have worked fine and made less of a mess than my holesaw.


Garbone

Well-Known Member
First Name
Gary
Joined
Dec 16, 2020
Messages
212
Reaction score
252
Location
Florida
First Name
Gary
Vehicles
21 Mach E Select RWD, 06 Mustang, 12 Explorer, 62 C10
Occupation
Loafer
Country flag

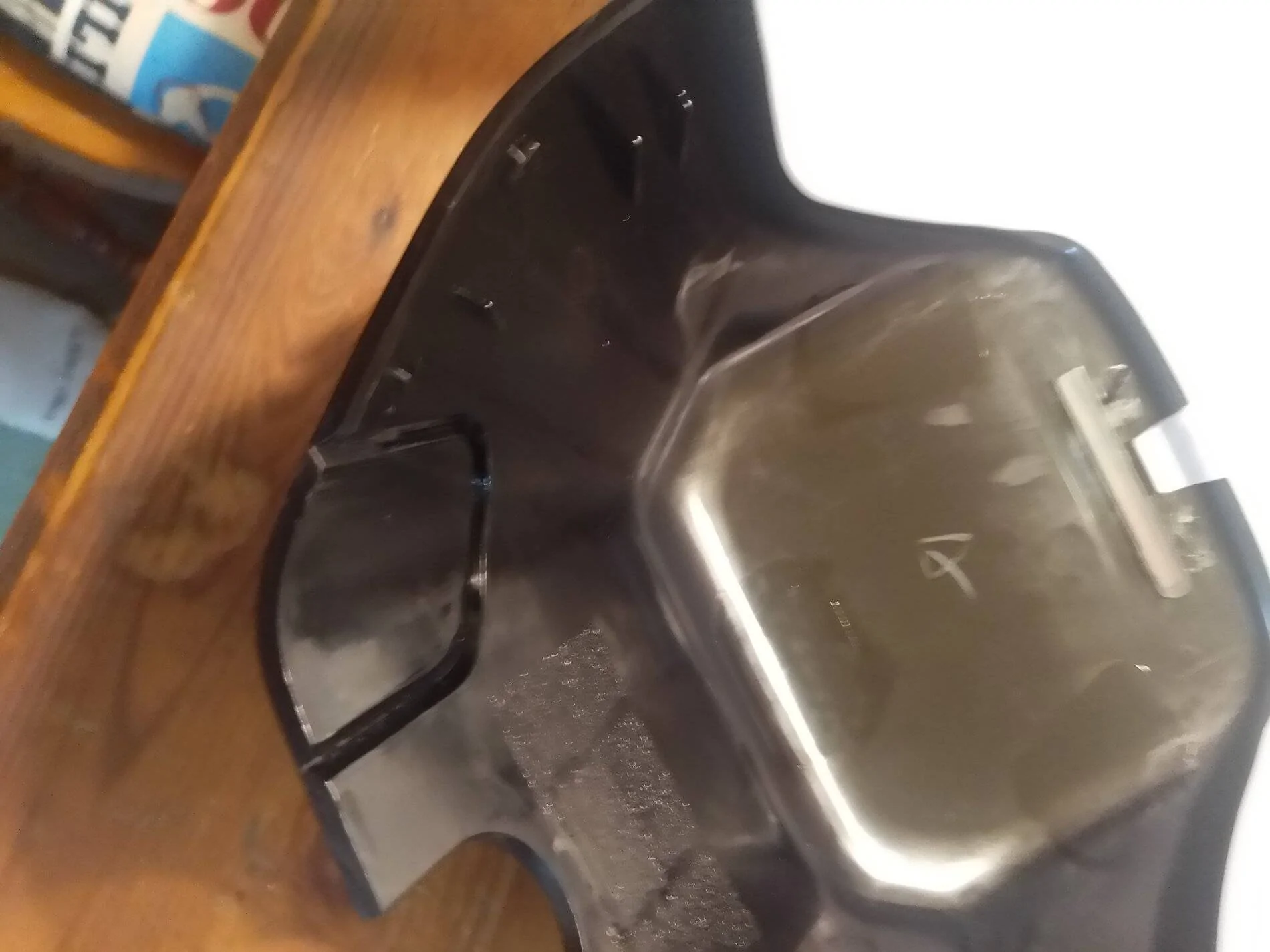

Received ours today. Wife said "That's nice, reminds me of that episode of The Office.". Huh.

She meant this.


On another note, the knockouts on the outer case will cut out easily with a set of dikes and worrying the rear joint.



The bottom of the inner closure has threaded opening that will accept a gland or bulkhead fitting. Pretty nice.


Jimrpa

Well-Known Member
First Name
Jim
Joined
Sep 10, 2020
Messages
744
Reaction score
918
Location
Wayne, PA
First Name
Jim
Vehicles
2018 Ford Escape
Country flag
This is basically what I did (although I fed the power in through the back) ... but the "punch outs" looked like they had too much material to just punch out ... so I used a 1" spade bit.

Electricians have hole punches that will punch into the service panels so they can run conduits, etc. ... and those things punch right through the metal. One of those punches would easily pop through the plastic case material.

My guess is they expect the electricians will punch the holes using their tools. In my case, I generally hang the hardware and my electrician connects the wiring -- which means I put my own hole in the box.

Part of my install was some carpentry work. My garage is not finished ... the studs are all visible. So I needed to make a panel between studs to mount it. I did that work and mounted the wood panel, installed the bracket, determined where the wiring hole needed to be and put the holes through the EVSE box and through the wood.

From there... the install is pretty easy so the electrician's time is minimal.

(I should mention that my electrician had already pre-run the wire ... we were just waiting for the charger).
This sounds pretty similar to my garage - unfinished, exposed studs. The difference is that I'm not the type you want doing carpentry. There would likely be severed appendages, blood everywhere, and loss of structural integrity in my garage :D I'm hoping that my electrician can figure out the necessary panel needed to mount the Ford Connected Charge Station. Verizon did something similar for the ONT and power supply for the FiOS connection.


Jimrpa

Well-Known Member
First Name
Jim
Joined
Sep 10, 2020
Messages
744
Reaction score
918
Location
Wayne, PA
First Name
Jim
Vehicles
2018 Ford Escape
Country flag
Has anyone just mounted their charger to the face of an exposed stud instead of putting on a panel? The mounting bracket has top and bottom center holes for post mounting, and that seems like the simplest/laziest mounting solution for unfinished garages with exposed studs.


Garbone

Well-Known Member
First Name
Gary
Joined
Dec 16, 2020
Messages
212
Reaction score
252
Location
Florida
First Name
Gary
Vehicles
21 Mach E Select RWD, 06 Mustang, 12 Explorer, 62 C10
Occupation
Loafer
Country flag
Has anyone just mounted their charger to the face of an exposed stud instead of putting on a panel? The mounting bracket has top and bottom center holes for post mounting, and that seems like the simplest/laziest mounting solution for unfinished garages with exposed studs.
Should work fine. Just drill pilot holes and get some decent lag bolts and washers, maybe drill out the holes in the plate if they are too small for lag bolts. The screws the unit came with are pretty poor IMO, good lag bolts or tapcons would be preferable.


Maquis

Well-Known Member
First Name
Dave
Joined
Dec 21, 2020
Messages
341
Reaction score
447
Location
Illinois
First Name
Dave
Vehicles
2021 Mach E Premium; 2017 F150 XLT; 2013 Explorer XLT; 1965 Mustang Convertible; 1953 Chevy 3100
Country flag
Has anyone just mounted their charger to the face of an exposed stud instead of putting on a panel? The mounting bracket has top and bottom center holes for post mounting, and that seems like the simplest/laziest mounting solution for unfinished garages with exposed studs.
If I had exposed studs, I would simply cut a couple of 2x4s to fit in between the studs horizontally and screw them in place positioned to catch the 4 holes intended for panel mounting.

And I wouldn't use Tapcons in wood - they're made for masonry.


Garbone

Well-Known Member
First Name
Gary
Joined
Dec 16, 2020
Messages
212
Reaction score
252
Location
Florida
First Name
Gary
Vehicles
21 Mach E Select RWD, 06 Mustang, 12 Explorer, 62 C10
Occupation
Loafer
Country flag
If I had exposed studs, I would simply cut a couple of 2x4s to fit in between the studs horizontally and screw them in place positioned to catch the 4 holes intended for panel mounting.

And I wouldn't use Tapcons in wood - they're made for masonry.
Yup, the supplied screws came with plastic anchors for masonry, tapcons
would be better. Lags for wood.


Mopey

Well-Known Member
First Name
John
Joined
Nov 20, 2019
Messages
271
Reaction score
580
Location
Alaska
First Name
John
Vehicles
2016 Mustang CS/Conv/SC
Occupation
Professional Pony Wrangler
Country flag
Another Ford Charger Installation:

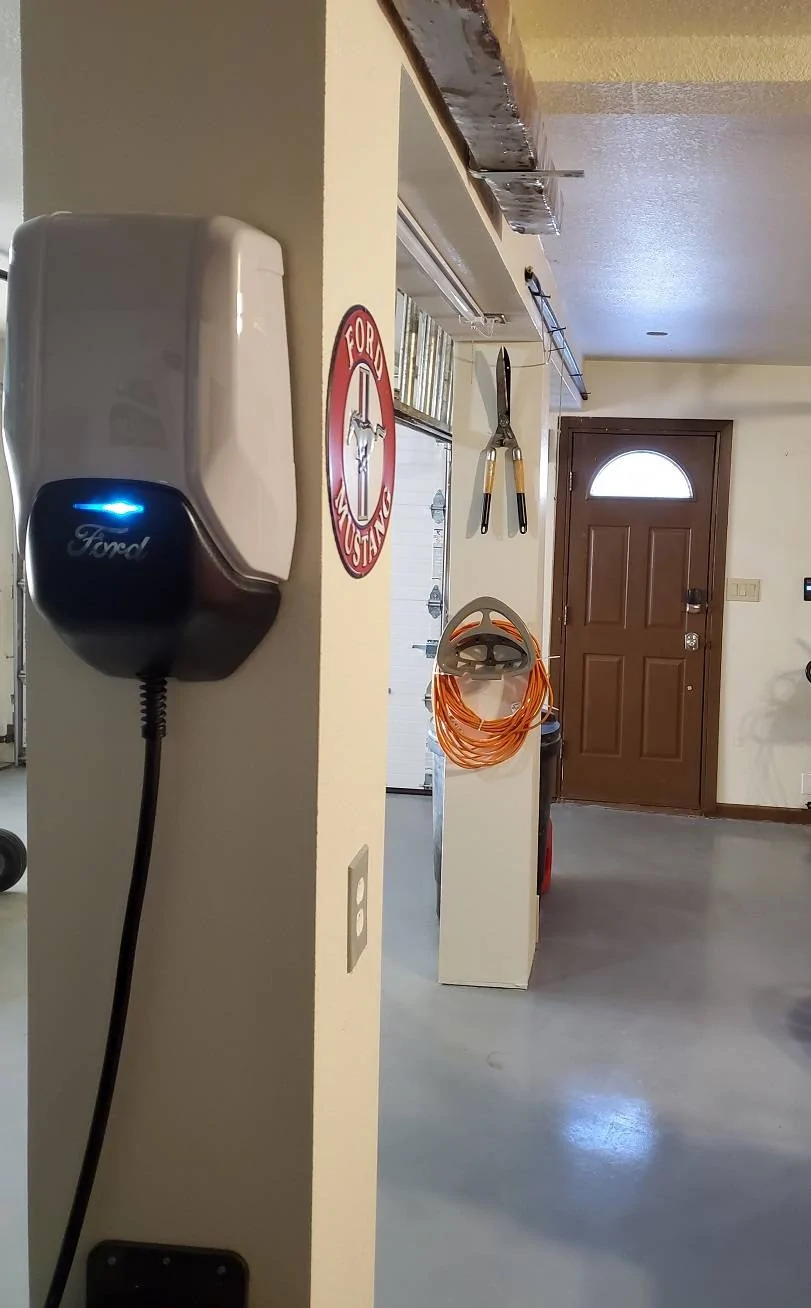

1 Column Mount.jpg

Mounted on column in center of garage - no cable across floor. Electrical box installed as p[art of solar install.

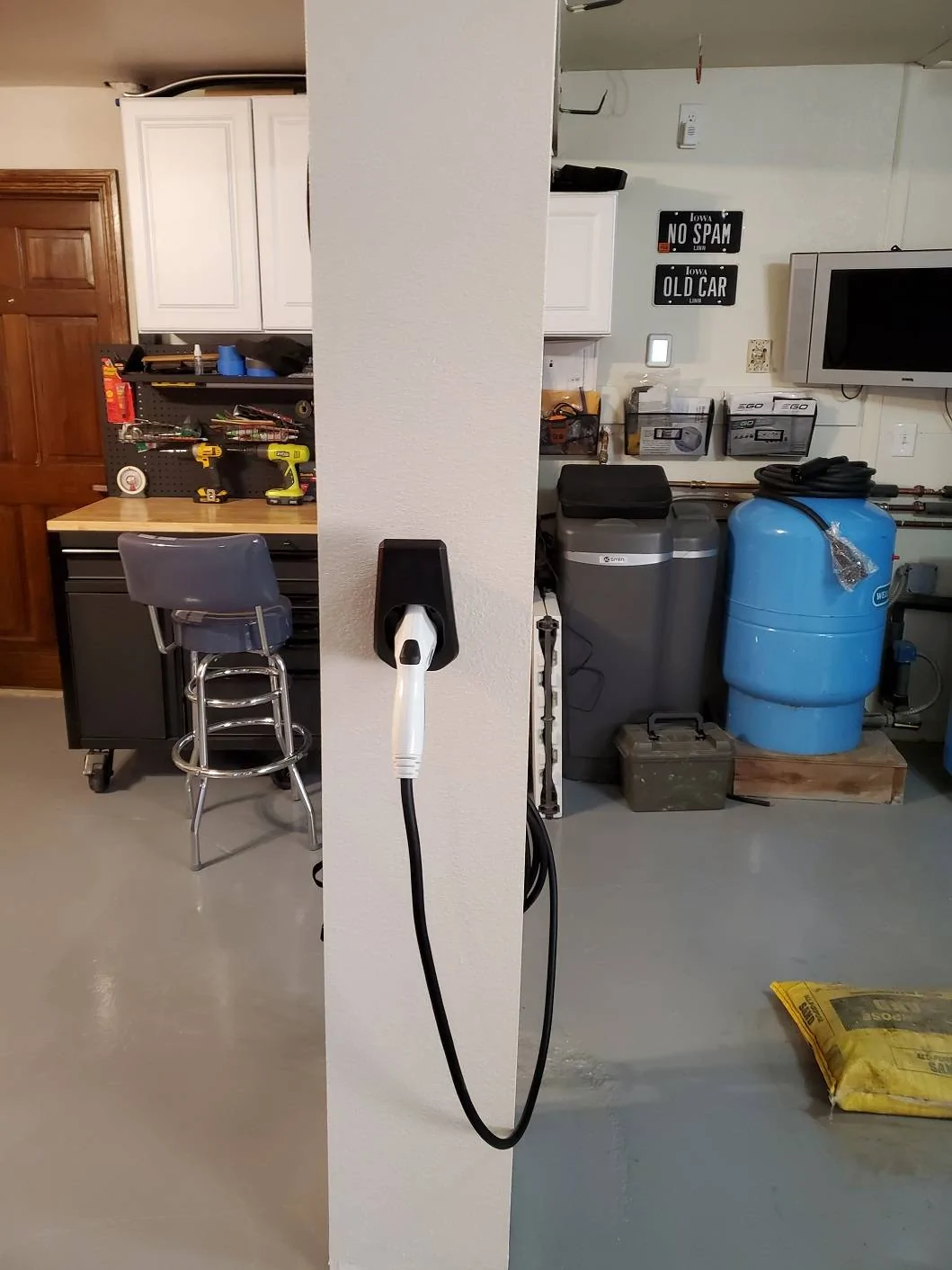

2 Holster.jpg

Holster installed on opposite of column from box. Car plug-in is only 3 feet to right of holster.

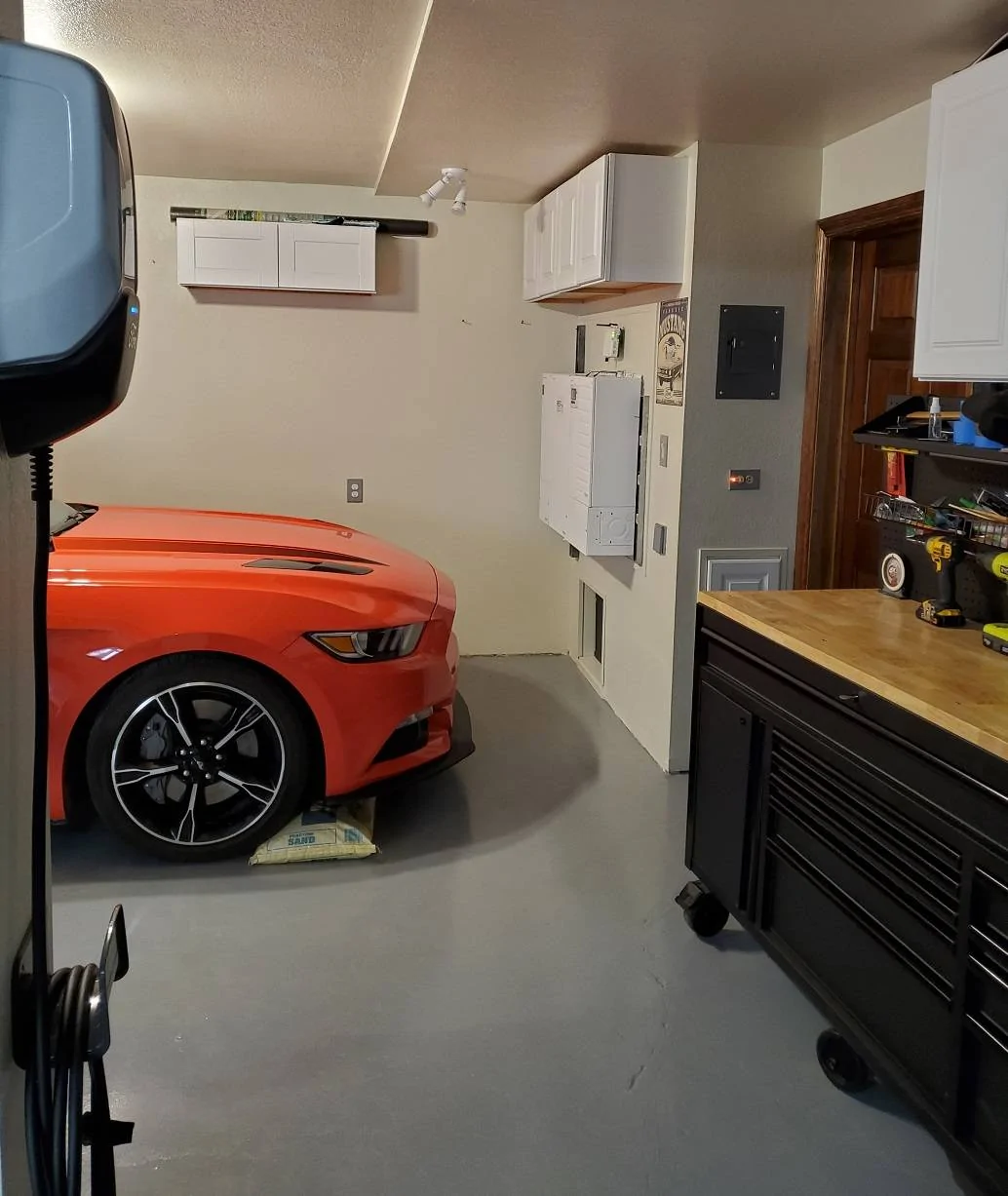

3 Solar Subpanel.jpg


Charger sub-panel installed next to solar panel controller, inverter, & battery. Back up 220v 14-50 outlet installed on that side of garage for parking flexibility. Self-install - took about and hour.


1pt21Gigawatts

Well-Known Member
First Name
David
Joined
Dec 11, 2019
Messages
338
Reaction score
368
Location
New York
First Name
David
Vehicles
2012 Toyota Camry
Occupation
Architect
Country flag
Another Ford Charger Installation:

1 Column Mount.jpg

Mounted on column in center of garage - no cable across floor. Electrical box installed as p[art of solar install.
2 Holster.jpg

Holster installed on opposite of column from box. Car plug-in is only 3 feet to right of holster.

3 Solar Subpanel.jpg


Charger sub-panel installed next to solar panel controller, inverter, & battery. Back up 220v 14-50 outlet installed on that side of garage for parking flexibility. Self-install - took about and hour.
With the 2017 GT and everything, getting some dream garage vibes over here, phew! You put in a hose reel instead of wrapping it around the holster thing?


Mopey

Well-Known Member
First Name
John
Joined
Nov 20, 2019
Messages
271
Reaction score
580
Location
Alaska
First Name
John
Vehicles
2016 Mustang CS/Conv/SC
Occupation
Professional Pony Wrangler
Country flag
With the 2017 GT and everything, getting some dream garage vibes over here, phew! You put in a hose reel instead of wrapping it around the holster thing?
Yes. Put a spare hose reel under the housing to make it look a bit neater on the visible side of the column. There is just enough slack for the hose to reach the car’s charging port.


Maquis

Well-Known Member
First Name
Dave
Joined
Dec 21, 2020
Messages
341
Reaction score
447
Location
Illinois
First Name
Dave
Vehicles
2021 Mach E Premium; 2017 F150 XLT; 2013 Explorer XLT; 1965 Mustang Convertible; 1953 Chevy 3100
Country flag
Another Ford Charger Installation:

1 Column Mount.jpg

Mounted on column in center of garage - no cable across floor. Electrical box installed as p[art of solar install.
2 Holster.jpg

Holster installed on opposite of column from box. Car plug-in is only 3 feet to right of holster.

3 Solar Subpanel.jpg


Charger sub-panel installed next to solar panel controller, inverter, & battery. Back up 220v 14-50 outlet installed on that side of garage for parking flexibility. Self-install - took about and hour.
Fantastic! I wish my garage looked that uncluttered!


Advertisement








Advertisement
Top
