Does it come with the cable to connect to the LVB? if not, what guage cable is recommended?
No cable, this is just the access point. The gauge of cable you want to use is dependent on how much peak amperage you will be pushing through. An ICE with a big, high-compression engine is going to need a lot bigger cable than an EV. Since we’re running approximately 40A @12V- while running FDRS, I chose 10AWG copper and a 50A fuse, with all terminations and splices double-crimped. The lugs on the back of the access point are large enough to accept any size battery cable. 😊🐩
Sponsored



krazieboy

Well-Known Member
Joined
Jun 4, 2021
Threads
7
Messages
355
Reaction score
210
Location
US
Vehicles
Mustang
Country flag
No cable, this is just the access point. The gauge of cable you want to use is dependent on how much peak amperage you will be pushing through. An ICE with a big, high-compression engine is going to need a lot bigger cable than an EV. Since we’re running approximately 40A @12V- while running FDRS, I chose 10AWG copper and a 50A fuse, with all terminations and splices double-crimped. The lugs on the back of the access point are large enough to accept any size battery cable. 😊🐩
Thanks! Thinking of doing this as a future mod. I love the clean look.


JoeBeach

Active Member
First Name
Joe
Joined
Mar 14, 2022
Threads
4
Messages
36
Reaction score
17
Location
Central Florida
Vehicles
Mach E Premium 2WD ER, F150
Occupation
Retired
Country flag
How did you attach to the positive cable in the Mach-E? It has a strange bevel shape.

OP
OP
HuntingPudel

HuntingPudel

Well-Known Member
First Name
Steve
Joined
Mar 23, 2021
Threads
65
Messages
8,064
Reaction score
9,626
Location
Bay Area, CA
Vehicles
2021 MME GT-PE, 1979 Fire-Am, 1972 K/5 Blazer
Occupation
Engineering
Country flag

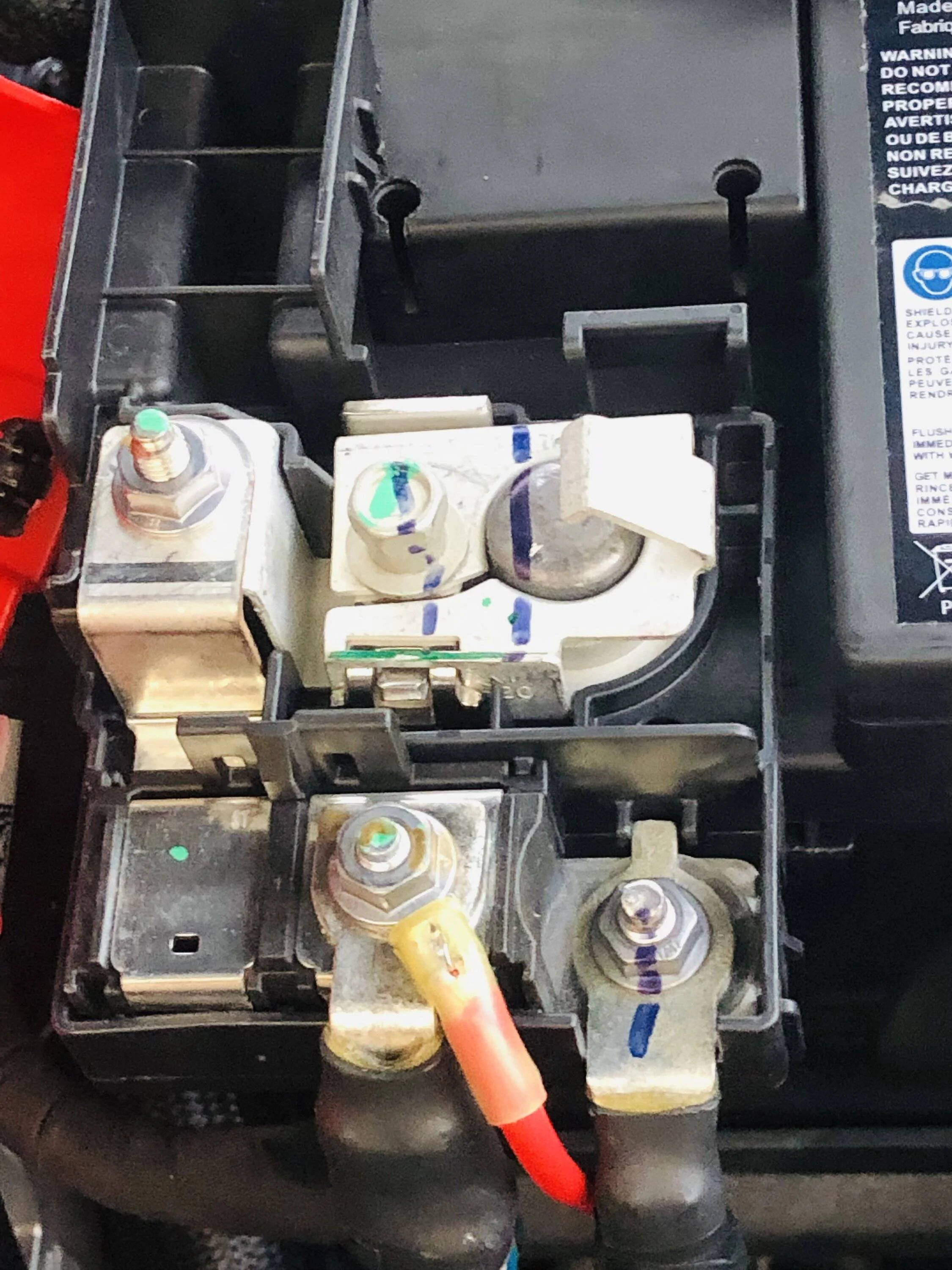

Positive cable is attached directly to the middle stud on the positive battery terminal. 😊🐩

Ford Mustang Mach-E Frunk Tub Removed [Pics] 71A8EF7B-015A-4210-95FE-872A3D4A1547

The negative cable is attached to one of the chassis ground points on the left strut tower, way down low. Kind of hard to get to. 😱🐩

OP
OP
HuntingPudel

HuntingPudel

Well-Known Member
First Name
Steve
Joined
Mar 23, 2021
Threads
65
Messages
8,064
Reaction score
9,626
Location
Bay Area, CA
Vehicles
2021 MME GT-PE, 1979 Fire-Am, 1972 K/5 Blazer
Occupation
Engineering
Country flag

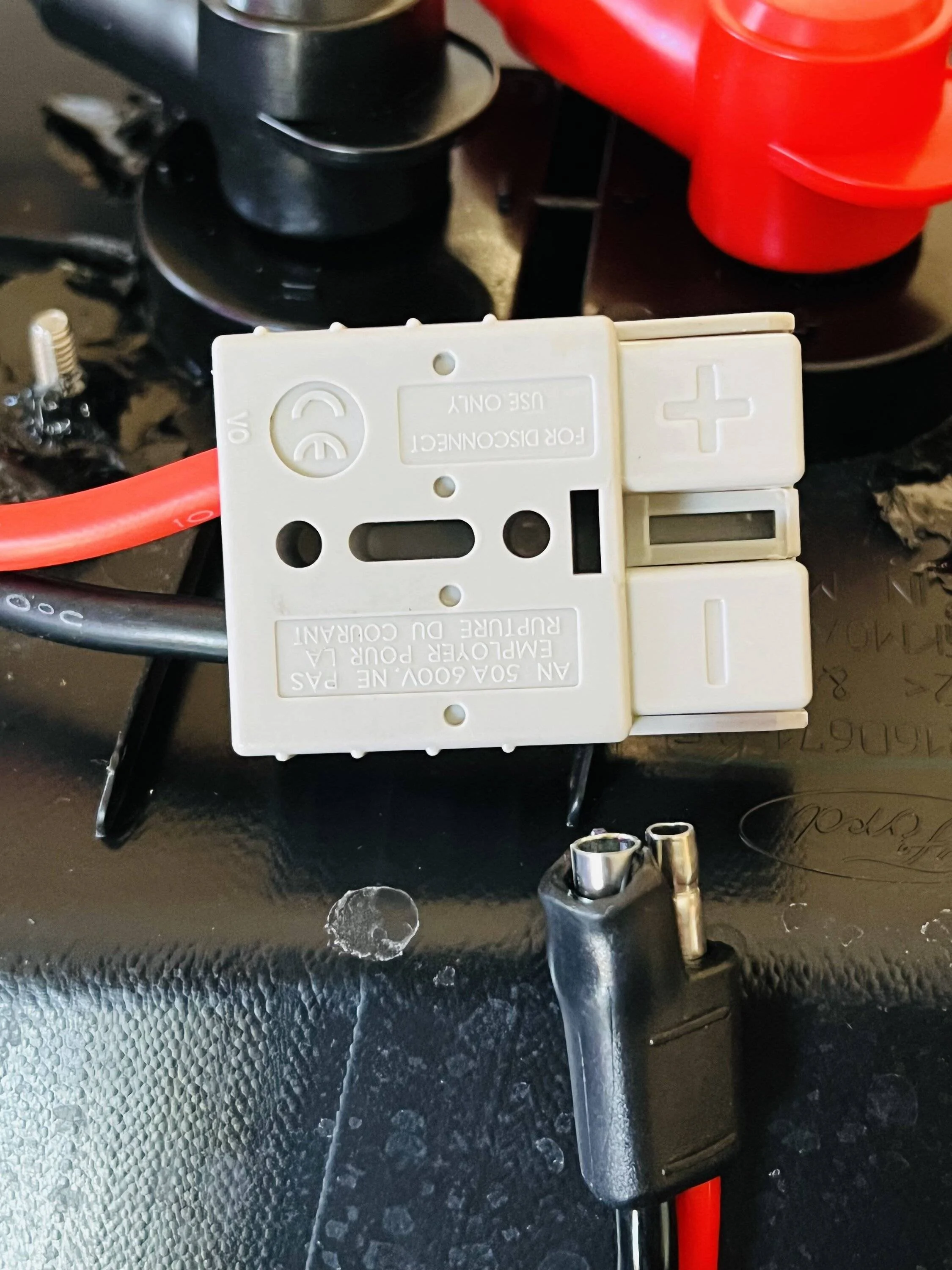

During another frunk removal to replace the jump point that I broke, I noticed after a couple of FDRS sessions the quick-disconnect was getting fried. So I got a forklift charging terminal to use as a QD under the jump point. Both have the same 50A rating, but obviously the QD doesn’t meet spec. The forklift terminal looks obviously able to handle müy calienté juice, so I am optimistic that it will hold up better. Forklift terminal on top, old QD below in the photo
😊🐩

Ford Mustang Mach-E Frunk Tub Removed [Pics] 46AFE205-2E7A-4D85-9D08-2A4679BB5443

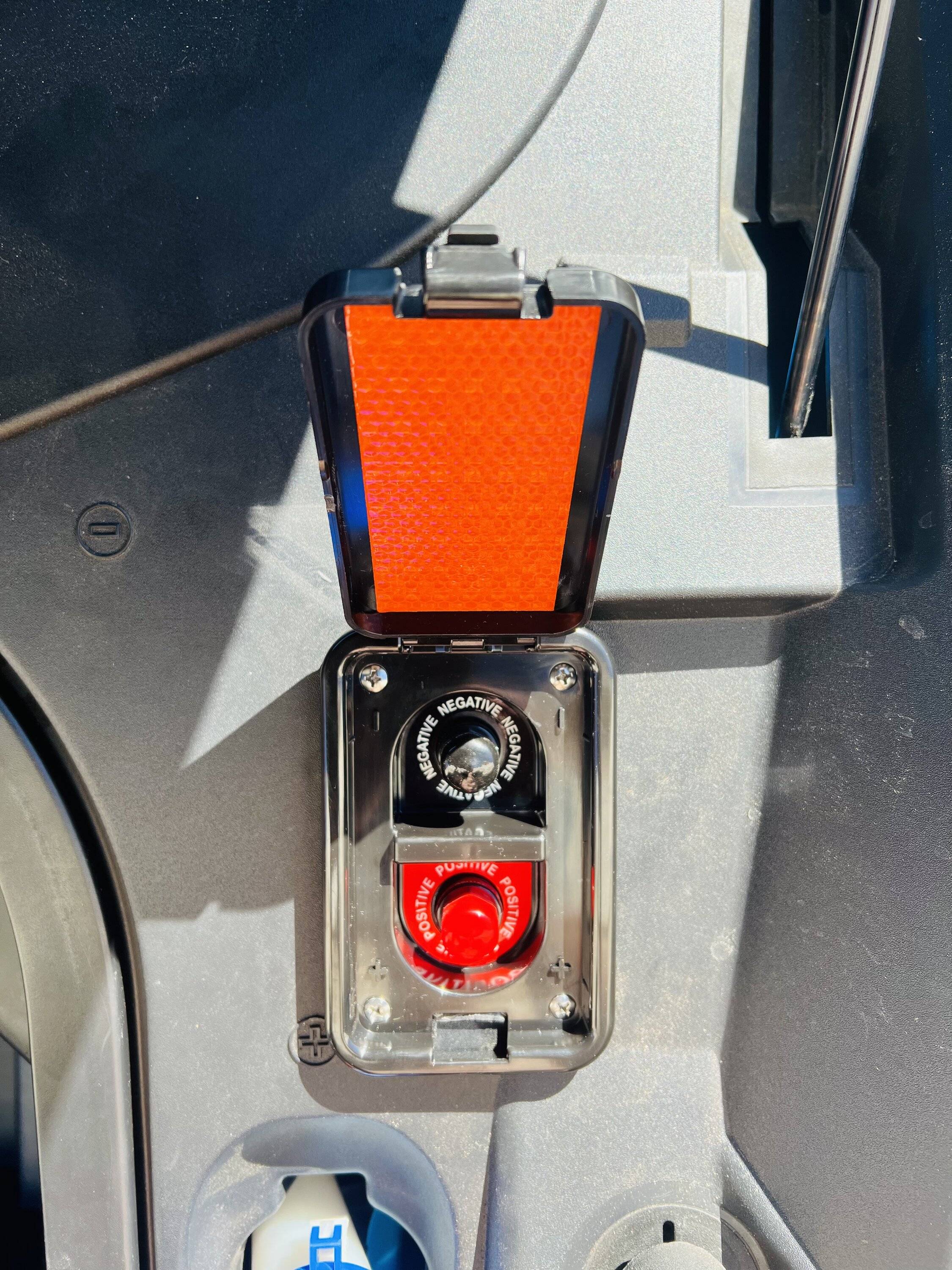

And I added some reflective orange tape to the underside of the lid to prevent screwing it up again: 🤔🐩

Ford Mustang Mach-E Frunk Tub Removed [Pics] 53D1FDD3-DA3F-4B3A-9737-7F873709FA49



Mike G

Well-Known Member
First Name
Mike
Joined
Mar 27, 2022
Threads
10
Messages
4,013
Reaction score
2,954
Location
N. AL, USA
Vehicles
'23 Mach-E GT-PE, '22 F-150 Lightning
Country flag
Wiring rough-ins done. ??
Ford Mustang Mach-E Frunk Tub Removed [Pics] 53D1FDD3-DA3F-4B3A-9737-7F873709FA49

Used heat shrink tubing at intervals to keep the red and black wires together. ??
Ford Mustang Mach-E Frunk Tub Removed [Pics] 53D1FDD3-DA3F-4B3A-9737-7F873709FA49

Ford Mustang Mach-E Frunk Tub Removed [Pics] 53D1FDD3-DA3F-4B3A-9737-7F873709FA49

Quick disconnect roughed-in under the mounting hole for the access point so that the access point can be removed or the beauty panel can be removed with the access point still screwed into the beauty panel. ??
Ford Mustang Mach-E Frunk Tub Removed [Pics] 53D1FDD3-DA3F-4B3A-9737-7F873709FA49

And a quick mock-up of the access point with wiring installed. Access point is not fastened to car yet. Have to wait on the ABS reinforcements to dry on the threaded inserts (and dumb-dumb doggie here forgot what he did with the mounting screws). ??
Ford Mustang Mach-E Frunk Tub Removed [Pics] 53D1FDD3-DA3F-4B3A-9737-7F873709FA49
Is that 10 gauge wire on that SAE connector?
